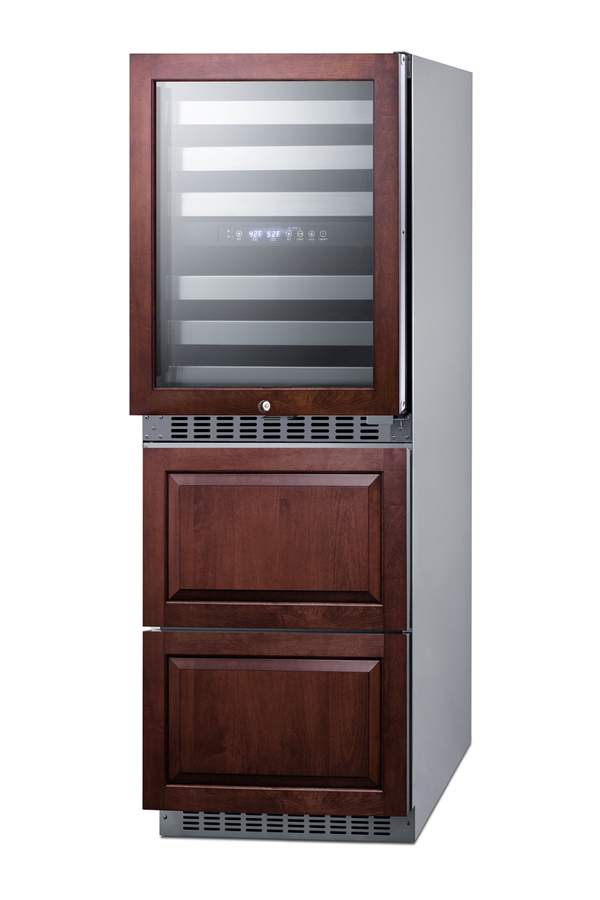

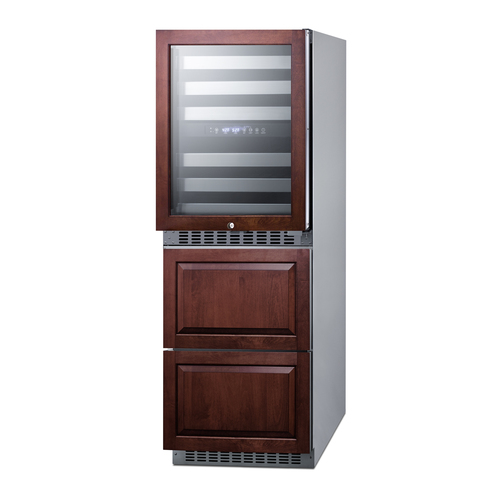

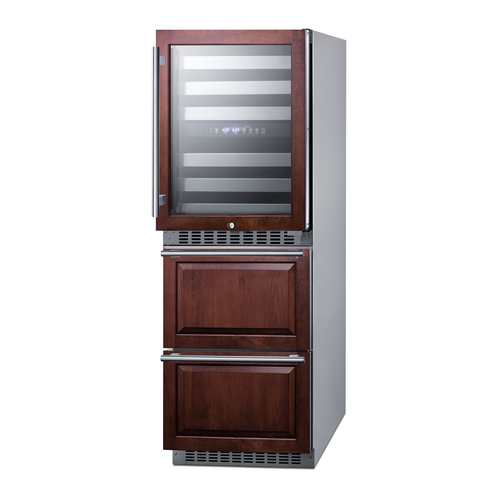

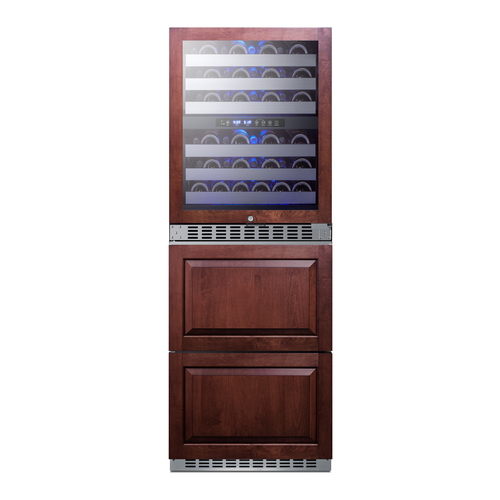

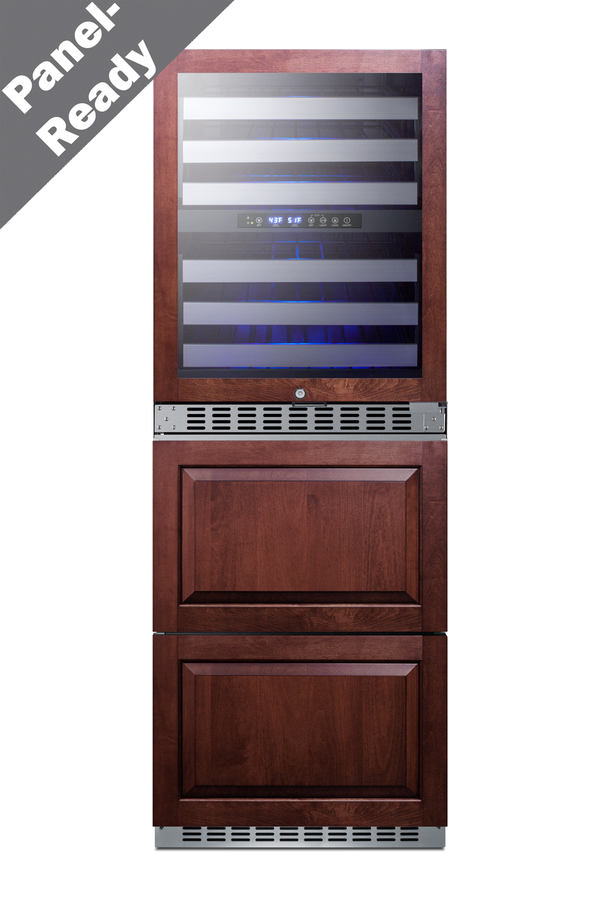

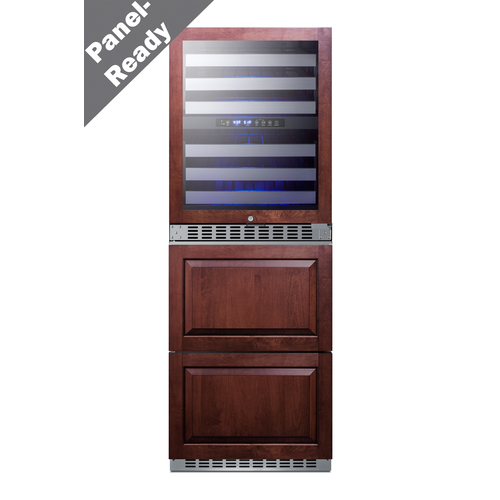

24" Wide Combination Dual-Zone Wine Cellar and 2-Drawer Refrigerator-Freezer (Panels Not Included)

SKU: SWCDRF24PNR
Total refrigeration storage solution with dual-zone wine cellar & two-drawer refrigerator-freezer in one slim-fitting, elegant design
Estimated Time to Ship:

2 weeks

Color: Panel-Ready

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
65.63" H x 23.63" W x 23.75" D
(167cm H x 60cm W x 60cm D)

Overview
Nominal Height 66.0" (168 cm)
Height of Cabinet 65.63" (167 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.75" (60 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 3.9 cu.ft. (110 L)
Bottles 46 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 380.0kWh/year
Other Energy Info ALWC532: 1.25Ams; SPRF34D: 1.0 Amp
Amps 2.25
Voltage/Frequency 115 V AC/60 Hz
Weight 221.0 lbs. (100 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101082851
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Interior Height 1 11.88" (30 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
Interior Height - Drawer 1 10.0" (25 cm)
Interior Width - Drawer 1 18.75" (48 cm)
Interior Depth - Drawer 1 15.5" (39 cm)
Interior Height - Drawer 2 9.25" (23 cm)
Interior Width - Drawer 2 18.75" (48 cm)
Interior Depth - Drawer 2 15.5" (39 cm)
Temperature Range ALWC532: 41°F to 64°F; SPRF34D: 36°F to 43°F/Freezer: -11°F to 11°F
Interior Height 2 11.63" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)

Door
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
LHD - Left hand door swing
Door reversal to left hand swing

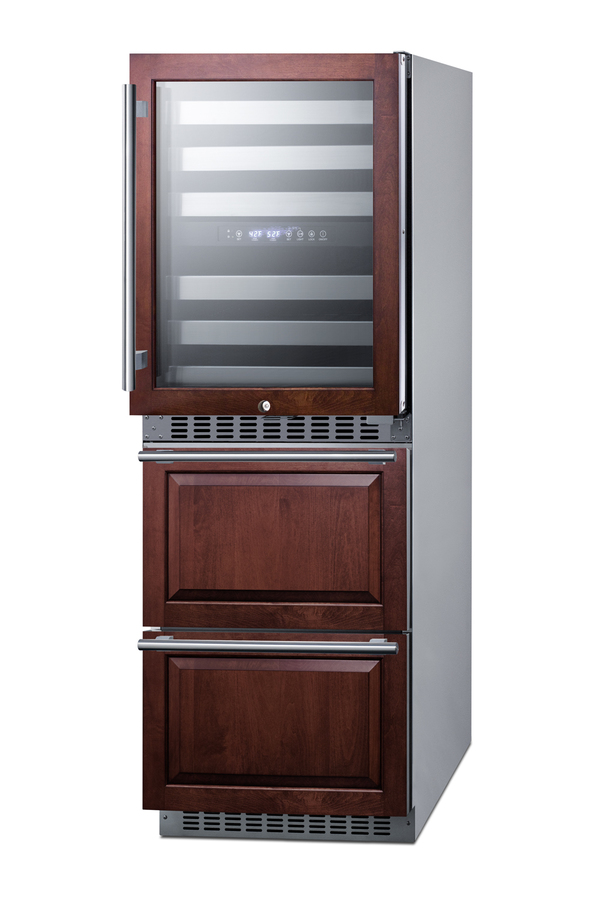

Combination wine cellar and refrigerator-freezer

Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer refrigerator-freezer (model SPRF34D, perfect for home bars, kitchens, and similar residential spaces

24" wide

Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint

Built-in capable

Front-breathing design allows this unit be built in for added space savings

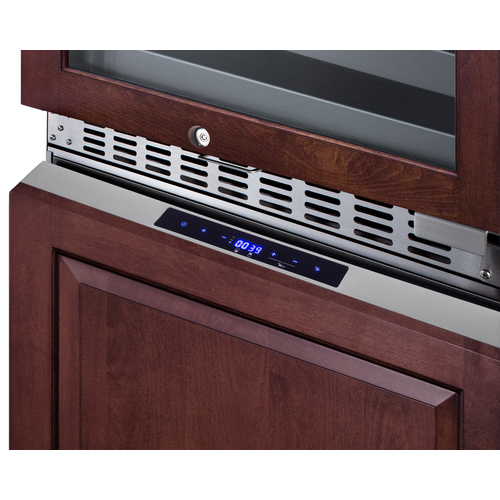

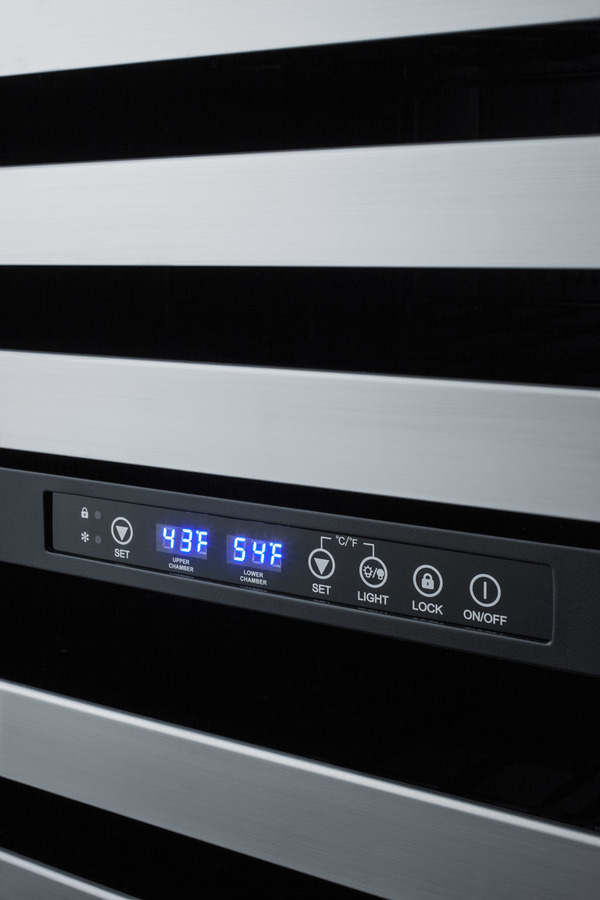

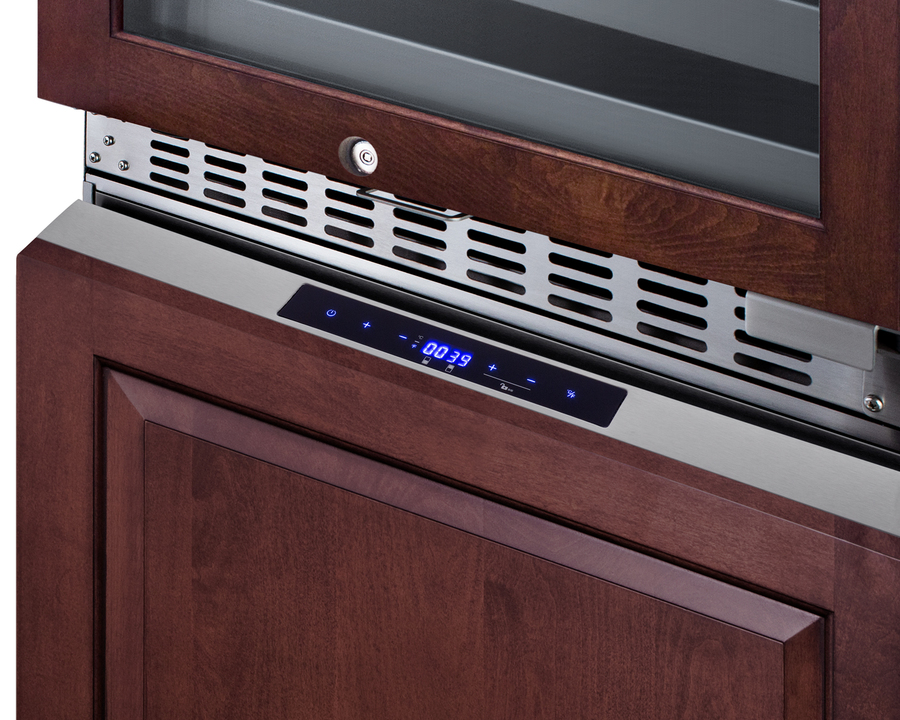

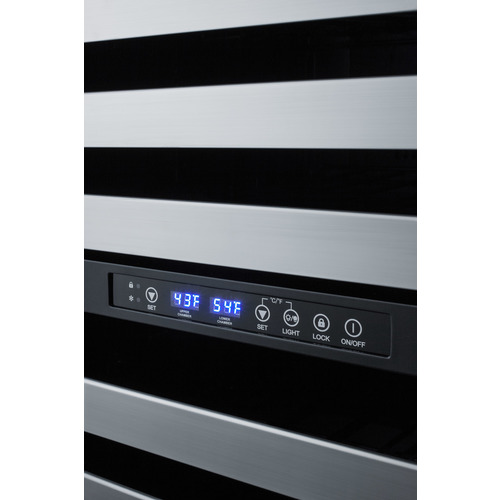

Digital controls (both units)

Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius

LED lighting (both units)

LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of the refrigerator interior for easy access

Double pane tempered glass door (wine cellar)

Provides a full display of the interior, with two levels of glass for added protection

Panel-ready door trim (wine cellar)

Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)

Two temperature zones (wine cellar)

Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

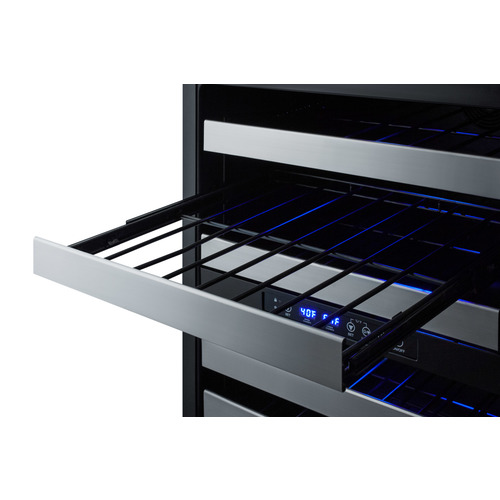

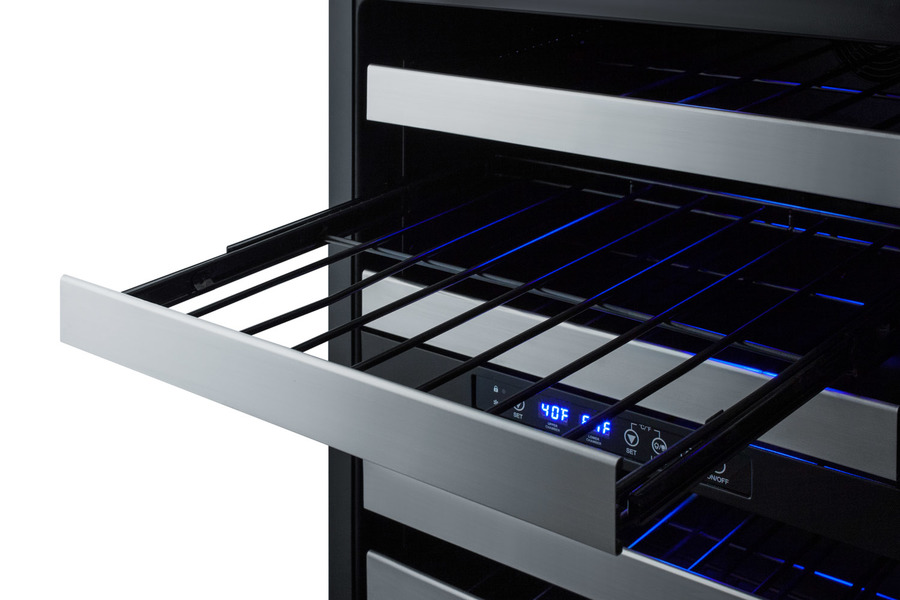

Commercial shelving design (wine cellar)

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

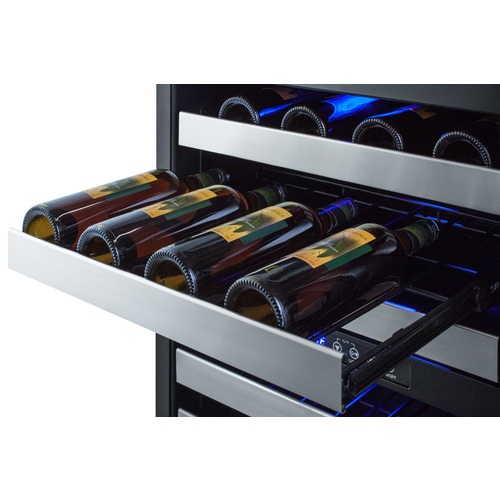

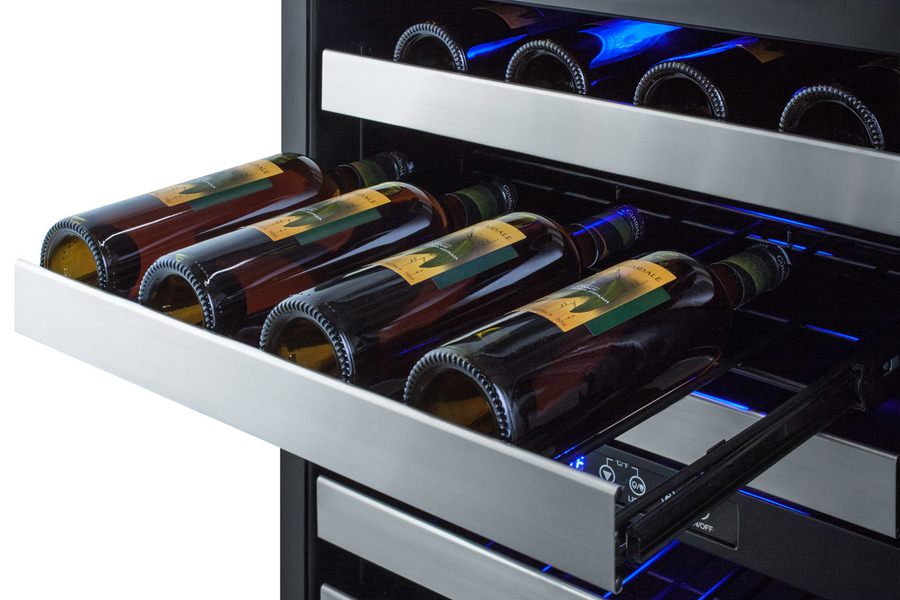

Full-extension shelving (wine cellar)

Shelves move smoothly on ball-bearing glides for easier loading and unloading

Automatic defrost (wine cellar)

Reduced maintenance with auto defrost system

Factory installed lock (wine cellar)

Keyed lock for secure interior, with two keys included

Factory-reversible door swing (wine cellar)

Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"

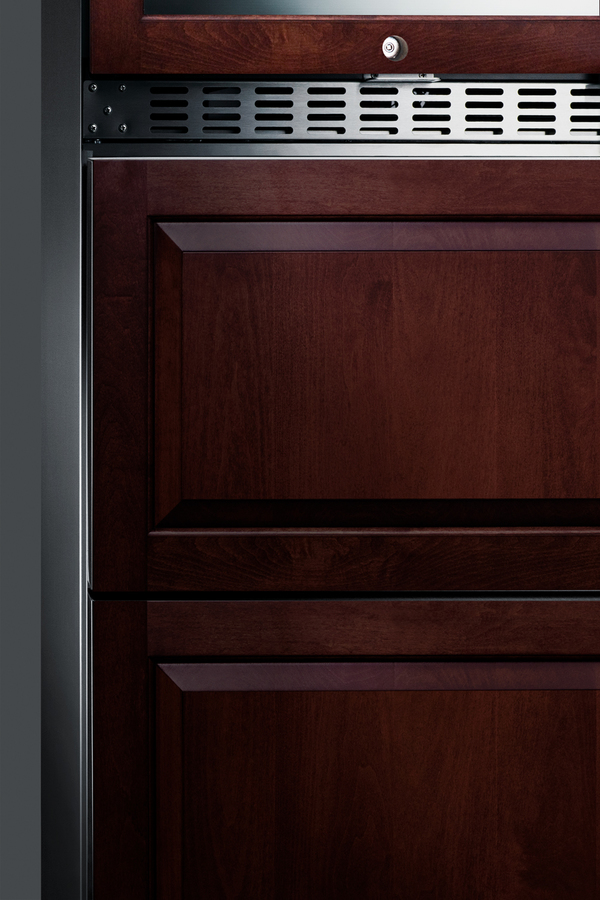

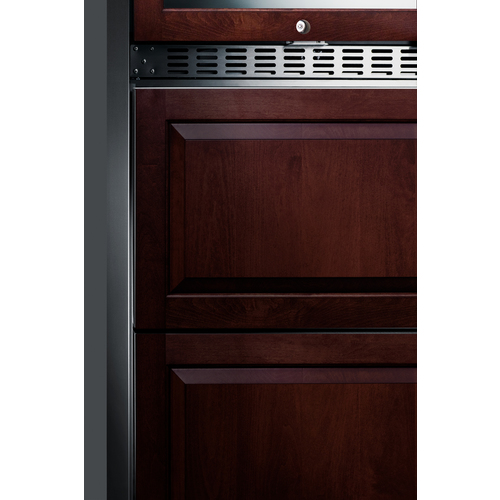

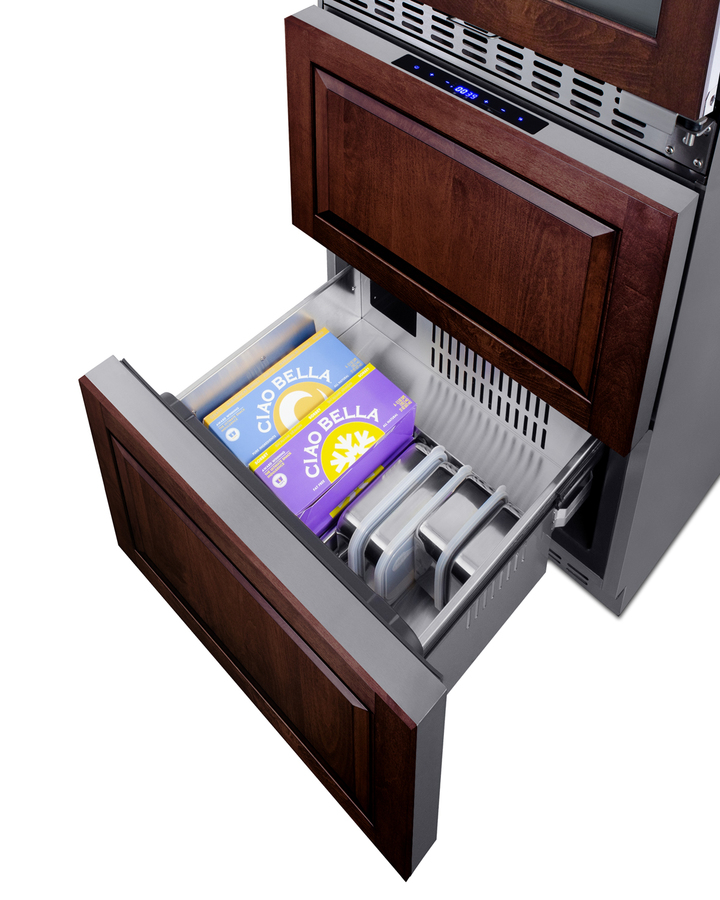

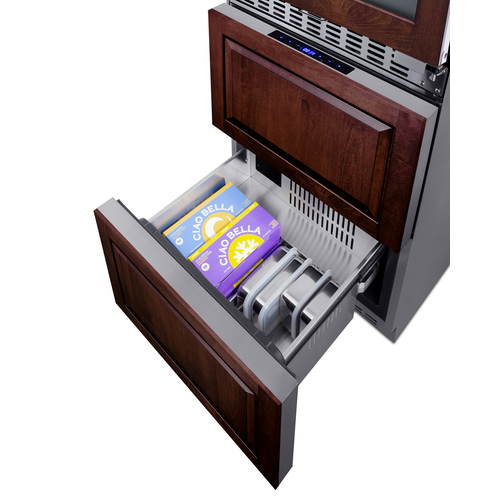

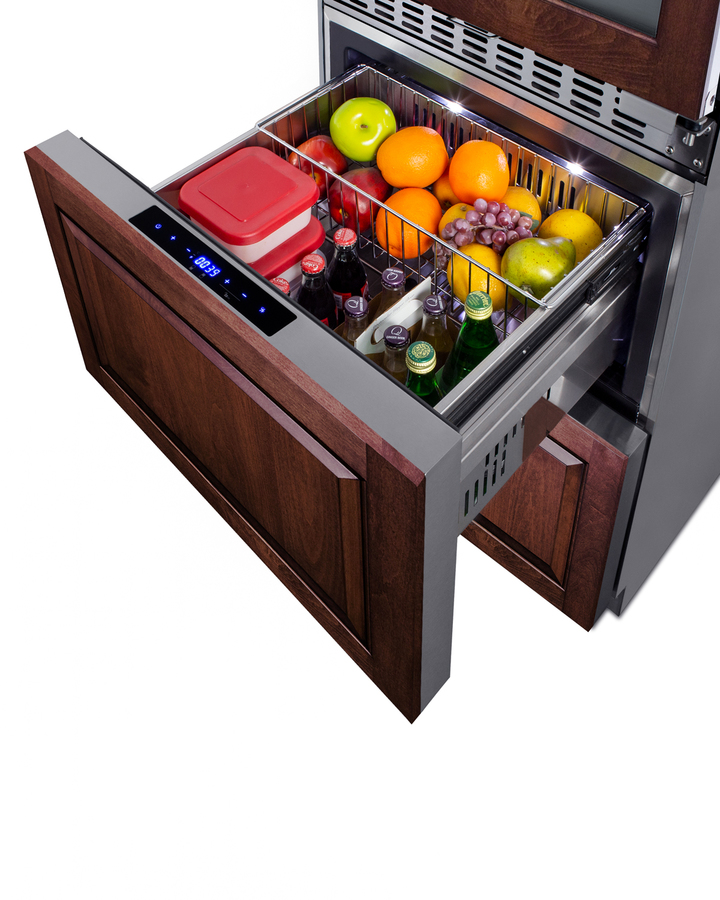

Panel-ready drawer fronts (refrigerator-freezer)

Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

Stainless steel construction (refrigerator-freezer)

Complete stainless steel construction offers added durability in an easy-cleaning design

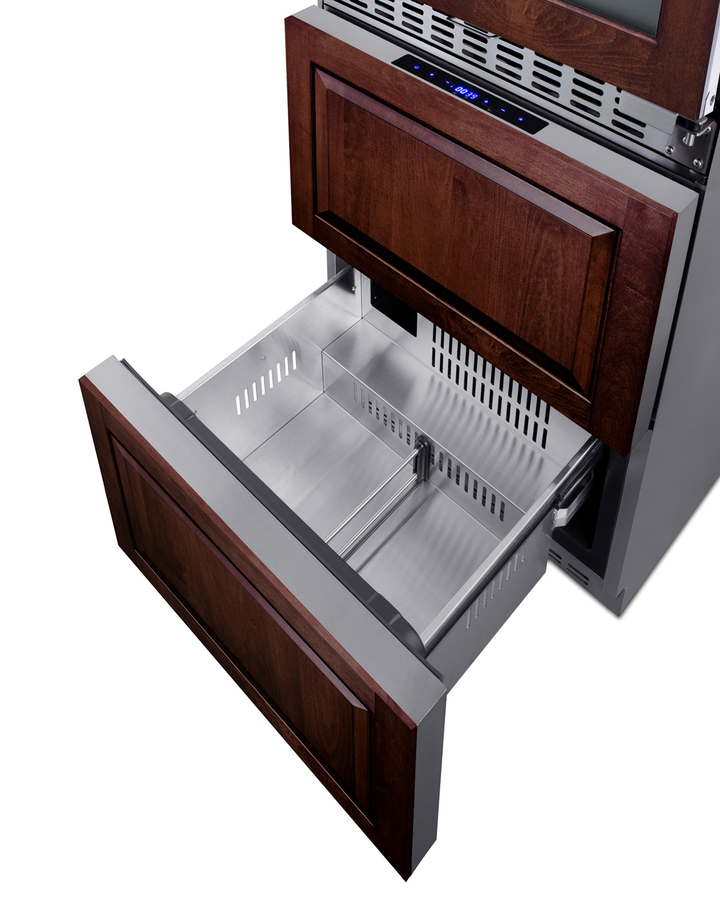

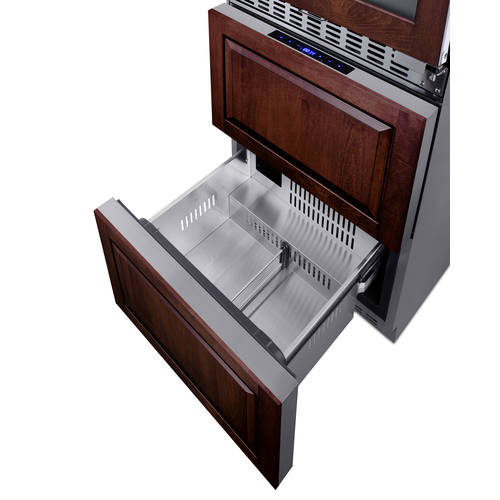

Drawer dividers (refrigerator-freezer)

Two adjustable dividers make it simple to organize the drawer interiors

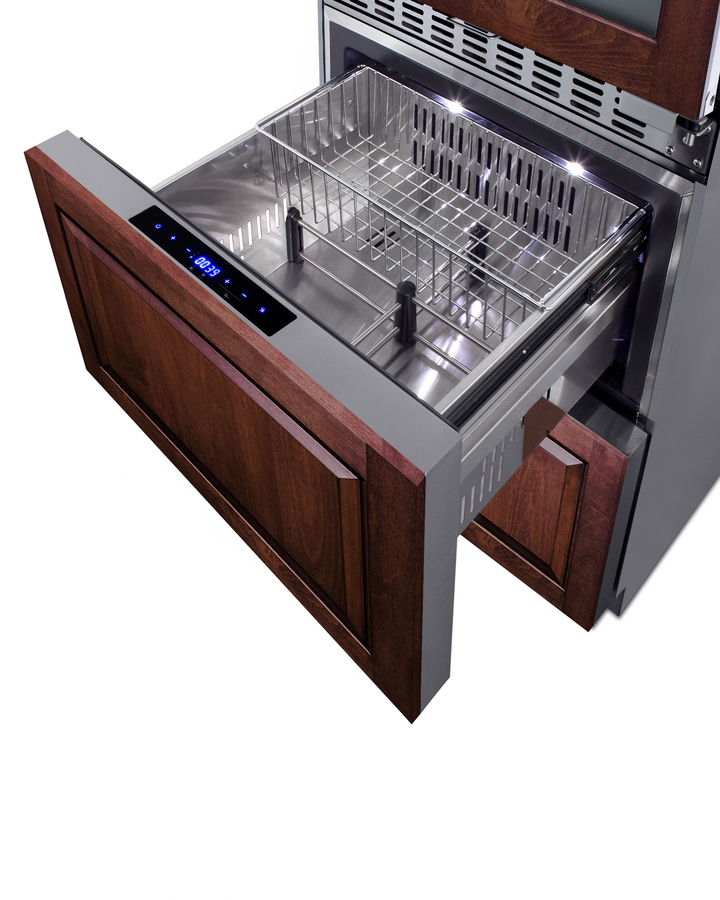

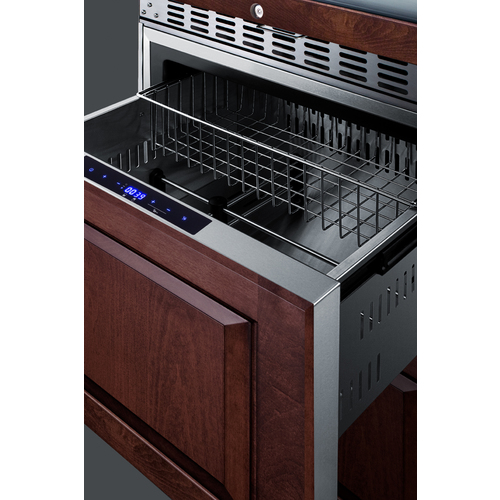

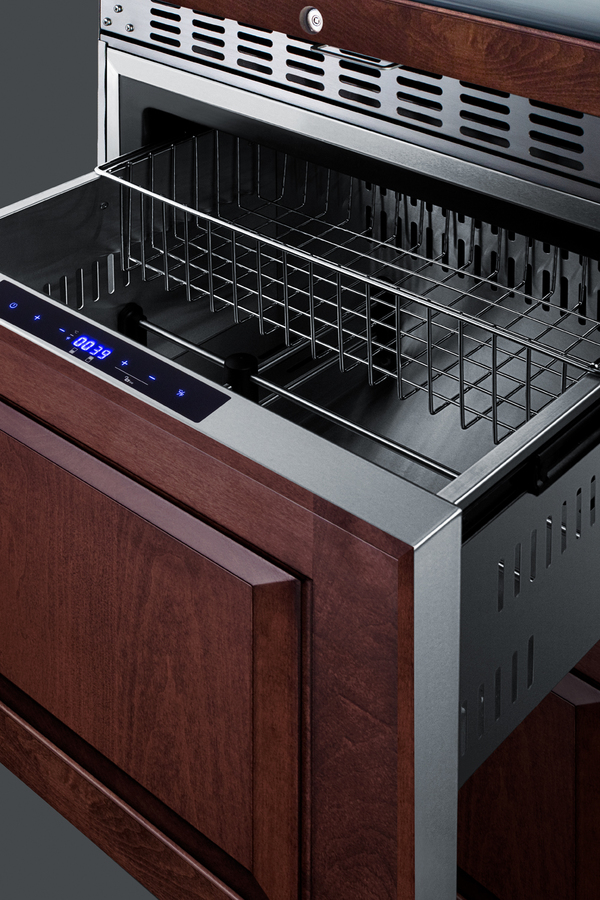

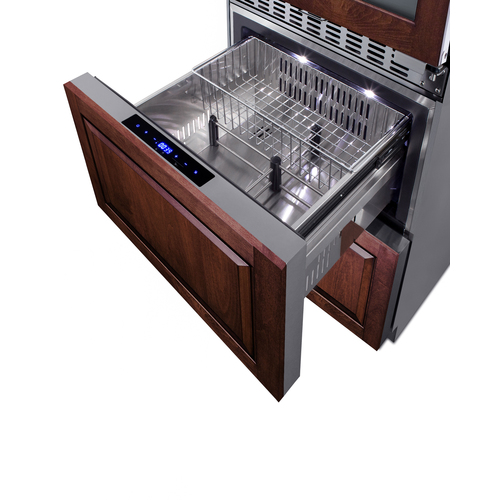

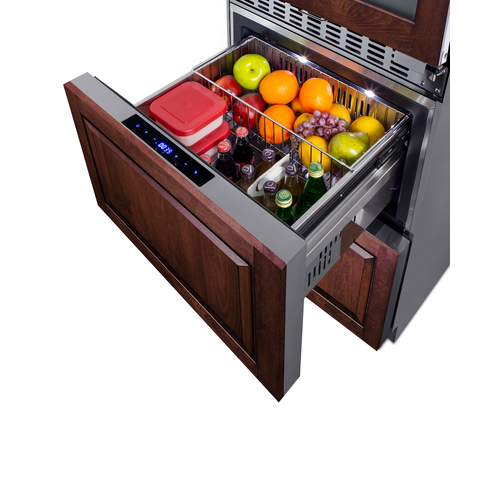

Sliding basket (refrigerator-freezer)

Removable chrome basket included for easier storage convenience

Frost-free operation (refrigerator-freezer)

No-frost operation for minimum user maintenance

Internal fan (refrigerator-freezer)

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Stainless steel kickplate (refrigerator-freezer)

Protects from everyday wear and tear in a durable, elegant design

Open drawer alarm (refrigerator-freezer)

Audible alarm will sound if the drawers are left ajar for over a minute

Temperature alarm (refrigerator-freezer)

High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function (refrigerator-freezer)

Unit will retain its last settings when power is restored in the event of power loss

Child lock (refrigerator-freezer)

Disables digital controls after two minutes of activity for added safety

Sabbath Mode (refrigerator-freezer)

Optional setting lets you disable the lighting and alarm for up to 48 hours

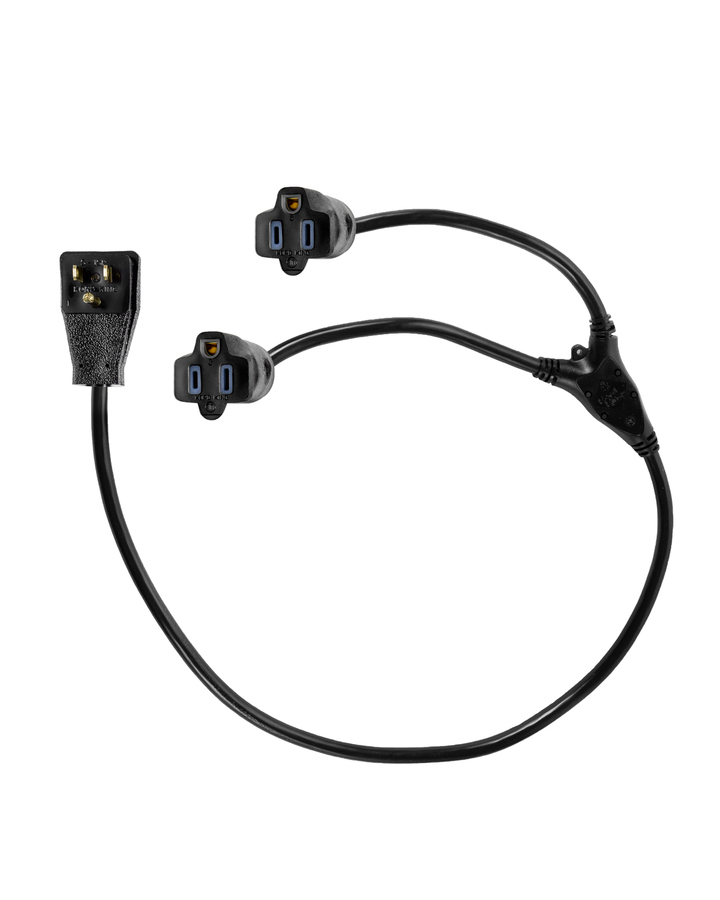

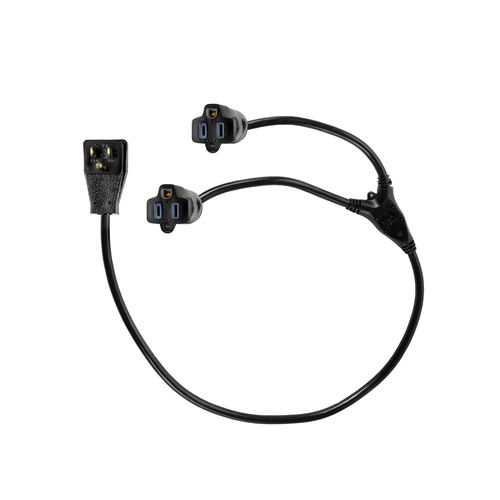

Y-cord with single 3-prong right angle plug included

Included 6 ft. cord allows users to operate both the wine cellar & refrigerator-freezer using a single plug for added convenience

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Ships fully assembled

Unit comes fully assembled for user convenience

Additional panel-ready choices available

This unit is also available with a bottom refrigerator (see the SWCDAR24PNR) or a bottom freezer (see the SWCDAF24PNR)

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit brings an innovative, elegant solution to store wine, food, and beverages with its combination two-zone wine cellar and two-drawer refrigerator-freezer - the perfect entertainment station for the home.

Sized at just under 24" wide, the SWCDRF24PNR combines the 46 bottle capacity two-zone wine cellar (model ALWC532PNR) with the 3.9 cu.ft. two-drawer refrigerator-freezer (model SPRF34D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. The sealed back offers added space savings when placing the unit, while the included six-foot Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. The wine cellar door frame and refrigerator drawer fronts can be customized with overlay panels to match or accent an existing cabinetry design. Users provide their own handles to complete the look. An anti-tip bracket is included and recommended for use to avoid forward tipping. For user convenience, this model ships fully assembled.

The upper two-zone wine cellar has a user-reversible double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41°F and 50ºF for white wine, while the lower zone is designed to store red wine between 50°F and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

The bottom two-drawer refrigerator-freezer features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers make it easy to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding, removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

Offering complete refrigeration convenience in a slim-fitting design, the SWCDRF24PNR is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. Additional panel-ready options are available with a bottom refrigerator (model SWCDAR24PNR) or a bottom freezer (model SWCDAF24PNR).

Note: Panels are not included. The images provided are meant only to be suggestive of what the product with wood panels installed could look like. Users must supply their own wood panels.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
