SWC530BLBIST

Tints f38f71c7257ce8e8379d579d03d127066ebb465738d3759d49e5075b11ff9ae5
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Versatile shelving holds 46 750ml Bordeaux bottles or 40 Burgundy bottles

34.25" H x 23.63" W x 23.38" D

(87cm H x 60cm W x 59cm D)

OVERVIEW

  • Chill white and sparkling wine while preserving red in two distinct temperature zones
  • Easy temperature management with a digital thermostat
  • Flexible design allows built-in or freestanding use in any 24" space
  • Factory installed lock provides security you can count on
  • Slide-out wooden shelves with elegant stainless steel trim

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.63" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 117.0 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 2

AVAILABLE UPGRADES

Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

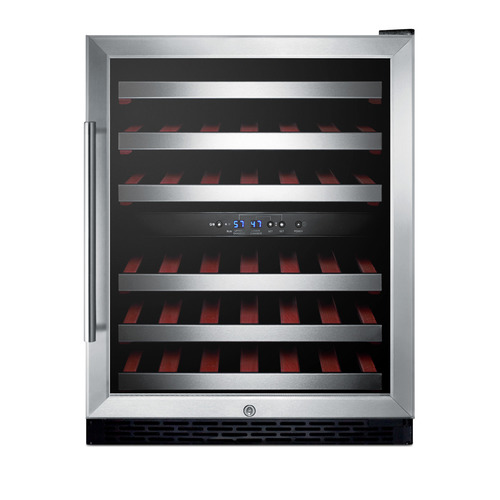

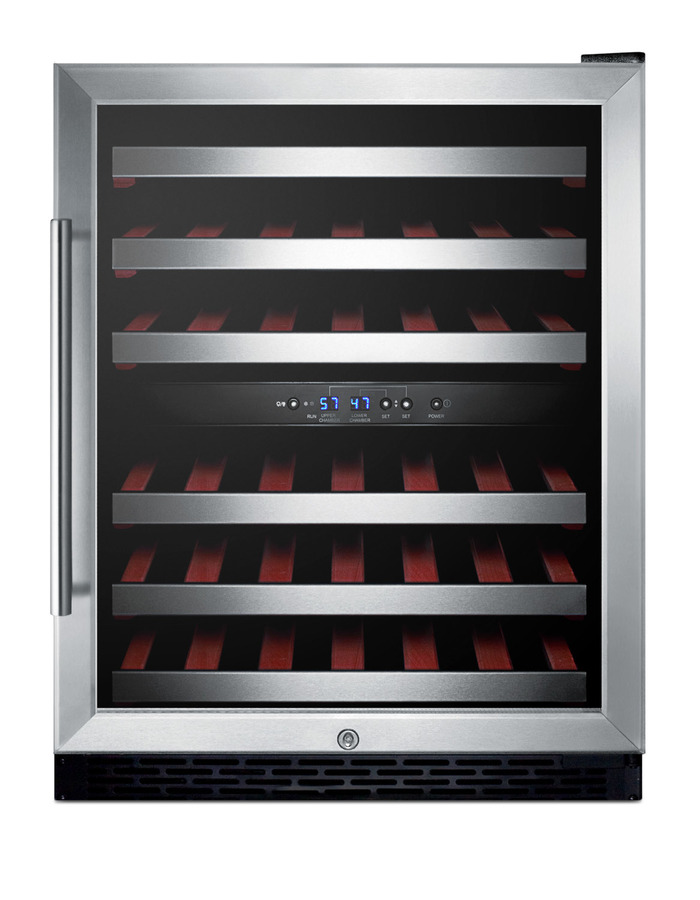

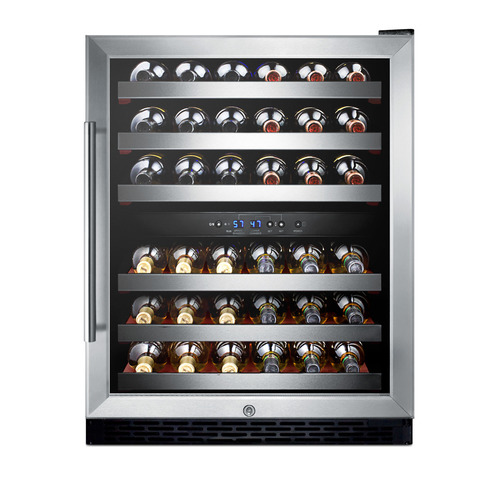

Store your finest collection in the SWC530BLBIST, an undercounter wine cellar with advanced features and stunning design.

Two digital thermostats allow you to chill your white wine while separately preserving red at a warmer temperature. Slide-out wooden shelves with stainless steel trim let you store up to 46 standard 750ml sized Bordeaux bottles. Alternatively, you can store up to 40 bottles of the wider Pinot Noir or Chardonnay bottles, while still fitting an additional six Bordeaux bottles. Full automatic defrost, interior lighting, and SUMMIT's own "hidden" evaporator help to keep use and maintenance simple.

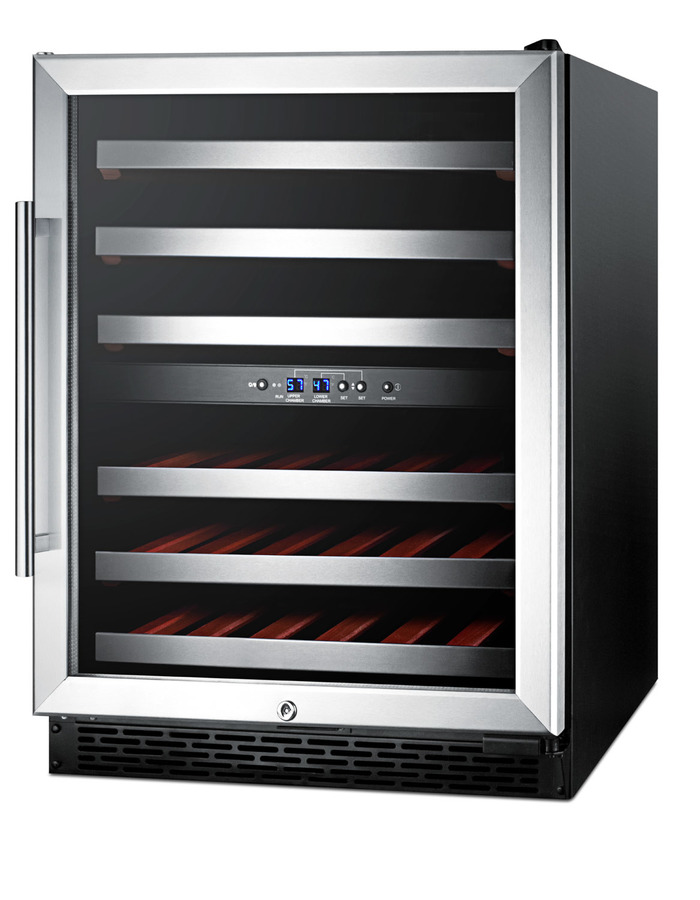

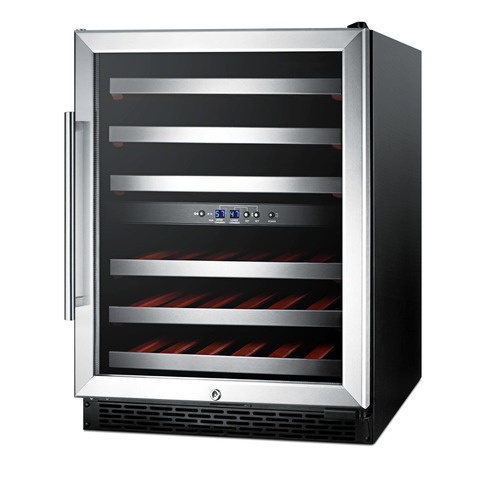

The SWC530BLBIST's exterior has a sleek black finish and reversible glass door to best display your collection. A professional stainless steel door handle completes the look. Fully front breathing with a flush back, this model can function as a freestanding or built-in unit in any home with a taste for modern luxury.

FEATURES

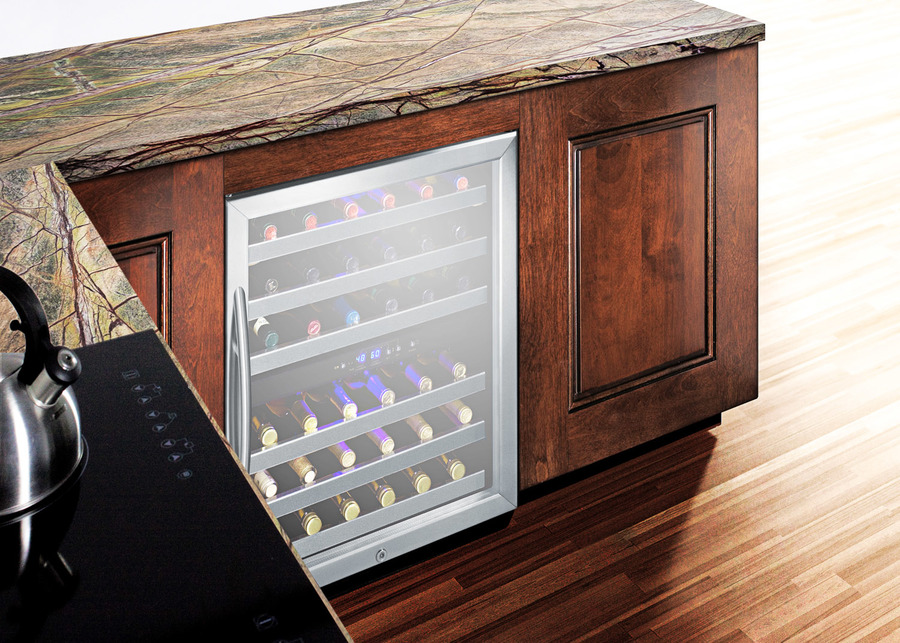

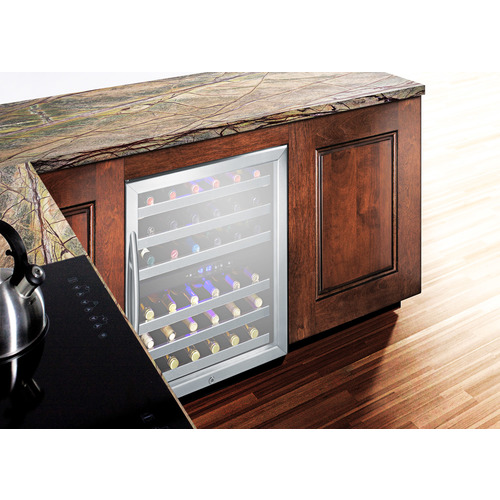

Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding

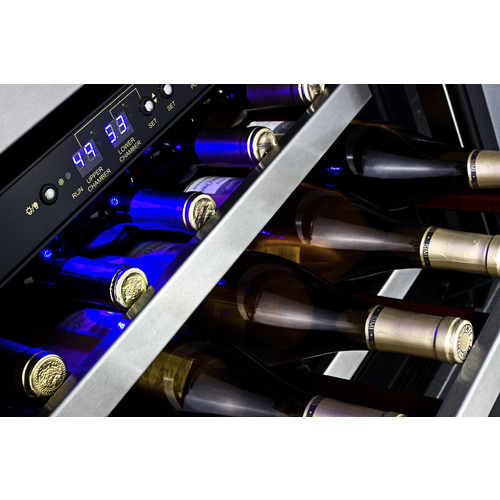

Digital thermostats

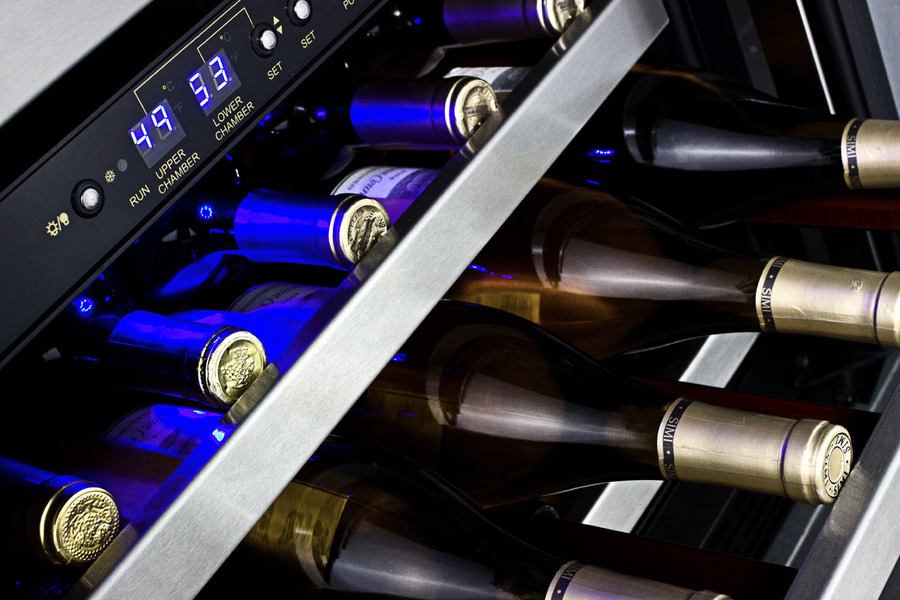

Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
Two temperature zones
Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
Automatic defrost
Reduced maintenance with auto defrost system
Slide-out wooden shelving
Ideal for holding your bottles, with an elegant touch of stainless steel trim

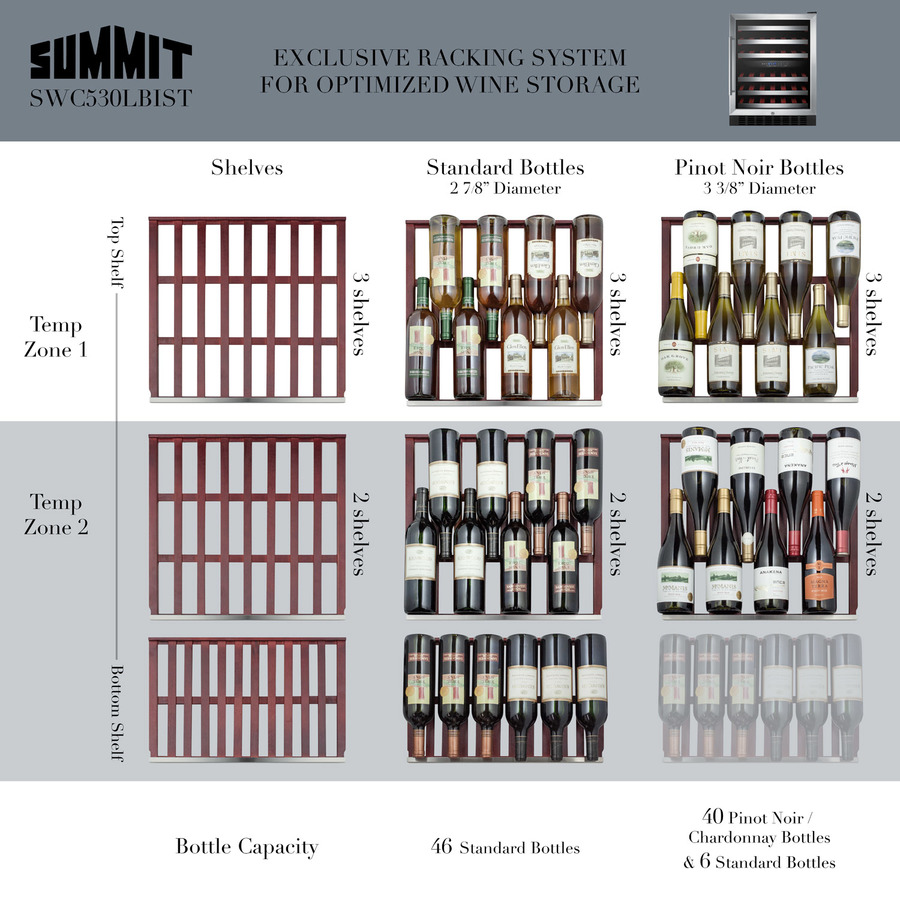

Versatile shelving
Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
Stainless steel door frame
Classic trim for a refined look
Glass door
Provides a full display of your collection
Interior light
Illuminate your collection in style
Factory installed lock
Keyed lock for secure interior
Reversible door
User reversible door swing
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.63" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 117.0 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 2

AVAILABLE UPGRADES

Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase

DOWNLOADS



California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
