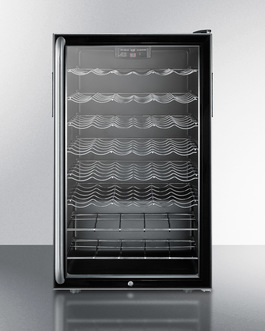

20" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC525LBISHADA

Uniquely sized at just under 20" wide

DISCONTINUED- REPLACED BY SWC1840BADA

32.5" H x 19.38" W x 22.25" D

(83cm H x 49cm W x 57cm D)

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.38" (49 cm)
Depth 22.25" (57 cm)
Capacity 4.5 cu.ft. (127 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 60.0 lbs. (27 kg)
Shipping Weight 63.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Shelf Type Scalloped
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 1.59 oz.
High Side PSI 218.0
Low Side PSI 105.0

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Slim 20" width
Full 4.5 cu.ft. capacity inside conveniently slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Glass door
Provides a full display of stored contents
Factory installed lock
Keyed lock for secure interior
Full-length stainless steel handle
Professional towel bar handle in brushed stainless steel
Digital thermostat
Electronic controls for precise temperature management, with indicator lights for red wine, white wine, and champagne temperatures
Automatic defrost
Electronic controls for precise temperature management, with indicator lights for red wine, white wine, and champagne temperatures
Scalloped shelves
Six adjustable chrome shelves are specially designed to hold wine bottles
Interior light
Turn the light on and off with a convenient rocker switch
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

SUMMIT’s SWC525LBIADA series features 20” wide wine cellars designed for built-in use under lower ADA compliant counters.

The SWC525LBISHADA wine cellar is sized at 32” high and can be used built-in or freestanding. It has a glass door with a factory installed lock and full-length towel bar handle in stainless steel. The auto defrost interior features adjustable scalloped shelves to hold wine bottles and a digital thermostat that allows easy management of your reds, whites, and champagnes.

With a slim-fitting footprint and an elegant design, the SWC525LBISHADA is ideal for any setting looking for an affordable way to store and display a wine collection.

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.38" (49 cm)
Depth 22.25" (57 cm)
Capacity 4.5 cu.ft. (127 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 60.0 lbs. (27 kg)
Shipping Weight 63.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Shelf Type Scalloped
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 1.59 oz.
High Side PSI 218.0
Low Side PSI 105.0

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings

DOWNLOADS

Download
USE & CARE
SWC525LBIManual.pdf
Download
MSDS INFORMATION
R134a_MSDS_T.pdf
