20" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC525LBIHHADA

Uniquely sized at just under 20" wide

DISCONTINUED- REPLACED BY SWC1840BADA

32.5" H x 19.38" W x 22.25" D
(83cm H x 49cm W x 57cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.5" (83 cm)
Width	19.38" (49 cm)
Depth	22.25" (57 cm)
Capacity	4.5 cu.ft. (127 L)
Bottles	40 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	60.0 lbs. (27 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101038094
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Scalloped
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Refrigerant Type	R134a
Refrigerant Amount	1.59 oz.
High Side PSI	218.0
Low Side PSI	105.0

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings

ADA compliant

32" high meets ADA guidelines

Slim 20" width

Full 4.5 cu.ft. capacity inside conveniently slim footprint

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished black cabinet

Allows the unit to be used freestanding

Factory installed lock

Keyed lock for secure interior

Glass door

Provides a full display of stored contents

Professional horizontal handle

Thin 14mm diameter on stainless steel handle, mounted horizontally on the door

Automatic defrost

Reduced maintenance with auto defrost system

Digital thermostat

Electronic controls for precise temperature management, with indicator lights for red wine, white wine, and champagne temperatures

Interior light

Turn the light on and off with a convenient rocker switch

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

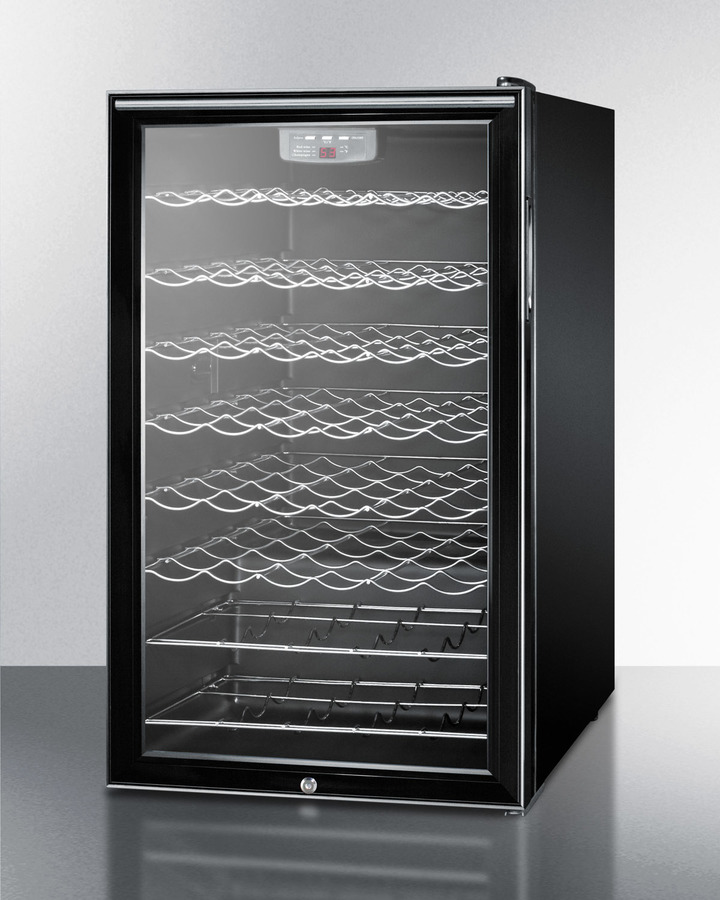

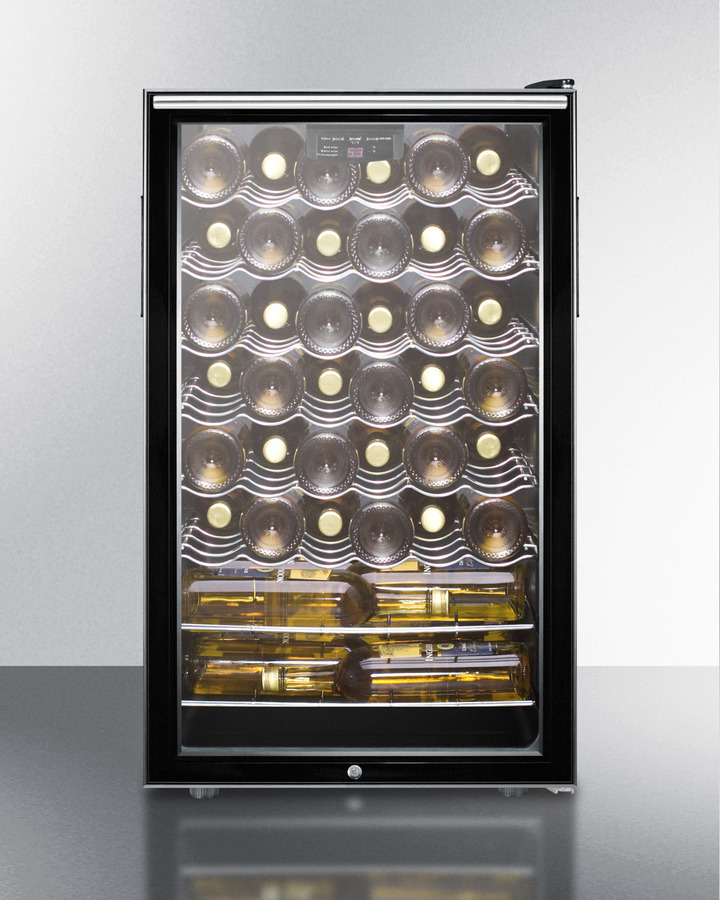

SUMMIT’s SWC525LBIADA series features 20” wide wine cellars designed for built-in use under lower ADA compliant counters.

The SWC525LBIHHADA wine cellar is sized at 32” high and can be used built-in or freestanding. It has a glass door with a factory installed lock and pro horizontally mounted handle in stainless steel. The auto defrost interior features adjustable scalloped shelves to hold wine bottles and a digital thermostat that allows easy management of your reds, whites, and champagnes.

With a slim-fitting footprint and an elegant design, the SWC525LBIHHADA is ideal for any setting looking for an affordable way to store and display a wine collection.

BROCHURE
SWC525LBIHHADA.pdf

USE & CARE
SWC525LBIManual.pdf

MSDS INFORMATION
R134a_MSDS_T.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
