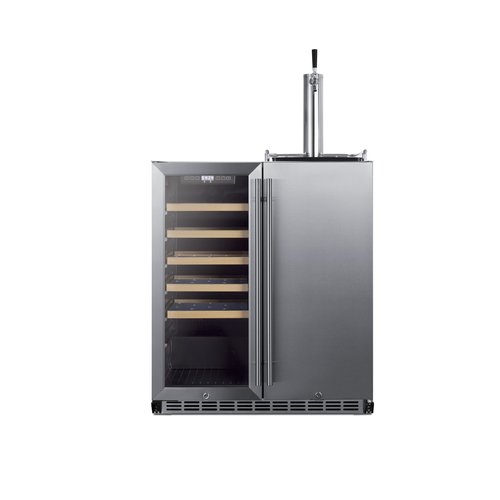

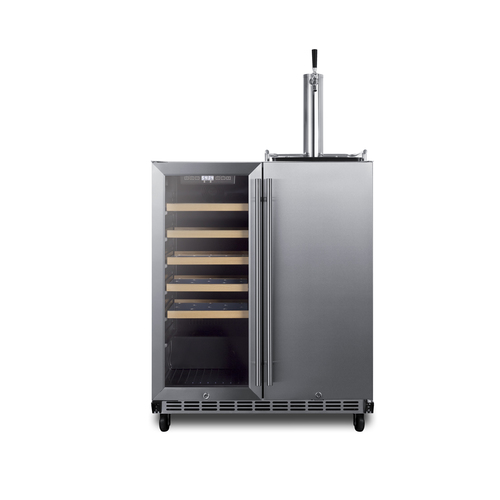

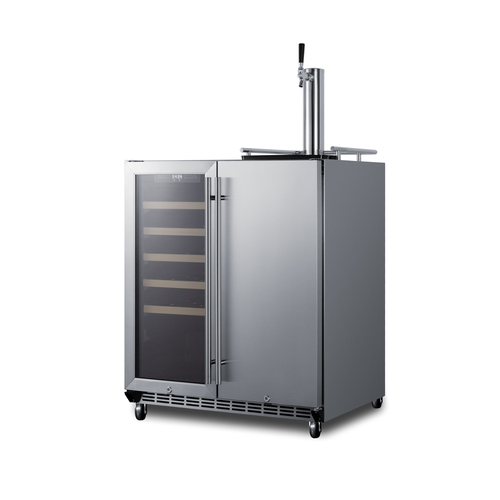

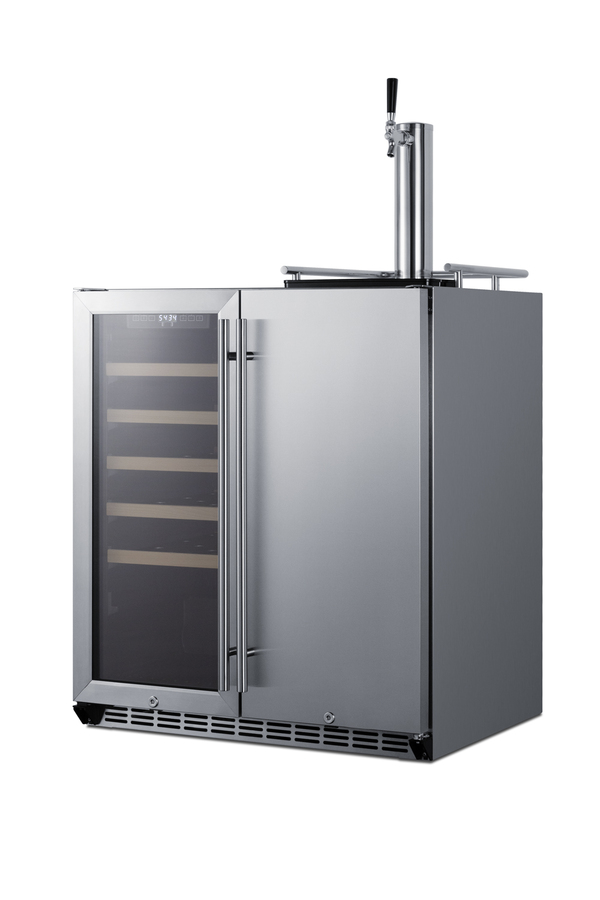

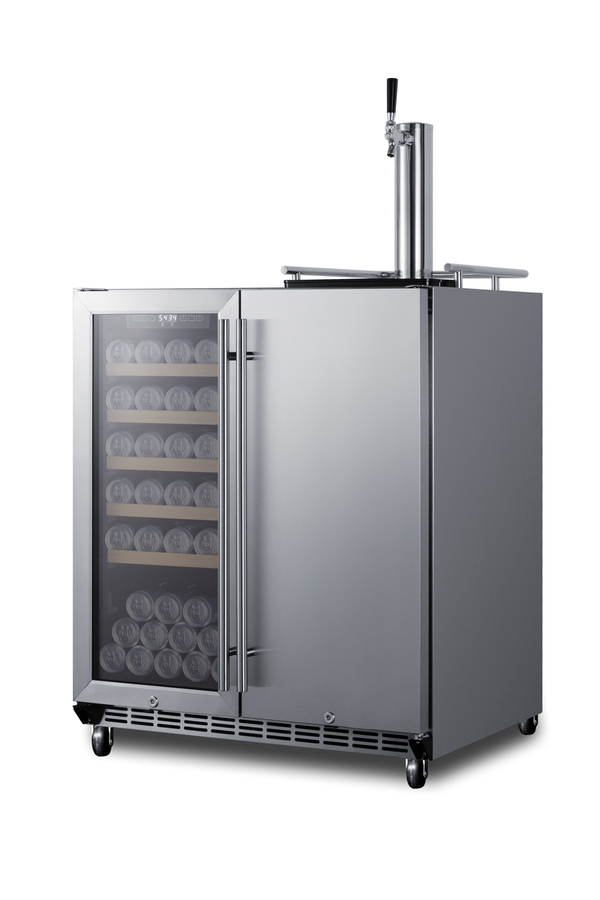

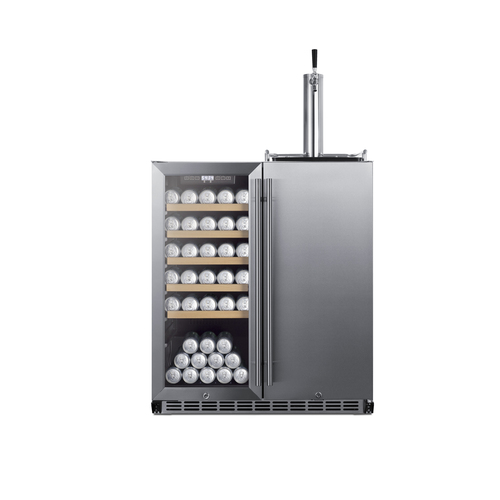

30" Wide Built-In Indoor/Outdoor Combination Beverage Center/Kegerator
(87cm H x 75cm W x 59cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Width with Door Open | 30.0" (76 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.13" (64 cm) |
| Depth with door at 90° | 36.5" (93 cm) |
| Capacity | 6.3 cu.ft. (178 L) |
| Bottles | 24 bottles |
| Defrost Type | Frost-Free |
| Door | Glass/SS |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.5 |
| Weight | 140.0 lbs. (64 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108902 |
|
Beverage Kegerator
|
|
| Number of Zones | 2 |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Qty | 5 |
| Thermostat | Digital |
| Interior Light | Yes |
| Fan | Interior and Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.78 oz. |
| High Side PSI | 220.0 |
| Low Side PSI | 43.0 |
| Level Legs | 4 |
| Wheel | 4 |
| Temperature Range | Left side: 39ºF to 72ºF; Right side: 32ºF to 72ºF |
| Sound Level | 34.1 dB |
| Interior Height 1 | 26.75" (68 cm) |
| Interior Width 1 | 12.25" (31 cm) |
| Interior Depth 1 | 18.5" (47 cm) |
| Interior Height 2 | 26.75" (68 cm) |
| Interior Width 2 | 12.25" (31 cm) |
| Interior Depth 2 | 18.5" (47 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 12.25" (31 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Tap Kit | Yes |
| Number of Taps | 1 |
| Height with Tap | 40.0" (102 cm) |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
FEATURES
Single compressor operation with two distinct temperature zones allows you to preserve and display beverages on the left while tapping draft beer on the right

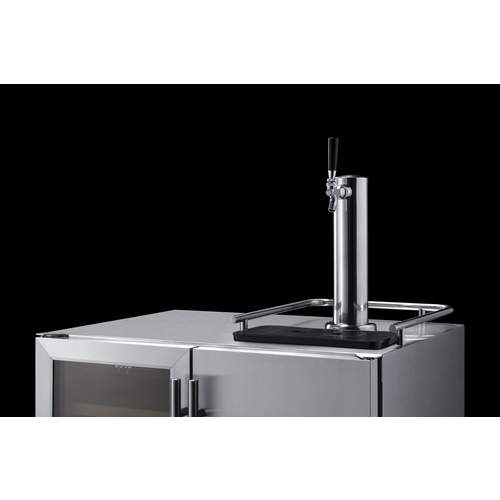

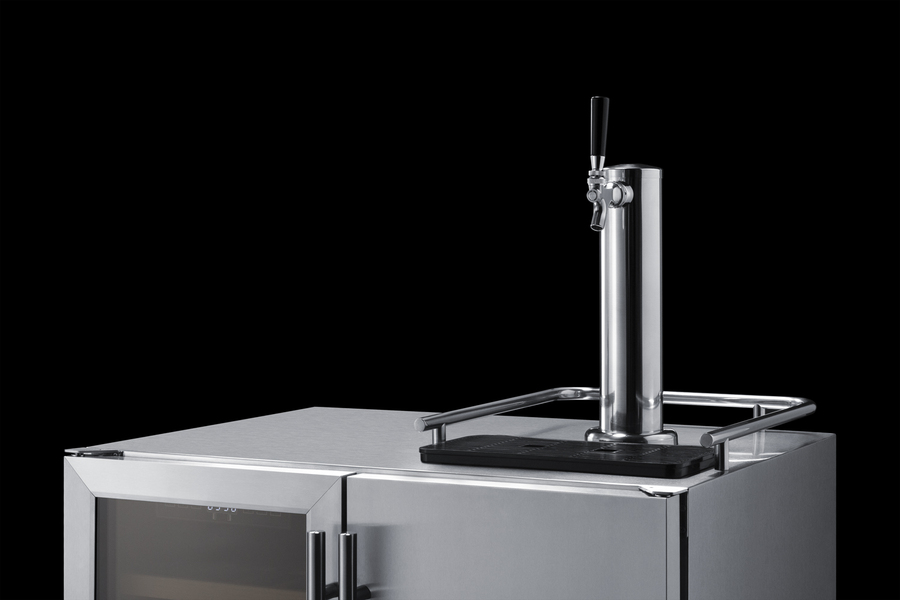

Includes all the tapping equipment you need to serve beer from a sixtel keg, with a stainless steel tower and faucet, CO2 tank, and regulator
Durable, weatherproof construction designed to hold up to the elements
Front-breathing design allows the unit to be built-in under counters
Each compartment features a wide range, allowing you to find the right temperature for a variety of wine, beer, and other beverages
Keyed lock on each door provides security as needed
Cabinet, kegerator door, and wine cellar door trim feature stainless steel construction for a professional look with lasting durability
No-frost operation for minimal user maintenance

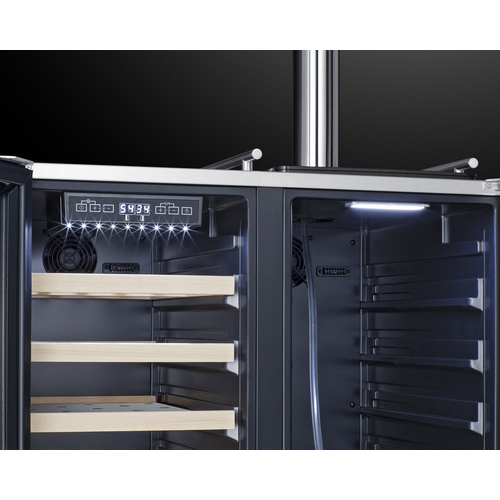

Internal fans ensure both interiors have a consistent temperature from top to bottom

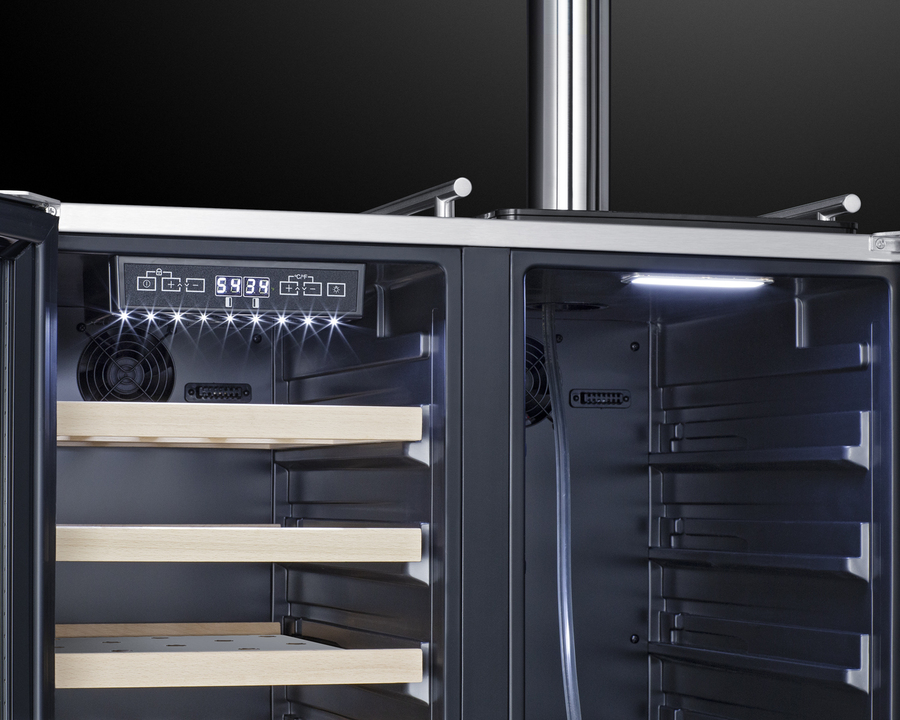

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
White LED offers an attractive and efficient presentation

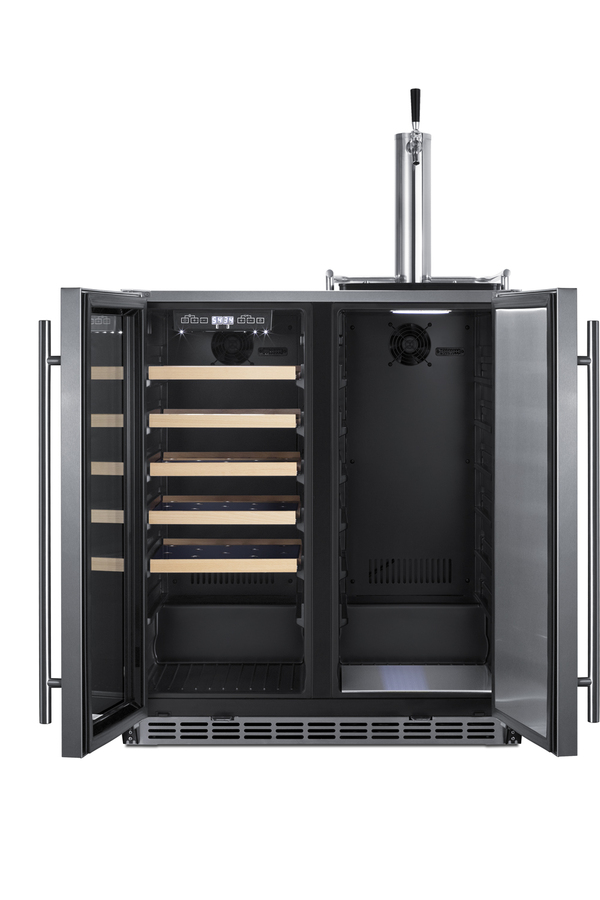

Wine cellar includes five slide-out wooden shelves to accommodate your bottles

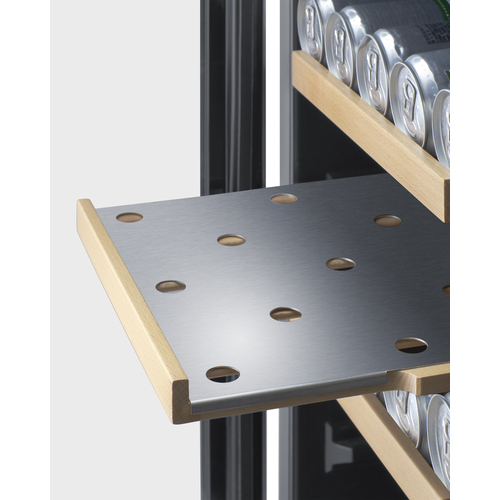

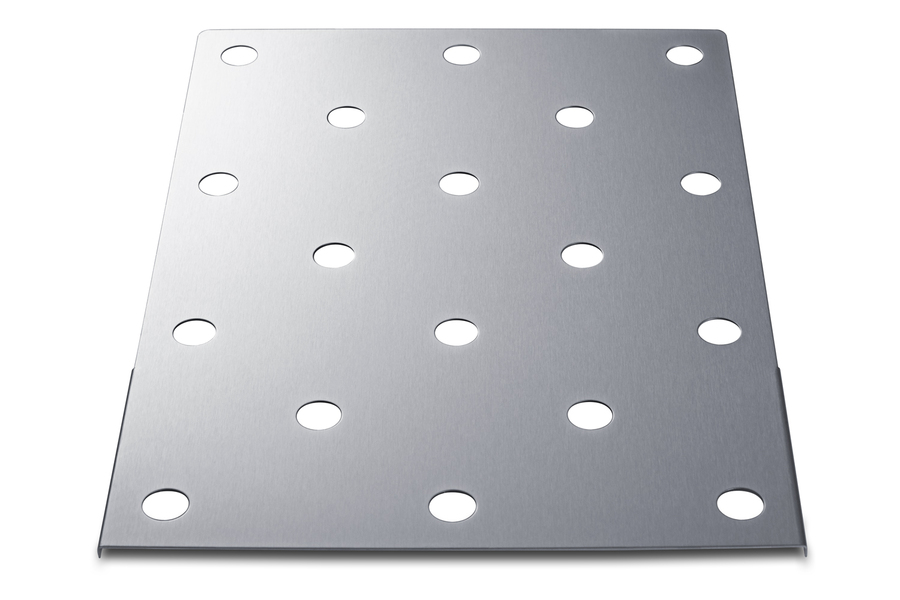

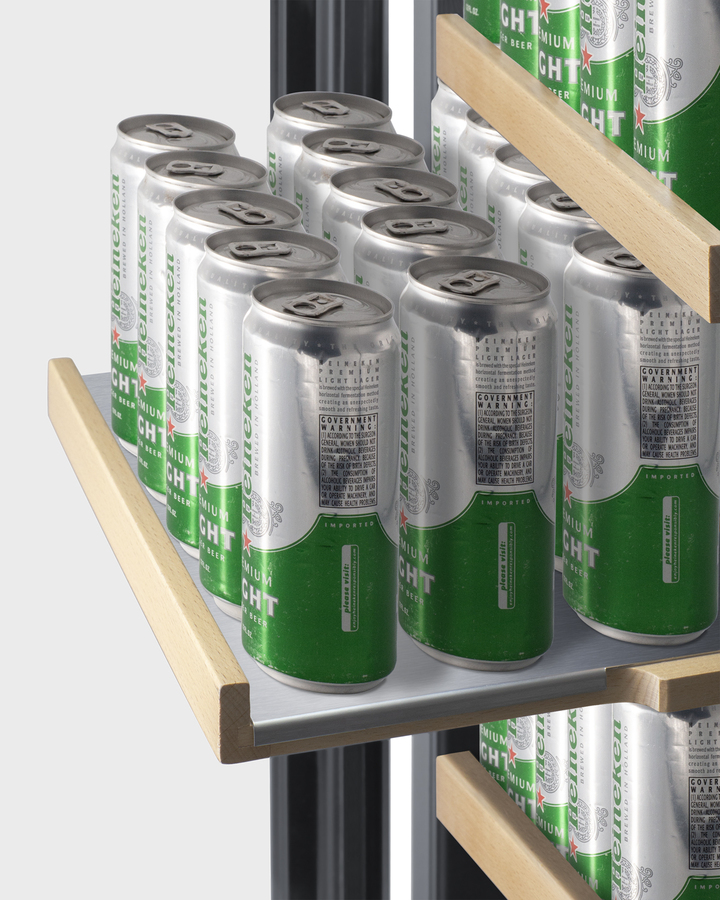

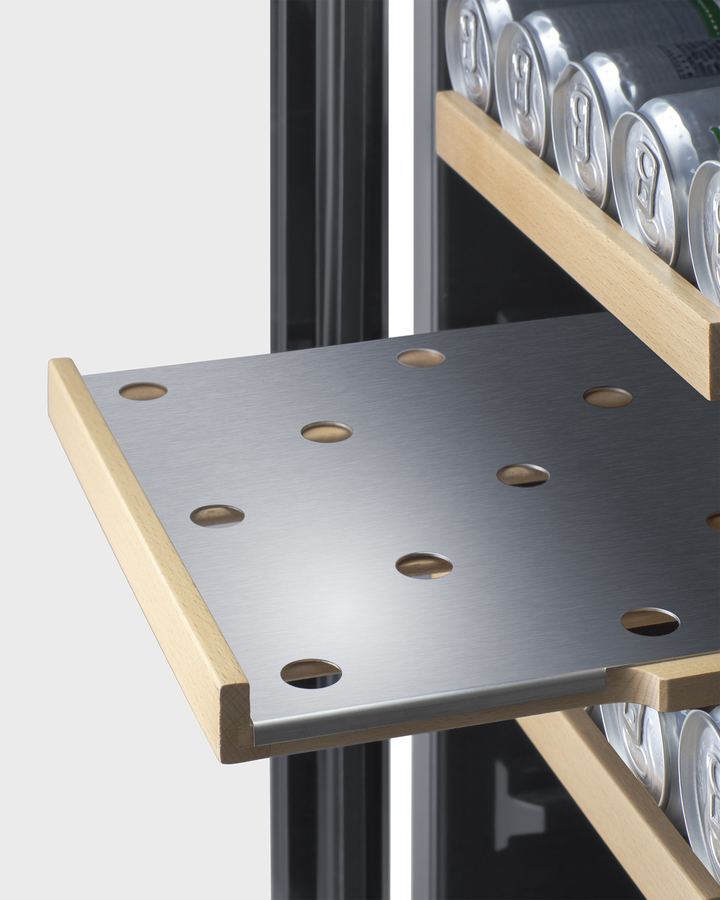

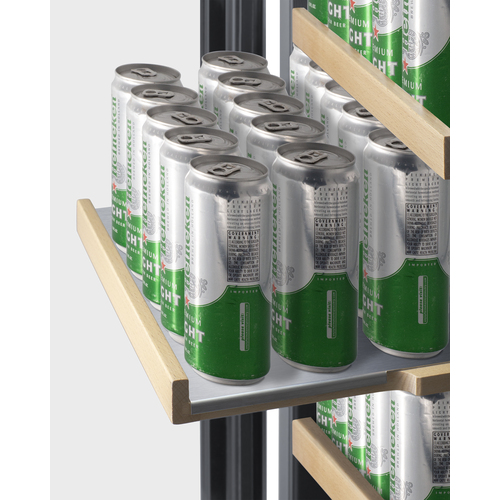

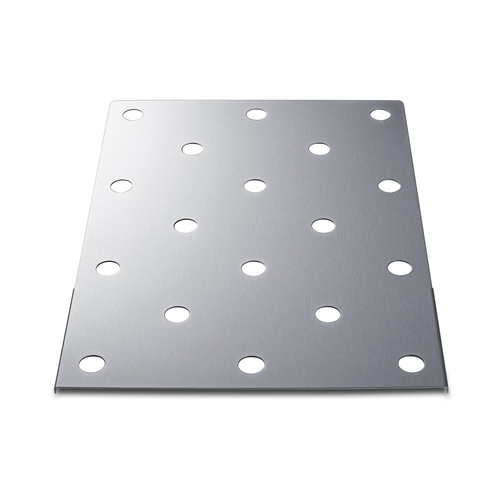

Includes three stainless steel pieces that can be placed over the wooden shelves to create a flat surface, ideal for standing cans upright or storing other beverages
Stainless steel handles add style to any setting

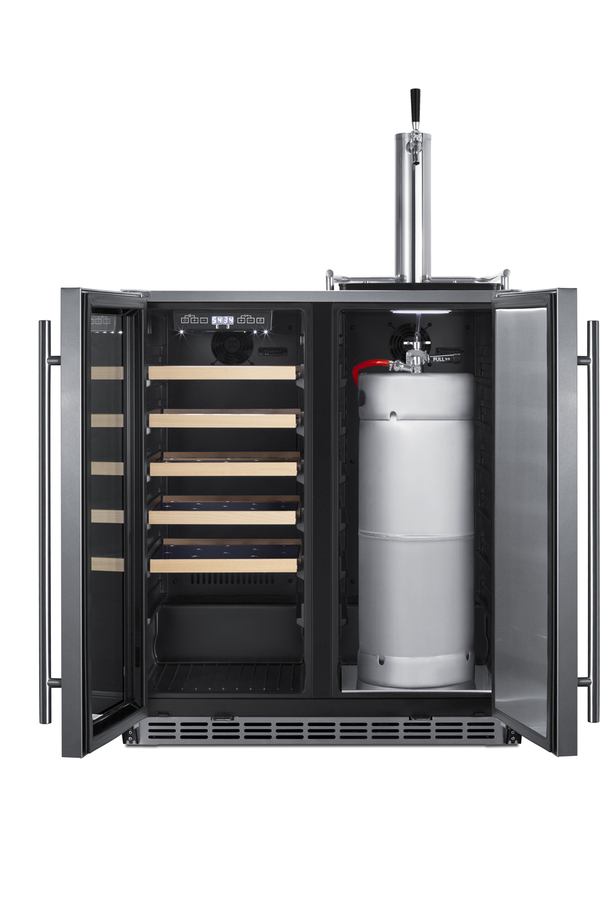

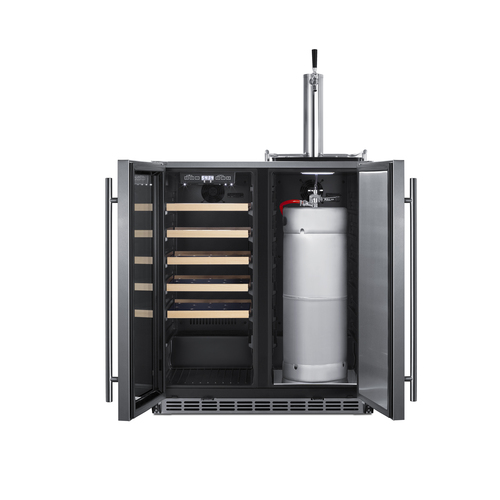

Right side is designed to accept a 1/6 (sixtel) barrel keg or corny keg
Attractive chrome guard rail helps to neaten service
Two-piece plastic drip tray included to help catch spills
Kegerator interior includes steel cover to protect the floor when loading kegs
Space-saving and makes for quick cleaning of the unit’s exterior
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

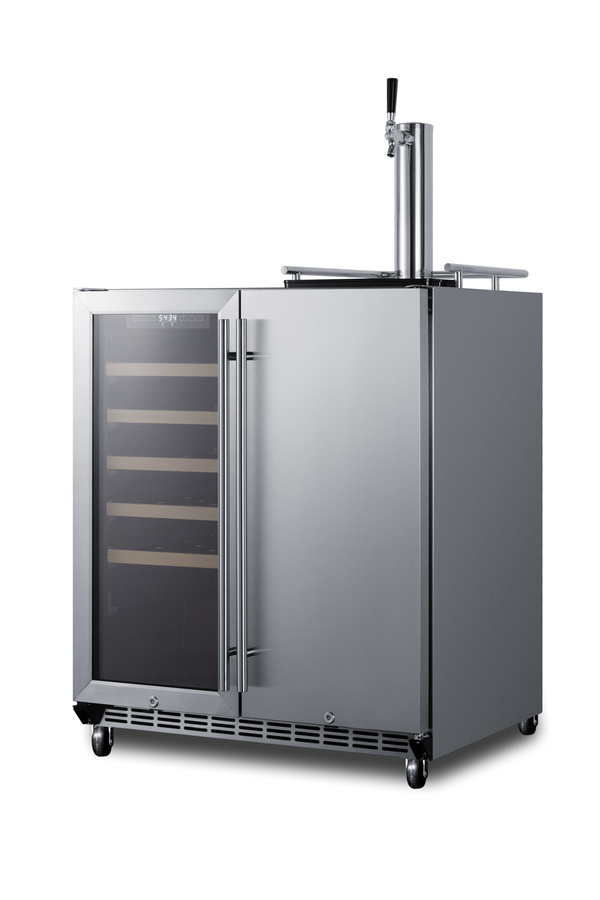

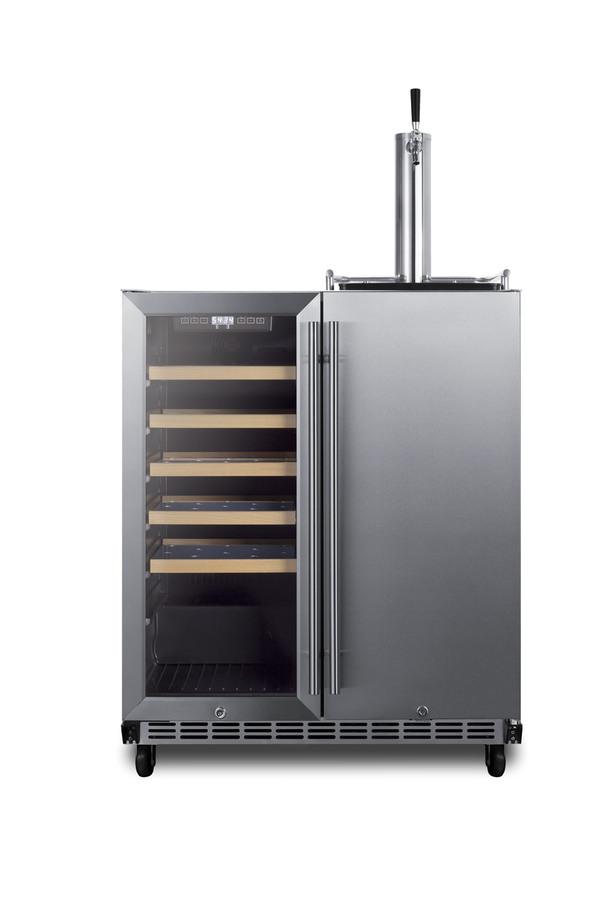

Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed
Allows you to lock the control panel to prevent accidental adjustments
Allows the unit to be used freestanding
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
DESCRIPTION
Summit's unique wine, beverage, and beer refrigeration lineup creates the perfect all-in-one home entertainment solutions, with versatile built-in choices used in indoor or outdoor kitchens. Model SWBC3041BV is a French-door combination unit with one zone designed for holding beverages and wine and the other for serving beer on tap. The front-breathing design enables built-in installation under counters, while the fully finished stainless steel cabinet allows freestanding use. The sealed rear and weatherproof exterior ensure safe use in outdoor kitchens. We also include a set of casters for optional mobility. The SWBC3041BV's left side features a refrigerated section with a stainless steel-trimmed double-tempered glass door. With a temperature range of 39ºF to 72ºF, it can store certain beverages or wine. Inside are adjustable wooden shelves for wine storage and three stainless steel shelving inserts placed over the wood to create a flat surface ideal for holding cans and other beverages. White LED lighting offers an attractive and efficient presentation. On the right side, a fully featured kegerator is designed to let you serve beer from 1/6 (sixtel) sized kegs. We include all the tapping equipment you need, with a stainless steel draft tower and faucet, CO2 tank, and regulator. A removable guard rail and two-piece drip tray help you keep your serving area clean. Both units utilize intuitive digital controls with wide temperature ranges, letting you accommodate a variety of wine and beer styles for proper storage. Each door includes a pro-style handle and factory-installed lock for added security. The SWBC3041BV brings true versatility to your spaces. It can be used in indoor or outdoor kitchens. With its professional design and multi-functionality, it's the ideal choice for home bars looking to please all beverage tastes.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
