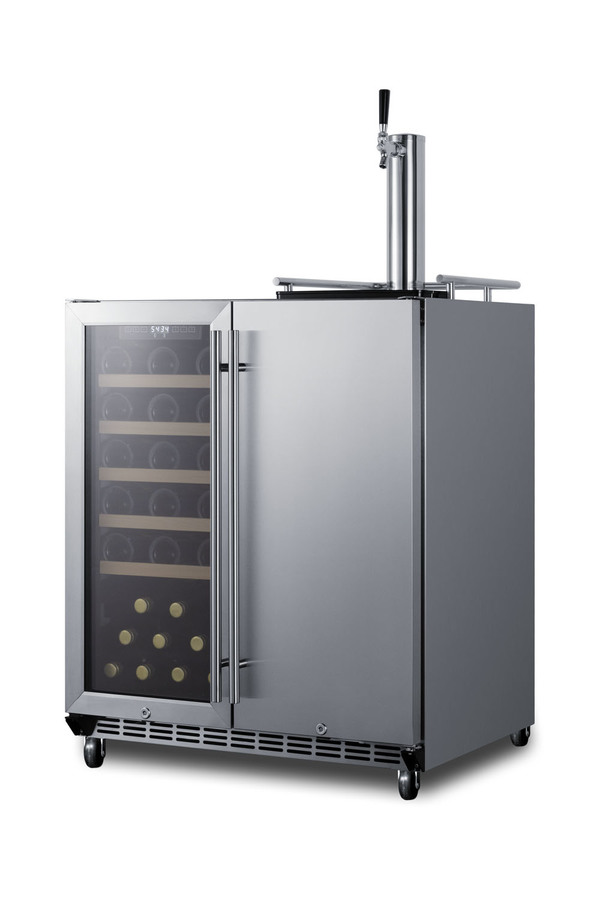

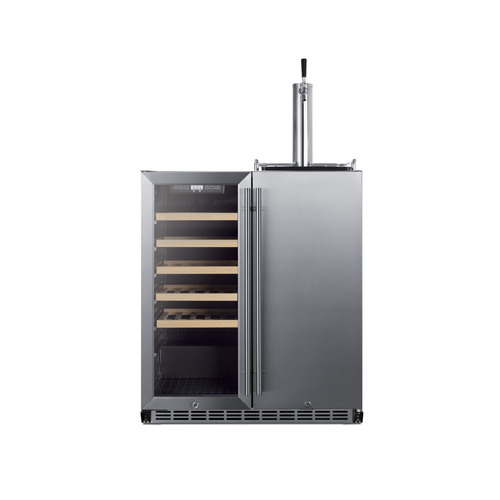

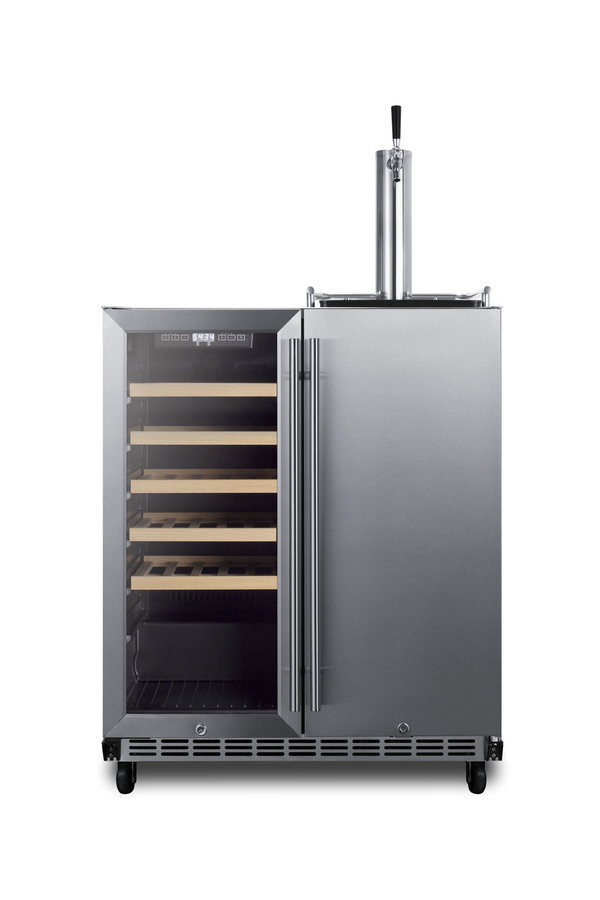

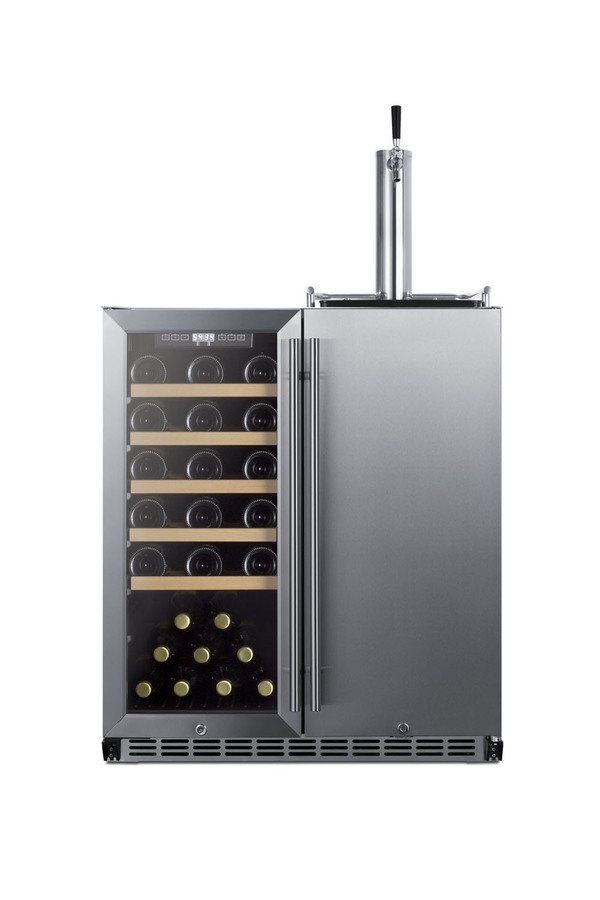

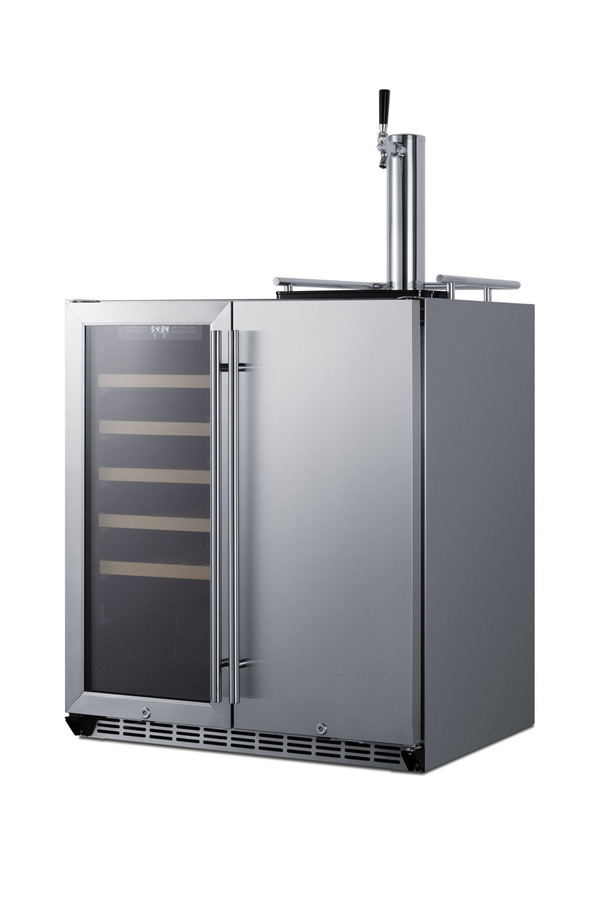

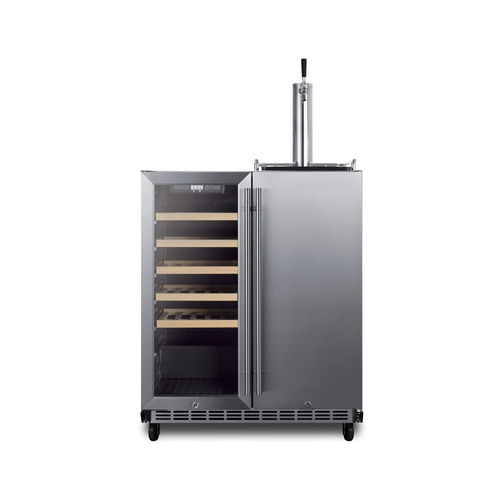

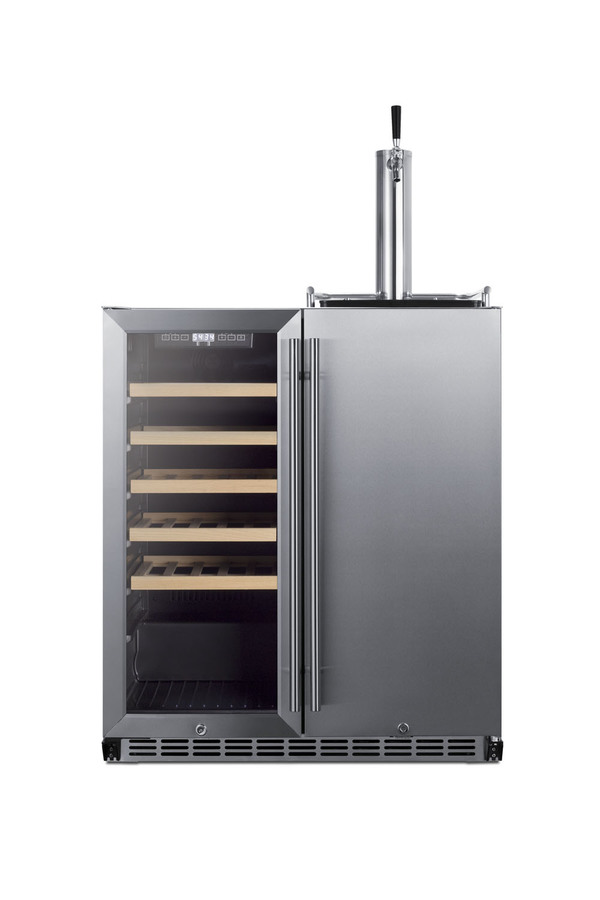

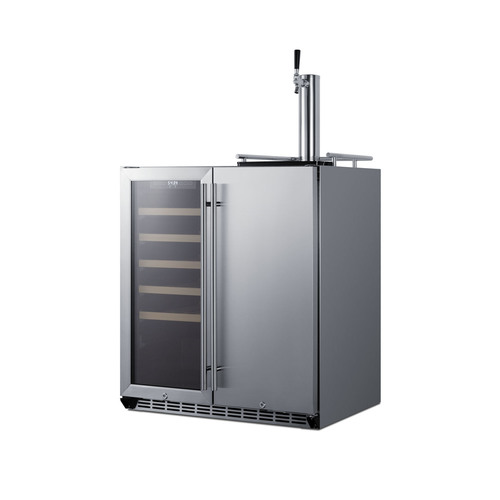

30" Wide Built-In Indoor/Outdoor Combination Wine Cellar/Kegerator

SKU: SWBC3041
Unique design lets you store and display wine while serving beer on tap at two different temperatures
Estimated Time to Ship:

Next day Shipping

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
34.25" H x 29.5" W x 23.38" D
(87cm H x 75cm W x 59cm D)

Overview
Height of Cabinet 34.25" (87 cm)
Width 29.5" (75 cm)
Width with Door Open 30.0" (76 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 36.5" (93 cm)
Capacity 6.3 cu.ft. (178 L)
Bottles 24 bottles
Defrost Type Frost-Free
Door Glass/SS
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Weight 140.0 lbs. (64 kg)
Shipping Weight 145.0 lbs. (66 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101081571
Beverage Kegerator
Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Digital
Interior Light Yes
Fan Interior and Exterior
Refrigerant R600a
Refrigerant Amount 0.78 oz.
High Side PSI 220.0
Low Side PSI 43.0
Level Legs 4
Wheel 4
Temperature Range 34ºF to 72ºF
Interior Height 1 26.75" (68 cm)
Interior Width 1 12.25" (31 cm)
Interior Depth 1 18.5" (47 cm)
Interior Height 2 26.75" (68 cm)
Interior Width 2 12.25" (31 cm)
Interior Depth 2 18.5" (47 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 12.25" (31 cm)
Compressor Step Depth 5.0" (13 cm)
Tap Kit Yes
Number of Taps 1
Height with Tap 40.0" (102 cm)

Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings

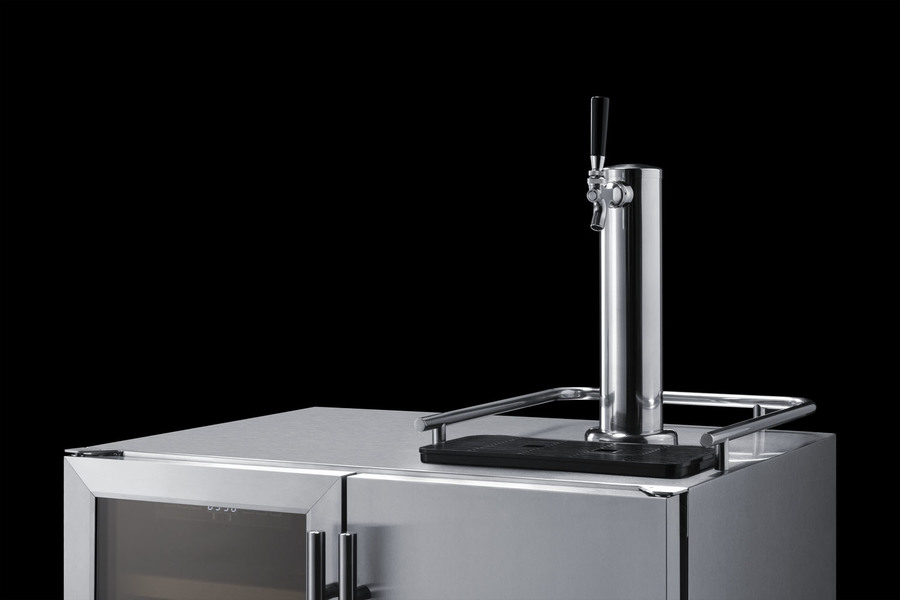

Complete tap kit for serving beer

Includes all the tapping equipment you need to serve beer from a sixtel keg, with a stainless steel tower and faucet, CO2 tank, and regulator

Combination wine cellar and beer kegerator

Single compressor operation with two distinct temperature zones allows you to preserve and display wine on the left while tapping draft beer on the right

Indoor/Outdoor compatible

Durable, weatherproof construction designed to hold up to the elements

Built-in capable

Front-breathing design allows the unit to be built-in under counters

Dual zone operation

Each compartment features a wide range between 34 and 72ºF, allowing you to find the right temperature for a variety of wine and beer

Factory installed locks

Keyed lock on each door provides security as needed

Stainless steel exterior

Cabinet, kegerator door, and wine cellar door trim feature stainless steel construction for a professional look with lasting durability

Frost-free

No-frost operation for minimal user maintenance

Fan-forced cooling

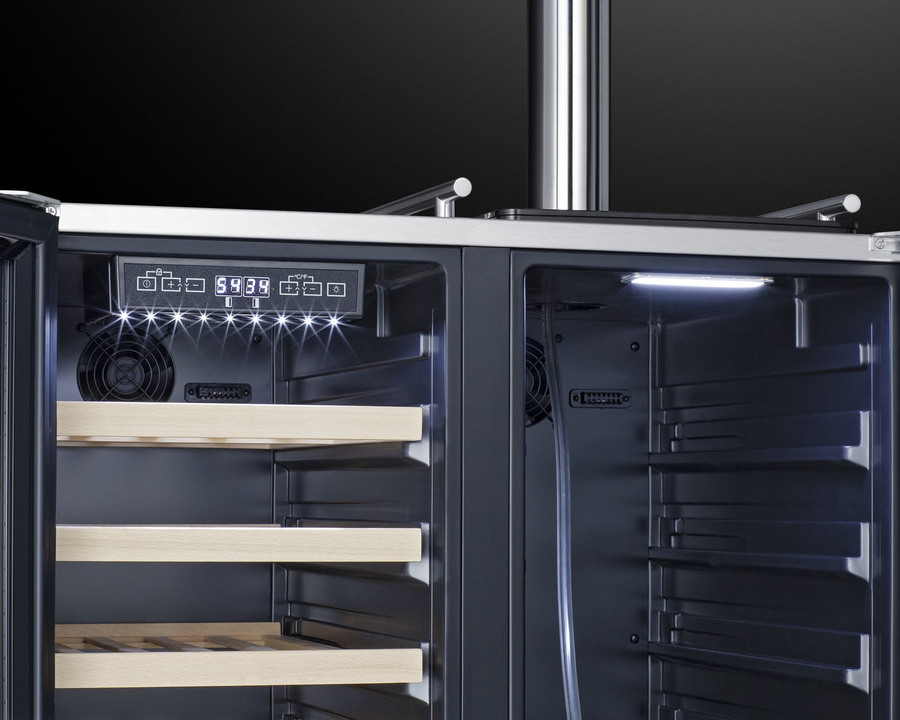

Internal fans ensure both interiors have a consistent temperature from top to bottom

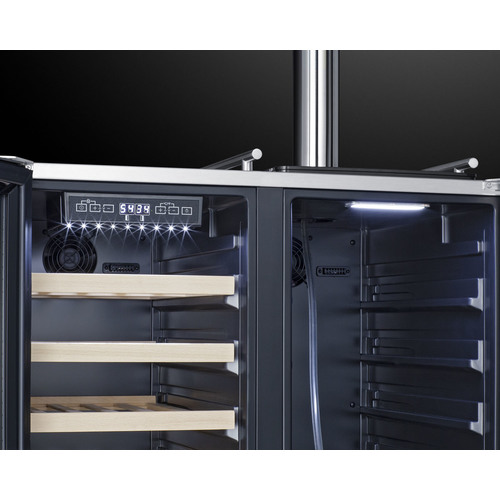

Digital thermostat

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

LED lighting

White LED offers an attractive and efficient presentation

Adjustable shelving

Wine cellar includes five slide-out wooden shelves to accommodate your bottles

Professional handles

Stainless steel handles add style to any setting

Beer dispenser

Right side is designed to accept a 1/6 (sixtel) barrel keg or pony keg

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to neaten service

Drip tray

Two-piece plastic drip tray included to help catch spills

Stainless steel floor cover

Kegerator interior includes steel cover to protect the floor when loading kegs

Sealed back

Space-saving and makes for quick cleaning of the unit’s exterior

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Casters included

Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed

Child lock function

Allows you to lock the control panel to prevent accidental adjustments

Fully finished cabinet

Allows the unit to be used freestanding

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

Summit's unique lineup of wine and beer refrigeration creates the perfect all-in-one solutions for home entertainment, with versatile built-in choices that can be used in indoor or outdoor kitchens.

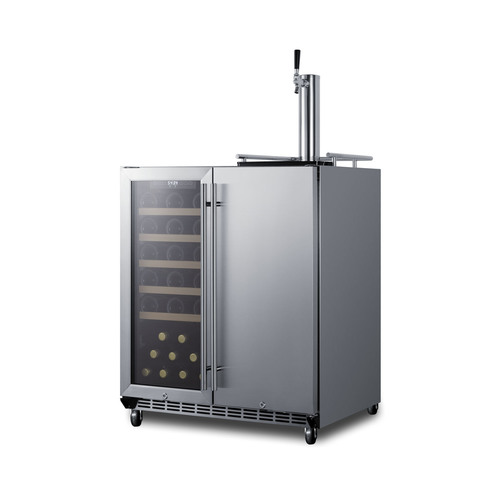

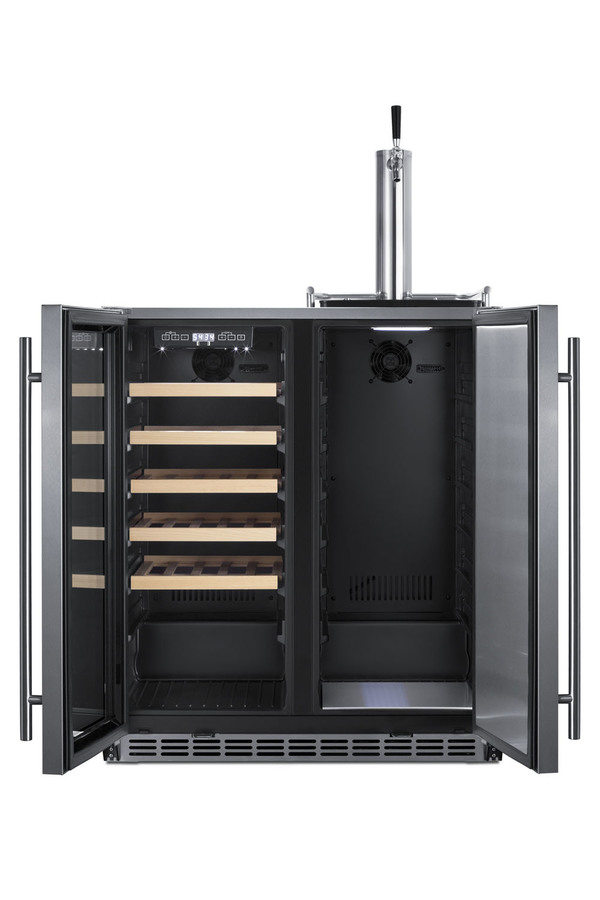

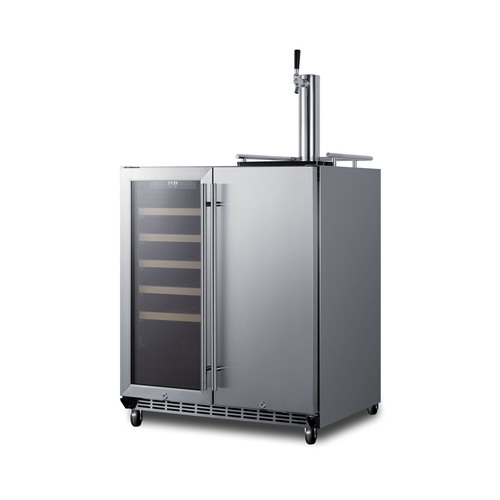

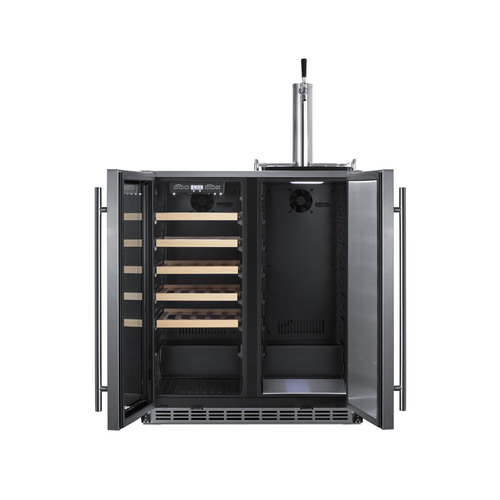

Model SWBC3041 is a french door combination wine cellar/kegerator, with two separate sections that let you keep wine properly stored and displayed while also serving beer on tap. The front-breathing design enables built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use. We include a set of casters (two locking) for installation if using this cooler for more portable applications. The sealed rear and weatherproof exterior ensure safe use in outdoor kitchens.

The left side wine cellar zone features a stainless steel trimmed double tempered glass door to display your bottles in style. White LED lighting offers an attractive and efficient presentation. Adjustable wooden wine shelves let you store your bottles safely.

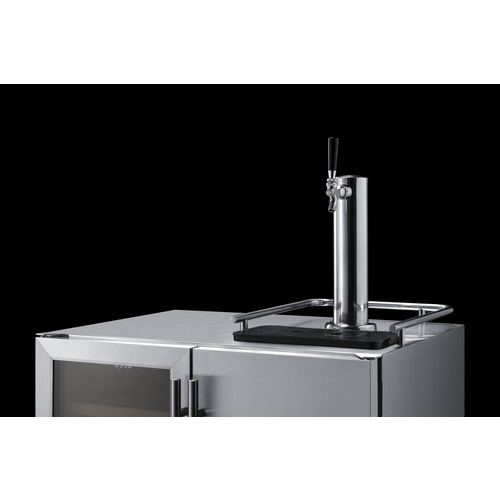

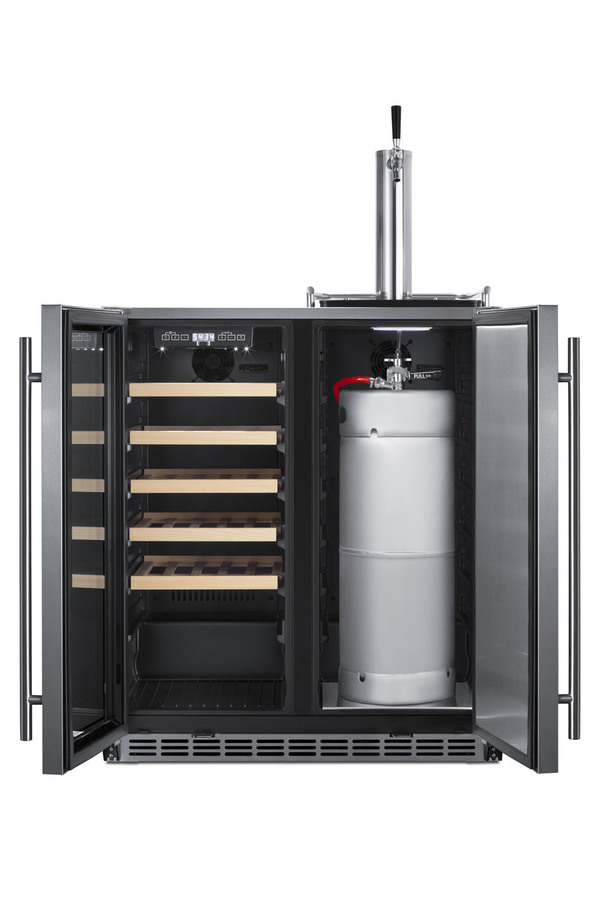

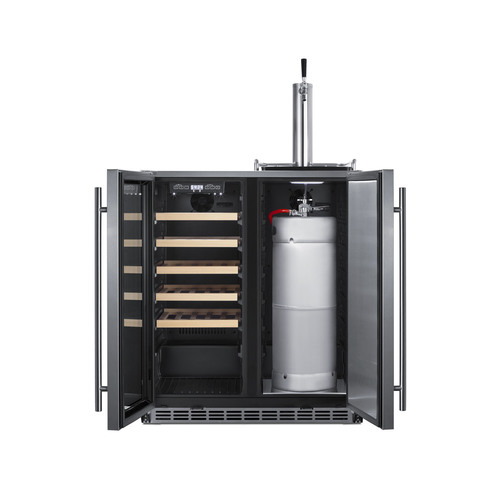

On the right side, a fully featured kegerator is designed to let you serve beer from 1/6 (sixtel) sized kegs. We include all the tapping equipment you need, with a stainless steel draft tower and faucet, CO2 tank, and regulator. A removable guard rail and two-piece drip tray help you keep your serving area clean.

Both units utilize intuitive digital controls with wide temperature ranges, letting you accommodate a variety of wine and beer styles for proper storage. Each door includes a pro style handle and factory-installed lock for added security as needed.

The SWBC3041 can be used in indoor or outdoor kitchens. With its professional design and versatile functionality, it's the ideal choice for home bars looking to please all beverage tastes.

Download
BROCHURE w/ DRAWINGS
SWBC3041.pdf
Download
ASSEMBLY DRAWING
SWBC3041_ASSY.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
