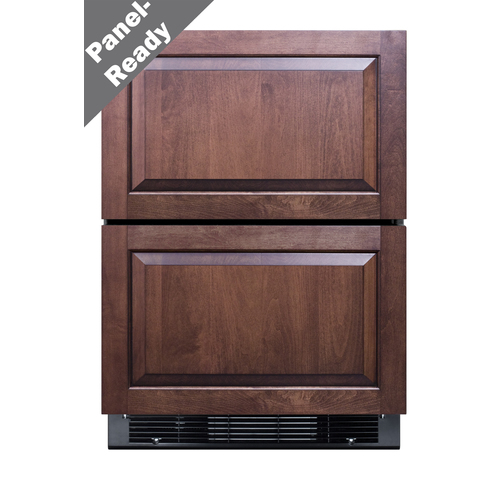

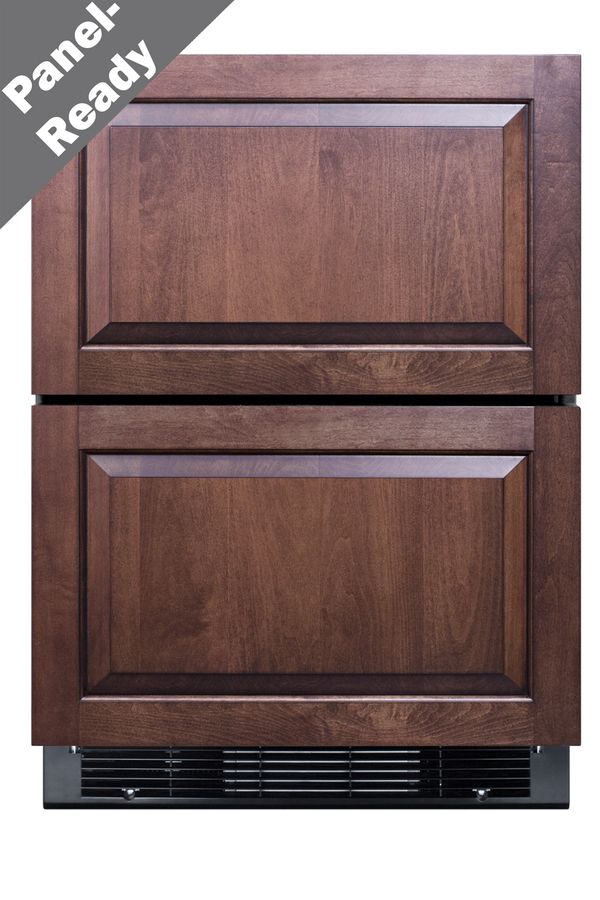

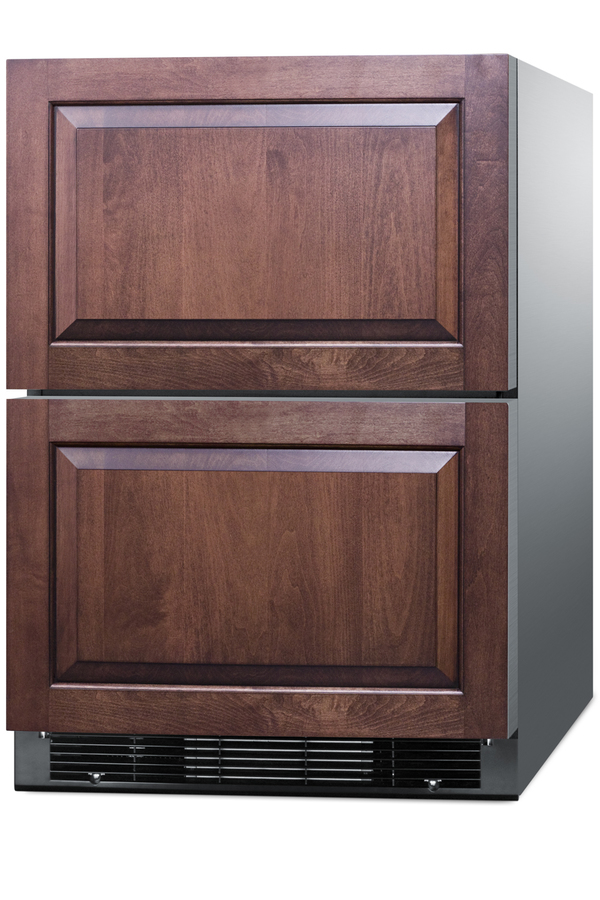

24" Wide Panel-Ready 2-Drawer Refrigerator-Freezer With Icemaker (Panel Not Included)

SKU: SPRF2D5IMPNR
Made in North America with separate storage for fresh and frozen food, with panel-ready drawers for easy customization
DISCONTINUED
34.0" H x 23.75" W x 24.25" D
(86cm H x 60cm W x 62cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.75" (60 cm)
Depth 24.25" (62 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 4.94 cu.ft. (140 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Stainless Steel
US Electrical Safety UL
Energy Usage/Year 502.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 172.0 lbs. (78 kg)
Shipping Weight 179.0 lbs. (81 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101081502
Refrigerator-Freezer
Interior Light Yes
Refrigerator - Interior Height 12.75" (32 cm)
Refrigerator - Interior Width 20.0" (51 cm)
Refrigerator - Interior Depth 15.63" (40 cm)
Refrigerator - Temperature Range 34 to 45ºF
Freezer - Interior Height 12.75" (32 cm)
Freezer - Interior Width 20.0" (51 cm)
Freezer - Interior Depth 15.63" (40 cm)
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 4.8 oz.
High Side PSI 235.0
Low Side PSI 140.0
Freezer - Temperature Range -5 to 5ºF

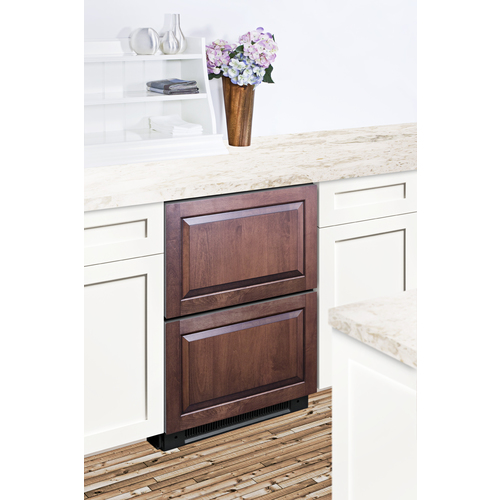

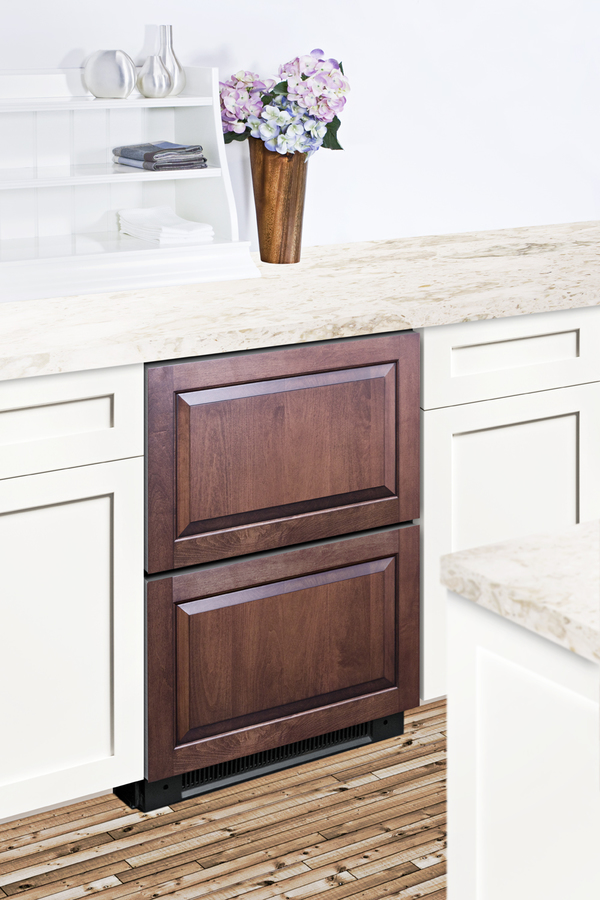

Built-in capable

Make the best use of space by installing this unit under the counter and flush with other cabinetry

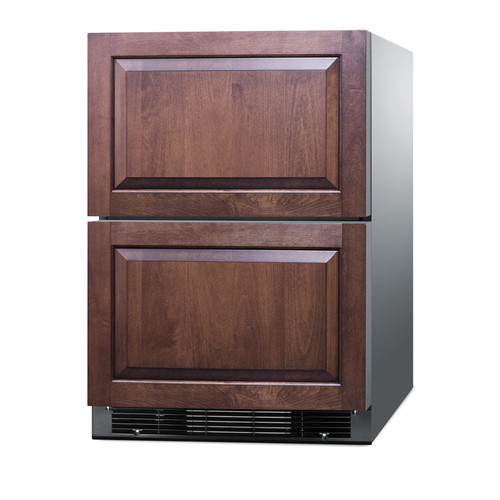

Panel-ready drawer fronts

Drawer fronts can be customized with a custom overlay panel (panel dimensions: 23 3/4" H x 15" W at 3/4" maximum thickness)

Stainless steel drawer fronts

Elegant style suits any setting

Professional handles

Thin (14mm diameter) stainless steel handles finish the look

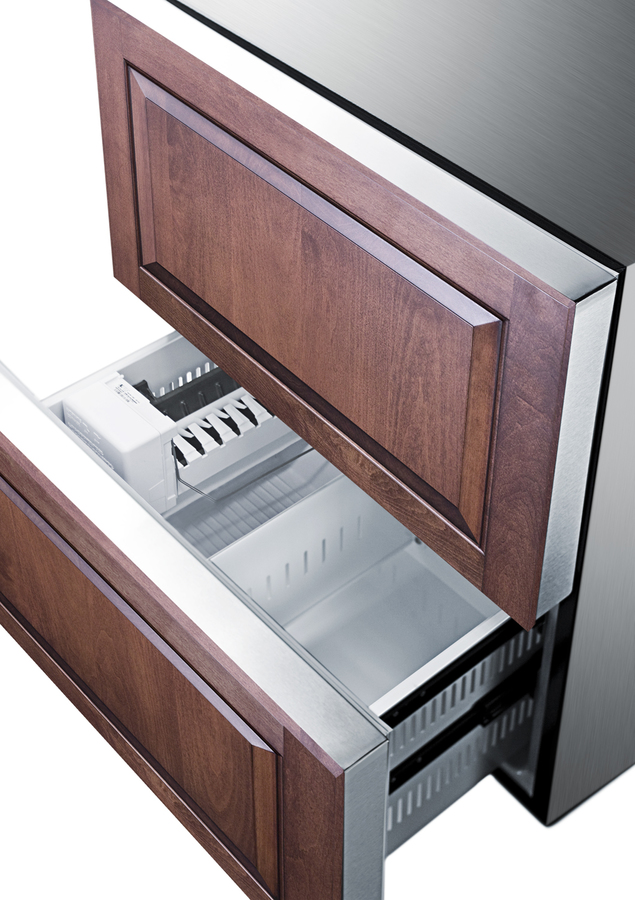

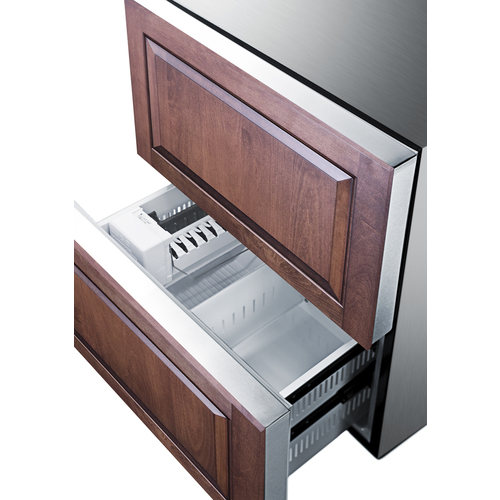

Factory installed icemaker

Keep a steady supply of ice on hand in the freezer compartment

Frost-free operation

Low maintenance design for easy operation

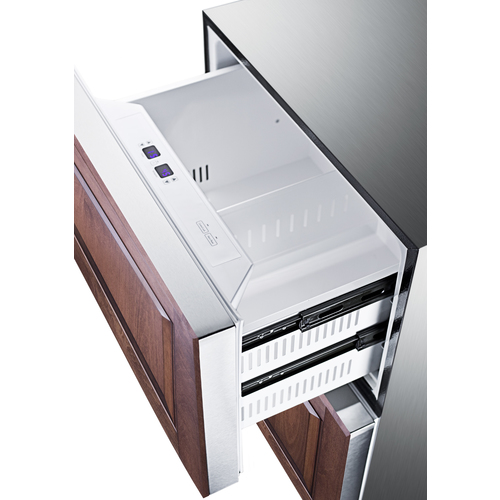

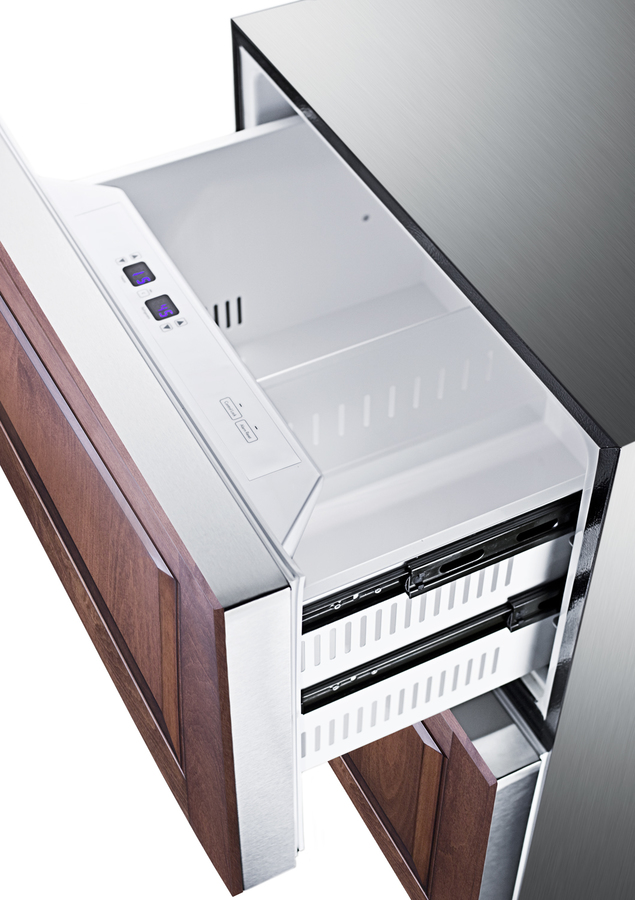

Digital thermostat

Electronic controls ensure easy and intuitive temperature management of both the refrigerator and freezer sections

Control Lock function

Thermostat includes a locking feature to prevent unintentional changes

Digital display

Internal thermostat lets you view the set temperature in Fahrenheit or Celsius

Open drawer alarm

Audible alarm will sound if either drawer is left open for 10 minutes

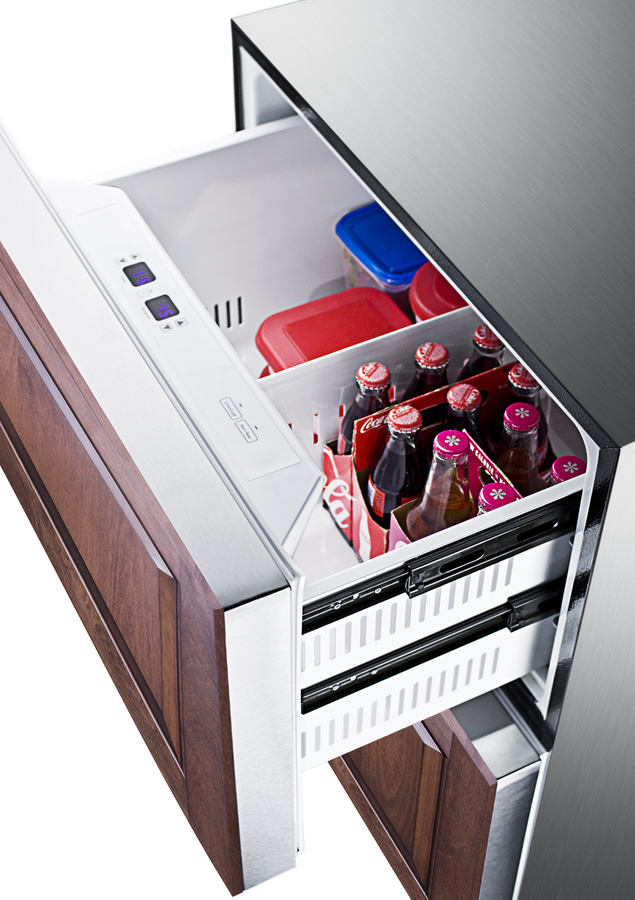

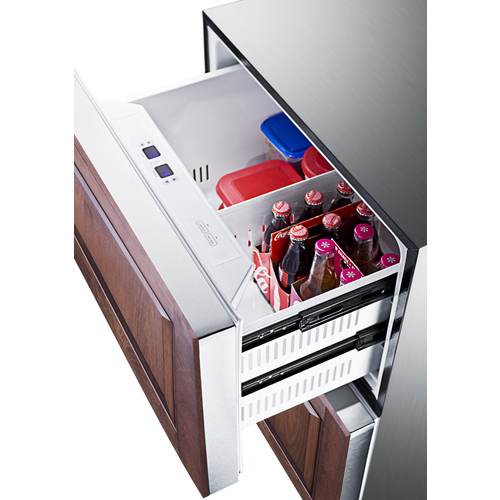

Divider

Refrigerator section includes a center divider for easier storage

Interior light

Automatically illuminates when the top drawer is opened

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit's extensive selection of built-in undercounter drawer refrigeration brings space-saving storage in a variety of stunning designs.

The SPRF2D5IMPNR is a 2-drawer refrigerator-freezer designed and manufactured in North America. The front-breathing system enables built-in installation under counters, while the fully finished stainless steel cabinet also allows it to be used freestanding.  It comes in a 24 inch wide fit, with panel-ready stainless steel drawer fronts that let you customize the look to best match adjacent cabinetry (panel dimensions: 23 3/4" H x 15" W at 3/4" maximum thickness). Pro-style handles complete the elegant look.

Both the top drawer refrigerator and bottom drawer freezer utilize full frost-free operation, ensuring a low maintenance performance with reliable cooling. A digital thermostat ensures easy temperature management and an interior light provides a convenient view of stored items. The freezer includes a factory installed icemaker to store up to 8 lbs. of cubes.

With a unique design fully equipped for user convenience, the SPRF2D5IMPNR makes an attractive yet functional addition to any home.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
