SPRF2D5IM

True frost-free forced air cooling for optimum performance

34.0" H x 23.75" W x 24.25" D

(86cm H x 60cm W x 62cm D)

OVERVIEW

  • Flexible design allows built-in or freestanding use
  • Factory installed icemaker provides a steady supply of ice
  • Complete stainless steel exterior brings luxury to any setting
  • Unique two-drawer design features separate refrigerator and freezer compartments
  • Digital thermostat ensures easy and intuitive temperature management
  • Frost-free operation offers true convenience
  • Made in North America

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.75" (60 cm)
Depth 24.25" (62 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 4.94 cu.ft. (140 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Energy Usage/Year 502.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 172.0 lbs. (78 kg)
Shipping Weight 179.0 lbs. (81 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Interior Light Yes
Refrigerator - Interior Height 12.75" (32 cm)
Refrigerator - Interior Width 20.0" (51 cm)
Refrigerator - Interior Depth 15.63" (40 cm)
Refrigerator - Temperature Range 34 to 45ºF
Freezer - Interior Height 12.75" (32 cm)
Freezer - Interior Width 20.0" (51 cm)
Freezer - Interior Depth 15.63" (40 cm)
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 4.8 oz.
High Side PSI 235.0
Low Side PSI 140.0
Freezer - Temperature Range -5 to 5ºF

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT SPRF2D5IM offers the full convenience of a refrigerator and freezer in one elegant drawer unit made in North America with quality construction.

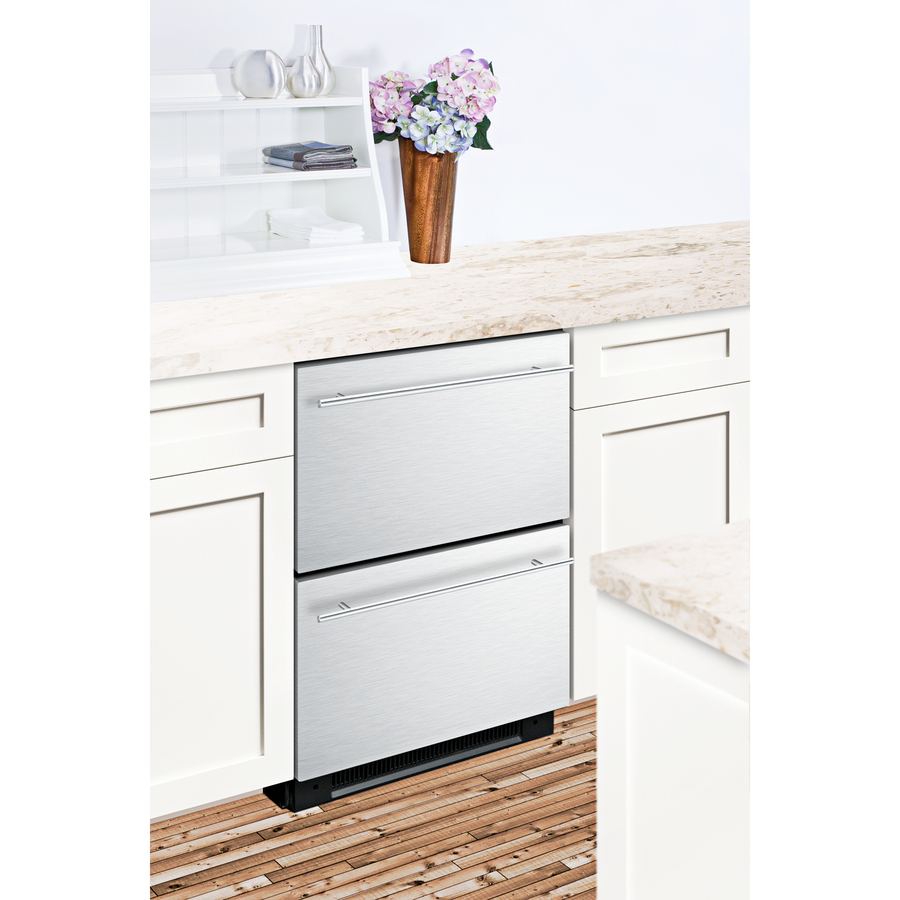

Designed for built-in or freestanding use, the SPRF2D5IM comes in an easy-fitting 24" footprint, with a complete stainless steel exterior. The two drawers feature sleek professional handles to match popular styles of kitchen cabinetry.

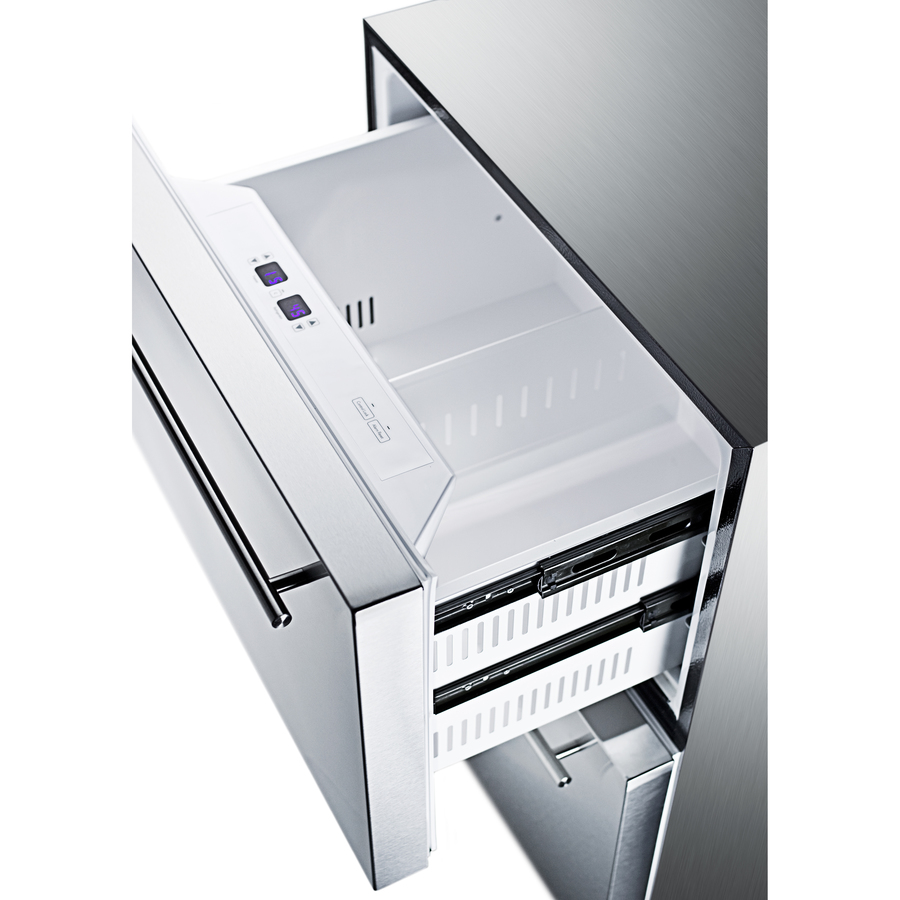

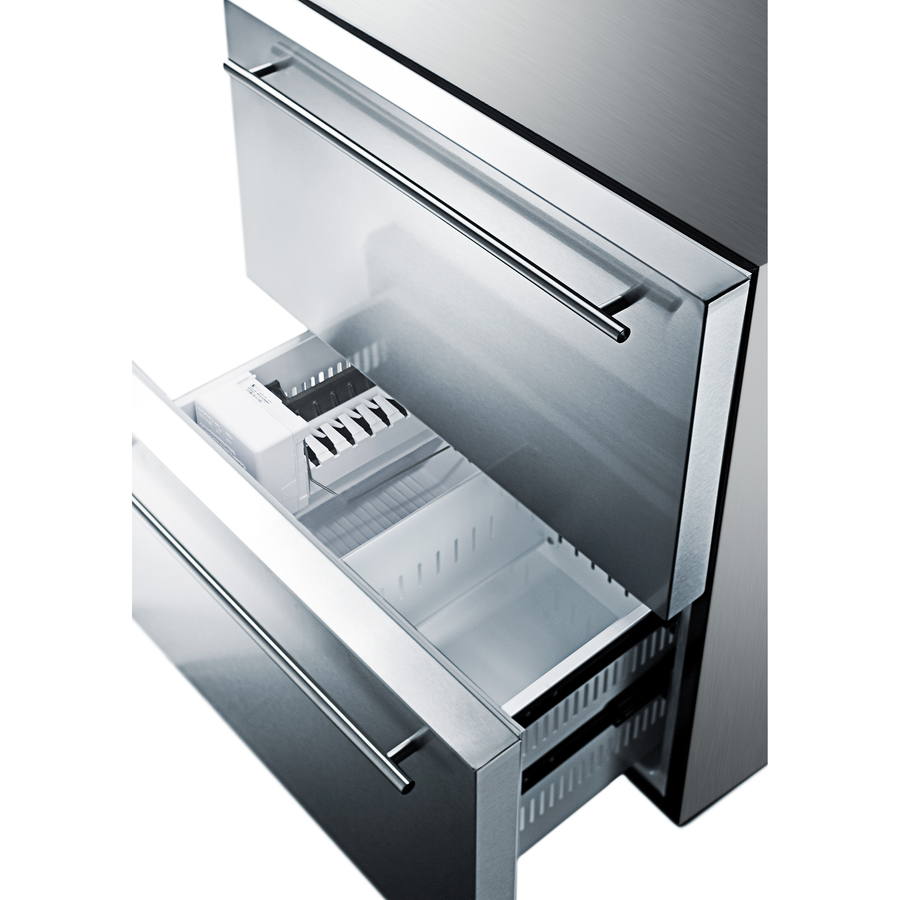

Both the top drawer refrigerator and bottom drawer freezer utilize full frost-free operation, ensuring a low maintenance performance with reliable cooling. A digital thermostat ensures easy temperature management and an interior light provides a convenient view of stored items. The freezer includes a factory installed icemaker.

With a unique design fully equipped for user convenience, the SPRF2D5IM makes an attractive yet functional addition to any home.

FEATURES

Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Stainless steel drawer fronts
Elegant style suits any setting
Professional handles
Thin (14mm diameter) stainless steel handles finish the look
Factory installed icemaker
Keep a steady supply of ice on hand in the freezer compartment
Frost-free operation
Low maintenance design for easy operation
Digital thermostat
Electronic controls ensure easy and intuitive temperature management of both the refrigerator and freezer sections
Control Lock function
Thermostat includes a locking feature to prevent unintentional changes
Digital display
Internal thermostat lets you view the set temperature in Fahrenheit or Celsius
Open drawer alarm
Audible alarm will sound if either drawer is left open for 10 minutes
Divider
Refrigerator section includes a center divider for easier storage
Interior light
Automatically illuminates when the top drawer is opened
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.75" (60 cm)
Depth 24.25" (62 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 4.94 cu.ft. (140 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Energy Usage/Year 502.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 172.0 lbs. (78 kg)
Shipping Weight 179.0 lbs. (81 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Interior Light Yes
Refrigerator - Interior Height 12.75" (32 cm)
Refrigerator - Interior Width 20.0" (51 cm)
Refrigerator - Interior Depth 15.63" (40 cm)
Refrigerator - Temperature Range 34 to 45ºF
Freezer - Interior Height 12.75" (32 cm)
Freezer - Interior Width 20.0" (51 cm)
Freezer - Interior Depth 15.63" (40 cm)
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 4.8 oz.
High Side PSI 235.0
Low Side PSI 140.0
Freezer - Temperature Range -5 to 5ºF

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SPRF2D5IM.pdf
Download
TECHNICAL DRAWING (.dwg)
SPRF2DDRAWERREF._FREEZERA-C2000.dwg
Download
USE & CARE
SPRF2DManual.pdf
Download
MSDS INFORMATION
MSDS_R134a_PS.pdf
Energy Guide


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
