SGWO30SS

Designed and constructed in Italy, with luxury style in brushed stainless steel

27.0" H x 29.5" W x 22.63" D

(69cm H x 75cm W x 57cm D)

OVERVIEW

30" wide gas wall oven brings full cooking convenience to unique wall cutouts
Made in Italy for Summit
Stainless steel front with pro style handle
Includes broil and convection function for versatile cooking
Can be used with natural or LP gas connections

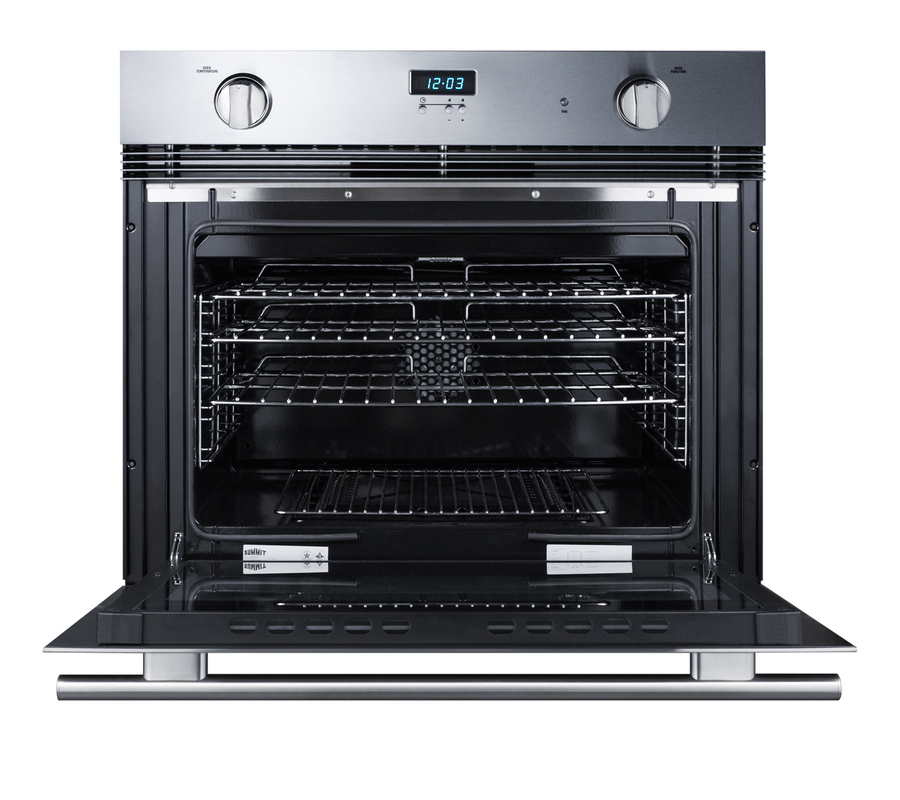

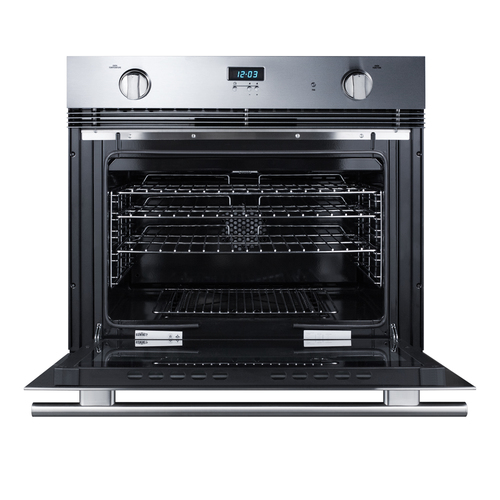

Large oven window and interior light makes it easy to monitor your dishes

SPECIFICATIONS

Overview
Height of Cabinet	27.0" (69 cm)
Width	29.5" (75 cm)
Depth	22.63" (57 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	3.0 cu.ft. (85 L)
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	CSA
Amps	15.0
Voltage/Frequency	115 V AC/60 Hz
Weight	144.0 lbs. (65 kg)
Shipping Weight	149.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Gas Walloven
Ignition	Spark
LP Convertible	Yes
Oven Capacity	3.0
Controls	Dial
Oven Light	Yes
Cooking Timer	Yes
Cleaning Type	Manual
Oven Rack Qty	3
Oven Window	Yes
Interior Height	13.75" (35 cm)
Interior Width	23.0" (58 cm)
Interior Depth	16.0" (41 cm)
Cutout Height	26.63" (68 cm)
Cutout Width	28.0" (71 cm)
Cutout Depth	24.0" (61 cm)

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

DESCRIPTION

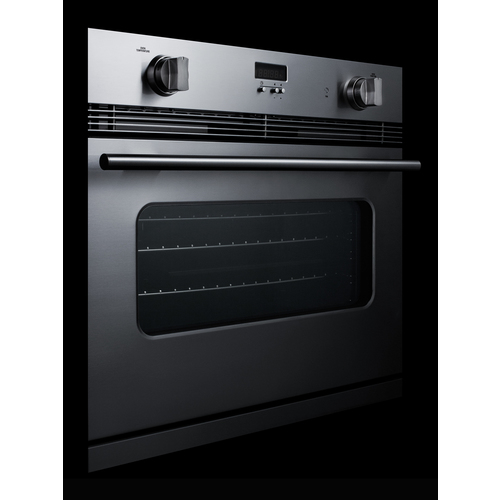

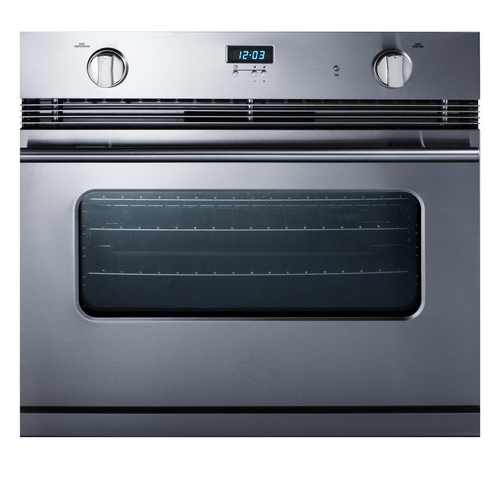

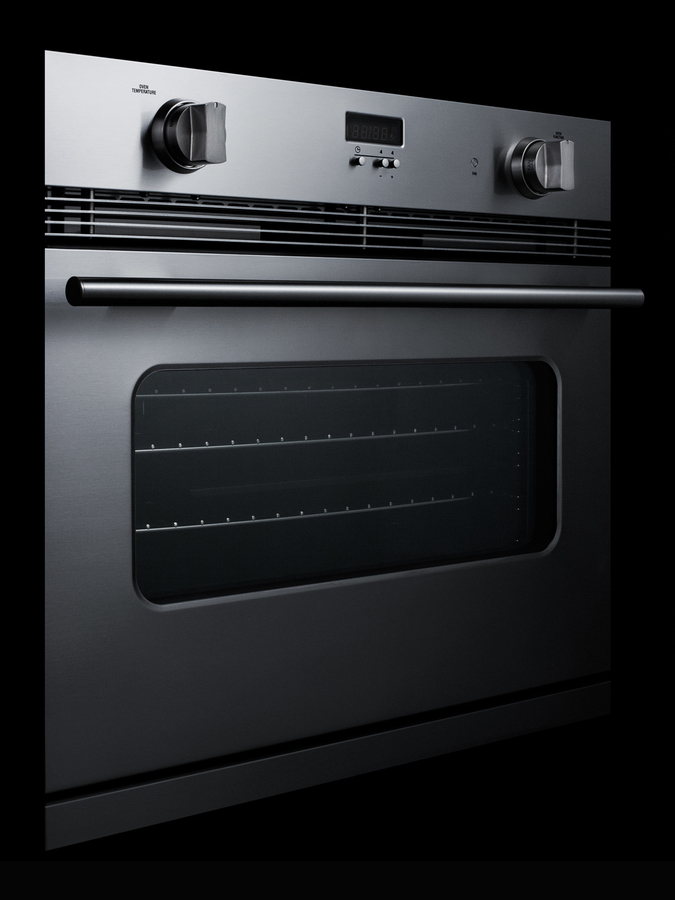

Made in Italy for Summit, the SGWO30SS is a 30" wide gas wall oven designed to bring true luxury to built-in cooking.

The SGWO30SS features stainless steel construction, with a pro style handle and color-matched knobs to complete the look. The large oven window and interior light make it easy to monitor your cooking. A digital clock and timer is included in the manifold.

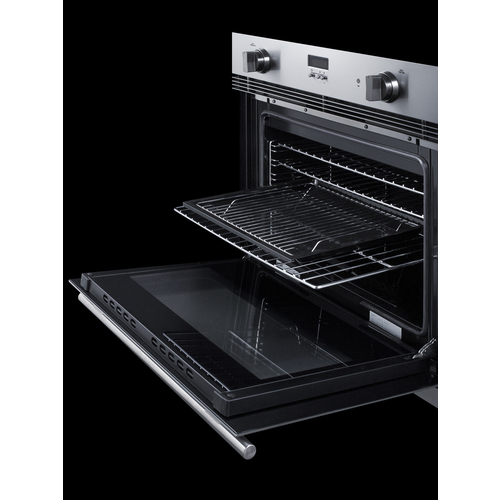

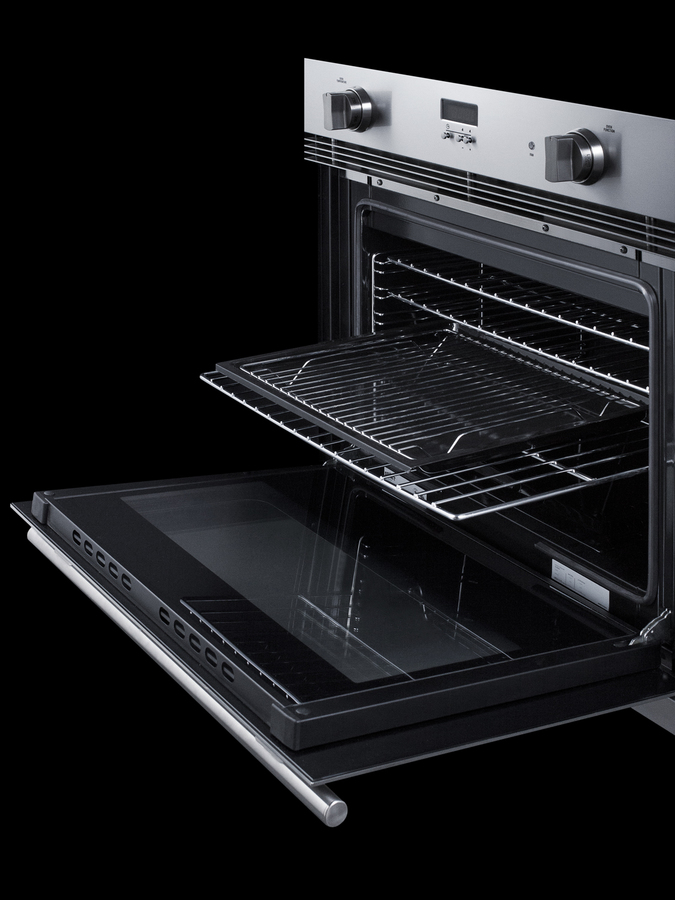

Inside, three adjustable oven racks allow you to accommodate a range of sizes. The 12,000 BTU oven includes settings to bake and broil, with a convection fan that can be used with either function for even heating on your dishes. We include a porcelain broiler pan with a metal grate for added cooking convenience.

This unit comes set for natural gas but can be converted for LP connections (no kit required). It utilizes electronic ignition and includes a pre-installed power cord.

With its versatile functions and stunning design, the SGWO30SS takes built-in cooking to a new level of excellence.

FEATURES

Stainless steel construction
Professional style built to last with brushed stainless steel construction on the door and manifold

Professional handle
Solid tube handle in brushed stainless steel for a luxury look and strong grip

Oven window and light
Keep track of your cooking with the convenient window with interior oven light

Digital clock and timer
Added convenience for easier cooking

Broil function
Broiler is located inside main cavity and can be accessed easily with its knob control

Convection function
Interior fan option offers more even convection heating, ideal for faster defrosting large dishes. Combine with the bake or broil function

LP convertible
Unit comes set for natural gas but can be converted aftermarket without a kit

Broiler pan included
Porcelain tray with removable metal grate

Electronic ignition
Safer operation with a 115V cord included

Thermocouple flame failure protection
Automatically turns gas off if flame is extinguished

SPECIFICATIONS

Overview
Height of Cabinet	27.0" (69 cm)
Width	29.5" (75 cm)
Depth	22.63" (57 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	3.0 cu.ft. (85 L)
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	CSA
Amps	15.0
Voltage/Frequency	115 V AC/60 Hz
Weight	144.0 lbs. (65 kg)
Shipping Weight	149.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Gas Walloven
Ignition	Spark
LP Convertible	Yes
Oven Capacity	3.0
Controls	Dial
Oven Light	Yes
Cooking Timer	Yes
Cleaning Type	Manual
Oven Rack Qty	3
Oven Window	Yes
Interior Height	13.75" (35 cm)
Interior Width	23.0" (58 cm)
Interior Depth	16.0" (41 cm)
Cutout Height	26.63" (68 cm)
Cutout Width	28.0" (71 cm)
Cutout Depth	24.0" (61 cm)
