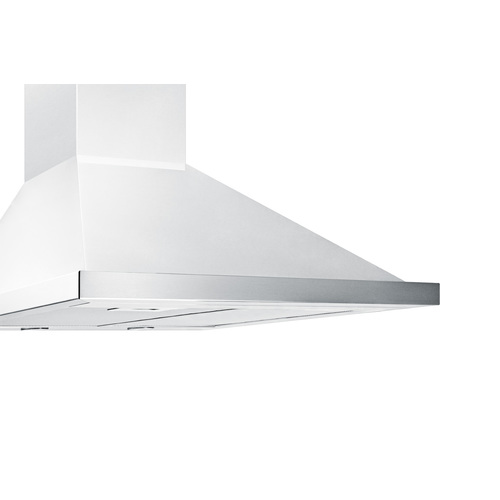

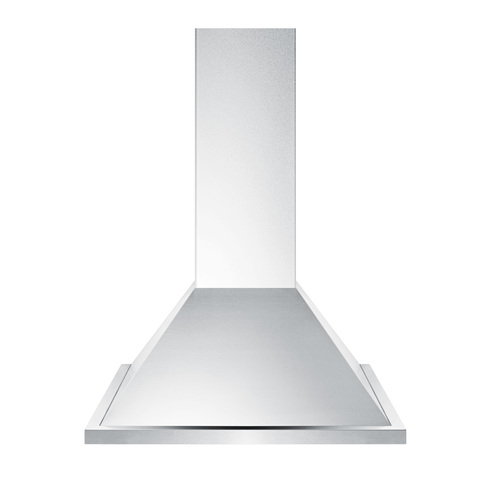

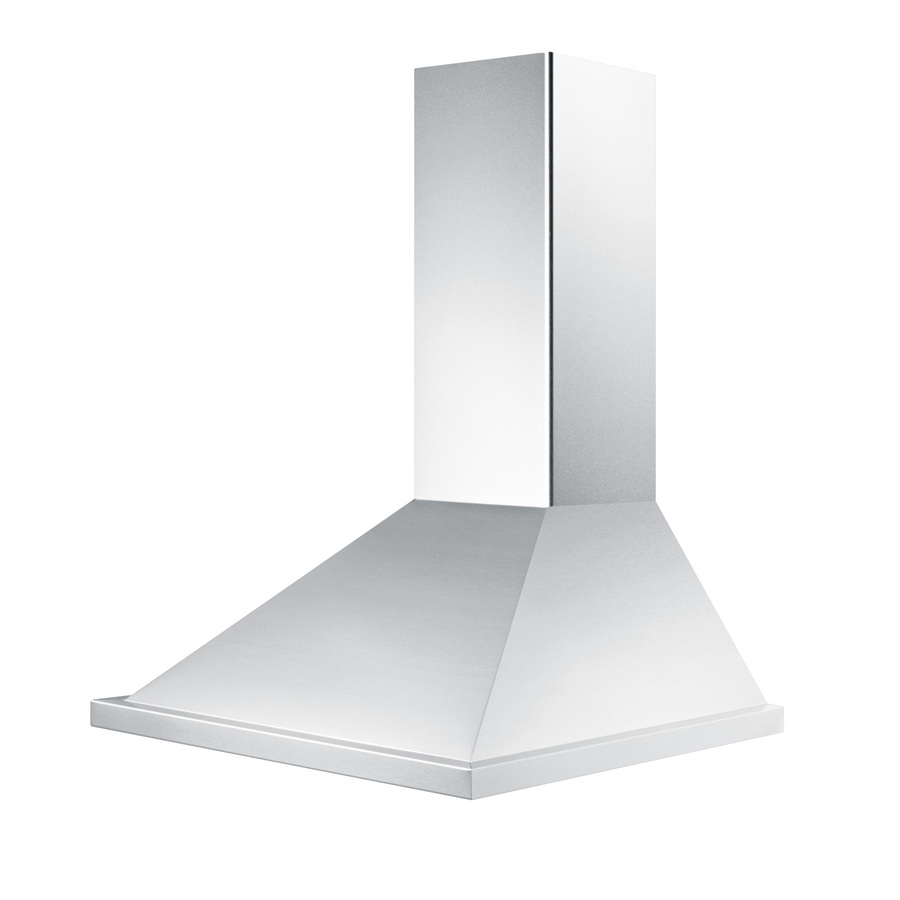

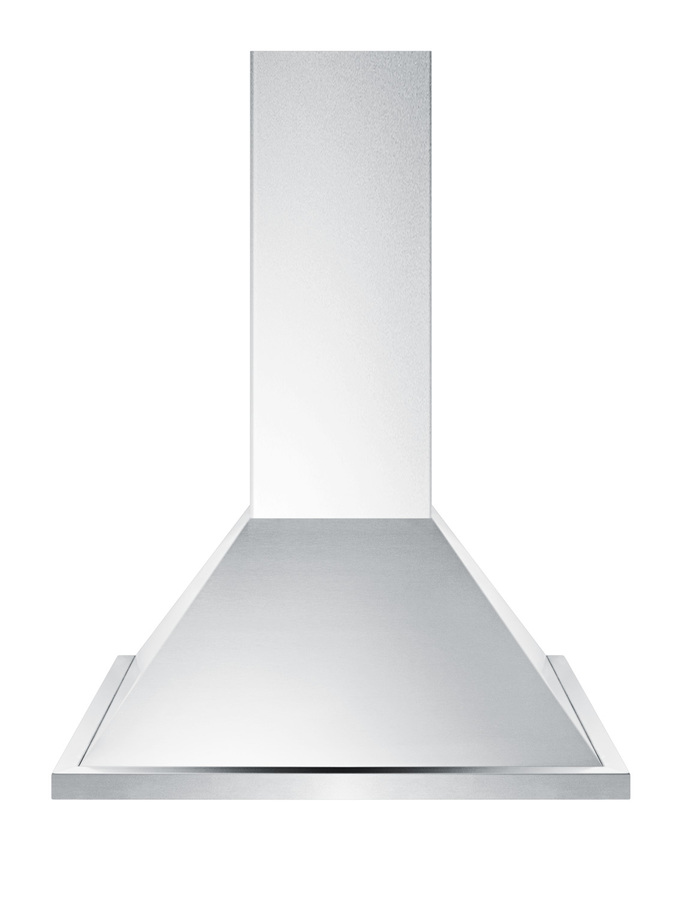

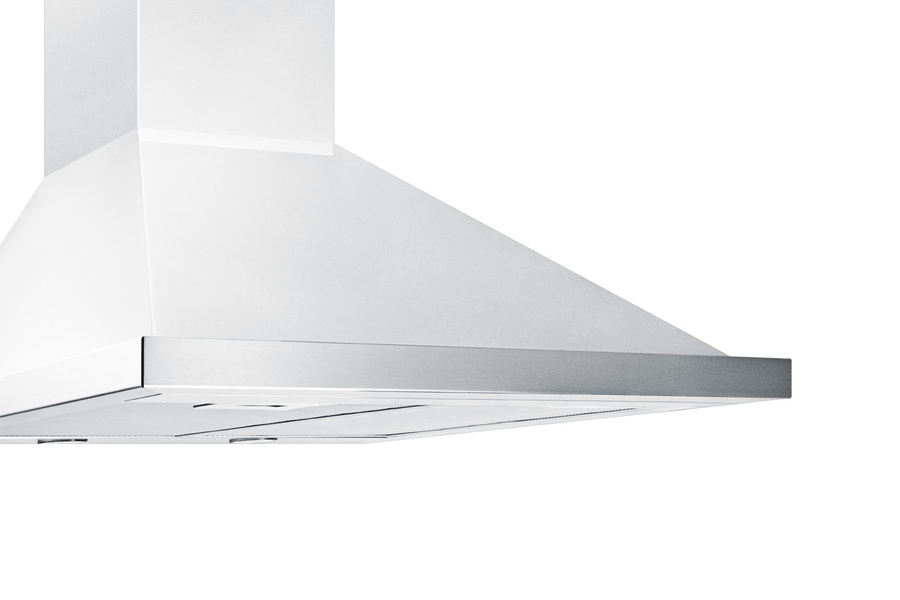

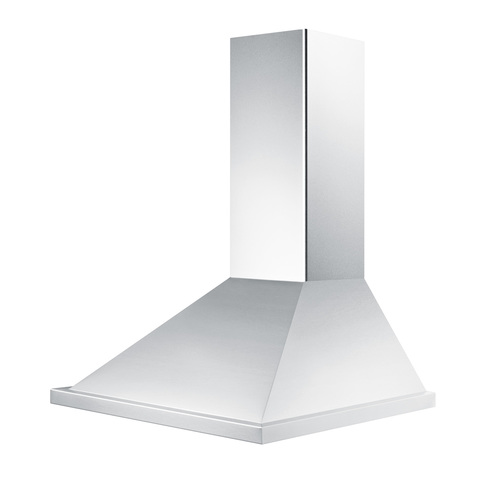

30" Wide Wall-Mounted Range Hood

SKU: SEH1530C
Designed and built in Europe for Summit
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
32.0" H x 29.75" W x 19.63" D
(81cm H x 76cm W x 50cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 29.75" (76 cm)
Depth 19.63" (50 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Parts & Labor Warranty 1 Year
UPC 761101028248
Range Hood
Installation Wall-Mounted
Venting Convertible w/ Filter Set

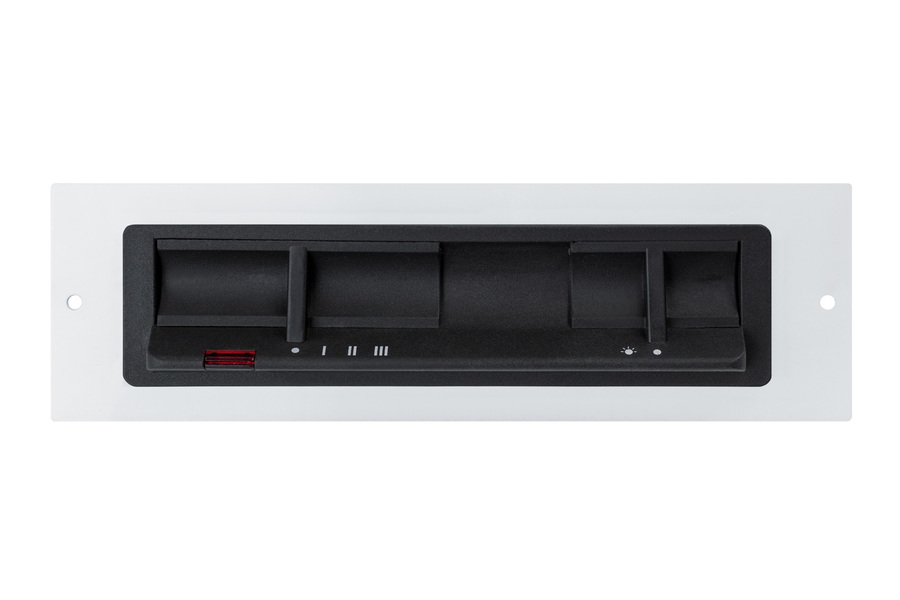

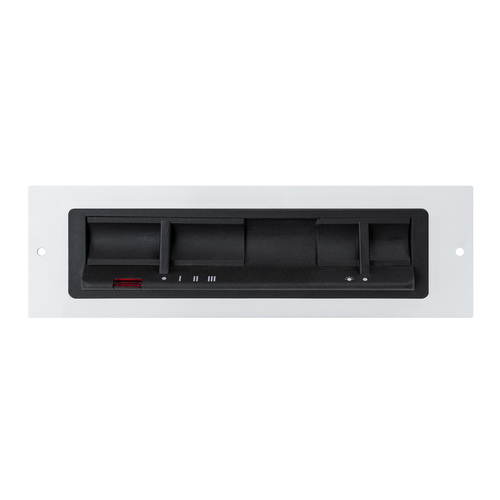

Controls Slide
Light Yes
Number of Lights 2
Light Type Incandescent
Number of Fan Speeds 3
Maximum Air Movement 530.0 CFM
Sone Rating 11
Minimum Height 31.0" (79 cm)
Maximum Height 50.0" (127 cm)
Duct Shape 6" Round

Stainless steel construction

Quality material with an elegant look in brushed stainless steel

600 CFM blower

Professional motor is preinstalled for easy use

Convertible with filter

Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set

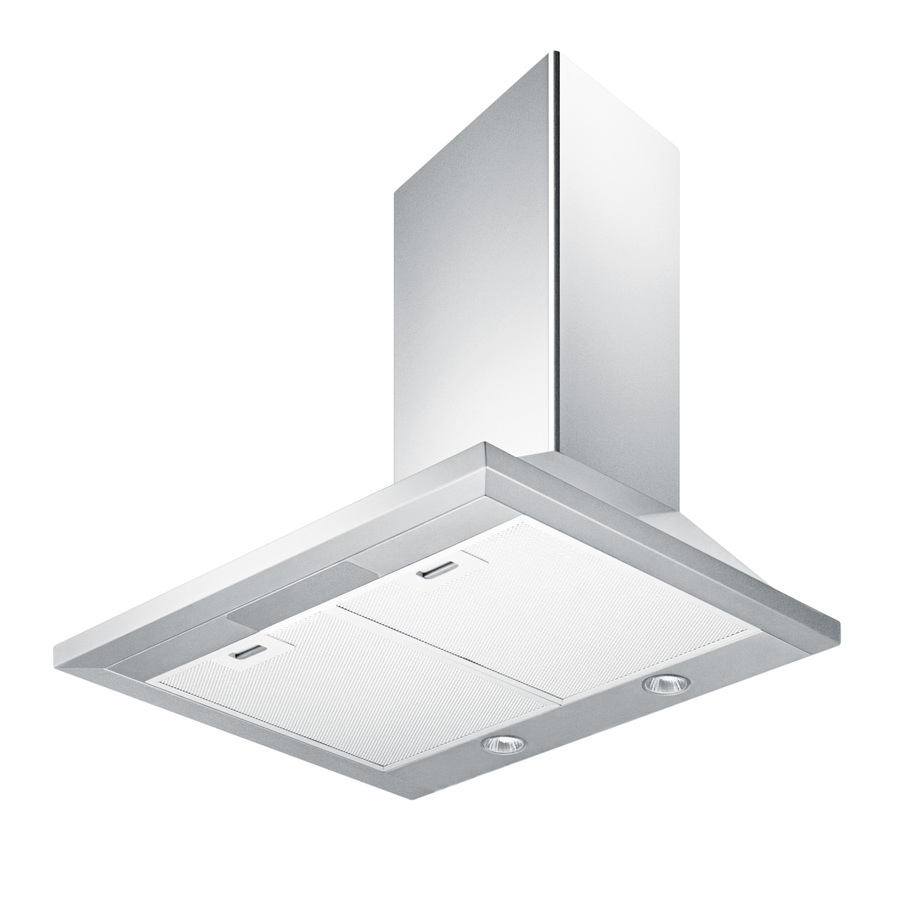

Two aluminum cassette filters

Dishwasher safe filters offer wide filtration area for better ventilation

Timer function

Set the unit to ventilate for a 15 minute interval that automatically turns off when complete

Two 40W lights

Includes two preinstalled incandescent bulbs

Three-speed fan

Offers more options for ventilation

European made

Designed and manufactured in Spain with all UL-Listed components

6" round ducting

Ideal for most kitchen settings

Height adjustable chimney

Chimney height can be set from 21 3/4" to 41 3/4"

SUMMIT PROFESSIONAL introduces a new line of European wall-mounted range hoods designed for outstanding performance and elegant style.

SUMMIT SEH1530C is a 30" wide range hood with a 530 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. The 3-speed fan and 15 minute timer are operated with a slider control panel. Two 40W incandescent light bulbs are pre-installed, offering an elegant illumination of your range.

The SEH1530C is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). This model is manufactured in Spain and ships in one box.

Download
BROCHURE w/ DRAWINGS
SEH1530C.pdf
Download
TECHNICAL DRAWING (.dwg)
SEH1530CRANGEHOODA-C2000.dwg

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
