24" Wide Single Zone Outdoor Commercial Wine Cellar
(86cm H x 59cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.38" (59 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.0 cu.ft. (142 L) |
| Bottles | 40 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 170.0 lbs. (77 kg) |
| Shipping Weight | 157.0 lbs. (71 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101065083 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Steel |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 19.38" (49 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.38" (49 cm) |
| Compressor Step Depth | 4.63" (12 cm) |
| Level Legs | 4 |
| Temperature Range | 36 to 68ºF |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
|||||
| Exterior | |||||
|
FEATURES
Complete stainless steel exterior ensures the unit will hold up to the elements
ETL-S listed to NSF-7 Standards for use in commercial establishments
Make the best use of space by installing this unit under the counter and flush with other cabinetry

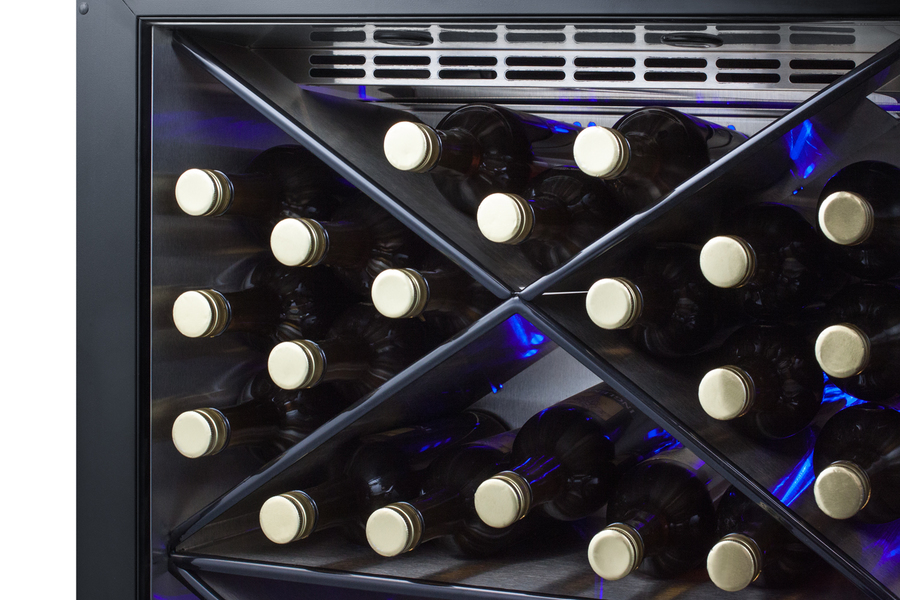

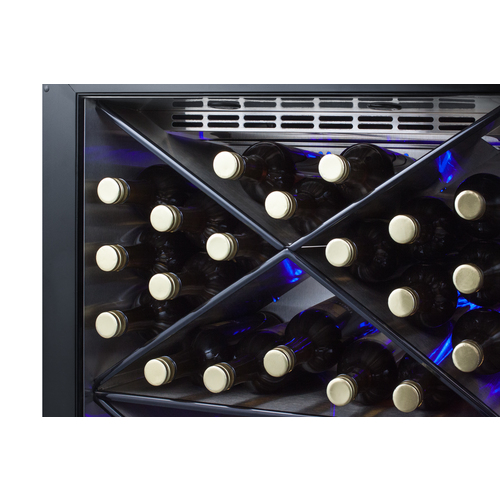

Interior features stainless steel shelving in a unique diamond configuration for an elevated presentation
Each shelf features an industrial rubberized trim in a black finish, ensuring there are no sharp edges while providing a clean look
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Stainless steel trimmed glass door offers a full display of stored items
Walls are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior
Intuitive digital controls ensure easy temperature management
User-reversible door swing allows for more flexibility in placing the unit
Stainless steel handle completes the professional look
Reduced user maintenance with automatic defrost
Internal fan ensures the interior is evenly cooled from top to bottom
Door hinge adds no additional height, making it easier to install under a counter
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Space saving design with easier cleanability
304 grade stainless steel wrapped exterior offers lasting durability with a modern look
Integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR611GLOSX is an undercounter wine cellar built to meet NSF-7 commercial standards, with a weatherproof design for outdoor use. The slim 24 inch footprint takes up minimum floor space, while the large 5 cu.ft. interior accommodates up to 40 Bordeaux style wine bottles. This unit features a front-breathing design for built-in installation, with a stainless steel wrapped cabinet that also allows freestanding use. The reversible stainless steel trimmed glass door includes a pro style handle and factory-installed lock for added security. This model is equipped with an integrated ground fault circuit interrupter for added outdoor safety, with a sealed back to protect all electrical components from the elements. Inside, the SCR611GLOSX features Summit Commercial's unique diamond style racking system, providing a stunning cellar-style presentation that offers easy bottle access for staff. The shelving and interior walls are constructed from stainless steel for lasting durability in busy commercial settings, with a black rubberized trim built to NSF commercial standards. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. With its unique design and commercial grade construction, the SCR611GLOSX is the perfect undercounter option for storing and displaying wine in restaurants. Additional indoor choices are available for in larger sizes for higher bottle capacity. Browse our website for more options.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
