24" Wide Single Zone Built-In Commercial Wine Cellar

SKU: SCR610BLXPNR

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Unique design brings the classic look of diamond style shelving to a commercial grade wine cellar with precise temperature control

34.0" H x 23.63" W x 23.5" D

(86cm H x 60cm W x 60cm D)

OVERVIEW

  • ETL-S listed to NSF-7 commercial standards
  • Unique diamond style shelving in stainless steel brings an elevated presentation to commercial wine storage
  • Panel-ready door frame allows you to create a truly custom look under the counter
  • Digital thermostat offers precise and convenient temperature control with a wide range to accommodate red or white wine
  • Powerful but efficient LED lighting provides a full view of the interior
  • Stainless steel interior offers added durability and improved sanitation
  • Flexible design allows built-in or freestanding use in 24" spaces

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.0 cu.ft. (142 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Shipping Weight 165.0 lbs. (75 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 19.38" (49 cm)
Interior Depth 1 12.25" (31 cm)
Temperature Range 36 to 68ºF

AVAILABLE UPGRADES

Exterior
CAS6 6" casters
6" high NSF listed casters
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
SSK
Stainless steel kickplate factory installed
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

The SCR610BLXPNR is an undercounter  wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 5 cu.ft. interior accommodates up to 40 Bordeaux style wine bottles. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.

Inside, the SCR610BLXPNR features Summit Commercial's unique diamond style racking system, providing a stunning cellar-style presentation that offers easy bottle access for staff. The shelving and interior walls are constructed from stainless steel for lasting durability in busy commercial settings, with a black rubberized trim built to NSF commercial standards. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine.

With its unique design and commercial grade construction, the SCR610BLXPNR is the perfect undercounter option for storing and displaying wine in restaurants. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry

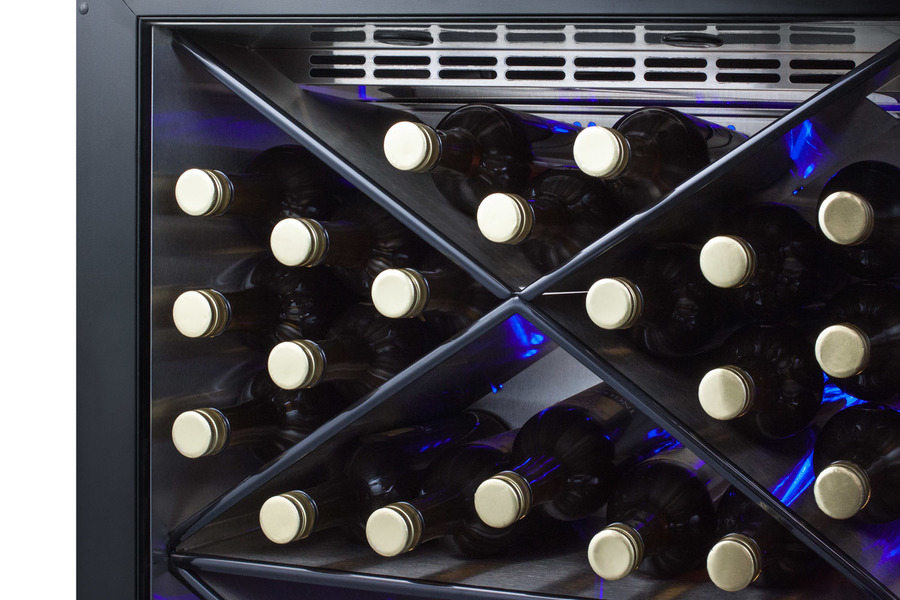

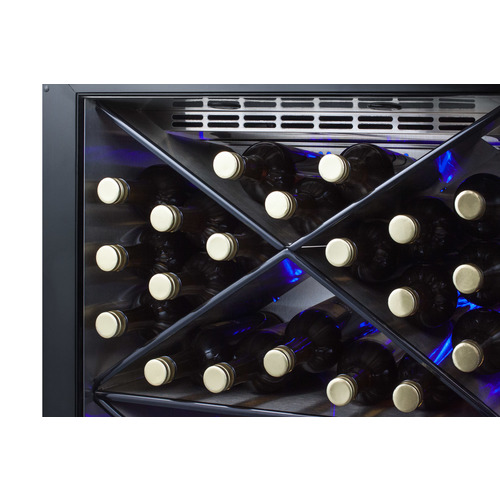

Diamond style wine racks
Interior features stainless steel shelving in a unique diamond configuration for an elevated presentation
Panel-ready door trim
Door frame can be customized with a custom overlay panel (panel frame dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness)
Rubberized safety trim
Each shelf features an industrial rubberized trim in a black finish, ensuring there are no sharp edges while providing a clean look
Interior LED lighting
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Double pane tempered glass door
Stainless steel trimmed glass door offers a full display of stored items
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Factory installed lock
Keyed lock for a secure interior
Digital thermostat
Intuitive digital controls ensure easy temperature management
Factory-reversible door swing
Door ships with a right hand door swing. For a left hand version, add option "LHD"
Professional handle
Stainless steel handle completes the professional look
Automatic defrost
Reduced user maintenance with automatic defrost
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Sealed back
Space saving design with easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.0 cu.ft. (142 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Shipping Weight 165.0 lbs. (75 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 19.38" (49 cm)
Interior Depth 1 12.25" (31 cm)
Temperature Range 36 to 68ºF

AVAILABLE UPGRADES

Exterior
CAS6 6" casters
6" high NSF listed casters
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
SSK
Stainless steel kickplate factory installed
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
