24" Wide Single Zone Built-In Commercial Wine Cellar

SKU: SCR610BLX
Unique design brings the classic look of diamond style shelving to a commercial grade wine cellar with precise temperature control
DISCONTINUED- REPLACED BY SCR610BLCH
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
34.0" H x 23.63" W x 23.5" D
(86cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.0 cu.ft. (142 L)
Bottles 40 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Shipping Weight 146.5 lbs. (66 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059938
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 19.38" (49 cm)
Interior Depth 1 12.25" (31 cm)
Temperature Range 36 to 68ºF
Sound Level 37.4 dB

Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Built-in capable

Make the best use of space by installing this unit under the counter and flush with other cabinetry

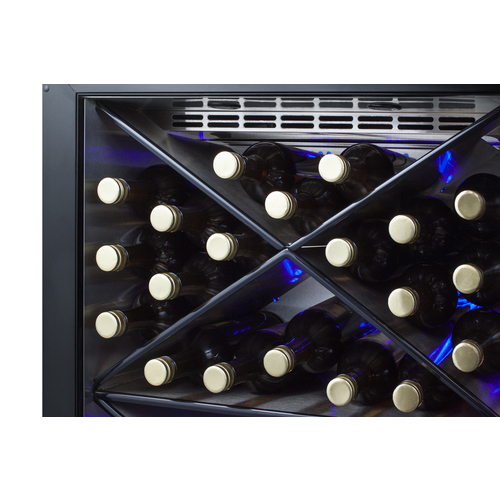

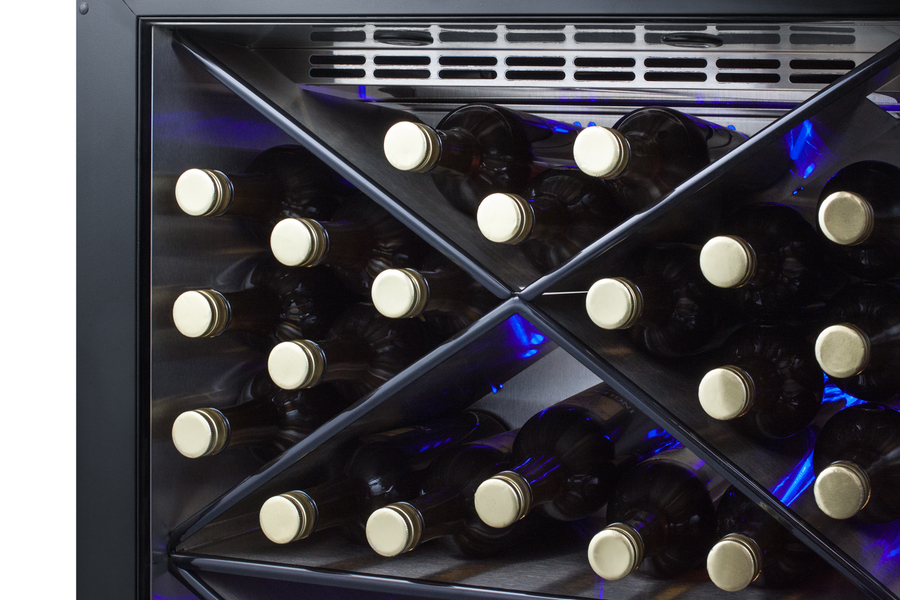

Diamond style wine racks

Interior features stainless steel shelving in a unique diamond configuration for an elevated presentation

Rubberized safety trim

Each shelf features an industrial rubberized trim in a black finish, ensuring there are no sharp edges while providing a clean look

Interior LED lighting

Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view

Double pane tempered glass door

Stainless steel trimmed glass door offers a full display of stored items

Stainless steel interior

Walls are constructed from stainless steel for added strength and easy cleanup

Factory installed lock

Keyed lock for a secure interior

Digital thermostat

Intuitive digital controls ensure easy temperature management

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

Professional handle

Stainless steel handle completes the professional look

Automatic defrost

Reduced user maintenance with automatic defrost

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Sealed back

Space saving design with easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

The SCR610BLX is an undercounter  wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 5 cu.ft. interior accommodates up to 40 Bordeaux style wine bottles. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The reversible stainless steel trimmed glass door includes a pro style handle and factory-installed lock for added security.

Inside, the SCR610BLX features Summit Commercial's unique diamond style racking system, providing a stunning cellar-style presentation that offers easy bottle access for staff. The shelving and interior walls are constructed from stainless steel for lasting durability in busy commercial settings, with a black rubberized trim built to NSF commercial standards. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine.

With its unique design and commercial grade construction, the SCR610BLX is the perfect undercounter option for storing and displaying wine in restaurants. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
