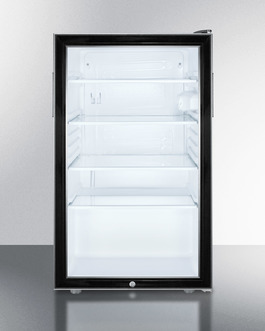

20" Wide Built-In All-Refrigerator, ADA Compliant

SKU: SCR500BLBI7ADA

20" width offers generous storage in a slim fit

DISCONTINUED- REPLACED BY SPR489OSADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

32.5" H x 19.38" W x 22.25" D
(83cm H x 49cm W x 57cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.5" (83 cm)
Width	19.38" (49 cm)
Depth	22.25" (57 cm)
Capacity	4.1 cu.ft. (116 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	57.0 lbs. (26 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101034102
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	1.75oz.
High Side PSI	205.0
Low Side PSI	103.0
Level Legs Qty	2
Wheel Qty	2
Interior Light	Yes
Dimensions
Interior Height	29.0" (74 cm)
Interior Width	17.0" (43 cm)
Interior Depth	17.0" (43 cm)

Exterior

SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings

Handle

TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection	CP Full-Length Copper Pipe Handle Factory-installed full-length handle made from pure copper for antimicrobial protection

Commercially listed

ETL-S listed to NSF standards for commercial use

ADA compliant

32" high to fit under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

Slim 20" width

Full 4.1 cu.ft. capacity inside conveniently slim footprint

Fully finished black cabinet

Allows the unit to be used freestanding

Factory installed lock

Keyed security on the refrigerator door

Glass door

Heat resistant design offers full view of interior

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Interior light

Turn the light on and off with a convenient rocker switch

Adjustable thermostat

Manage the temperature with ease and accuracy

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

SUMMIT SCR500BLBI7ADA commercial series features auto defrost glass door refrigerators designed for built-in use under lower ADA compliant counters.

The ETL-S listed SCR500BLBI7ADA is a 20" wide all-refrigerator with a 4.1 cu.ft. capacity. It has a jet black cabinet with a reversible glass door and keyed lock. A hospital grade cord with a 'green dot' plug offers additional safety in high traffic areas.

Inside, the SCR500BLBI7ADA includes adjustable glass shelves for attractive and convenient storage. The interior light functions on an on/off rocker switch and an adjustable thermostat offers easy temperature control.

At just under 20" wide, SUMMIT SCR500BLBI7ADA is ideally sized for any ADA compliant setting and can function as a built-in or freestanding unit.

BROCHURE
SCR500BLBI7ADA.pdf

USE & CARE
FF511L_521BL_SCR450L_SCR500BL_Manual_Accucold.pdf

MSDS INFORMATION
R134a_MSDS_T.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
