Compact Wine Cellar

SKU: SCR312LWC2
Commercially approved with a unique design lets you store bottles horizontally and upright
DISCONTINUED- REPLACED BY SWC1535B
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
26.13" H x 17.0" W x 19.25" D
(66cm H x 43cm W x 49cm D)

Overview
Height of Cabinet 25.5" (65 cm)
Height to Hinge Cap 26.13" (66 cm)
Width 17.0" (43 cm)
Depth 19.25" (49 cm)
Depth with Handle 21.0" (53 cm)
Depth with door at 90° 35.25" (90 cm)
Capacity 2.5 cu.ft. (71 L)
Bottles 22 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 80.0 lbs. (36 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101051321
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible No
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 1 20.5" (52 cm)
Interior Width 1 13.5" (34 cm)
Interior Depth 1 14.75" (37 cm)
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 5.25" (13 cm)
Temperature Range 40º to 72ºF
Sound Level 33.5 dB

Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

Commercially approved

ETL-S listed to NSF-7 commercial standards

Double pane tempered glass door

Heat resistant design provides clear view of stored products

Factory installed lock

Keyed lock offers convenient security

22 bottle capacity

Interior can hold up to 22 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy/Pinot Noir bottles, you can store up to 18 of those bottles with an additional 3 Bordeaux bottles.

Professional handle

Stainless steel handle offers a professional look

Automatic defrost

Reduced user maintenance with auto defrost system

Digital thermostat

Precise temperature management with easy electronic controls and a digital display

Interior LED light

Externally located button turns this light on and off to illuminate the products for a tempting view

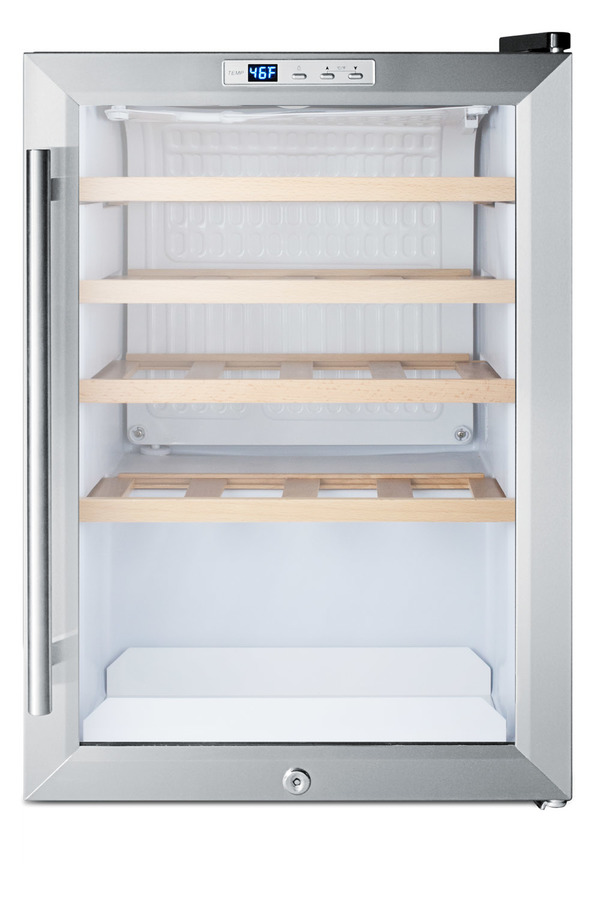

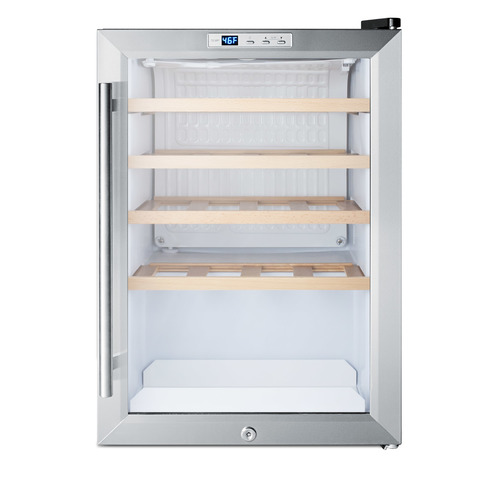

Wooden shelving

Four wooden shelves offer the perfect conditions for storing bottles horizontally

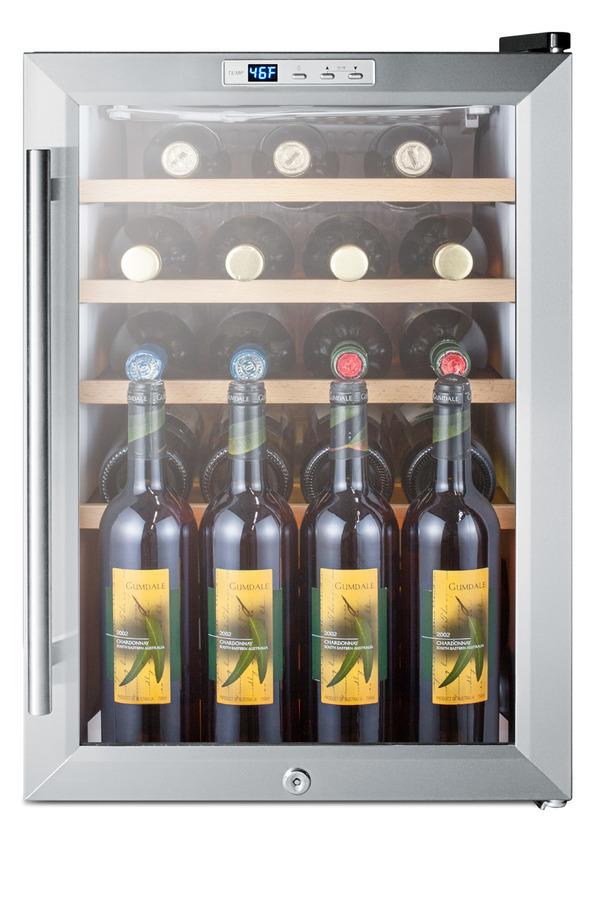

Vertical storage

3 bottles can be stored upright in front of the shelves, an ideal solution for keeping open bottles of wine refrigerated

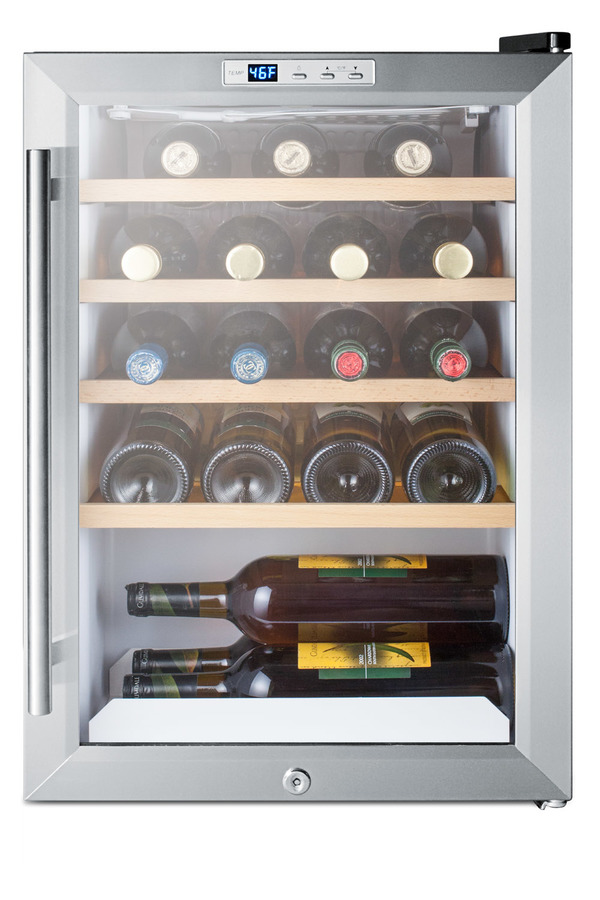

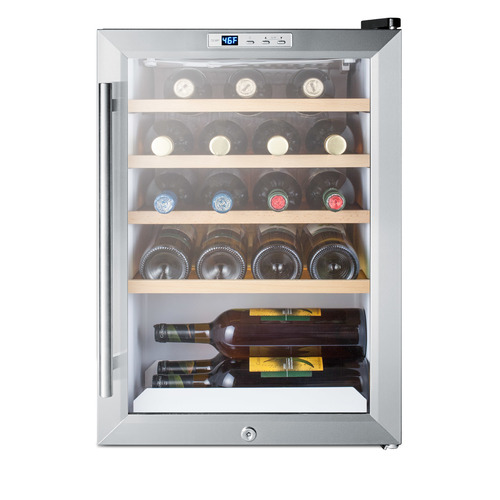

Floor insert

Metal holder lets you lay 3 Bordeaux bottles or 2 Burgundy bottles safely on the floor

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

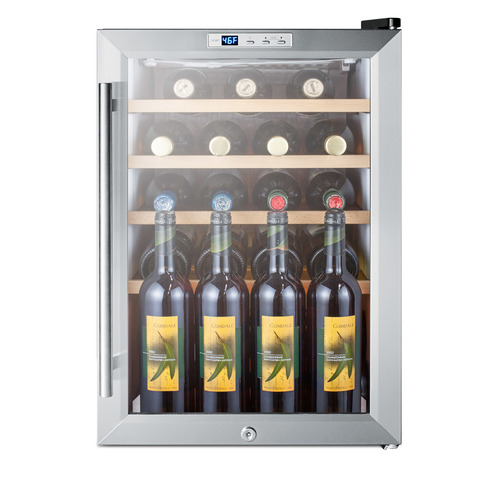

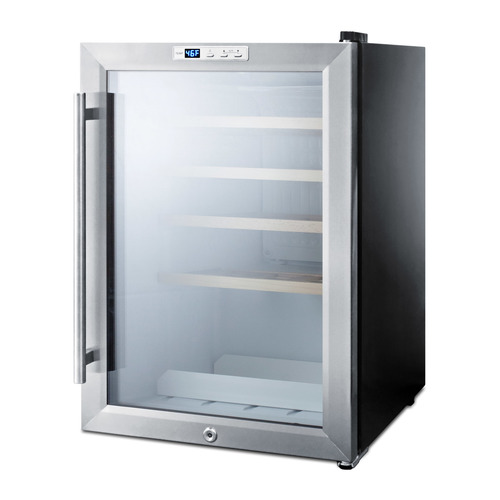

SUMMIT's SCR312LWC2 is a perfectly sized wine cellar with elegant construction that offers the ideal storage and sale conditions for wine.

This countertop unit presents a convenient and heat safe display behind a double pane tempered glass door, finished with a stainless steel trim and a pro style handle. The black cabinet suits any setting, with a front lock adding keyed security.

Inside, the SCR312LWC2 is designed to store up to 22 standard 750ml "Bordeaux" style bottles of wine (or a combination of 18 wider "Burgundy" style bottles and 3 Bordeaux). It includes four wooden shelves and a metal insert that lets you stack bottles on the floor of the unit. Bottles can also be stored upright in front of the shelving, maximizing capacity and offering a great solution to keeping open bottles refrigerated. The SCR312LWC2 features a digital thermostat for easy temperature management and recessed LED lighting for an efficient, attractive presentation.

This unit is ETL-S listed to NSF-7 standards for commercial use. For a built-in capable version of this unit, see the SCR312LBIWC2.

Download
BROCHURE w/ DRAWINGS
SCR312LWC2.pdf
Download
TECHNICAL DRAWING (.dwg)
SCR312L_BEVERAGE_CEN._A-C2000_.dwg
Download
SUPPORT
SCR312WC2.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
