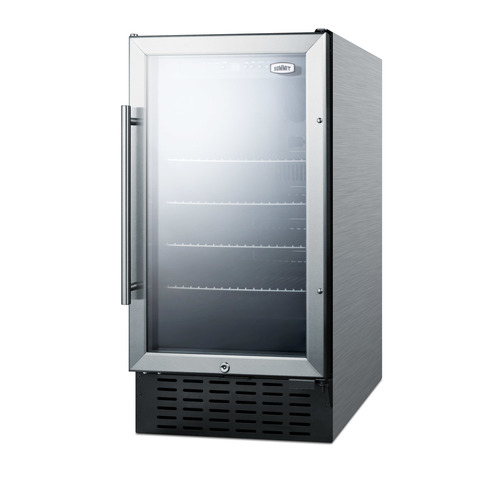

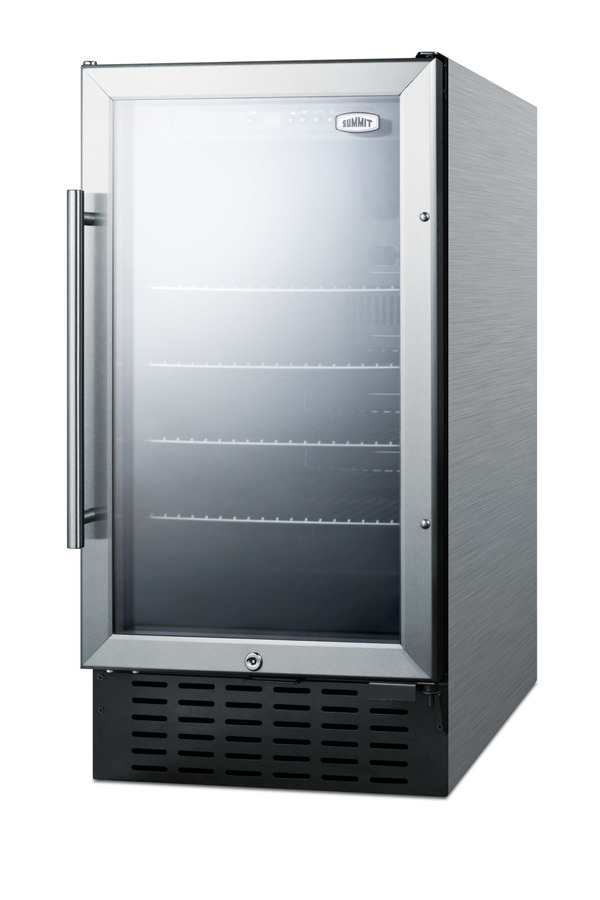

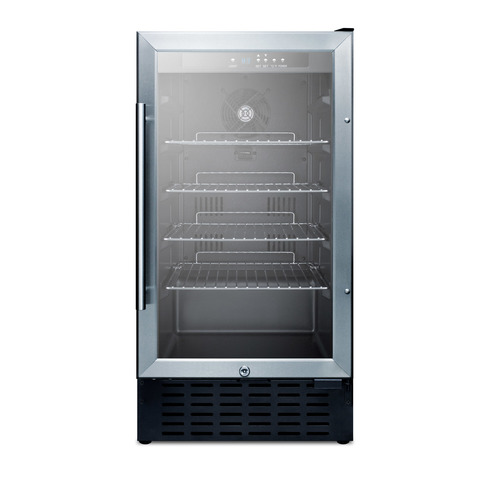

18" Wide Built-In Beverage Center

SKU: SCR1841BCSS Matching winecellar

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial home

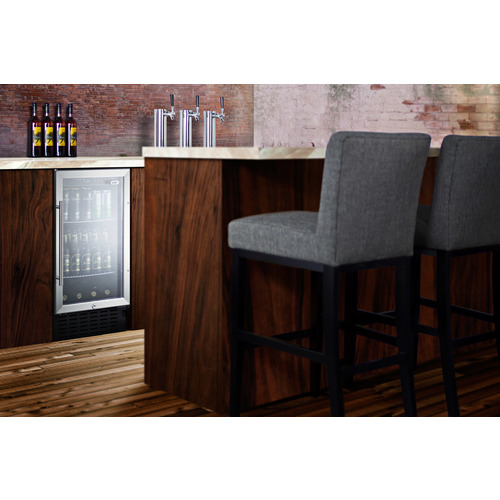

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

34.25" H x 17.94" W x 23.5" D

(87cm H x 46cm W x 60cm D)

OVERVIEW

  • Just under 18" wide for an easy fit, with a flush back design to save space
  • Commercially listed to NSF-7 standards and meets UL-471
  • Flexible design allows built-in or freestanding use
  • Digital thermostat offers precise and convenient temperature control
  • Factory installed lock provides security you can count on
  • Attractive display with a stainless steel trimmed glass door
  • Stainless steel wrapped cabinet for added luxury

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 17.94" (46 cm)
Depth 23.5" (60 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 284.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 108.0 lbs. (49 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34º to 64ºF
Dimensions
Interior Height 21.0" (53 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.75" (12 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.

The SCR1841BCSS is an 18" wide all-refrigerator designed for use in residential settings. The front-breathing system allows built-in installation under counters, while the fully finished cabinet also allows freestanding use. The reversible stainless steel trimmed door includes a factory installed lock and a professional style handle. This unit comes with a wrapped stainless steel cabinet and triple pane tempered glass door for heat-safe storage.

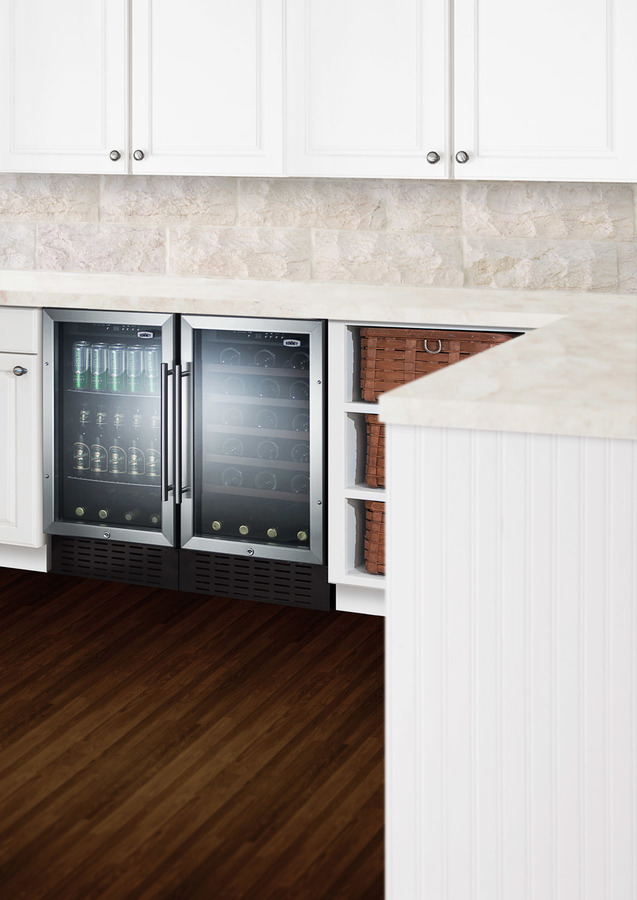

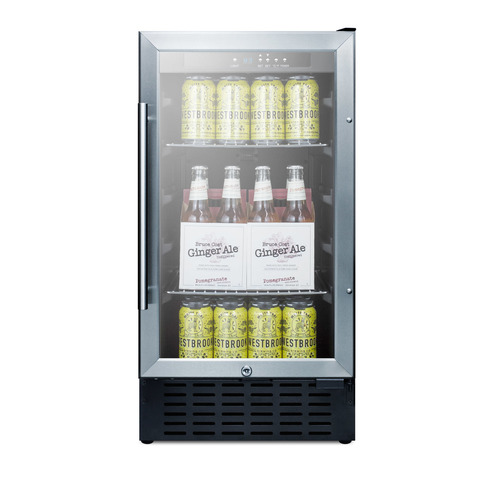

Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. The SCR1841BCSS is also available in a 32" height for use in ADA compliant settings (see the SCR1841BCSSADA) and can be paired with our matching wine cellar, model SWC1840BCSS.

In addition to this unit, Summit offers a full collection of 18" wide undercounter choices, including single and dual zone wine cellars, refrigerators, and frost-freezers. Browse our website for more.

FEATURES

Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

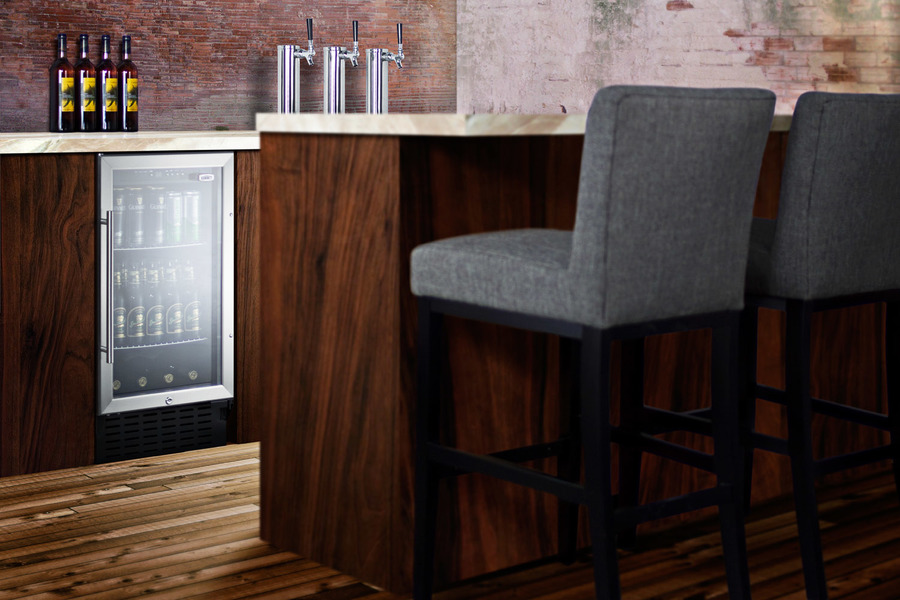

Built-in capable
Make the best use of space by installing your appliance under the counter
Stainless steel wrapped cabinet
Fully wrapped stainless steel exterior cabinet for lasting durability

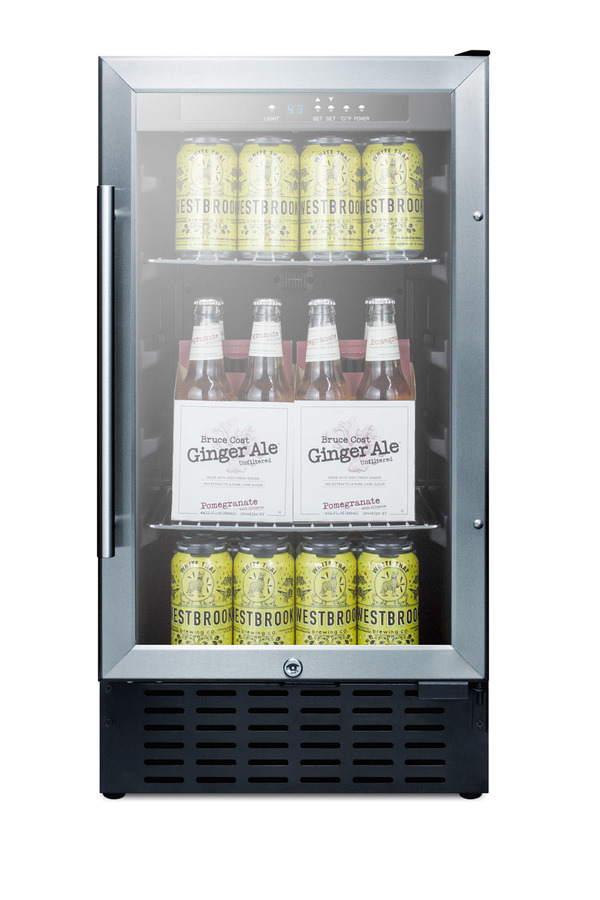

Stainless steel trimmed triple pane tempered glass door
Full display with a heat-safe glass door that keeps all stored items in view
Factory installed lock
Keyed lock for a secure interior
Automatic defrost
Reduced maintenance with auto defrost system

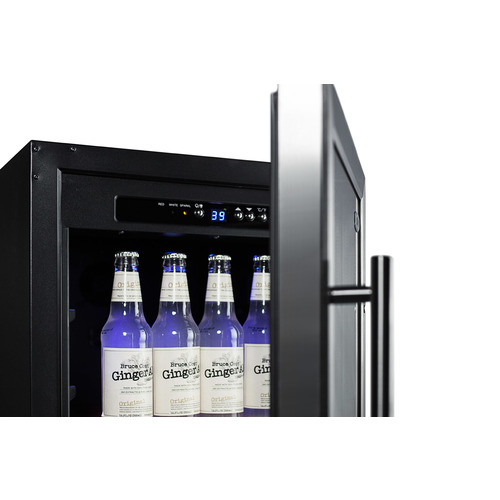

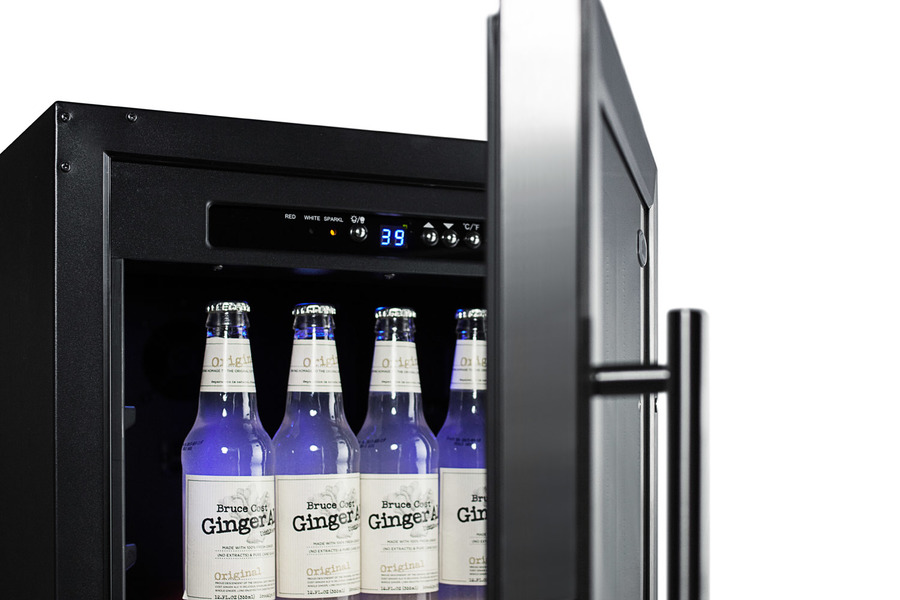

Digital thermostat
Electronic controls for precise temperature management.
LED lighting
Gentle illumination with an on/off switch
Reversible door
User-reversible door swing allows for more flexibility in placing the unit

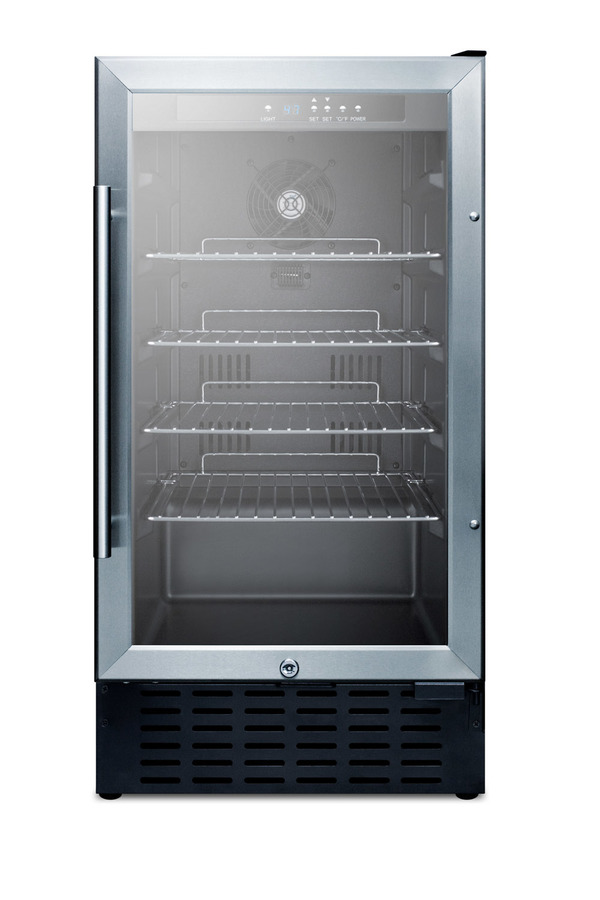

Adjustable chrome shelves
Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Flush back
Space saving design
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 17.94" (46 cm)
Depth 23.5" (60 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 284.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 108.0 lbs. (49 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34º to 64ºF
Dimensions
Interior Height 21.0" (53 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.75" (12 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SCR1841BCSS.pdf
Download
TECHNICAL DRAWING (.dwg)
SCR1841B_BEVE._CENTER__A-C_2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
