24" Wide Single Zone Commercial Wine Cellar

SKU: SCR1401LHXCSS
Unique design brings the classic look of diamond style shelving to a commercial grade wine cellar with precise temperature control
DISCONTINUED- REPLACED BY SCR1401LHCHCSS
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
69.75" H x 23.63" W x 23.75" D
(177cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 69.75" (177 cm)
Width 23.63" (60 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 12.6 cu.ft. (357 L)
Bottles 80 bottles
Defrost Type Frost-Free
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 330.0 lbs. (150 kg)
Shipping Weight 279.5 lbs. (127 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101065069
Wine Cellar
Number of Zones 1
Door Swing LHD
Reversible No
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 59.75" (152 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 16.5" (42 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Temperature Range 36 to 68ºF
Sabbath Mode Yes

Door
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings

Commercially approved

Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use

Slim fit

Just 24" wide and deep for an easy fit in any setting

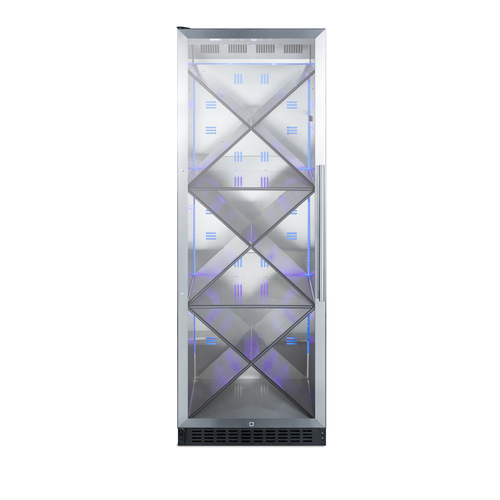

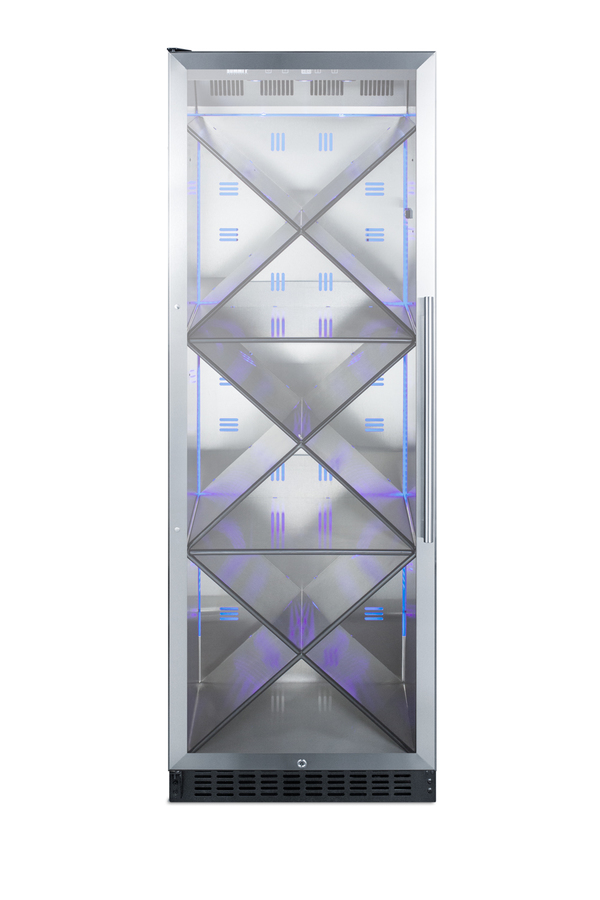

Diamond style wine racks

Interior features stainless steel shelving in a unique diamond configuration for an elevated presentation

Rubberized safety trim

Each shelf features an industrial rubberized trim in a black finish, ensuring there are no sharp edges while providing a clean look

Stainless steel interior

Walls are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door

Heat-safe glass door with stainless steel trim offers full display all the way down to the floor

Interior LED lighting

Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

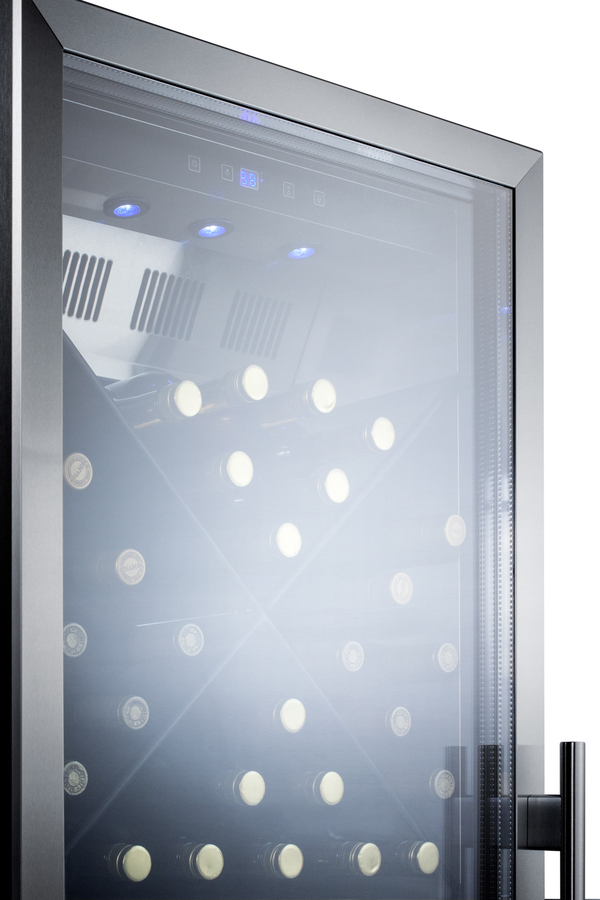

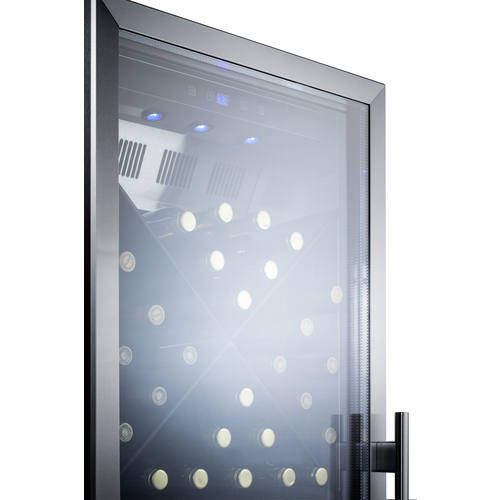

Digital thermostat

Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit

Wide temperature range

Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne

Frost-free operation

No-frost convenience requires no manual defrosting

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

High temperature alarm

Alarm sounds if the interior temperature rises out of suggested range

Professional handle

Attractive design in stainless steel to complete the look

Left hand door swing

For this unit with a right hand door swing, order SCR1401XCSS

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Stainless steel wrapped cabinet

Allows the unit to be used freestanding

Built-in or freestanding

Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

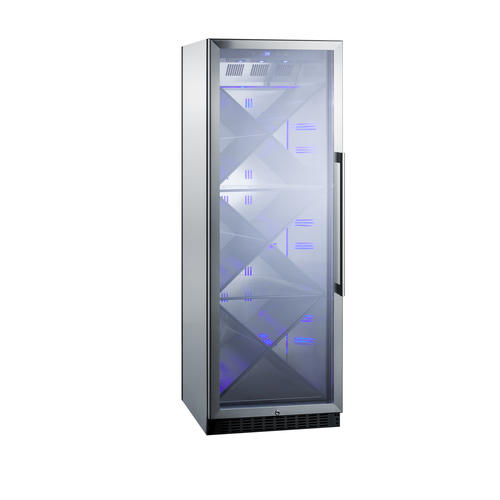

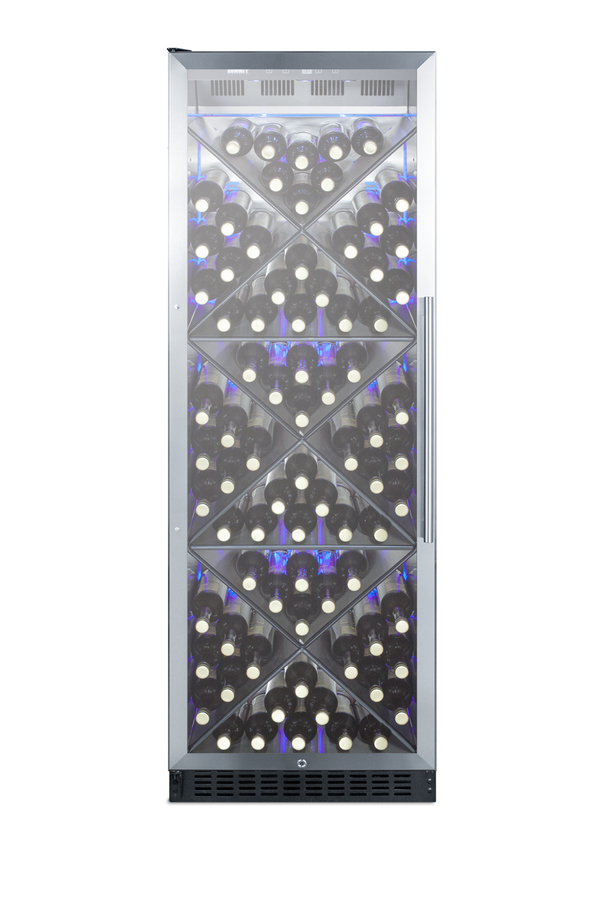

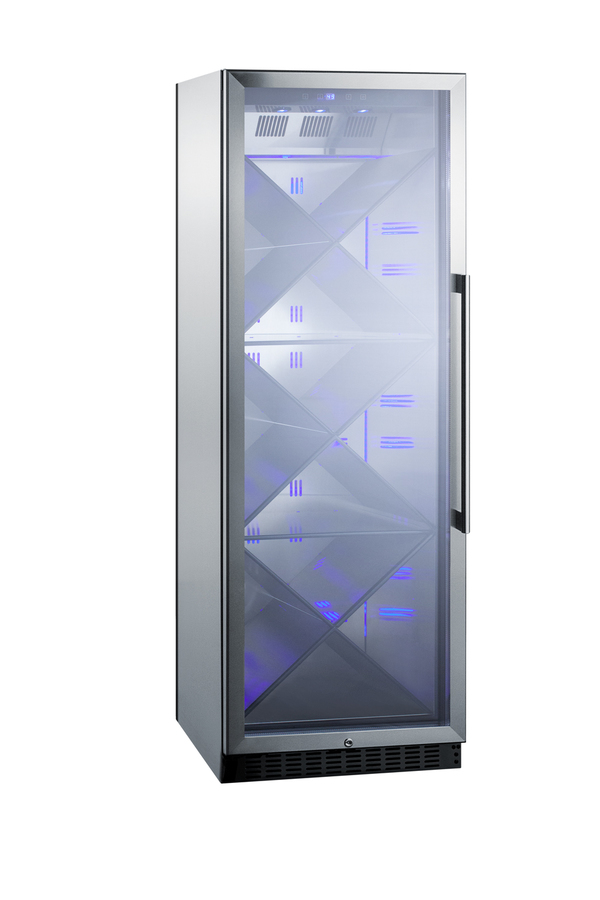

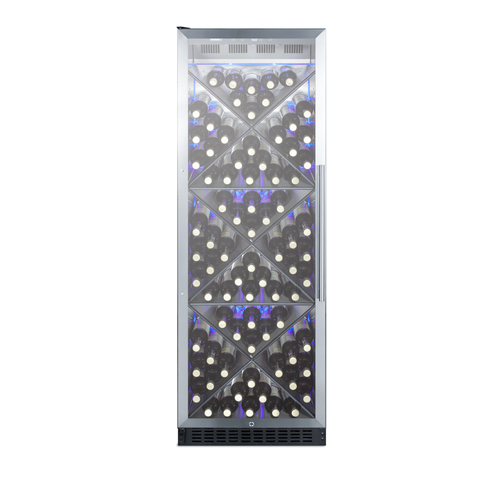

The SCR1401LHXCSS is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. interior accommodates up to 80 Bordeaux style wine bottles. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use. It comes with a left hand door swing. For a right hand version, see the SCR1401XCSS.

Inside, the SCR1401LHXCSS features Summit Commercial's unique diamond style racking system, providing a stunning cellar-style presentation that offers easy bottle access for staff. The shelving and interior walls are constructed from stainless steel for lasting durability in busy commercial settings, with a black rubberized trim built to NSF commercial standards. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel is conveniently located towards the top of the unit, with a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.

The SCR1401LHXCSS comes with a fully finished stainless steel wrapped cabinet. For a similar unit designed to store champagne bottles, see the SCR1401LHCHCSS.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
