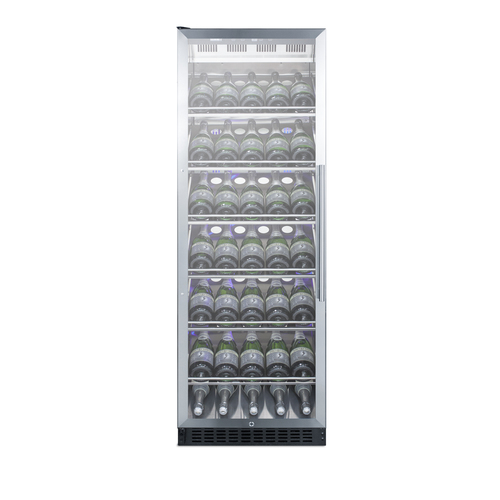

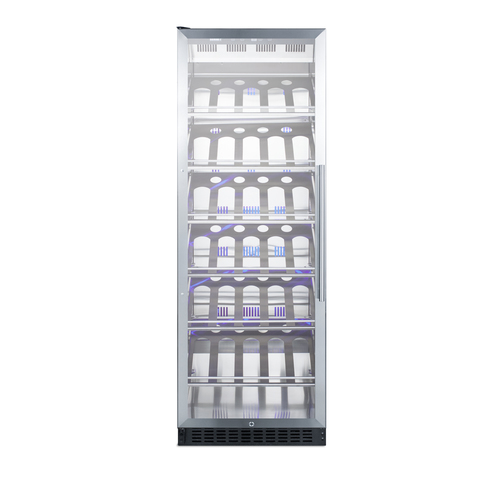

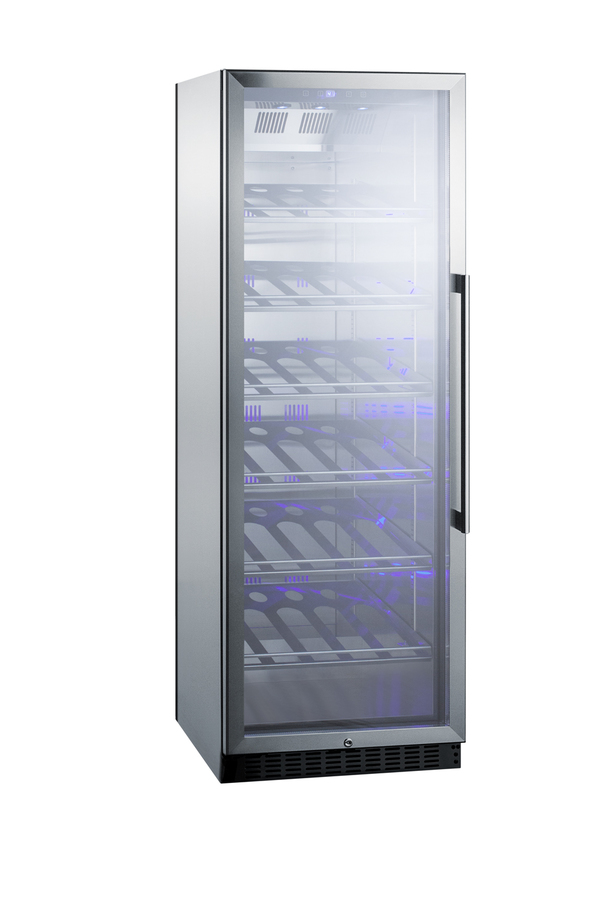

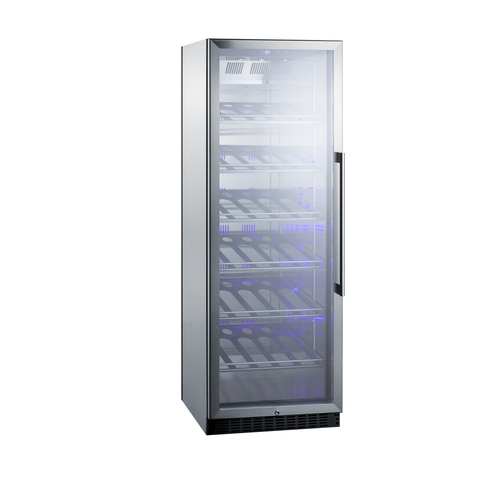

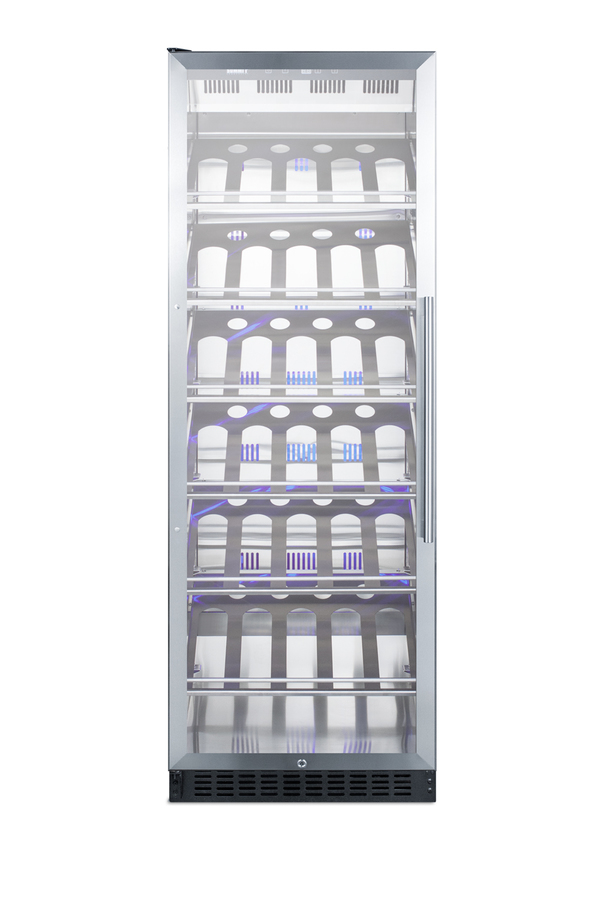

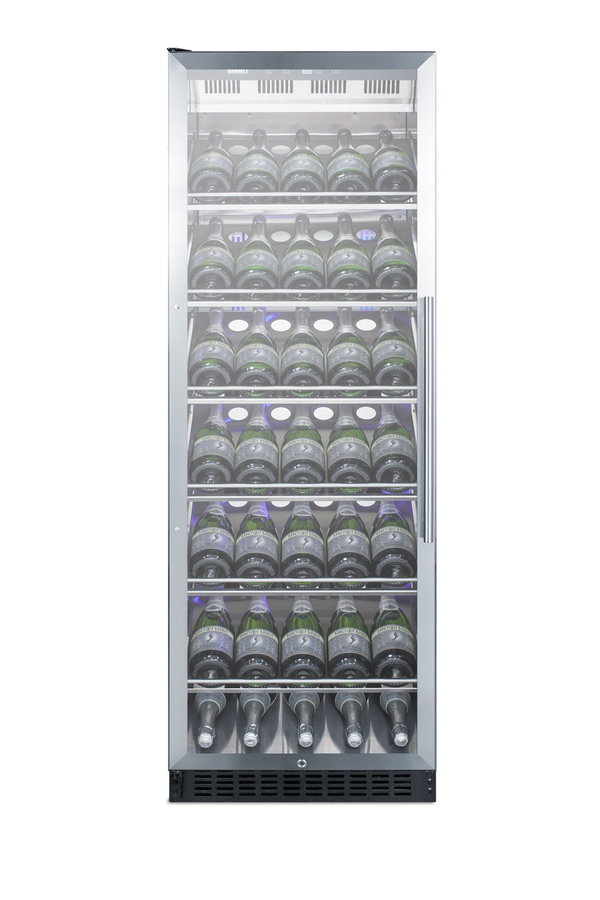

24" Wide Single Zone Commercial Wine Cellar

SKU: SCR1401LHCHCSS
Stainless steel shelves designed to store champagne and sparkling wine bottles at a slight angle for the perfect display in commercial settings
Out of Stock; ETA:

11/30/2021

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
69.75" H x 23.63" W x 23.75" D
(177cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 69.75" (177 cm)
Width 23.63" (60 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 12.6 cu.ft. (357 L)
Bottles 35 bottles
Defrost Type Frost-Free
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 270.0 lbs. (122 kg)
Shipping Weight 300.0 lbs. (136 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101065076
Wine Cellar
Number of Zones 1
Door Swing LHD
Reversible No
Shelf Type Steel
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 59.75" (152 cm)
Interior Width 1 20.0" (51 cm)
Interior Depth 1 16.5" (42 cm)
Temperature Range 36 to 68ºF
Interior Height 2 4.5" (11 cm)
Interior Width 2 20.0" (51 cm)
Interior Depth 2 4.5" (11 cm)
Sabbath Mode Yes

Door
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings

Commercially approved

Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use

Champagne racks

Stainless steel shelves are specially sized to store wider wine and champagne bottles

Bottle display

Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

Interior LED lighting

Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view

Slim fit

Just 24" wide and deep for an easy fit in any setting

Frost-free operation

No-frost convenience requires no manual defrosting

Stainless steel interior

Walls are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door

Heat-safe glass door with stainless steel trim offers full display all the way down to the floor

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

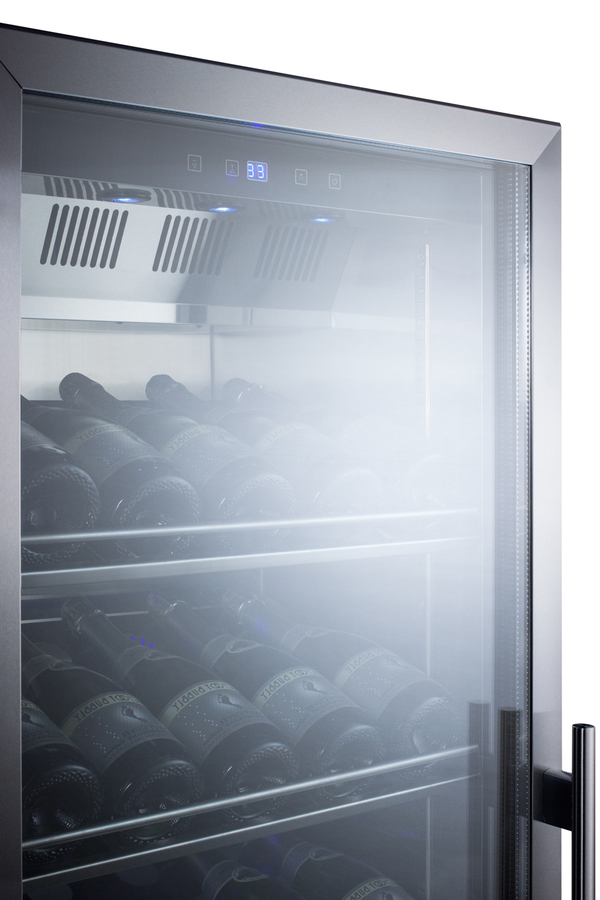

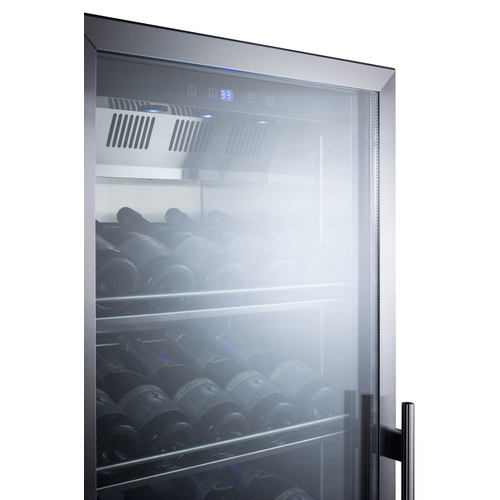

Digital thermostat

Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit

Wide temperature range

Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

High temperature alarm

Alarm sounds if the interior temperature rises out of suggested range

Professional handle

Attractive design in stainless steel to complete the look

Left hand door swing

For this unit with a right hand door swing, order SCR1401CHCSS

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Stainless steel wrapped cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

The SCR1401LHCHCSS is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This model comes with a left hand door swing. For a right hand version, see the SCR1401CHCSS.

Inside, the SC1401LHLCHCSS includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.

The SCR1401LHCHCSS comes with a fully wrapped stainless steel cabinet. Additional choices are available in stainless steel, as well as alternate sizes. Browse our website to explore our full lineup of commercially approved wine cellars.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
