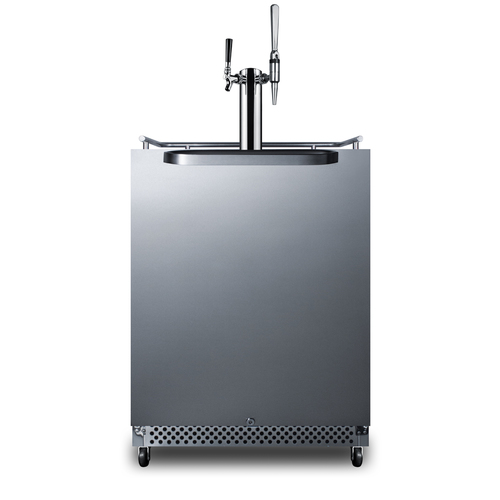

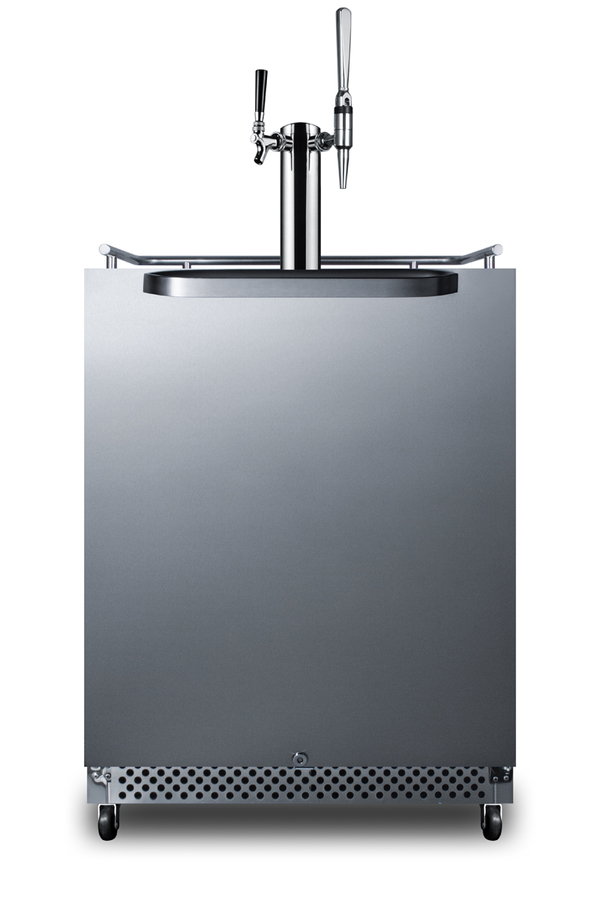

SBC695OSCMTWIN

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Combination tap kit lets you serve both nitro-infused & flat iced coffee on tap in outdoor or indoor commercial settings

34.25" H x 23.75" W x 25.0" D

(87cm H x 60cm W x 64cm D)

OVERVIEW

  • Commercially listed to NSF-7 standards
  • Flexible design allows built-in or freestanding use in 24" spaces
  • Commercial grade tap kit includes everything you need to serve both flat iced cold brew and creamy nitro-infused cold brew drafts
  • Weatherproof design ensures safe operation in the outdoors
  • 304 grade stainless steel wrapped exterior offers lasting durability with a modern look
  • Digital thermostat makes it easy to manage the temperature for optimum serving

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.75" (60 cm)
Depth 25.0" (64 cm)
Depth with Handle 26.88" (68 cm)
Depth with door at 90° 47.75" (121 cm)
Capacity 6.04 cu.ft. (171 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Beer Dispenser
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 50.38" (128 cm)
Number of Taps 2
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.76 oz.
High Side PSI 220.0
Low Side PSI 43.0
Inter Height 27.0" (69 cm)
Interior Width 20.38" (52 cm)
Interior Depth 21.25" (54 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 9.63" (24 cm)
Compressor Step Depth 2.5" (6 cm)
Wheel Qty 4
Surface Stainless Steel
Temperature Range 32º to 50ºF

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit Commercial offers quality lineup of cold brew coffee dispensers designed to serve smooth drafts in indoor or outdoor commercial applications.

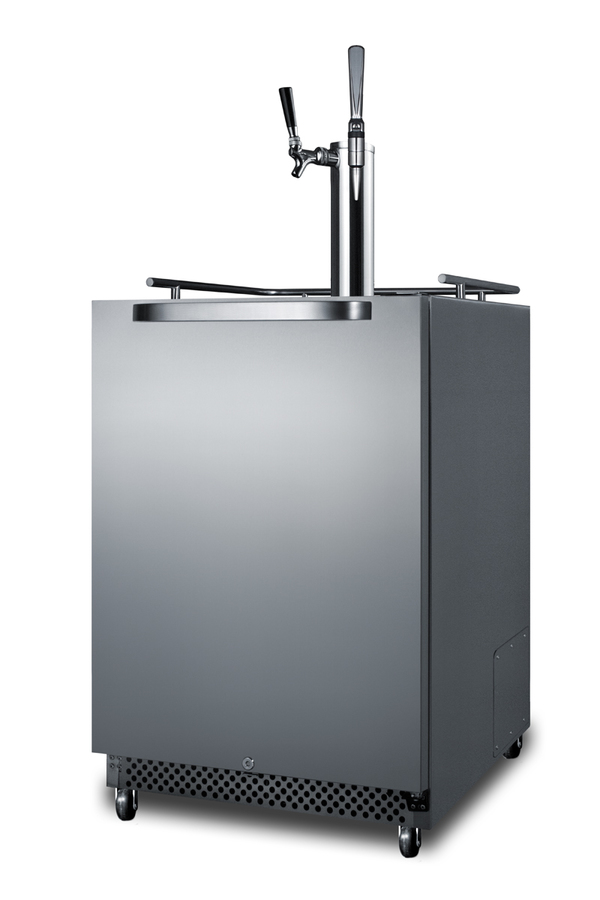

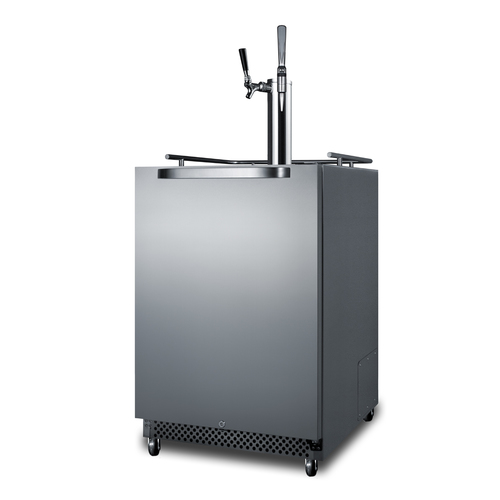

The SBC695OSCMTWIN is a full-sized weatherproof kegerator designed to serve both nitro-infused and regular cold brew coffee on tap. It is ETL-S listed to NSF-7 standards and meets UL-471 for commercial applications. The cabinet and door are wrapped in 304 grade stainless steel, with a sealed back designed to protect all electrical components from the elements. This unit features a front-breathing system that allows built-in installation under counters, as well as a fully finished exterior for optional freestanding use. A caster set is included for optional mobility, along with a durable top rail guard. The user-reversible stainless steel door is self-closing to ensure your kegs aren't accidentally exposed to warmer temperature, with an audible alarm that warns if the door is left open for over one minute. This unit includes a stainless steel kickplate and horizontally mounted handle in a sleek blade shape, ideal for matching many popular styles of grills and cabinetry. A factory-installed front lock offers added security.

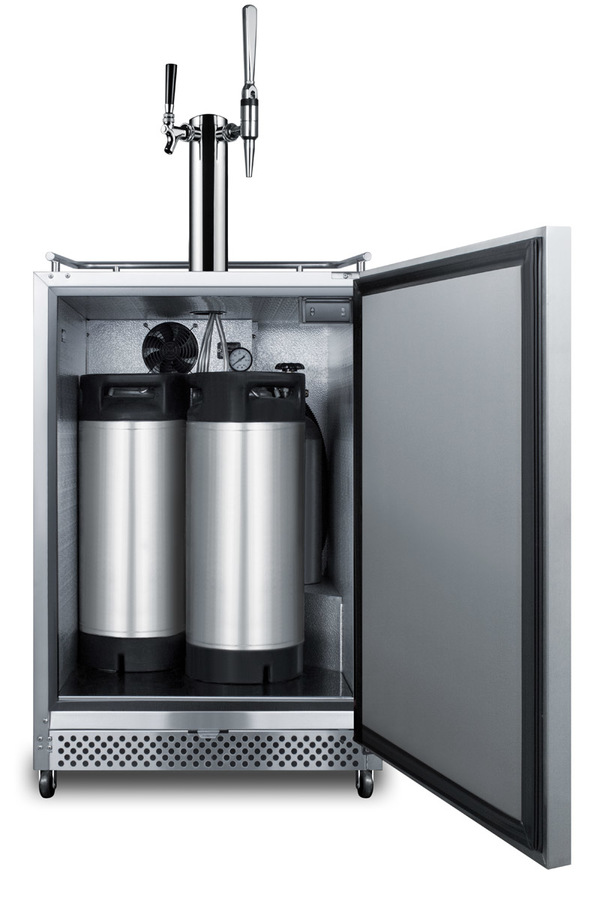

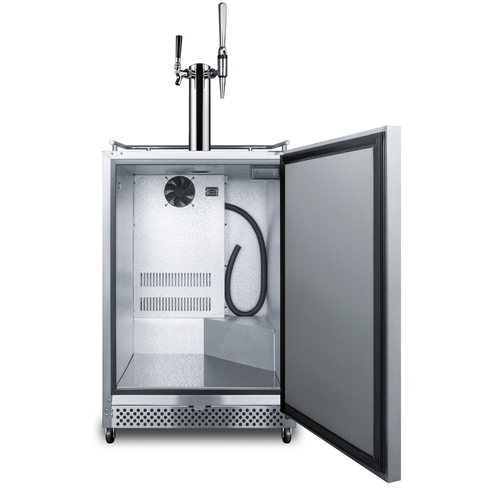

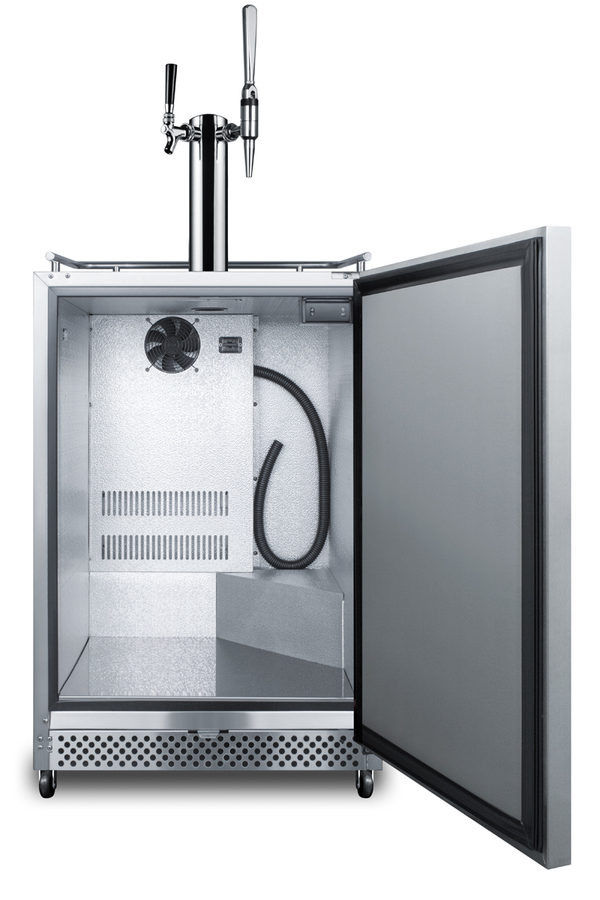

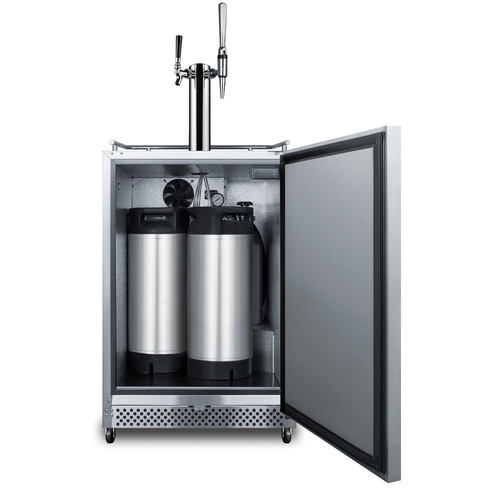

Inside, the SBC695OSCMTWIN comes with hammered aluminum walls and a stainless steel floor designed to protect the interior when loading heavy kegs. A digital thermostat lets you set the temperature with reliable precision, with a wide range between 32 and 50ºF to accommodate a variety of brews. A high/low temperature alarm sounds if the unit's interior goes out of safe storage conditions. We include a commercial grade tap kit with a dual tower that lets you serve both standard "flat" iced coffee and nitro-infused cold brew from two cornelius style kegs. The stainless steel draft tower includes both a standard tap and stout style faucet to accommodate both styles of cold brew, as well as a regulator, nitrogen tank, and ball locks to connect to two cornelius kegs. This unit utilizes automatic defrost for low maintenance use. An interior LED light is included to help make the keg setup process more convenient.

With its solid construction, user-friendly features, and attractive design, the SBC695OSCMTWIN is the perfect cold brew dispenser for indoor or outdoor commercial applications. Additional tap styles for flat cold brew coffee are available.


FEATURES

Dispenses both flat and nitro-infused coffee
Unique combination stout and standard tap system allows you to serve both flat iced cold brew and nitro-infused drafts from two cornelius kegs
Commercially approved
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Weatherproof design
Solid construction allows placement in the outdoors
Built-in capable
Front-breathing design allows fully recessed installation under counters
Full-sized coffee dispenser
Large interior can accept up to three cornelius kegs
Complete tap kit

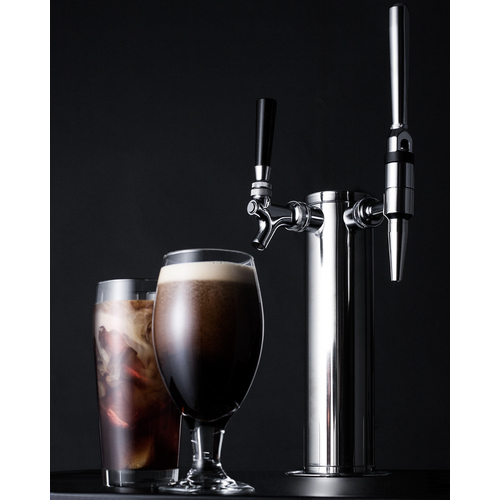

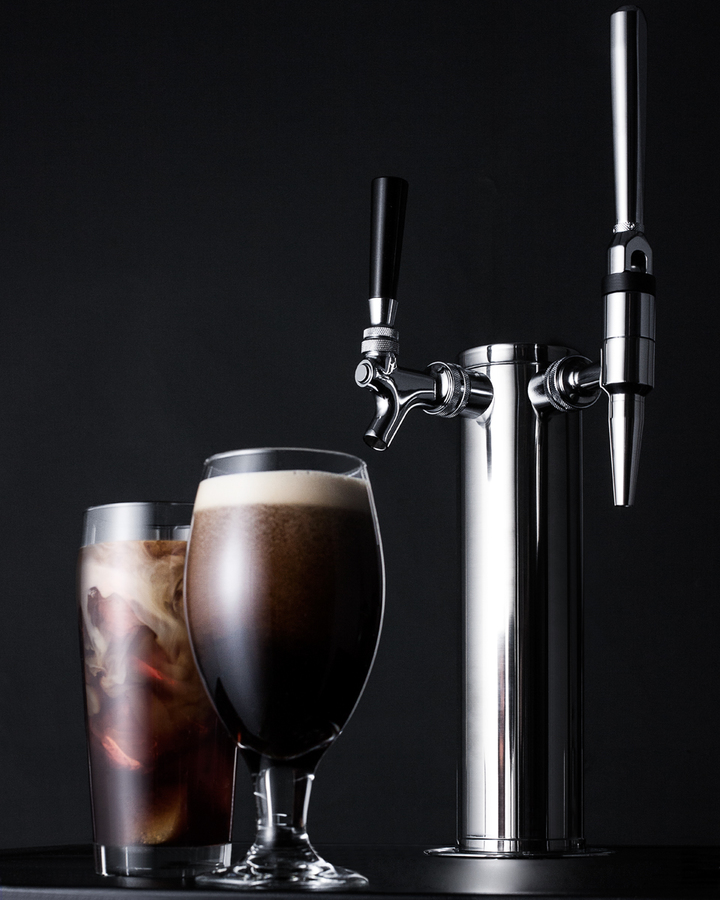

Commercial grade tap kit includes a dual tap draft tower with a standard and stout tap, Nitrogen tank, dual gauge regulator, and connections for ball lock Cornelius kegs
Dual tap system
Twin style draft tower allows you to serve from two cornelius style kegs
Stainless steel exterior
Door and cabinet are wrapped in 304 grade stainless steel for lasting durability in the outdoors
Professional handle
Blade style handle in brushed stainless steel matches many popular styles of cabinetry and grill details
Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Automatic defrost
No-frost operation for minimum user maintenance
Factory installed lock
Keyed lock for added security (2 keys included)
Reversible door
User-reversible door swing allows you to easily adjust to better accommodate your setting
Self-closing door
Closing mechanism helps to ensure the door isn't left open to expose kegs to ambient temperature
Casters included (ship unassembled)
Sturdy caster set lets you convert the dispenser for mobile use
Stainless steel guard rail
Durable railing makes it easier to neaten service
Hammered aluminum interior
Added durability for long-lasting use
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds
High/low temperature alarm
Audible alarm sounds if the unit goes out of range
LED lighting
Interior LED lighting automatically illuminates when the door is opened, making it easier to set up your keg
Sealed back
Space saving design with easier cleanability and added protection from the elements
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.75" (60 cm)
Depth 25.0" (64 cm)
Depth with Handle 26.88" (68 cm)
Depth with door at 90° 47.75" (121 cm)
Capacity 6.04 cu.ft. (171 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Beer Dispenser
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 50.38" (128 cm)
Number of Taps 2
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.76 oz.
High Side PSI 220.0
Low Side PSI 43.0
Inter Height 27.0" (69 cm)
Interior Width 20.38" (52 cm)
Interior Depth 21.25" (54 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 9.63" (24 cm)
Compressor Step Depth 2.5" (6 cm)
Wheel Qty 4
Surface Stainless Steel
Temperature Range 32º to 50ºF

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

DOWNLOADS



California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
