24" Wide Built-In Kegerator (Panel Not Included)

SKU: SBC677BINKIF
True frost-free forced air cooling for optimum performance
DISCONTINUED- REPLACED BY SBC635MBIIF
34.5" H x 23.63" W x 26.63" D
(88cm H x 60cm W x 68cm D)

Overview
Height of Cabinet 34.5" (88 cm)
Width 23.63" (60 cm)
Depth 26.63" (68 cm)
Depth with door at 90° 48.25" (123 cm)
Capacity 6.5 cu.ft. (184 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 308.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 106.0 lbs. (48 kg)
Shipping Weight 111.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101050300
Kegerator
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Shelf Type Glass
Shelf Qty 2
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.2 oz.
High Side PSI 277.0
Low Side PSI 103.0
Inter Height 27.75" (70 cm)
Interior Width 19.25" (49 cm)
Interior Depth 24.25" (62 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 19.25" (49 cm)
Compressor Step Depth 9.75" (25 cm)
Surface Stainless Steel
Temperature Range 32º to 50ºF

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

Full-sized beer dispenser

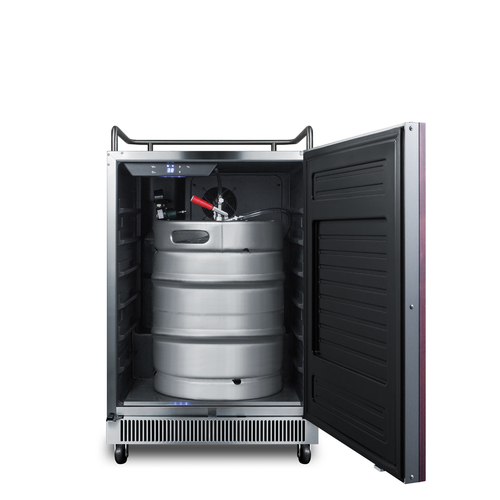

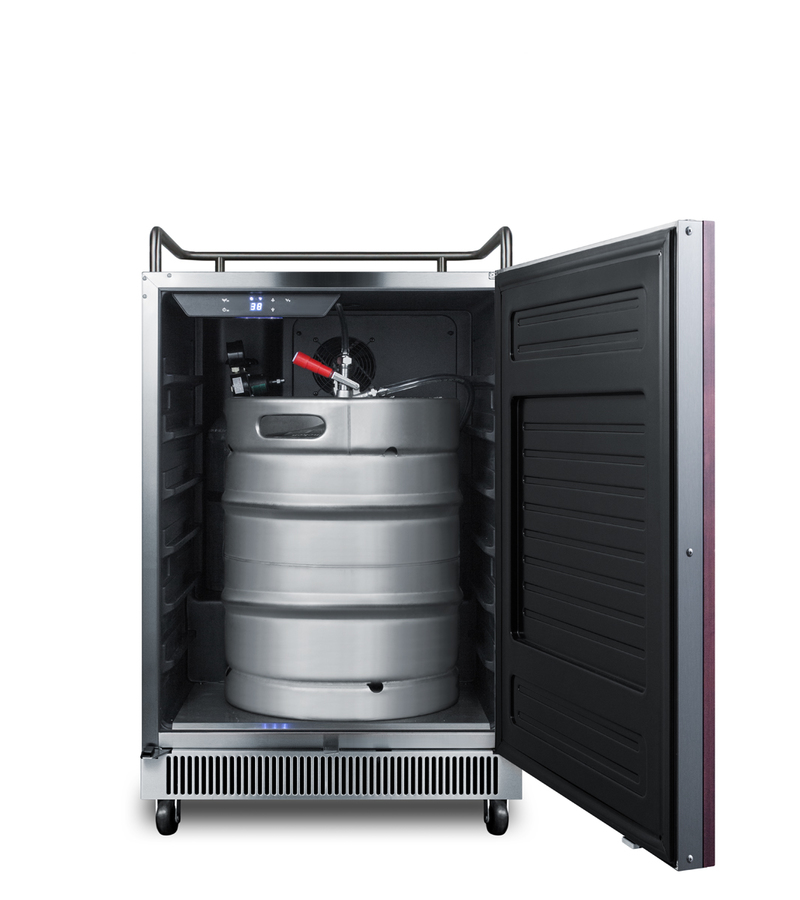

Large interior can accept a full half barrel keg

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Frost-free operation

No-frost operation for minimum user maintenance

Panel-ready door

Integrated stainless steel door frame allows you to mount a panel over the front for a custom look that blends into your own cabinetry design. Handle not included (panel size: 23 7/16" W x 30 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Digital thermostat

Electronic controls ensure easy temperature management for optimum beer storage

NO TAP KIT

Install your own tapping system for a customized beer cooler

Stainless steel drip tray

Two-piece drip tray included to help catch spills

Convertible to a refrigerator

Includes two adjustable glass shelves for alternate storage

Stainless steel guard rail

Durable railing makes it easier to neaten service

Sealed back

Space saving design with easier cleanability

LED lighting

Interior LED lighting offers an efficient and attractive view

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit's collection of built-in beer dispensers offers a stunning combination of user-convenience, quality storage, and luxury design.

The SBC677BINKIF is a full-sized beer dispenser that can store a full half keg. The front breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This model comes with a black cabinet and a panel-ready door designed to accept full overlay panels for a custom look that can blend into cabinetry. Customers provide their own handle.

Inside, the SBC677BINKIF utilizes full frost-free operation to minimize user maintenance. The digital control panel lets you manage the temperature between 32º and 50º to best accommodate a variety of brews. The stainless steel floor helps to protect the unit when loading and unloading heavy kegs, while an attractive and efficient  LED light offers added convenience inside. This unit can be converted to a standard all-refrigerator in just a few easy steps. Two adjustable glass shelves are included for flexible storage.

No tapping equipment is provided with this unit, allowing 'do-it-yourselfers' to customize the SBC677BINKIF with their own draft systems.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
