SBC677BIIF
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
True frost-free forced air cooling for optimum performance
34.5" H x 23.63" W x 26.63" D
(88cm H x 60cm W x 68cm D)
OVERVIEW
- Frost-free operation ensures minimum user maintenance
- Flexible design allows built-in or freestanding use in 24" spaces
- Customizable door front accepts full overlay panels for a seamless look that can blend into cabinetry
- Complete tap kit includes everything you need for the perfect pour
- "Cold pipe" tapping system helps to reduce foam
- Digital thermostat makes it easy to manage the temperature for optimum serving
SHARE THIS PRODUCT
SPECIFICATIONS
| Overview | |
|---|---|
| Height of Cabinet | 34.5" (88 cm) |
| Width | 23.63" (60 cm) |
| Depth | 26.63" (68 cm) |
| Depth with door at 90° | 48.25" (123 cm) |
| Capacity | 6.5 cu.ft. (184 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 308.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 106.0 lbs. (48 kg) |
| Shipping Weight | 111.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Beer Dispenser | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Tap Kit | Yes |
| Height with Tap | 50.0" (127 cm) |
| Number of Taps | 1 |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 1.2 oz. |
| High Side PSI | 277.0 |
| Low Side PSI | 103.0 |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 19.25" (49 cm) |
| Interior Depth | 24.25" (62 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 9.75" (25 cm) |
| Surface | Stainless Steel |
| Temperature Range | 32º to 50ºF |
AVAILABLE UPGRADES
| Lock | |
|---|---|
|
|
| Exterior | |
|
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
WHERE TO BUY
DESCRIPTION
Summit's collection of built-in beer dispensers offers a stunning combination of user-convenience, quality storage, and luxury design. The SBC677BIIF is a full-sized beer dispenser that can store a full half keg. The front breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This model comes with a black cabinet and panel-ready door designed to accept full overlay panels for a custom look. We include a durable guard rail in brushed stainless steel and a two-piece stainless steel drip tray for cleaner service. Inside, the SBC677BIIF utilizes full frost-free operation to minimize user maintenance. The digital control panel lets you manage the temperature between 32º and 50º to best accommodate a variety of brews. The stainless steel floor helps to protect the unit when loading and unloading heavy kegs, while an attractive and efficient LED light offers added convenience inside. This unit can be converted to a standard all-refrigerator in just a few easy steps. Two adjustable glass shelves are included for flexible storage. This unit comes with all the tapping equipment needed to serve smooth drafts. Accessories include a draft arm, CO2 cylinder and regulator, American Sankey tap, and a cleaning kit to keep your kegerator functioning at its best. The tap features an innovative "cold pipe" design that keeps beer chilled when it reaches the draft tower, saving users from having to discard the initial output while also reducing the amount of foam with each tap. With its user-friendly design and attractive presentation, the SBC677BIIF is the perfect piece for any home bar.
FEATURES
Full-sized beer dispenser

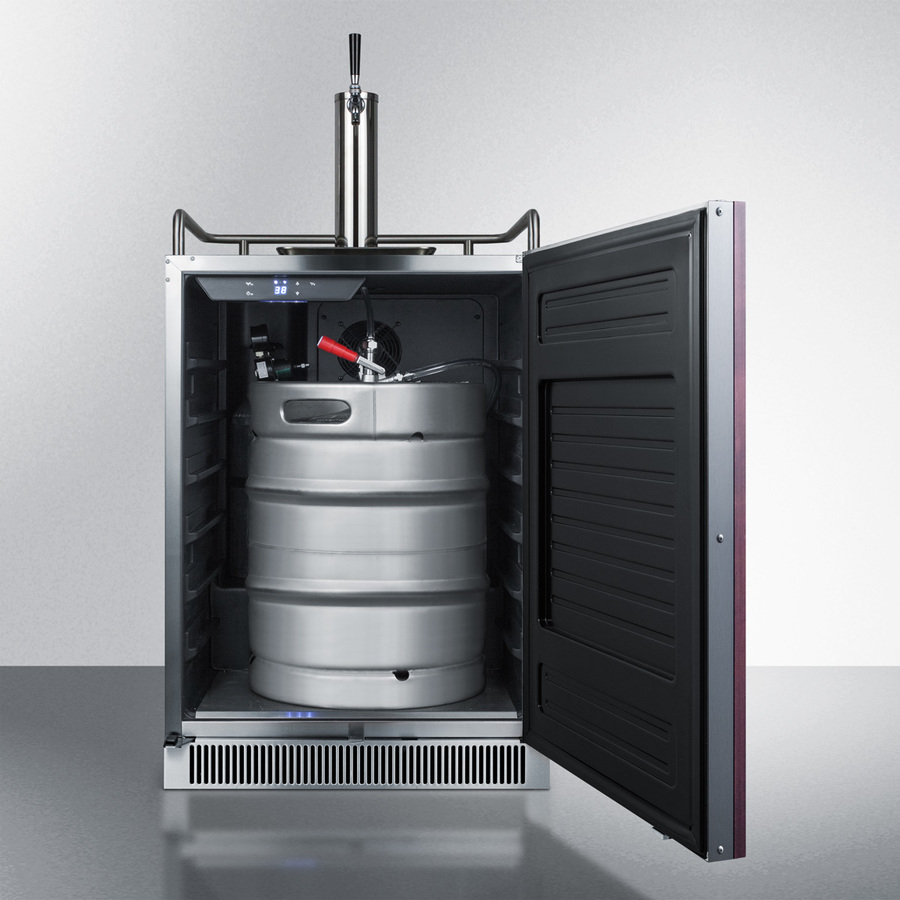

Large interior can accept a full half barrel keg
Large interior can accept a full half barrel keg
Built-in capable
Front-breathing design allows fully recessed installation under counters
Front-breathing design allows fully recessed installation under counters
Frost-free operation
No-frost operation for minimum user maintenance
No-frost operation for minimum user maintenance
Panel-ready door
Integrated stainless steel door frame allows you to mount a panel over the front for a custom look that blends into your own cabinetry design. Handle not included (panel size: 23 7/16" W x 30 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Integrated stainless steel door frame allows you to mount a panel over the front for a custom look that blends into your own cabinetry design. Handle not included (panel size: 23 7/16" W x 30 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Digital thermostat
Electronic controls ensure easy temperature management for optimum beer storage
Electronic controls ensure easy temperature management for optimum beer storage
Complete tap kit
Includes a 5 lb. CO2 tank and regulator, draft arm, dual Sankey American tap, connection hardware, and cleaning kit
Includes a 5 lb. CO2 tank and regulator, draft arm, dual Sankey American tap, connection hardware, and cleaning kit
Chilled tap system
Unique "cold pipe" addition ensures beer stays cold inside the tap tower, reducing the amount of foam keeping every pour at its best
Unique "cold pipe" addition ensures beer stays cold inside the tap tower, reducing the amount of foam keeping every pour at its best
Stainless steel drip tray
Two-piece drip tray included to help catch spills
Two-piece drip tray included to help catch spills
Convertible to a refrigerator
Includes two adjustable glass shelves for alternate storage
Includes two adjustable glass shelves for alternate storage
Stainless steel guard rail
Durable railing makes it easier to neaten service
Durable railing makes it easier to neaten service
Sealed back
Space saving design with easier cleanability
Space saving design with easier cleanability
LED lighting
Interior LED lighting offers an efficient and attractive view
Interior LED lighting offers an efficient and attractive view
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
Interior includes steel cover to protect the floor when loading kegs
Fully finished black cabinet
Allows the unit to be used freestanding
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
| Overview | |
|---|---|
| Height of Cabinet | 34.5" (88 cm) |
| Width | 23.63" (60 cm) |
| Depth | 26.63" (68 cm) |
| Depth with door at 90° | 48.25" (123 cm) |
| Capacity | 6.5 cu.ft. (184 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 308.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 106.0 lbs. (48 kg) |
| Shipping Weight | 111.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Beer Dispenser | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Tap Kit | Yes |
| Height with Tap | 50.0" (127 cm) |
| Number of Taps | 1 |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 1.2 oz. |
| High Side PSI | 277.0 |
| Low Side PSI | 103.0 |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 19.25" (49 cm) |
| Interior Depth | 24.25" (62 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 9.75" (25 cm) |
| Surface | Stainless Steel |
| Temperature Range | 32º to 50ºF |
AVAILABLE UPGRADES
| Lock | |
|---|---|
|
|
| Exterior | |
|
DOWNLOADS
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
