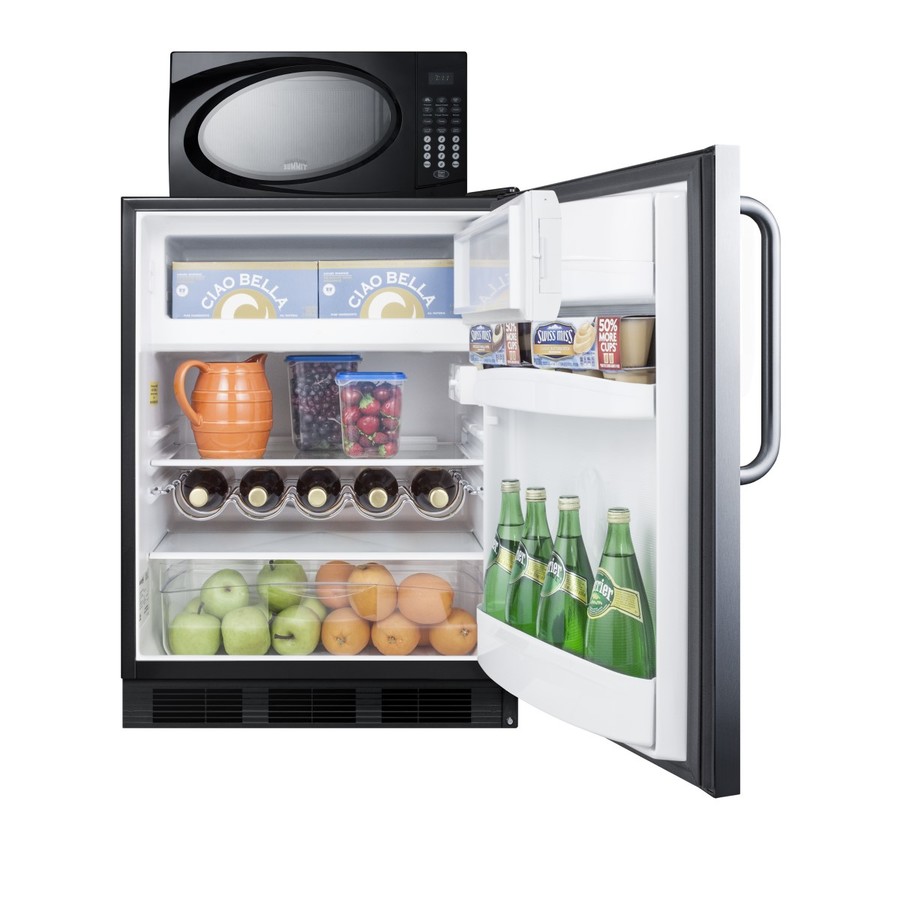

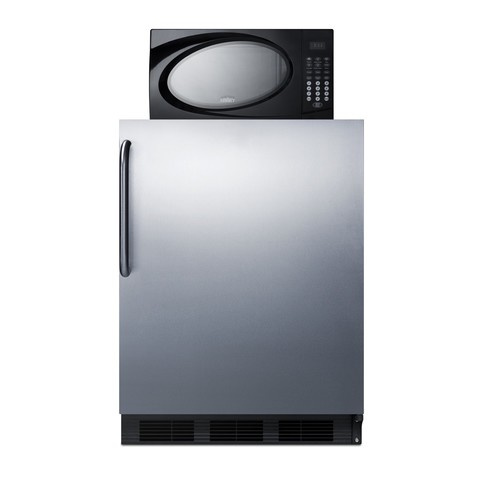

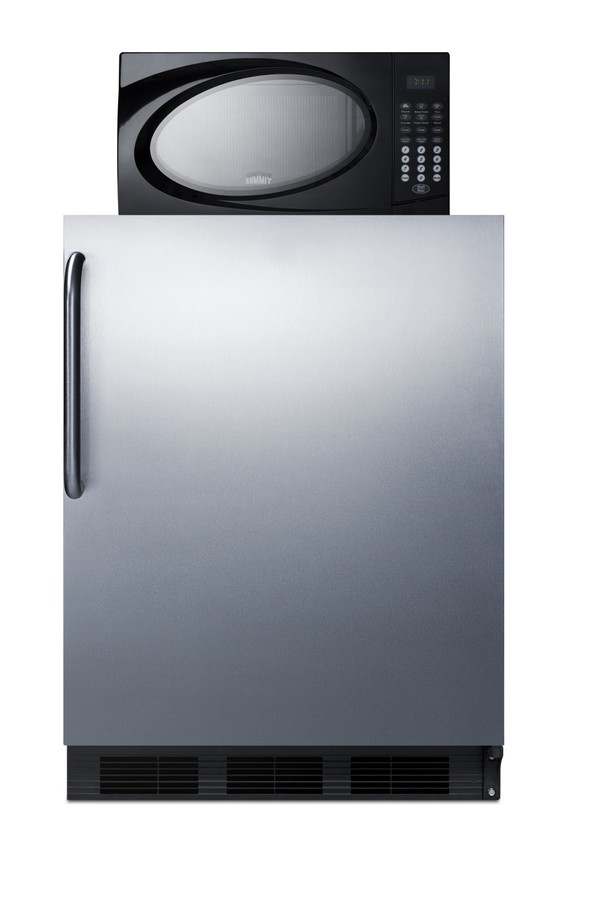

MRF663BSSTB

45.0" H x 23.63" W x 24.0" D

(114cm H x 60cm W x 61cm D)

OVERVIEW

Combination refrigerator-freezer-microwave serves all your kitchen needs in a slim 24 inch wide fit
Electrical allocator box protects unit from circuit breaks by limiting power usage to 10 amps
Ships fully assembled
Deluxe refrigerator interior with adjustable glass shelves

SPECIFICATIONS

Overview
Height of Cabinet	45.0" (114 cm)
Width	23.63" (60 cm)
Depth	24.0" (61 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	Stainless Steel
Cabinet	Black
Weight	140.0 lbs. (64 kg)
Shipping Weight	145.0 lbs. (66 kg)
Estimated Time to Ship	3 to 5 days
Parts & Labor Warranty	1 Year
Microwave-Refrigerator
Refrigerator Included	CT663B
Refrigerator Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Shelf Type	Glass
Shelf Qty	2
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	3
Wine Bottle Shelving	Yes
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R134a
Refrigerant Amount	2.6 oz.
High Side PSI	285.0
Low Side PSI	70.0
Refrigerator Interior Height	19.5" (50 cm)
Refrigerator Interior Width	20.5" (52 cm)
Refrigerator Interior Depth	17.0" (43 cm)
Freezer Interior Height	5.0" (13 cm)
Freezer Interior Width	19.0" (48 cm)
Freezer Interior Depth	11.5" (29 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	2
Microwave Controls	Digital
Specialized Cooking Buttons	Yes

AVAILABLE UPGRADES

Exterior

Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing Door reversal to left hand swing

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

DESCRIPTION

SUMMIT offers the industry's widest variety of refrigerator-microwave combination units, with sizes that fit your space and designs to serve your needs.

Model MRF663BSSTB combines a mid-sized microwave with SUMMIT's popular European CT663BSSTB refrigerator-freezer. The complete unit has a conveniently slim 24" footprint for an easy fit in any tight spot and a generous 5.1 c.f. storage capacity. The refrigerator features a black cabinet and stainless steel wrapped door with a curved towel bar handle.

SUMMIT's own dual evaporator system separately cools the two compartments, allowing for a zero degree freezer that keeps ice cream frozen with manual defrost. Automatic defrost operation reduces maintenance in the fresh food section. Additional features include a clear crisper, adjustable thermostat, adjustable shelves, door storage, and a scalloped wine rack for holding bottles.

The MRF663BSSTB also includes a black touchpad microwave fully featured for easy heating. One-touch cook options and variable controls allow easy use.

All of SUMMIT's combination refrigerator-microwaves are shipped fully assembled and ready to use. Plug the microwave, refrigerator-freezer, and a third appliance (such as a coffee maker) into our power allocator box and use its cord for safe one-plug operation. This system protects your circuit breaker and power line by limiting overall power use to 10 amps.

In addition to those models listed in our MRF series, SUMMIT can custom-build refrigerator-microwave combination units to your individual specifications. Contact us today for more information.

FEATURES

Thin-line design
Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CT663BSSTB Refrigerator-freezer
Cycle defrost refrigerator-freezer made in Europe with cold wall interior, adjustable glass shelves, door storage, crisper, and a scalloped bottle shelf

Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Zero degree freezer
Keep ice cream frozen and freezer burn-free in a freezer that reaches and maintains zero degrees

Mid-size microwave
Touchpad mid-sized microwave with one-touch cook options and variable controls

Allocator box
Plug the refrigerator-freezer, microwave, and a third appliance into this allocator box for safe operation that limits total power consumption to 10 amps

Ships fully assembled
No assembly required before use

SPECIFICATIONS

Overview
Height of Cabinet	45.0" (114 cm)
Width	23.63" (60 cm)
Depth	24.0" (61 cm)
Capacity	5.1 cu.ft. (144 L)
Defrost Type	Cycle
Door	Stainless Steel
Cabinet	Black
Weight	140.0 lbs. (64 kg)
Shipping Weight	145.0 lbs. (66 kg)
Estimated Time to Ship	3 to 5 days
Parts & Labor Warranty	1 Year
Microwave-Refrigerator
Refrigerator Included	CT663B
Refrigerator Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Shelf Type	Glass
Shelf Qty	2
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	3
Wine Bottle Shelving	Yes
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R134a
Refrigerant Amount	2.6 oz.
High Side PSI	285.0
Low Side PSI	70.0
Refrigerator Interior Height	19.5" (50 cm)
Refrigerator Interior Width	20.5" (52 cm)
Refrigerator Interior Depth	17.0" (43 cm)
Freezer Interior Height	5.0" (13 cm)
Freezer Interior Width	19.0" (48 cm)
Freezer Interior Depth	11.5" (29 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.5" (52 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	2
Microwave Controls	Digital
Specialized Cooking Buttons	Yes

AVAILABLE UPGRADES

Exterior

Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing Door reversal to left hand swing
