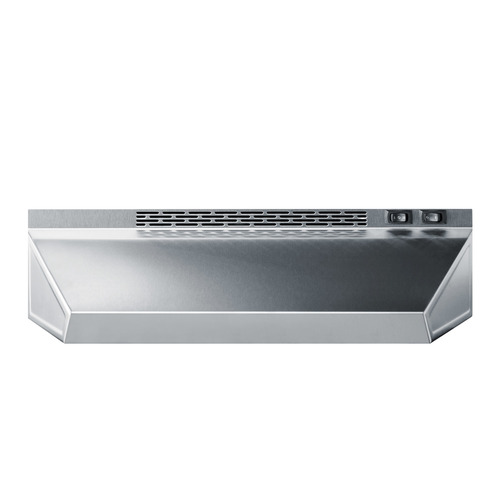

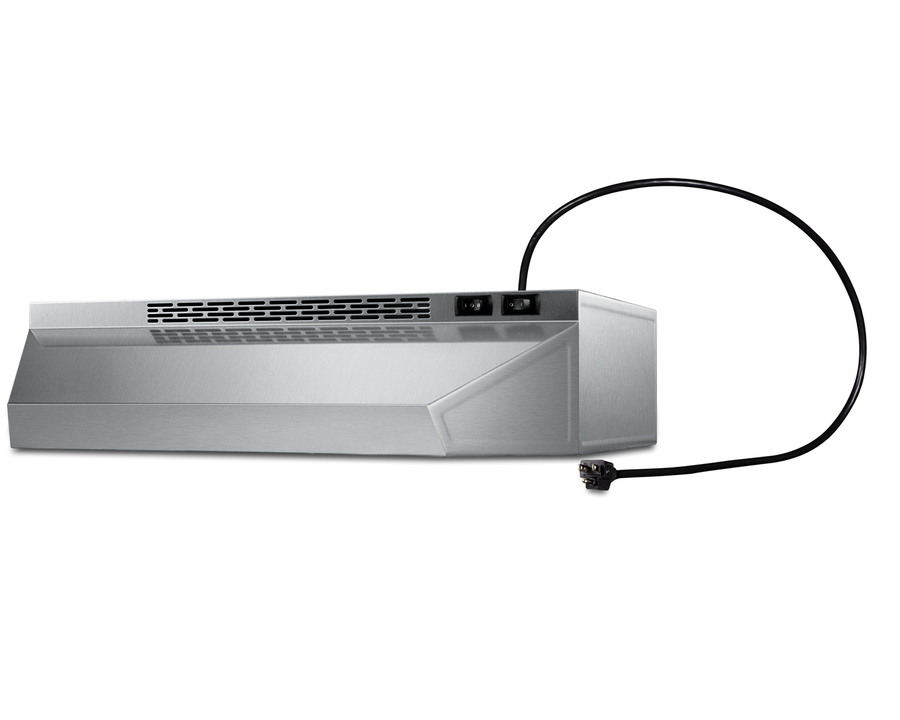

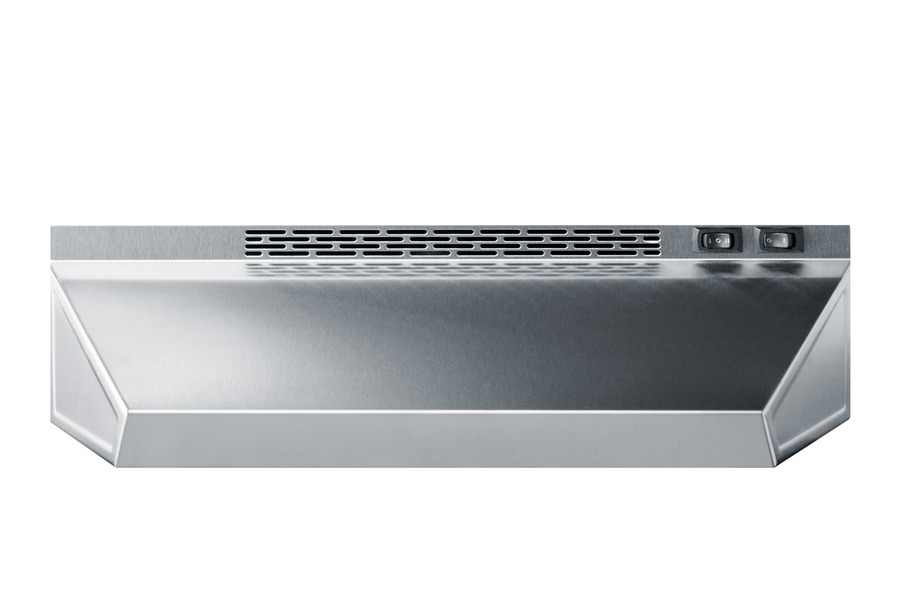

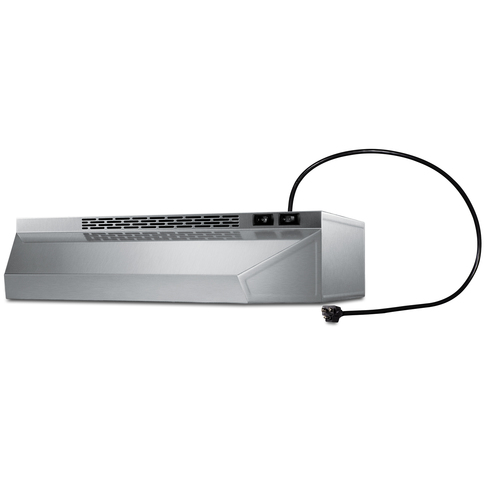

24" Under Cabinet Convertible Range Hood with Plug

SKU: H1624PTCRDSS

Made in the USA, with a pre-installed cord and 3-pronged plug included

Estimated Time to Ship: 2 to 4 days

5.0" H x 24.0" W x 18.0" D

(13cm H x 61cm W x 46cm D)

SPECIFICATIONS

Overview
Height of Cabinet 5.0" (13 cm)
Width 24.0" (61 cm)
Depth 18.0" (46 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Amps 1.9
Voltage/Frequency 115 V AC/60 Hz
Weight 15.0 lbs. (7 kg)
Shipping Weight 17.0 lbs. (8 kg)
Parts & Labor Warranty 1 Year
Range Hood
Installation Under Cabinet
Venting Convertible
Controls Push Button
Number of Fan Speeds 2
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

24" wide design
Designed for installation with 24" wide ranges and cooktops

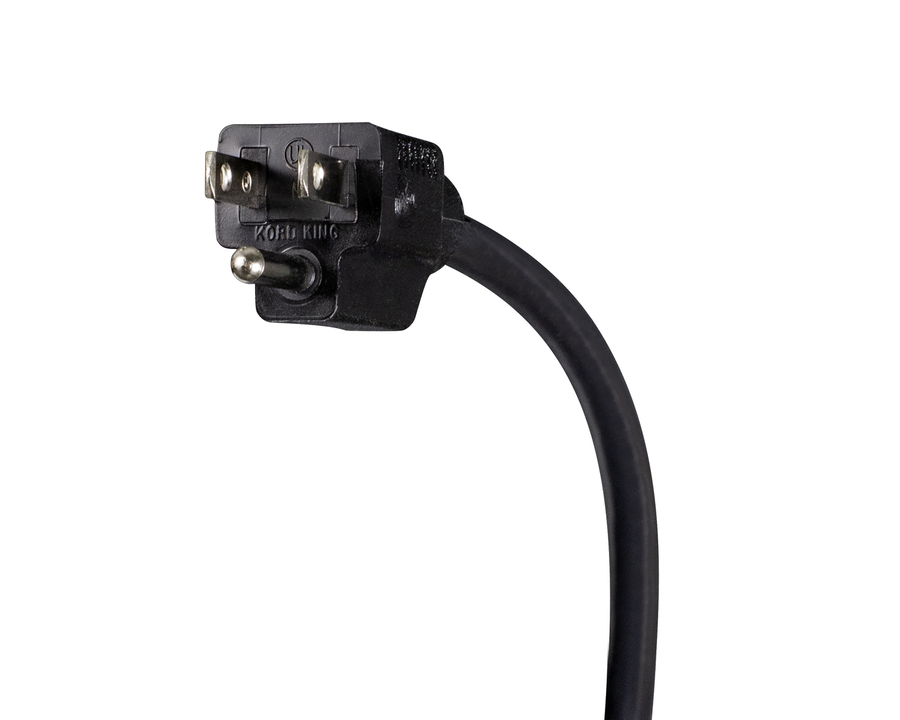

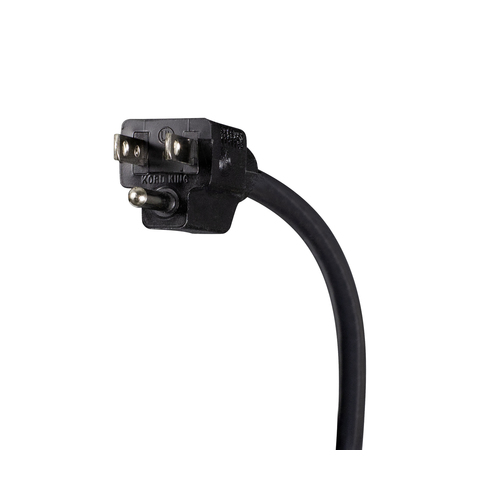

Cord included
Includes a pre-installed 3' long power cord with a 3-pronged plug
Stainless steel finish
Black, white, and bisque also available in same size
Convertible range hood
Use top or rear venting or convert into non-vented recirculating mode
Two-speed fan
Variable speed for more venitlation options
Light
Switchable light offers more convenience in your kitchen (bulb not included)

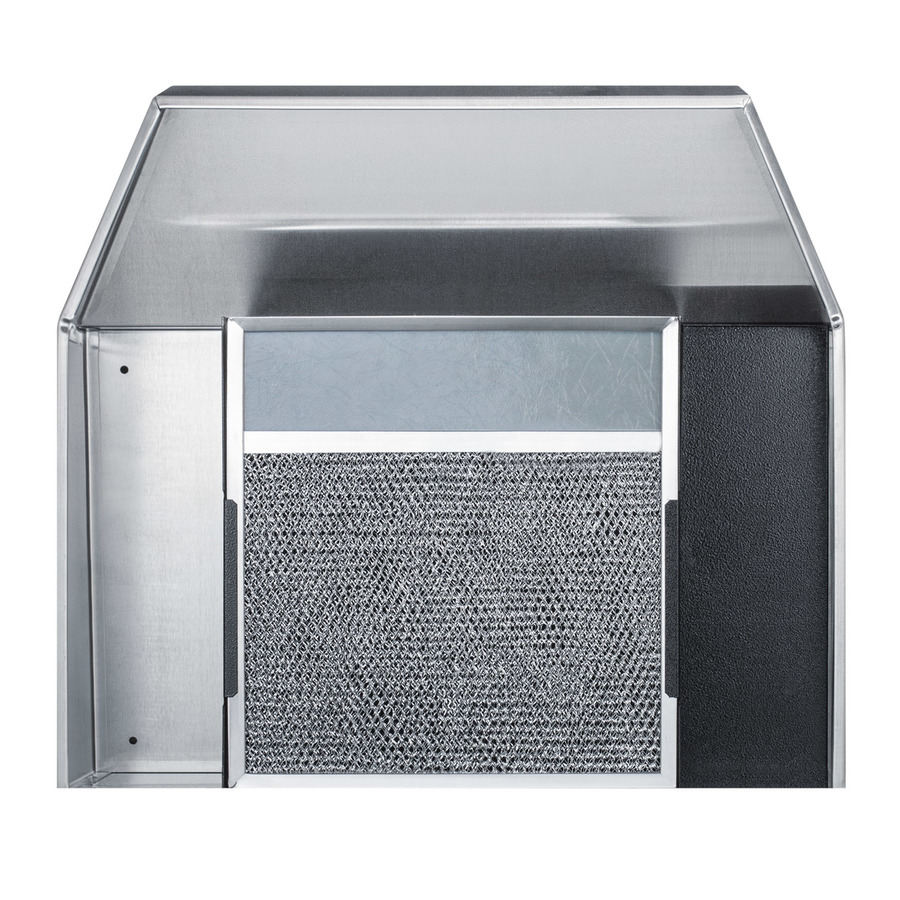

Aluminum-charcoal filter
Provides thorough filtering to help eliminate cooking odors
Made in the USA
Solidly constructed for years of use
More sizes available
Under cabinet hoods are available in 18", 20", 24", 30", 36", and select styles in 42" and 48"

DESCRIPTION

SUMMIT is one of the market's leading suppliers of quality range hoods, with solid construction and a wide selection of choices for every kitchen.

Made in the USA, the H1624PTCRDSS is a 24 inch wide under cabinet convertible range hood that can be installed for ducted or ductless (recirculating) operation. It can be used with top or rear venting and includes a pre-installed power cord with a 3-pronged plug. Additional features include a 2-speed fan, switchable light (bulb not included), and aluminum-charcoal filter to help ensure proper filtration of cooking odors.

This range hood comes in a stainless steel finish. Additional choices are available in white and stainless steel (and bisque by special order), as well as additional sizes for 18, 20, 30, 36, 42, and 48 inch widths. Browse our website to explore our complete lineup.

SPECIFICATIONS

Overview
Height of Cabinet 5.0" (13 cm)
Width 24.0" (61 cm)
Depth 18.0" (46 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Amps 1.9
Voltage/Frequency 115 V AC/60 Hz
Weight 15.0 lbs. (7 kg)
Shipping Weight 17.0 lbs. (8 kg)
Parts & Labor Warranty 1 Year
Range Hood
Installation Under Cabinet
Venting Convertible
Controls Push Button
Number of Fan Speeds 2

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
H1624PTCRDSS.pdf
Download
TECHNICAL DRAWING (.dwg)
H1600PTC_HOOD__PLUG__A-C_2018_.dwg
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
