30" Wide 5-Burner Gas Cooktop In Stainless Steel

SKU: GCJ5SS
Made in Italy & uniquely sized with a five-burner design that fits most standard 24" wide cutouts
Estimated Time to Ship:

Next day shipping

Color: Stainless Steel

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
2.88" H x 29.5" W x 20.0" D
(7cm H x 75cm W x 51cm D)

Overview
Height of Cabinet 2.88" (7 cm)
Width 29.5" (75 cm)
Depth 20.0" (51 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 30.0 lbs. (14 kg)
Shipping Weight 36.5 lbs. (17 kg)
Parts & Labor Warranty 1 Year
UPC 761101064307
Gas Cooktop
Ignition Electric
LP Convertible Yes
Number of Burners 5
Controls Dial
Surface Stainless Steel
Grate Material Cast iron
Cutout Width 22.0" (56 cm)
Cutout Depth 18.88" (48 cm)
Burner #1 BTU 12700.0
Burner #2 BTU 10000.0
Burner #3 BTU 3400.0
Burner #4 BTU 6000.0
Burner #5 BTU 6000.0
Power Cord Included Yes

304 grade stainless steel surface

Long-lasting durability in a sleek design

Sealed burners

Quality burners by Defendi with cast iron caps ensure lasting durability and easier cleanup

Smooth edge design

Provides added safety and blends cleanly into countertops

Push-to-turn knobs

Safety feature requires you to turn the knob to the "full-on" position before pushing down, waiting for the ignition, and adjusting to your preferred heating level

Designer knobs

Heavy duty brass and aluminum knobs in a round design and steel finish for a modern look

LP conversion kit included

Convert operation from natural gas to propane with the included kit

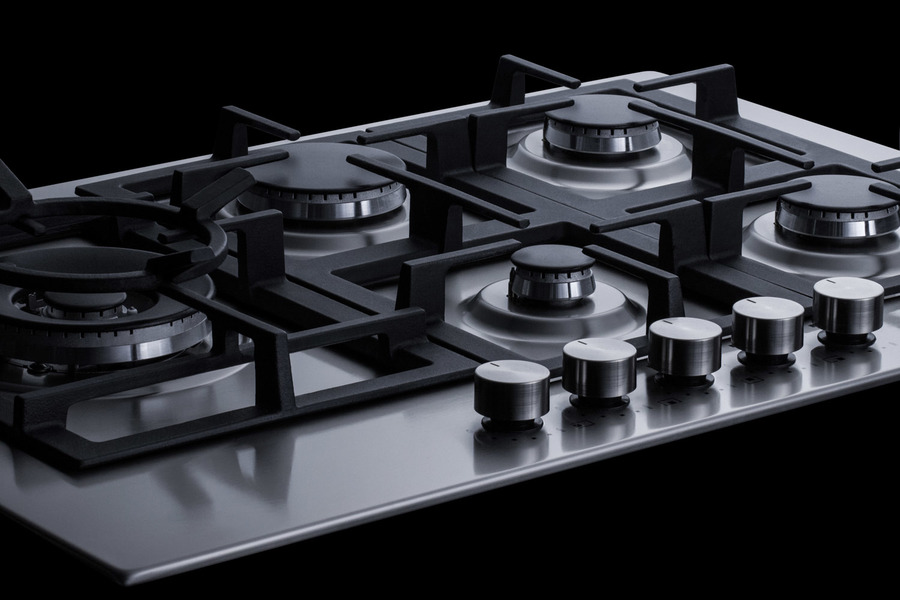

Continuous cast iron grates in a matte finish

Solid cast iron construction to support heavy cookware, with a continuous design that makes it easy to move pots to a different burner

Wok ring included

Removable ring included to safely hold a wok over the flame when cooking on the left-side burner

Ultra rapid burner

Left-side burner offers 12,700 BTU for quick heating of larger pots and pans

Rapid burner

Top-center burner offers 10,000 BTU for cooking larger dishes

Semi-rapid burner

Two right-side burners produce 6,000 BTU to accommodate most cooking needs

Auxiliary burner

Bottom-center 3,400 BTU burner allows for precision in heating or cooking dishes that require low heat

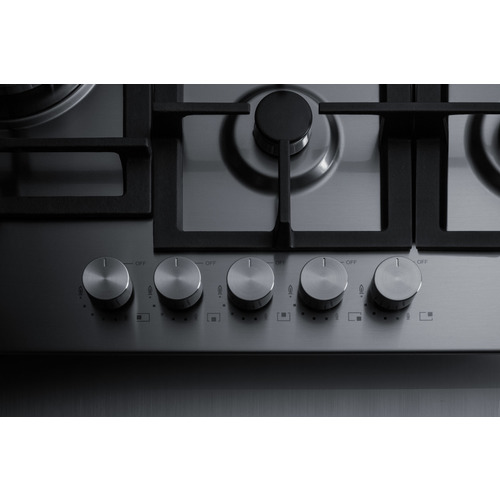

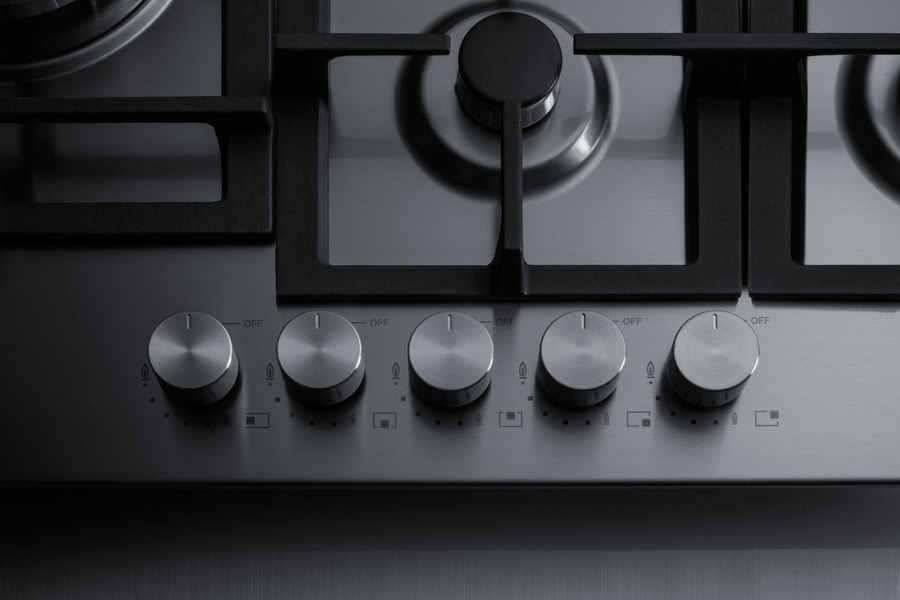

Front-of-unit controls

Controls placed at front for added ease and safety, preventing users from reaching over hot burners to adjust the temperature

Laser-etched graphics

Indicator markings will not diminish by cleaning or rubbing

Power cord included

Standard 3-prong 115V cord included for the electronic ignition

Thermocouple flame failure protection

Automatically turns off gas after 12 seconds when flame is extinguished

Fits standard 24" cutouts

Cutout size: 22" W x 18.88" D

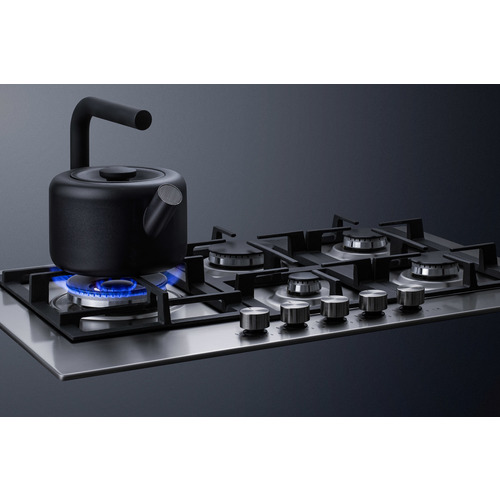

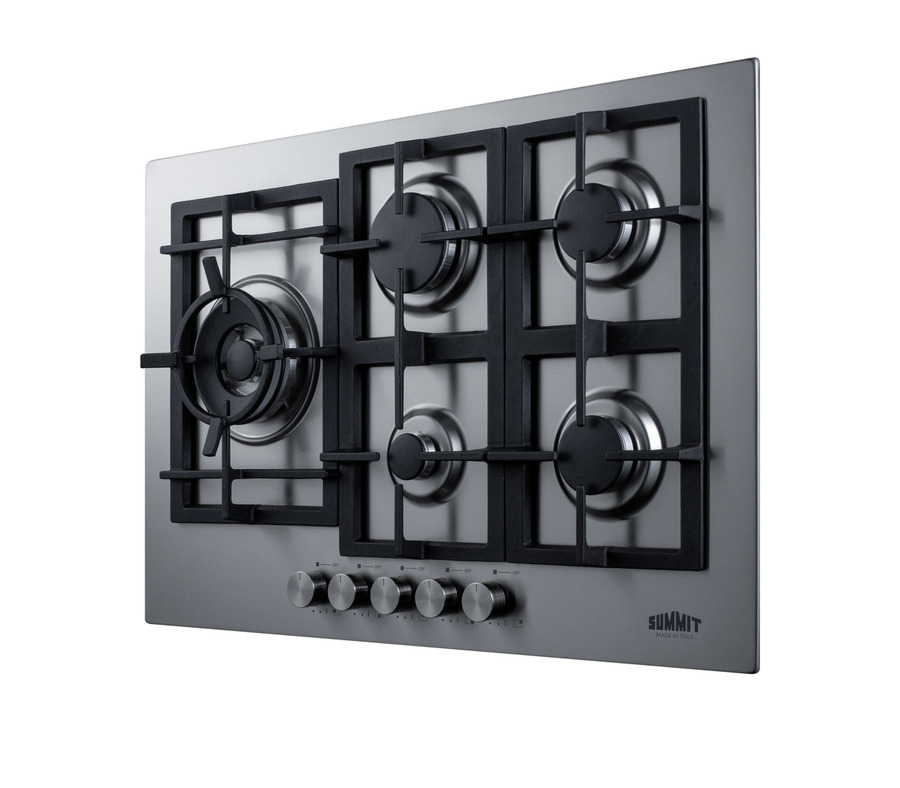

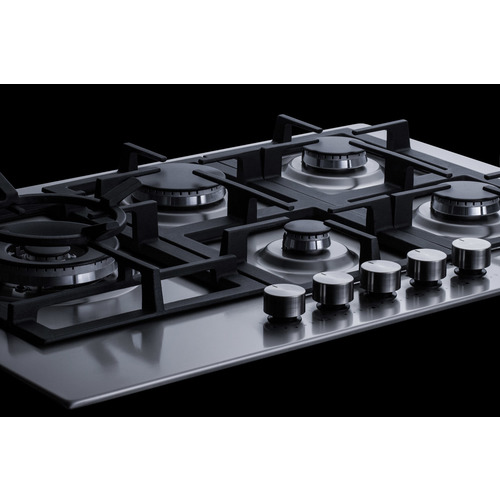

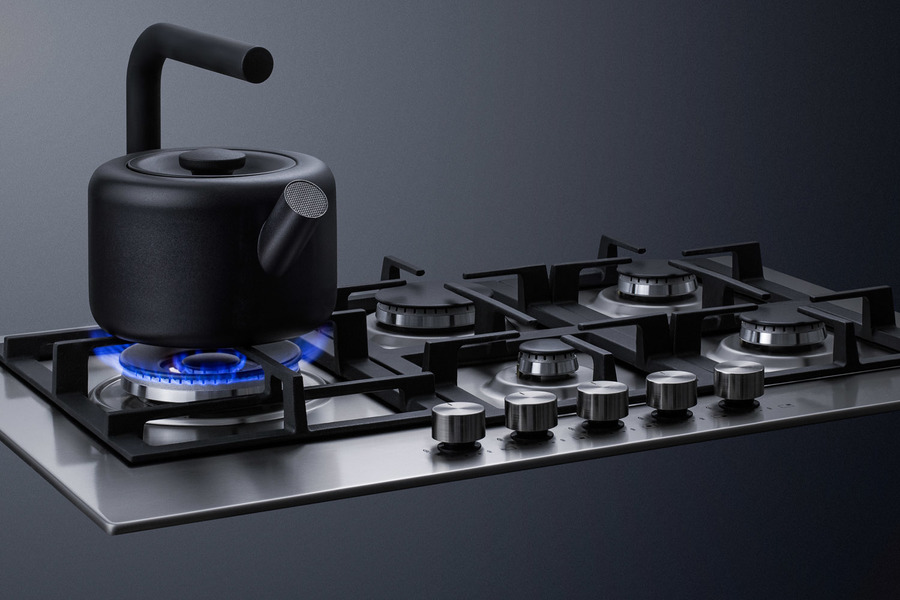

Summit’s 'Made in Italy' gas cooktops offer a powerful performance in a durable, safe, and stylish design.

The GCJ5SS is sized at a standard 30 inch width but has a design that fits many traditional 24 inch cutouts, with five burners to maximize your cooking power in a more efficient use of counter space. The 304 grade stainless steel surface offers a durable, elegant design. The controls are located at the front of the unit for easy access. Continuous cast iron grates allow for easy movement between burners for efficient cooking while using multiple cooking vessels. The smooth surface edge adds safety in a stylish look. The heavy-duty round knobs deliver additional safety by requiring a gentle push-to-turn motion to ignite, with thermocouple flame protection to ensure the gas turns off if the flame goes out.

Featuring five gas burners manufactured by Defendi, this cooktop offers a variety of cooking options for unparalleled performance. The left-side 12,700 BTU ultra rapid dual flame burner comes with a cast iron wok ring for quick heating of larger cooking vessels. The top-center 10,000 BTU rapid burner is ideal for boiling water or cooking larger dishes, while the bottom-center 3,400 BTU auxiliary burner works well for precision heating and cooking. The two right-side 6000 BTU semi-rapid burners meet most cooking needs.

The GCJ5SS uses electronic spark ignition and is preset for natural gas operation. A conversion kit that allows for LP gas connection is included. A standard three-pronged 115V cord is pre-installed for easy hookup.

The 'Made in Italy' collection has gas cooktop options to fit any cooking need, including one, two, four, and five burner choices. Browse our website to explore the full collection.

Download
BROCHURE w/ DRAWINGS
GCJ5SS.pdf
Download
TECHNICAL DRAWING (.dwg)
GCJ5SS__5__BURNER_GAS__A-C_2018_.dwg
Download
ASSEMBLY DRAWING
-_GCJ5SS_CUTOUT.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
