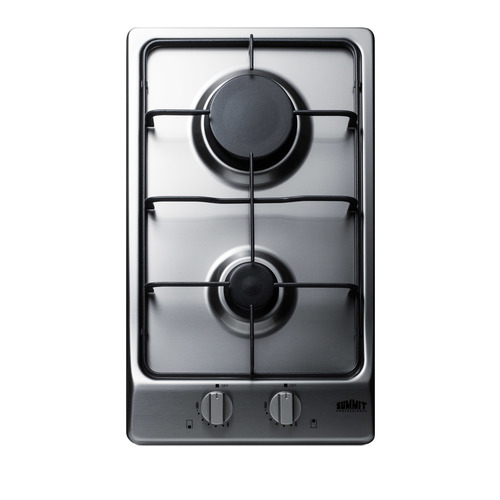

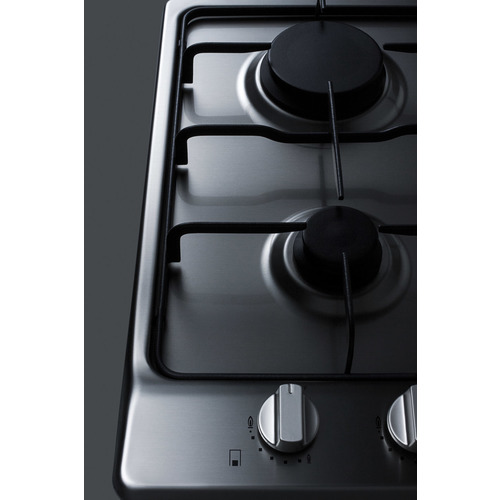

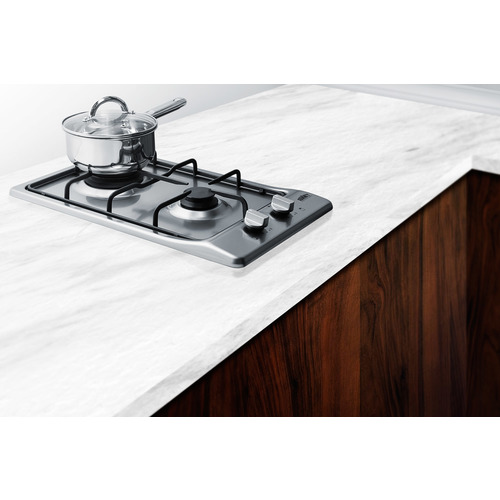

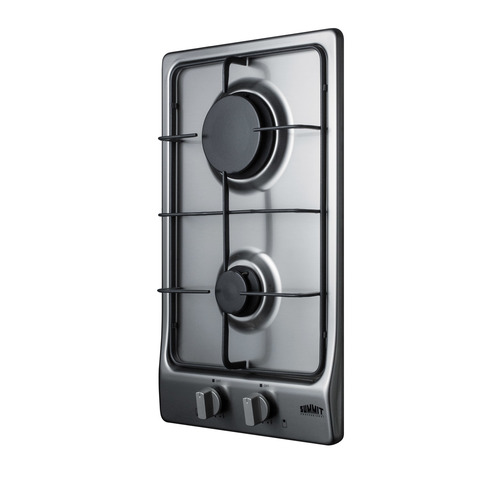

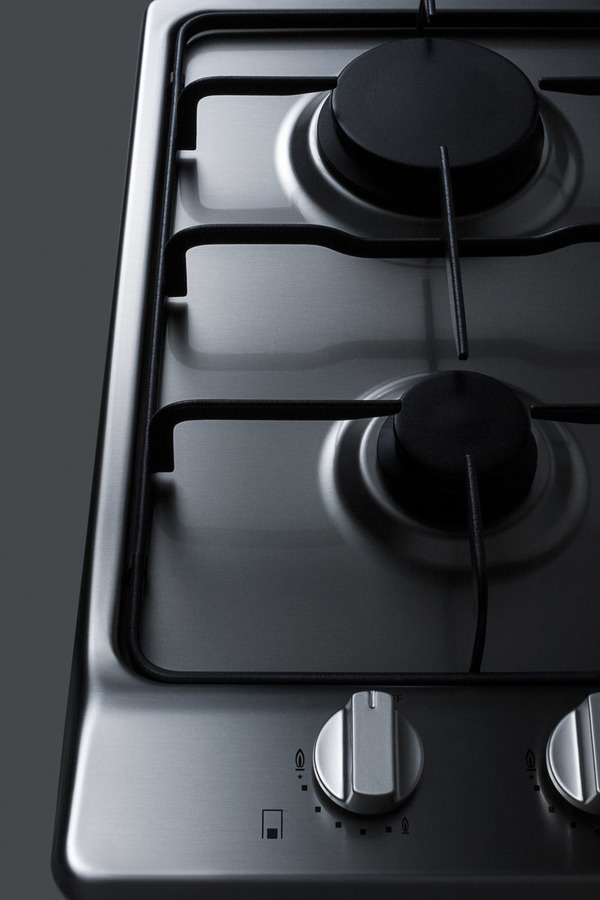

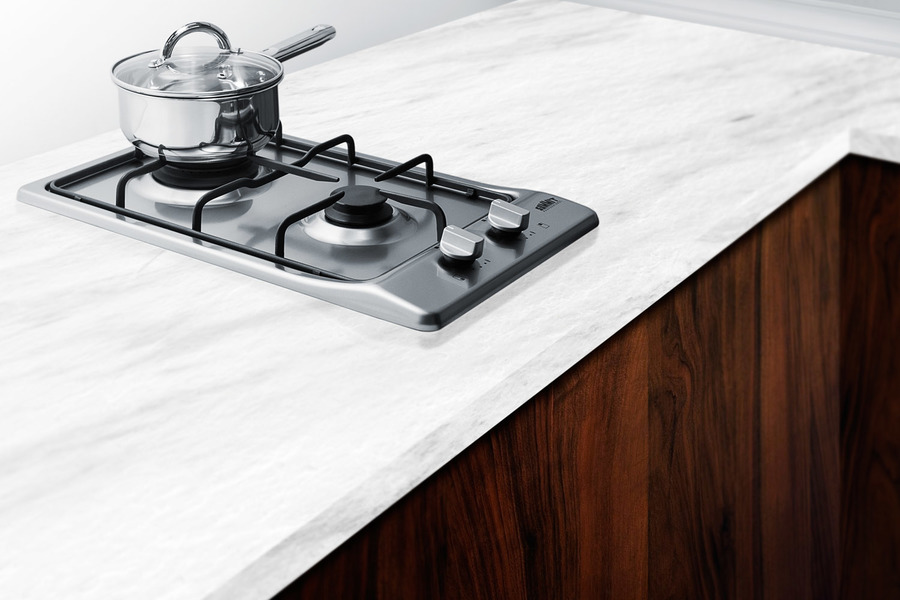

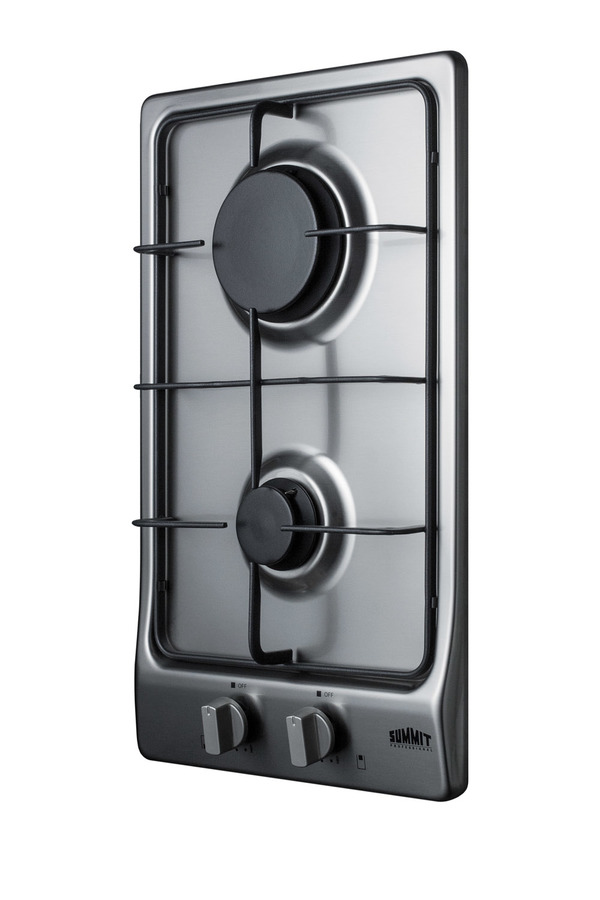

12" Wide 2-Burner Gas Cooktop

SKU: GC22SS

Made in Italy with sealed Sabaf® burners and brushed stainless steel

DISCONTINUED- REPLACED BY GCJ2SS

Color: Stainless Steel

*Additional features may vary

2.5" H x 11.88" W x 19.5" D
(6cm H x 30cm W x 50cm D)

Overview
Nominal Height	2.5" (6 cm)
Height of Cabinet	2.5" (6 cm)
Nominal Width	12.0" (30 cm)
Width	11.88" (30 cm)
Nominal Depth	20.0" (51 cm)
Depth	19.5" (50 cm)
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Voltage/Frequency	115 V AC/60 Hz
Weight	15.0 lbs. (7 kg)
Parts & Labor Warranty	1 Year
UPC	761101048857
Gas Cooktop
Ignition	Spark
LP Convertible	Yes
Number of Burners	2
Controls	Dial
Surface	Stainless Steel
Grate Material	Cast Iron
Cutout Width	11.25" (29 cm)
Cutout Depth	19.0" (48 cm)
Burner #1 BTU	3550.0
Burner #2 BTU	10000.0
Power Cord Included	Yes

Stainless steel surface

Quality design offers lasting durability in your kitchen

Sealed Sabaf® burners

Quality burners with cast iron tops ensure lasting durability and easier cleanup

Range of power output

Fast heating 10,000 BTU rear burner and auxiliary 3,550 BTU front burner cover all of your heating needs

Continuous cast iron grates

Solid grates make it easy to slide cookware to different burners

Conversion kit included

Unit is preset for natural gas but can be converted to LP with included kit

Thermocouple flame failure protection

Automatically turns gas off after 12 seconds if flame is extinguished

Push-to-turn knobs

Color-matched knobs require gentle force to prevent heating accidents

Designed for built-in installation

Perfectly sized for use in smaller kitchens

Line cord included

110V operation with included plug

Made in Italy for SUMMIT, our deluxe line of gas cooktops offers the ideal cooking experience for modern kitchens.

The GC22SS is a two-burner gas cooktop with a stainless steel surface that offers lasting durability and modern style. Continuous cast iron grates make it easier to cook and clean. This model features a rear 10,000 BTU Sabaf burner and front 3,550 BTU Sabaf burner to ensure quality heating that meets your needs. The surface features a unique curved design that adds to the attractive look.

This cooktop uses electronic spark ignition and comes preset for natural gas operation. We include a conversion kit that lets you adjust for LP gas. Safety features include color-matched push-to-turn knobs, sealed burners, and thermocouple flame failure protection to ensure gas will turn off within 12 seconds if the flame is extinguished.

With its modern styling and quality construction, the GC22SS is the ideal gas cooktop for smaller kitchens looking to make the most out of limited counter space.

BROCHURE w/ DRAWINGS
GC22SS.pdf

TECHNICAL DRAWING (.dwg)
GC22SS__GAS_COOTOP__A-C_2000_.dwg

ASSEMBLY DRAWING
GC22SS_ASS_Y.pdf

REVIT MODEL
QF_Summit_GC22SS_Cooktop_With_Sealed_Burners.rfa

USE & CARE
GC22SS-User-Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
