FS22L7PLUS
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height to Cabinet 20.13"
Height to Hinge Cap 20.5"
Width 17.38"
Depth 19.0"
Capacity 1.42 cu.ft.
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety CSA
Sanitation CSA-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs.
Shipping Weight 55.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.63"
Interior Width 12.38"
Interior Depth 14.5"
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.67 oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 7.0"
Compressor Step Width 12.38"
Compressor Step Depth 6.0"

AVAILABLE UPGRADES

Exterior
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
HUM Humidity Sensor
Humidity sensor with min/max readout
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD
Door reversal to left hand swing
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
Lock
KEY
Extra keys available for purchase
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

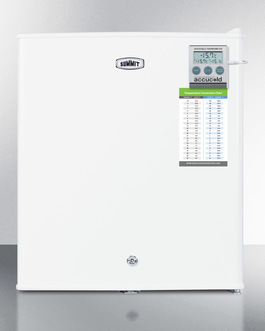

FS22L7PLUS

DISCONTINUED

20.5" H x 17.38" W x 19.0" D

OVERVIEW

AccuCold by Summit Appliance’s PLUS Series refrigerators and freezers are designed to provide greater temperature uniformity for general purpose and institutional use.

The FS22L7PLUS is a compact commercially listed all-freezer designed to fit easily on top of counters. This manual defrost unit can reach temperatures as low as -20ºC, ideal for the storage of many vaccines and laboratory products. The door includes a factory installed lock and a traceable thermometer that provides an external readout of the current and high/low temperatures.

With a compact footprint, the FS22L7PLUS is the perfect solution to settings in need of a compact, reliable all-freezer.

FEATURES

Commercially listed
CSA-S listed to NSF-7 standards
Compact dimensions
Ideal size for use on top of counters
Factory installed lock
Keyed security for a secure interior
-20° capable
Low temperature capability ideal for certain sensitive items
Traceable thermometer
Thermometer provides external readout of current and high/low temperatures
Manual defrost
Efficient performance with reliable temperature stability
Removable shelf
Wired shelf provided
Adjustable thermostat
Rear mounted to prevent accidental adjustments
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
FS22L7PLUS.pdf
Download MSDS INFORMATION
PROPYLENE_GLYCOL_MSDS1.pdf

YOU MIGHT NEED

Temperature Logger DL1KIT

Quick View

Temperature Logge...

0.75" H x 5.38" W x 5.0" D

USB data logger for temperature recordings on any SUMMIT unit; aftermarket installation (order DL1 for pre-installation)

$365
PF1Kit

Quick View

PF1Kit


Power failure alarm with hospital grade cord, designed to be used on virtually any 115/120V appliance

$130
Key

Quick View

Key


Extra key for selected models
