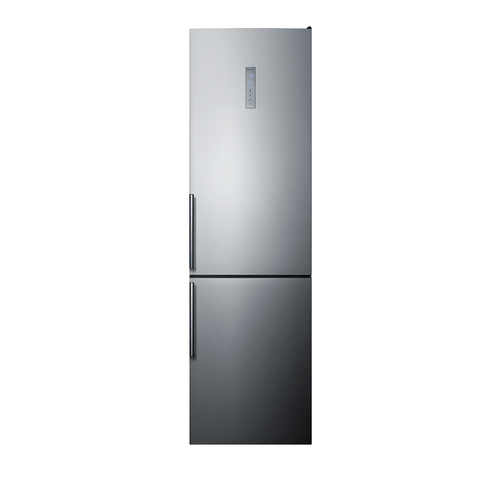

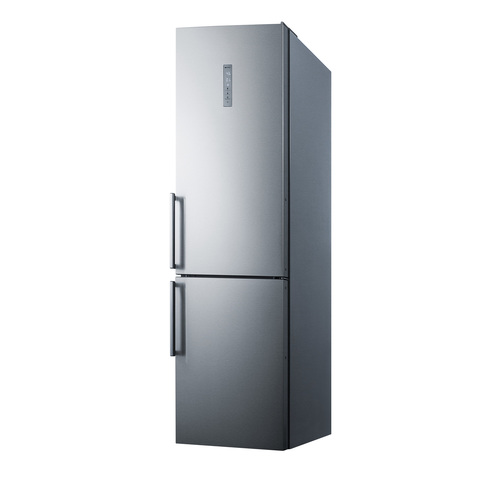

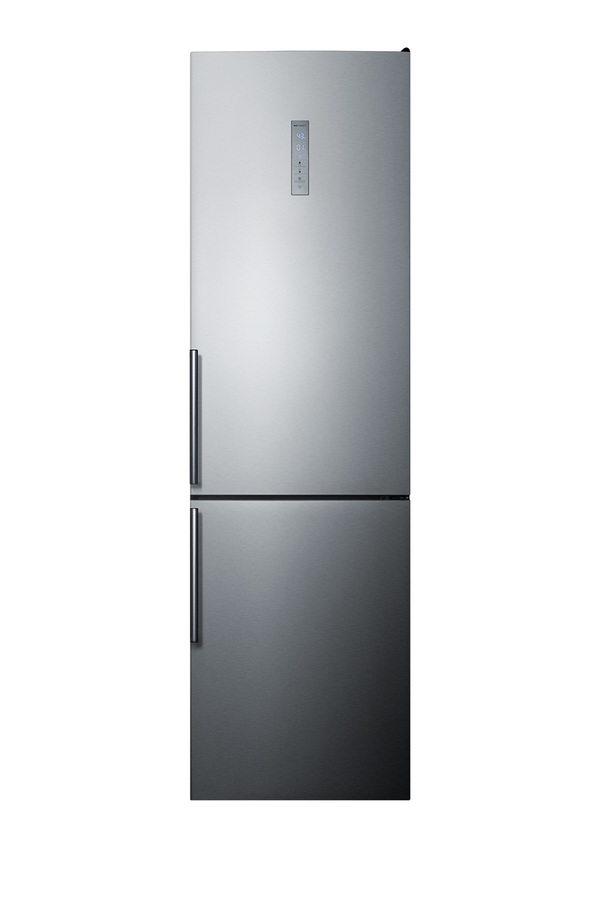

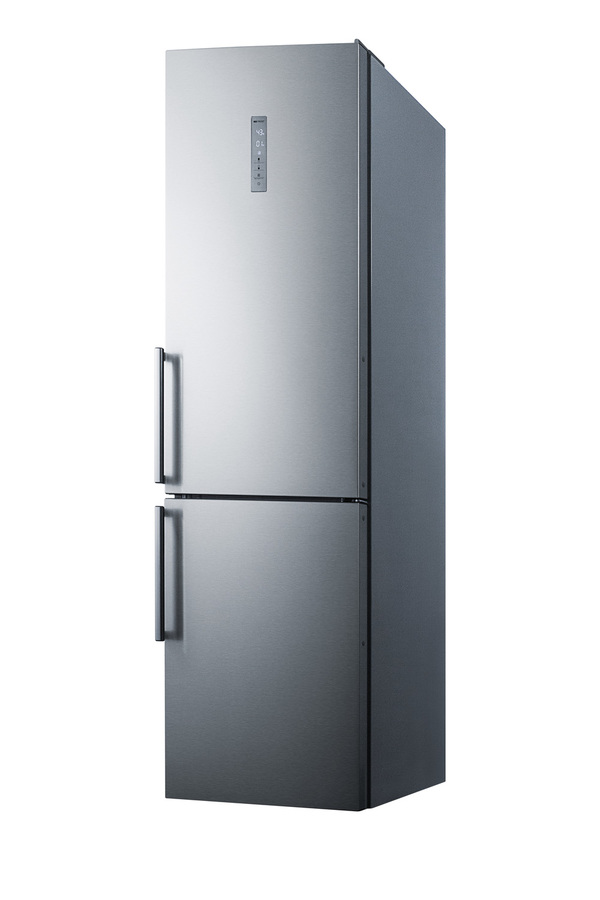

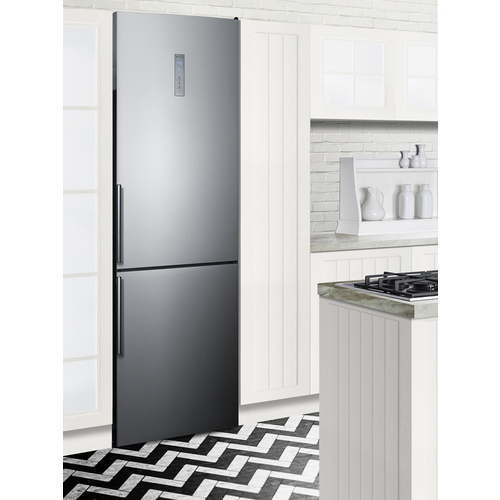

24" Wide Built-In Bottom Freezer Refrigerator

SKU: FFBF192SSBI
Specially designed for built-in installation in smaller kitchen spaces
DISCONTINUED
78.63" H x 23.63" W x 25.0" D
(200cm H x 60cm W x 64cm D)

Overview
Height of Cabinet 78.0" (198 cm)
Height to Hinge Cap 78.63" (200 cm)
Width 23.63" (60 cm)
Depth 25.0" (64 cm)
Depth with Handle 27.0" (69 cm)
Depth with door at 90° 46.63" (118 cm)
Capacity 12.5 cu.ft. (354 L)
Defrost Type Frost-Free
Door Stainless Look
Cabinet Platinum
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 425.25kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 183.0 lbs. (83 kg)
Shipping Weight 190.0 lbs. (86 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101075785
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 5
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 42.0" (107 cm)
Refrigerator - Interior Width 19.25" (49 cm)
Refrigerator - Interior Depth 19.0" (48 cm)
Refrigerator - Capacity 8.9 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 4
Refrigerator - Temperature Range 2 to 8ºC
Freezer - Interior Height 24.63" (63 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 14.63" (37 cm)
Freezer - Capacity 3.6 cu.ft
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.6 oz.
High Side PSI 250.0
Low Side PSI 88.0
Level Legs 2
Freezer - Temperature Range -15 to -25ºC

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

Counter depth

Sized at 25" deep for an easier fit in space-challenged kitchens

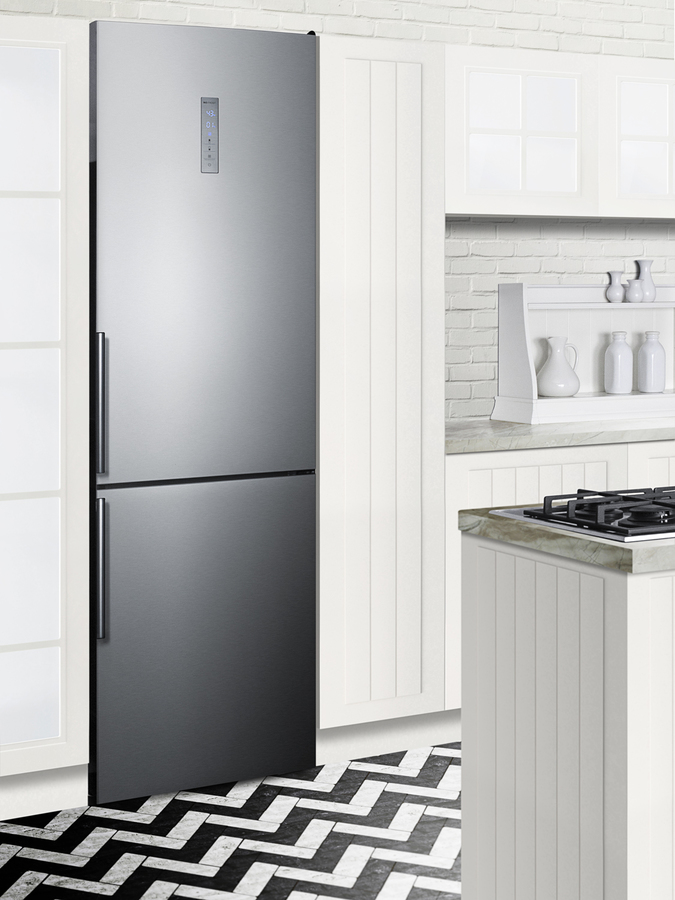

Built-in capable

Designed for built-in installation for added space savings in smaller kitchens

Bottom freezer

Convenient design keeps all refrigerated storage at eye level for easier use

Full capacity in slim fit

Unique size offers a full 12.5 cu.ft. capacity in less than 24" of width

Digital thermostats

Separate digital controls let you adjust the refrigerator and freezer sections, with a digital display viewable in Celsius or Fahrenheit

Frost-free operation

Eliminates the need to manually defrost the refrigerator or freezer section

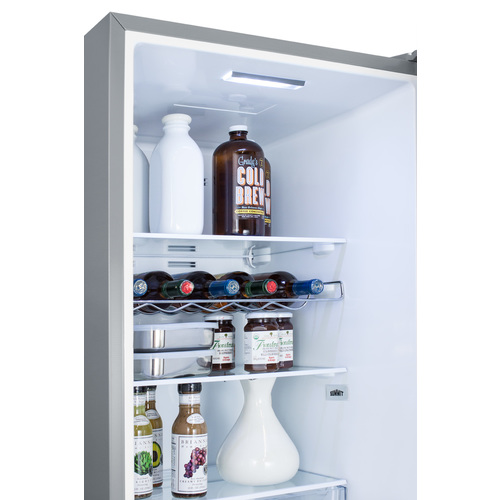

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage

Store tall bottles and condiments right on the door for convenient access

Crisper drawer

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Meat & fish drawer

Slide-out drawer maintains a slightly colder temperature to create the right conditions for defrosting meat and keeping items in a semi-frozen state

Space-saving design

Crisper drawers slide out with the doors open at 90º for easier use in smaller kitchens

LED lighting

Automatically illuminates when you open the door

Stainless steel look

Doors offer the look of stainless steel complete with a horizontal grain, but the easier cleanability of a fingerprint-resistant steel finish

Removable transparent freezer drawers

Unique freezer design keeps the cold inside, even when the door is opened

Open door alarm

Audible alarm will sound if either door is left ajar for over two minutes

Super Cool function

Allows you to rapidly cool the refrigerator section to 35.6ºF. Ideal for bringing newly loaded groceries to a safer storage temperature

Super Freeze function

Allows you to rapidly cool the freezer to -12ºF as needed

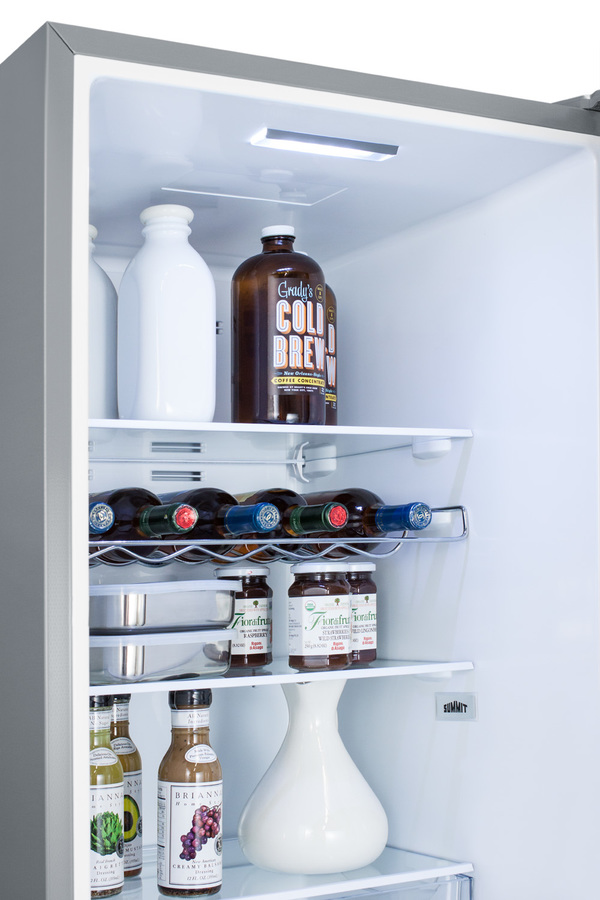

Bottle holder

Includes a scalloped shelf ideal for storing wine and other bottled beverages horizontally

Holiday setting

Allows you to disable the refrigerator while keeping the freezer functioning, perfect for use during vacation or downtime when you may want to keep items frozen but save on energy usage in the fresh food section

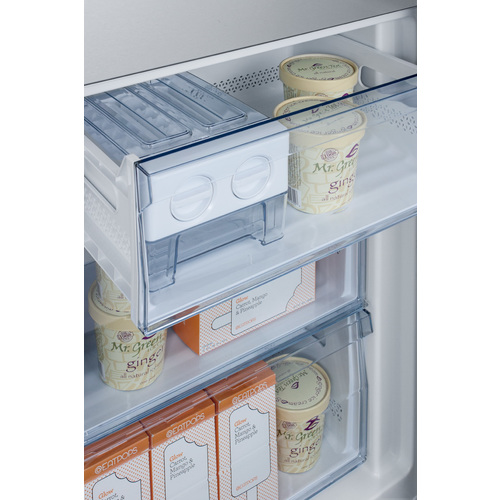

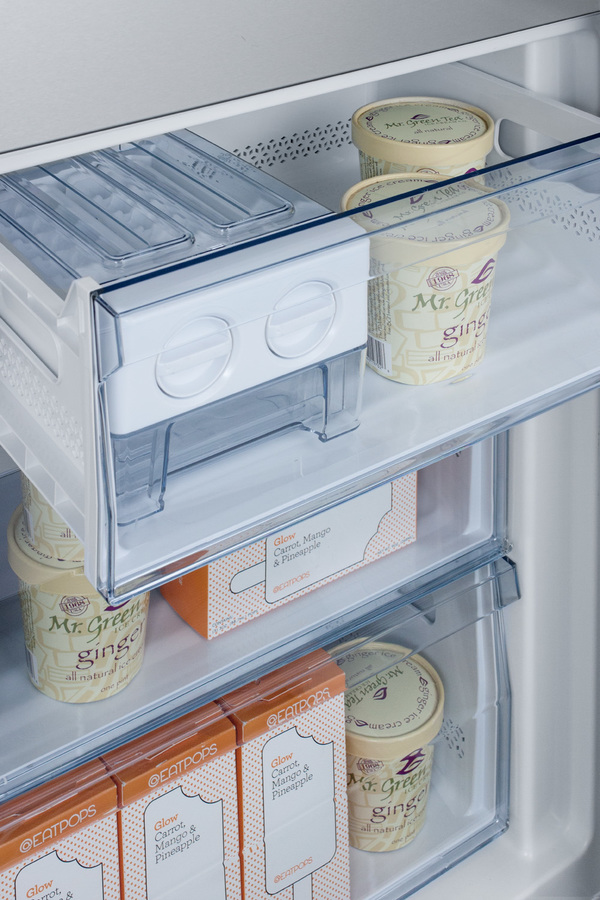

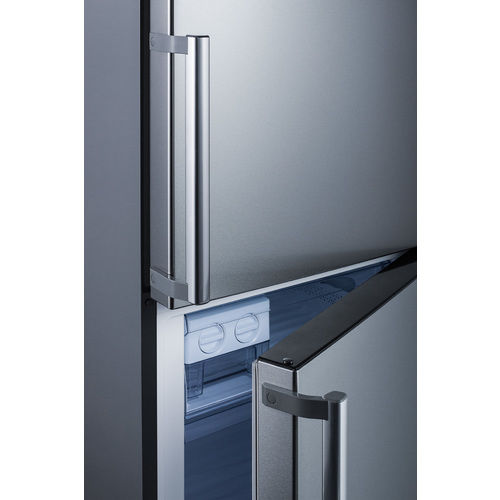

Integrative ice box included

Removable ice box lets you fill up cube trays and drop the cubes into a handy box when they are frozen.

Sealed back

Easier cleanup with a flat back design

Fully finished cabinet

Textured cabinet in an attractive deep gray finish

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's collection of built-in refrigerator-freezers provides an attractive and user-friendly solution to small kitchen spaces.

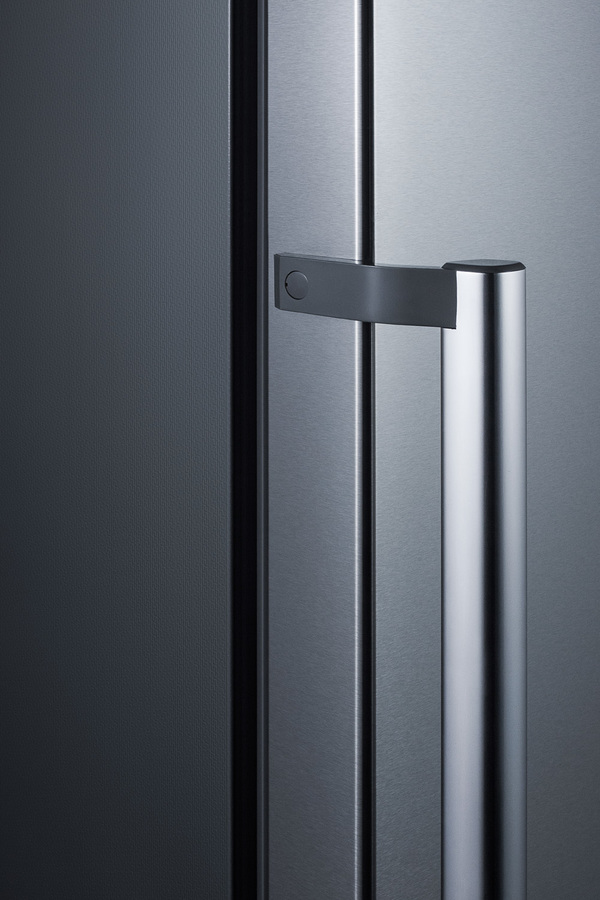

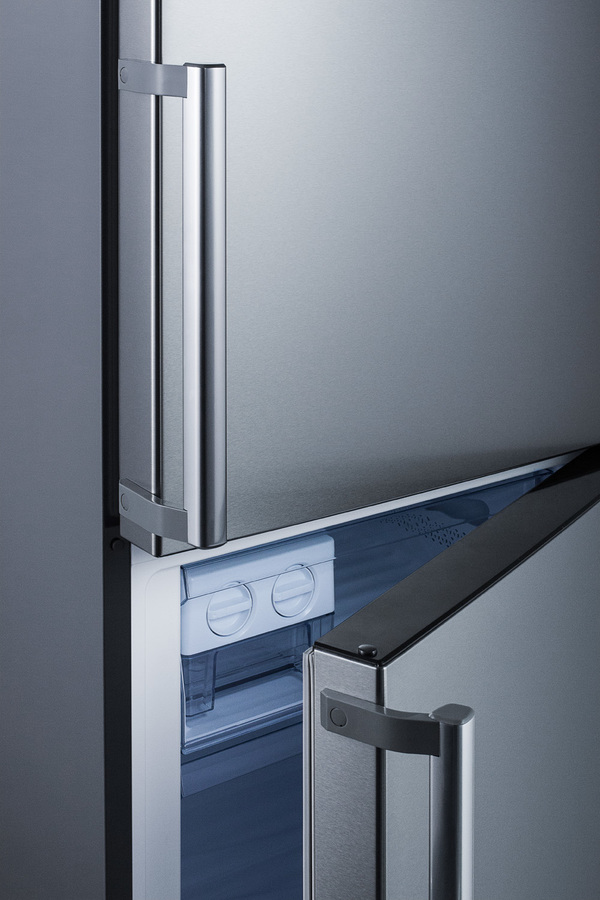

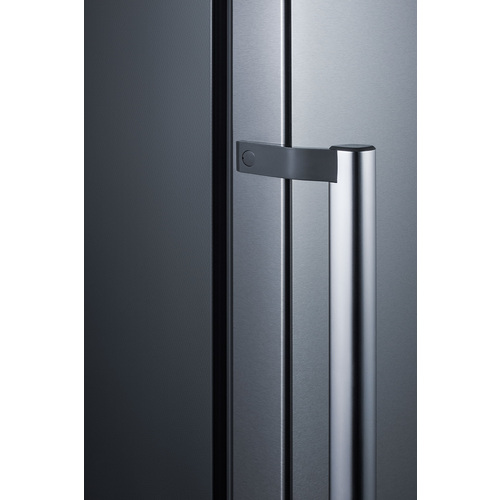

The counter depth FFBF192SSBI is a bottom freezer refrigerator sized with a unique 24" width that offers a generous 12.5 cu.ft. storage capacity. It comes with a textured platinum cabinet and sealed back for easier cleaning. It is built-in capable for a better fit in smaller kitchens. The doors feature a gentle curve and the look of stainless steel in a fingerprint-resistant alternative finish. Pro style handles complete the modern look. NOTE: this unit ships with a right hand door swing. For a left version, see the FFBF192SSBILHD.

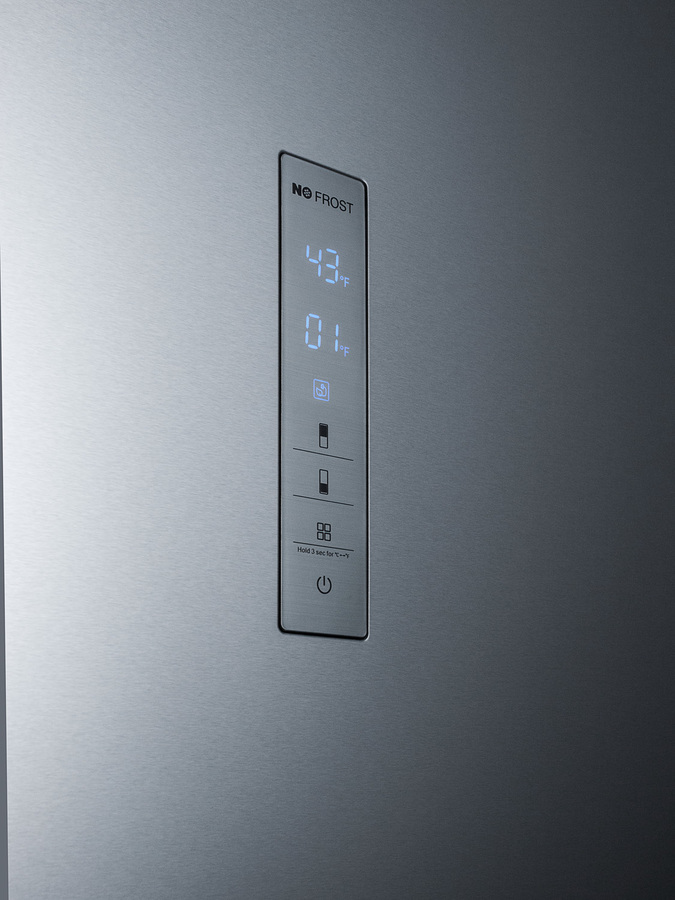

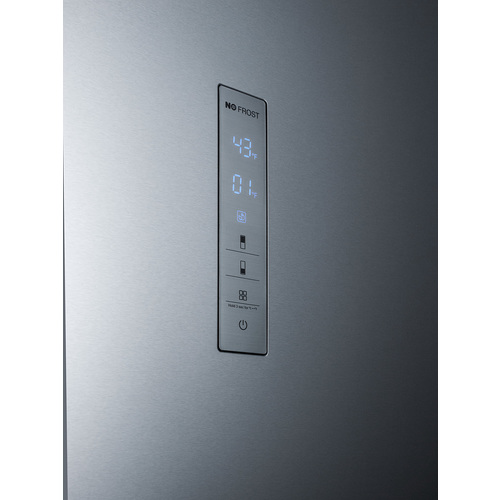

The FFBF192SSBI includes an external digital control panel in a sleek mirror finish, allowing you to manage the interior without exposing stored contents to room temperature. The refrigerator and freezer temperature settings can be viewed in Celsius or Fahrenheit. The control panel also includes a "Super Cool" and "Super Freeze" option to cool the interior quickly, a great feature when loading groceries. A "Holiday" setting allows you to reduce energy consumption in the refrigerator section while still safely storing items in the freezer compartment, while the "Eco" setting lets you save even more energy for longer term vacations. This also includes an open door alarm that will sound if either door is left open for over two minutes.

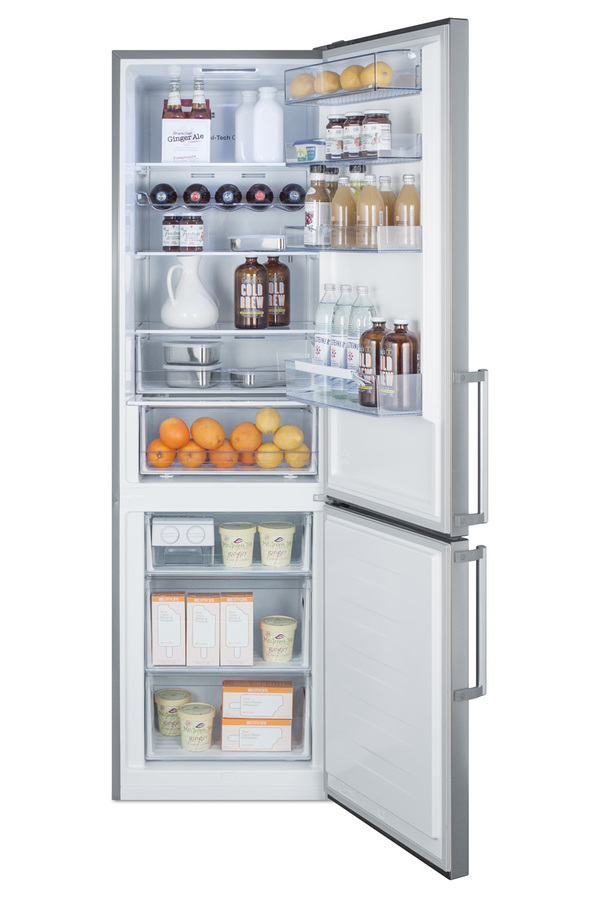

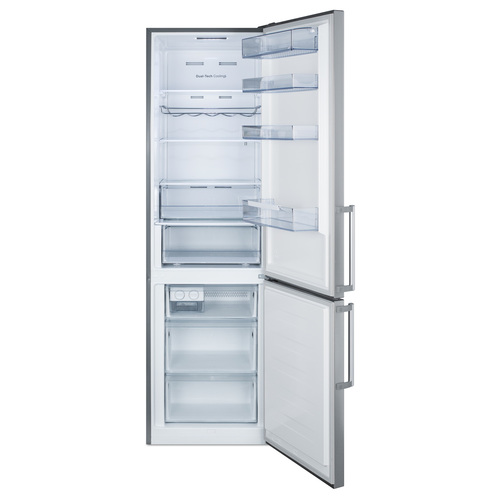

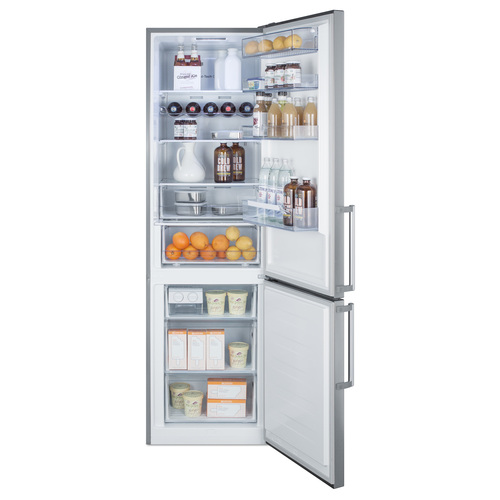

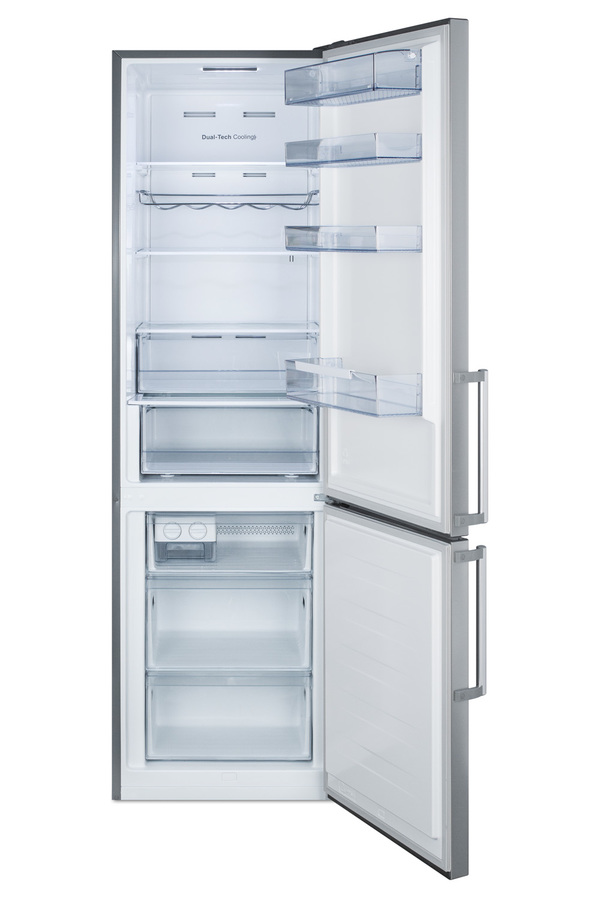

Inside, the FFBF192SSBI utilizes frost-free operation for minimum user maintenance in both compartments. The refrigerator section includes spill-proof glass shelves and removable door racks. This unit comes with a clear crisper for produce storage, as well as a slide-out storage drawer designed to keep meats and certain other items at a slightly colder temperature. An LED light offers an attractive and energy efficient interior view. The lower freezer section features three clear slide-out drawers for added efficiency and more organized storage. We include a removable ice cube box for added convenience. Simply fill up the included tray with water and freeze. When ice has been created, turn the handle to release it into the lower box for easier access.

With its unique size, modern style, and user-friendly features, the FFBF192SSBI is the perfect choice for smaller homes looking to bring luxury to the kitchen.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
