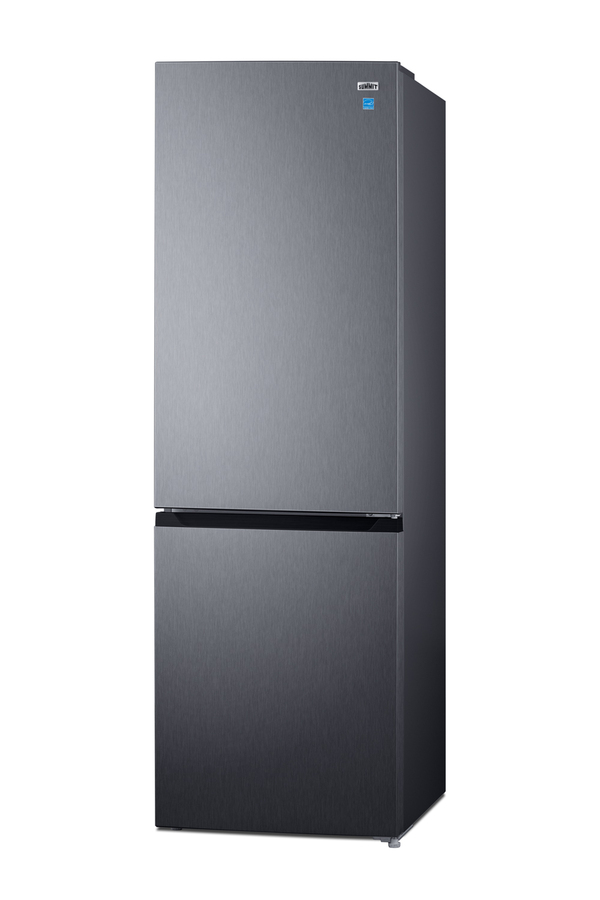

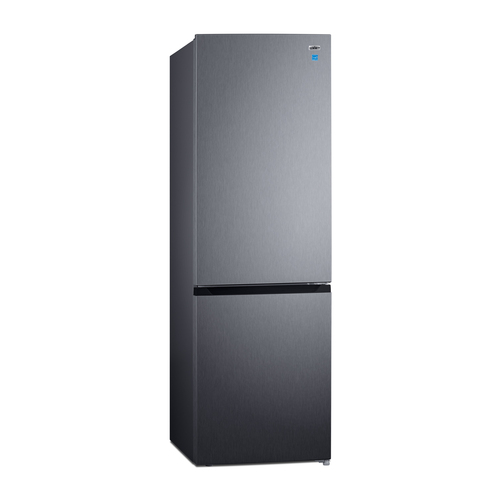

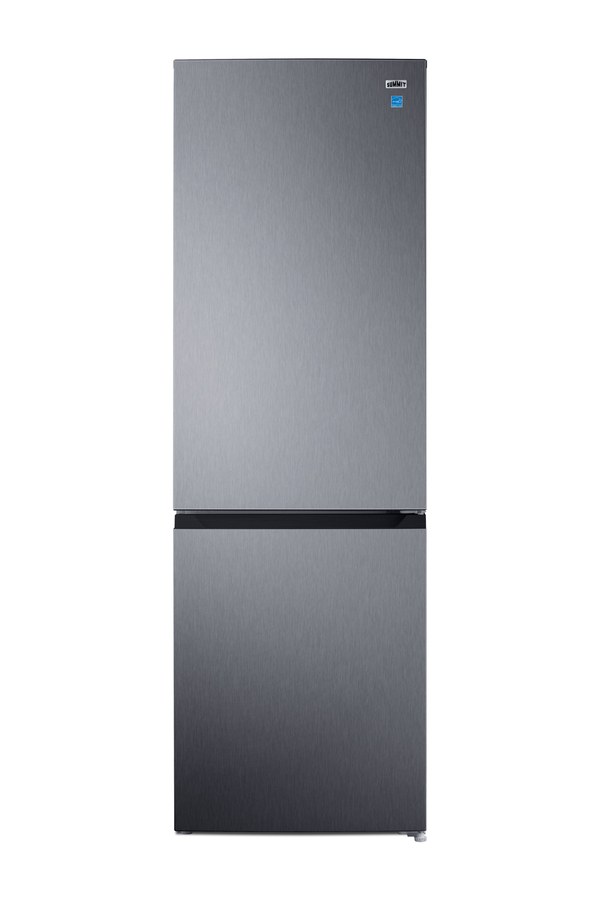

24" Wide Bottom-Mount Refrigerator-Freezer, Counter Depth

SKU: FFBF1031PL
ENERGY STAR certified for an efficient performance in a slim footprint ideal for apartments and other space-challenged kitchens
Estimated Time to Ship:

Next day shipping

Door Swing:
RHD LHD
Color: Stainless Steel Look

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

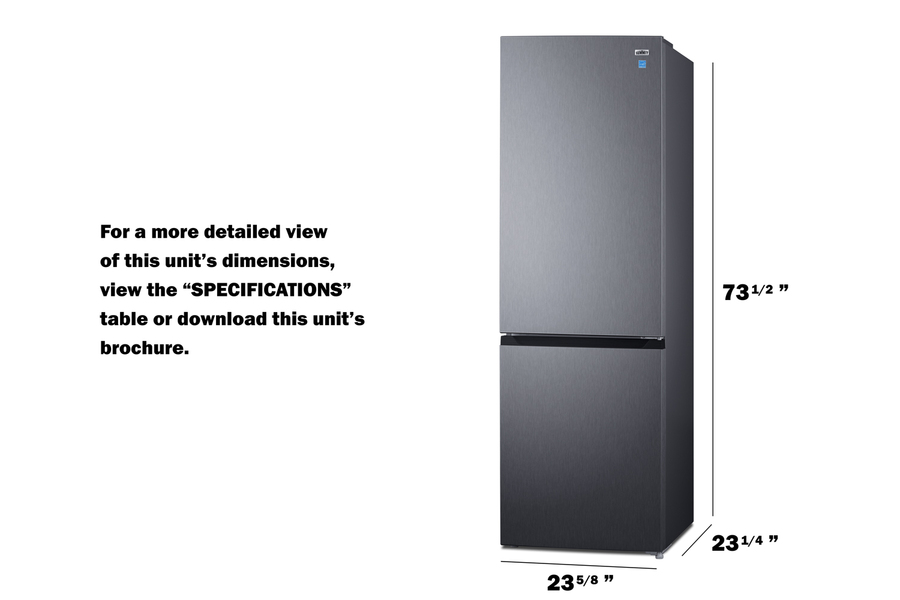

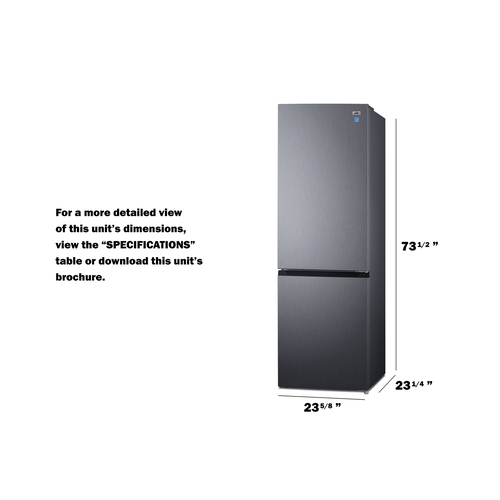

73.5" H x 23.63" W x 23.25" D
(187cm H x 60cm W x 59cm D)

Overview
Height of Cabinet 73.5" (187 cm)
Width 23.63" (60 cm)
Width with Door Open 23.88" (61 cm)
Depth 23.25" (59 cm)
Depth with door at 90° 51.38" (131 cm)
Capacity 10.5 cu.ft. (297 L)
Defrost Type Frost-Free
Door Stainless Look
Cabinet Gray
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Energy Usage/Year 385.0kWh/year
Amps 2.1
Plug Type NEMA 5-15P
Voltage/Frequency 115 V AC/60 Hz
Weight 135.0 lbs. (61 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101160900
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 38.5" (98 cm)
Refrigerator - Interior Width 19.0" (48 cm)
Refrigerator - Interior Depth 17.5" (44 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 24.5" (62 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 11.0" (28 cm)
Freezer - Shelf Type Glass
Gallon Door Storage Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.73 oz.
Level Legs 2

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

24" Wide Bottom Mount Refrigerator-Freezer

Full-sized bottom-mount refrigerator-freezer with a spacious interior to add true convenience to any kitchen space

ENERGY STAR certified

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Slim 24" footprint

Less than 24" wide and deep for an easy fit in space-challenged kitchens

Bottom mount freezer

Convenient design keeps all refrigerated storage at eye level for easier use

Frost-free operation

No-frost convenience for reduced user maintenance

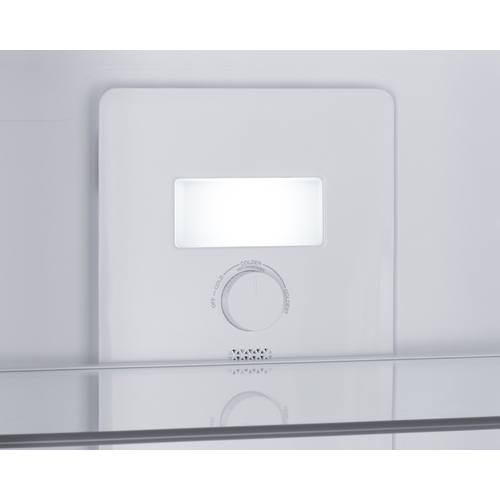

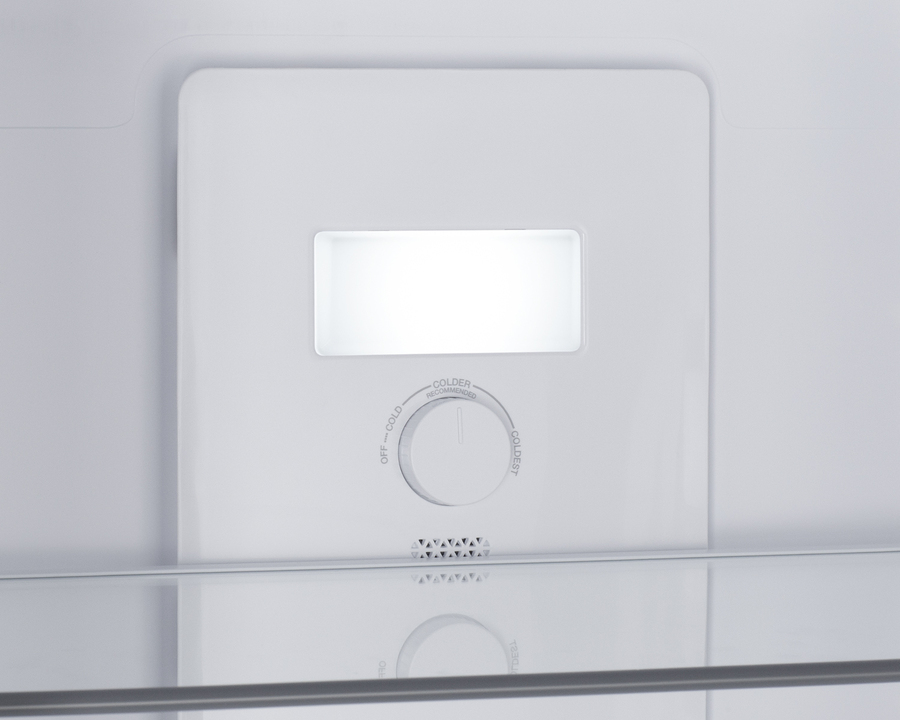

Interior LED lighting

Automatically illuminates when you open the door

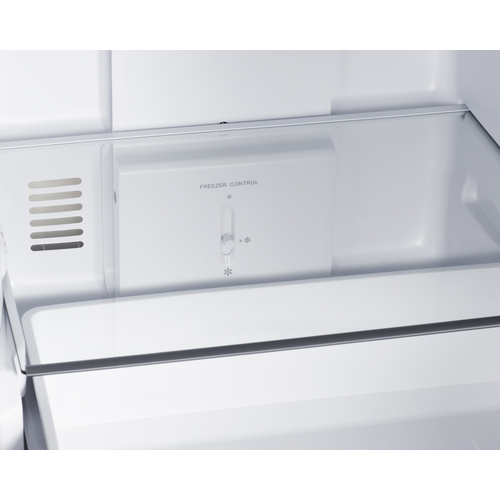

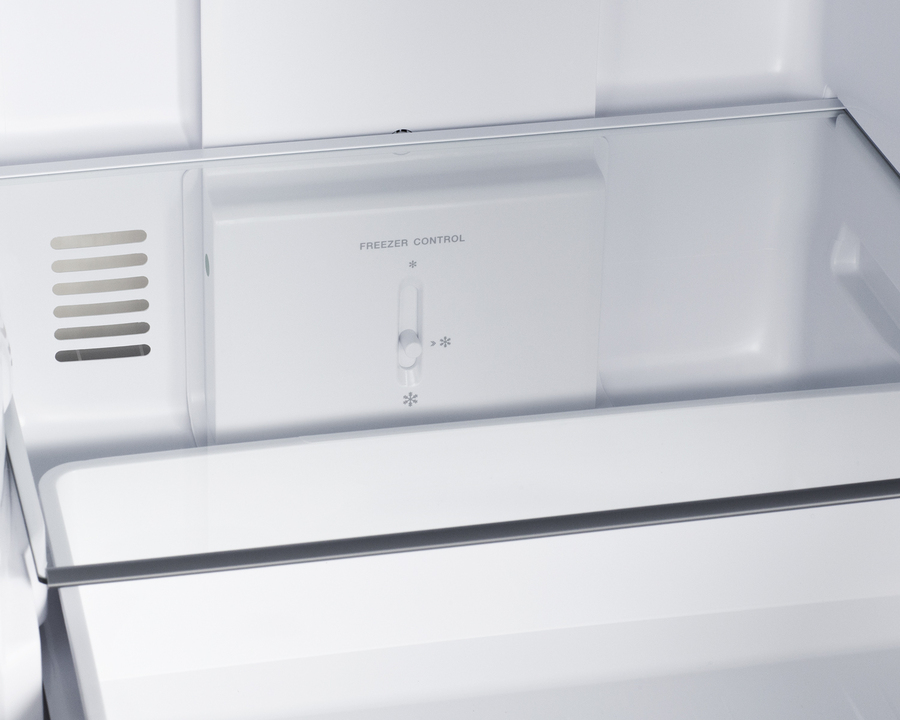

Analog controls

Both the refrigerator and freezer sections have analog controls for individual, user convenient, temperature management

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Adjustable door storage

Three door racks can be adjusted in height to accommodate a variety of sizes

Gallon door storage

Deep rack accepts full gallon-sized containers

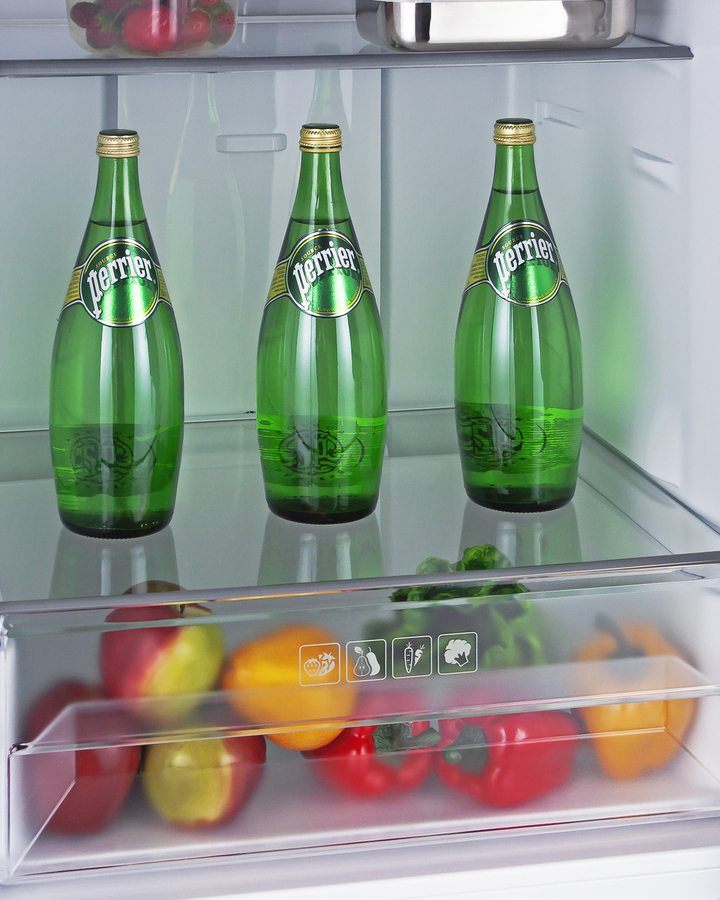

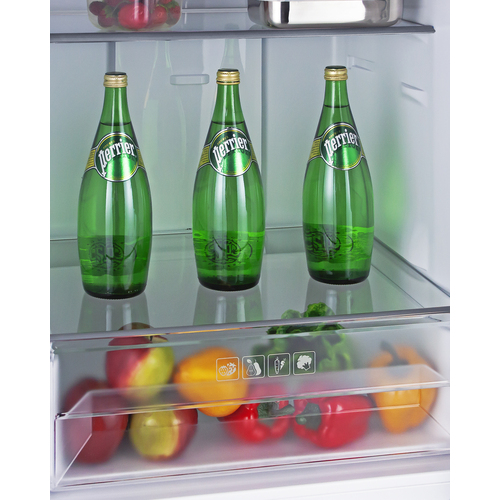

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer with humidity control

Humidity gauge

Better manage the humidity in the crisper drawer for optimum produce storage

Transparent freezer drawers

Unique freezer drawer design keeps the cold inside, even when the door is opened

Modern stainless steel look

Enjoy the look of stainless steel with the convenience of a magnetic, fingerprint-resistant coating

Reversible doors

User-reversible door swing for added flexibility

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's fully-featured, bottom mount refrigerator-freezers are specially designed to bring true convenience to any kitchen.

The ENERGY STAR certified FFBF1031PL features a spacious 10.5 cu.ft. of storage capacity in a slim counter depth fit. The doors feature a modern stainless steel look in a magnetic, fingerprint-resistant finish. This unit utilizes frost-free defrost to minimize user maintenance, with intuitive dial controls for easy operation. The doors are user-reversible to best suit your space.

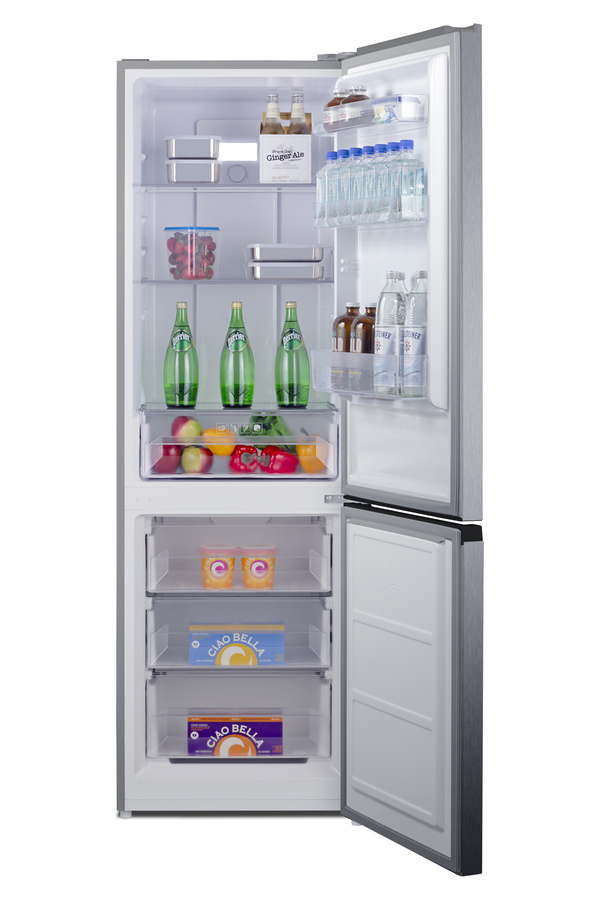

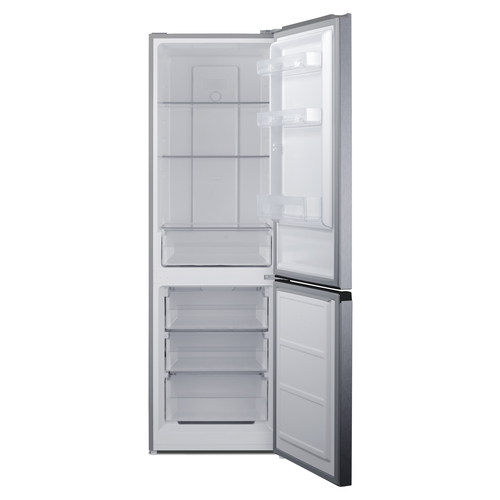

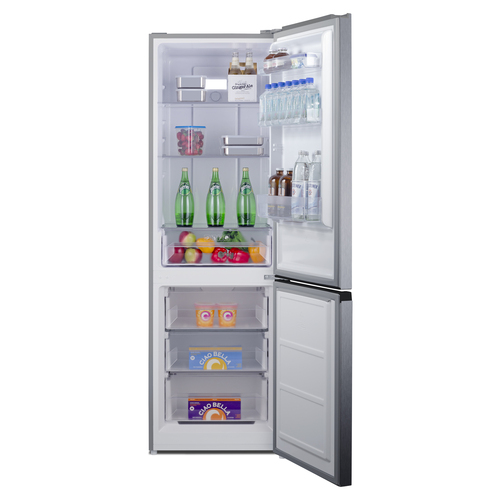

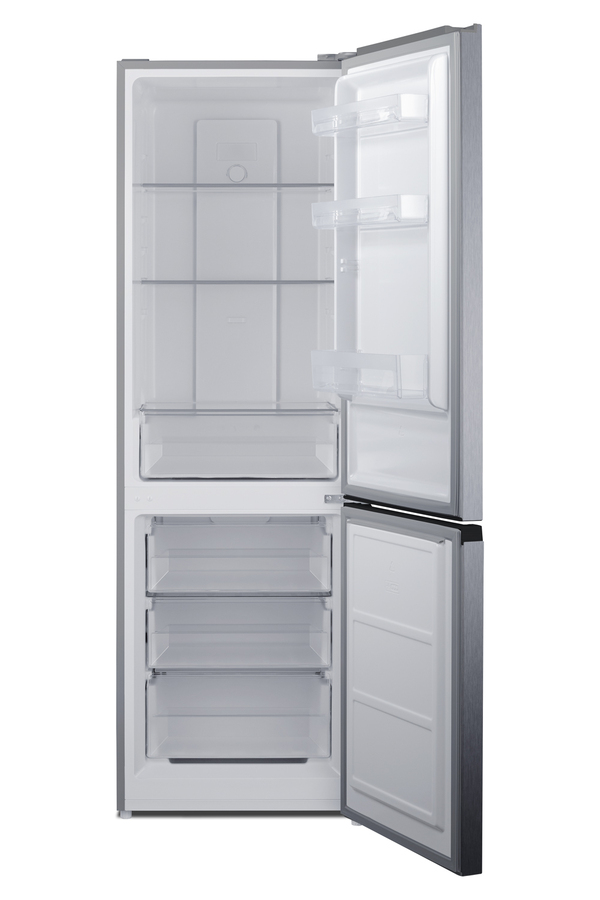

The  refrigerator section is fully featured for fresh food storage with LED lighting, two adjustable glass shelves, a humidity-controlled clear crisper, and three removable door racks. The unit's bottom door shelf accommodates gallon-sized containers.

The lower freezer compartment features three slide-out drawers with plastic fronts to help protect stored items when the door is opened. This model also includes a SuperFreeze setting, which is great for quickly freezing newly loaded foods.

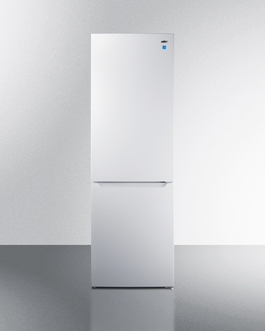

With its ENERGY STAR certified performance and 24" footprint, the FFBF1031PL is the ideal choice for apartments looking for full storage capacity in an efficient fit. For this unit in white, see model FFBF1030W.

Additional choices are available in top mount and French door style. Explore summitappliance.com to browse our complete series of apartment-sized refrigerators.

Download
BROCHURE
FFBF1031PL.pdf
Download
TECHNICAL DRAWING (.dwg)
FFBF1030W.dwg
Download
ASSEMBLY DRAWING
FFBF1030W-Assembly.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
