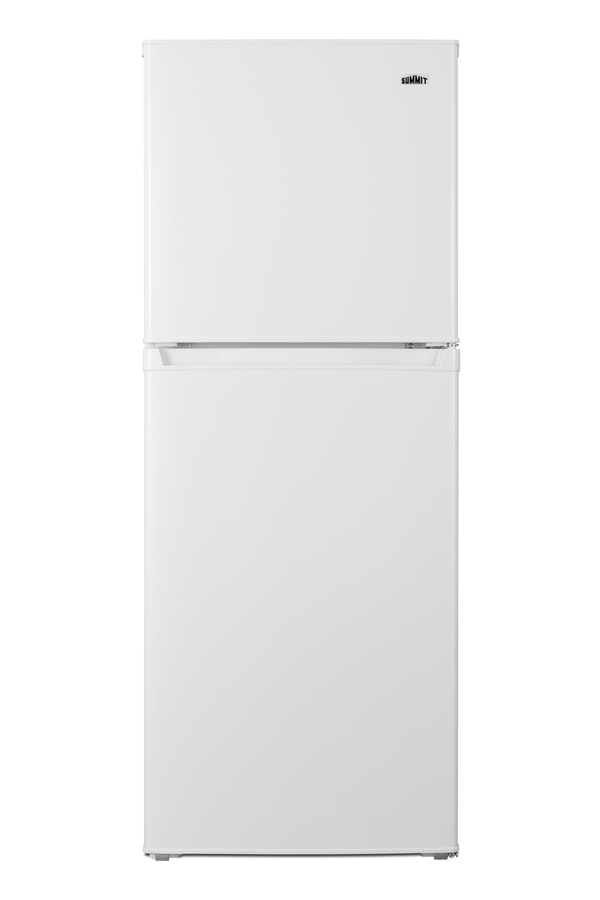

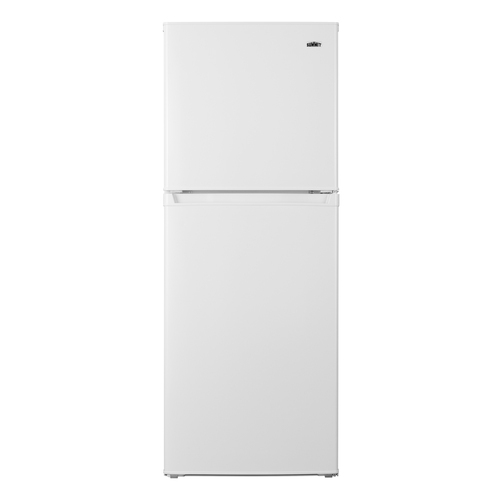

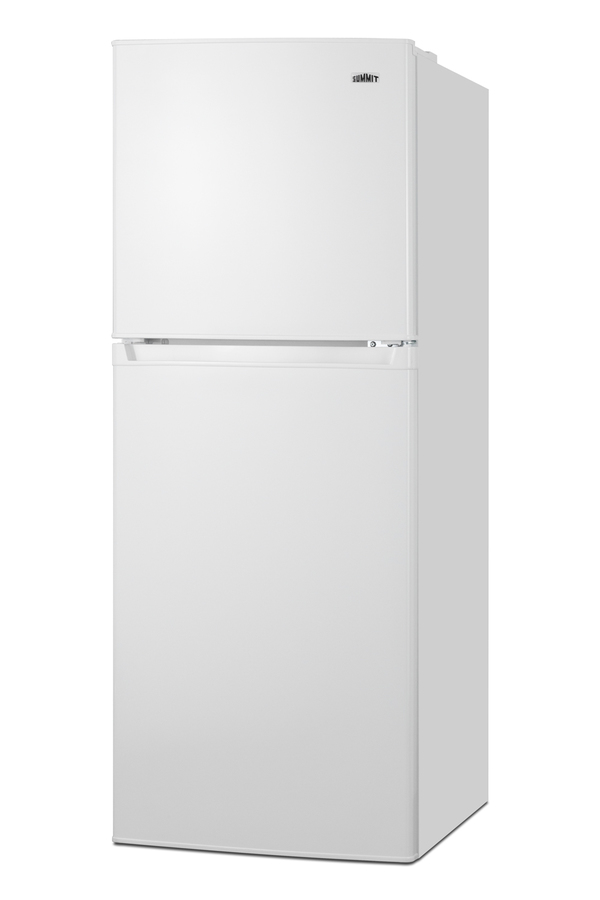

22" Wide Refrigerator-Freezer

SKU: FF82W
Unique size makes it perfect for small-spaced kitchens
DISCONTINUED- REPLACED BY FF946W
55.75" H x 21.5" W x 23.5" D
(142cm H x 55cm W x 60cm D)

Overview
Height of Cabinet 55.75" (142 cm)
Height to Hinge Cap 55.75" (142 cm)
Width 21.5" (55 cm)
Width with Door Open 22.5" (57 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 43.25" (110 cm)
Capacity 7.0 cu.ft. (198 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Energy Usage/Year 436.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 102.0 lbs. (46 kg)
Shipping Weight 126.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076232
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 30.25" (77 cm)
Refrigerator - Interior Width 17.25" (44 cm)
Refrigerator - Interior Depth 19.0" (48 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 1
Refrigerator - Half Door Shelves 2
Freezer - Interior Height 15.75" (40 cm)
Freezer - Interior Width 15.38" (39 cm)
Freezer - Interior Depth 13.75" (35 cm)
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.8 oz.
High Side PSI 64.0
Low Side PSI 39.0
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 17.25" (44 cm)
Compressor Step Depth 3.75" (10 cm)
Sound Level 32.8 dB

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

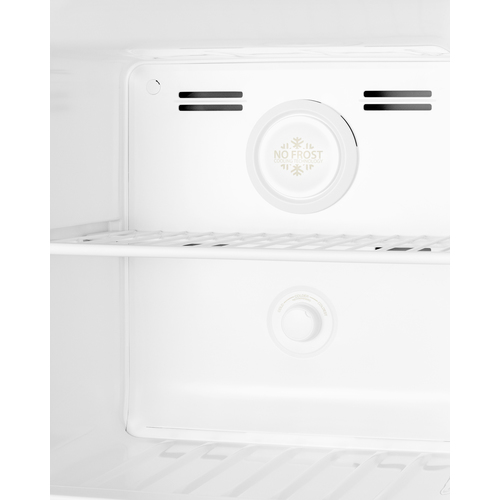

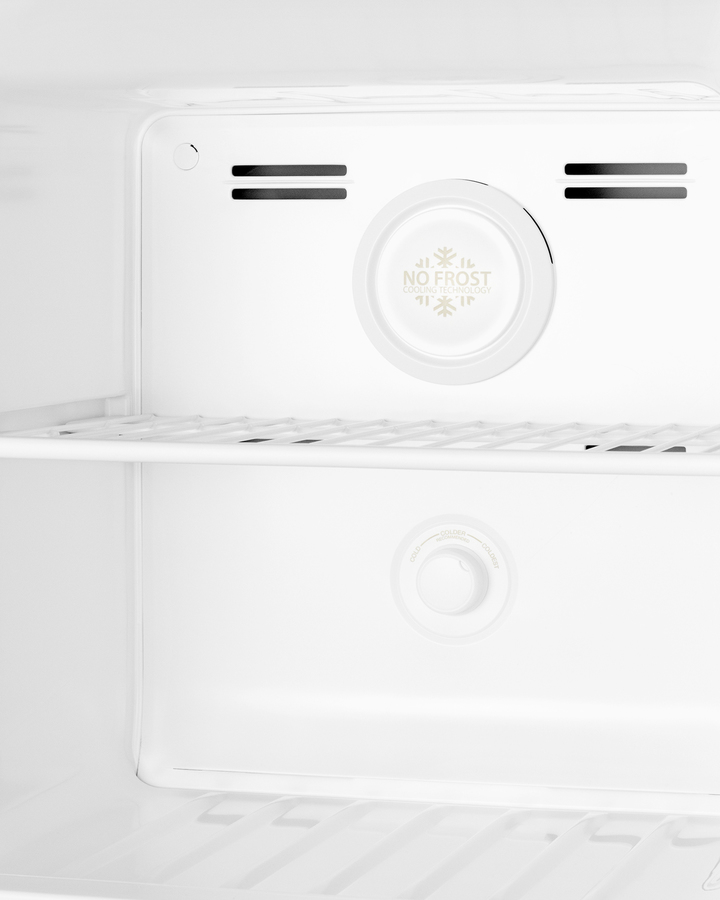

Frost-free operation

No-frost convenience for reduced user maintenance

Compact size

Unique dimensions offers a full 7 cu.ft. capacity in a conveniently slim fit

Adjustable glass shelves

Two spill-proof shelves made from solid safety glass offer convenient and flexible storage in the refrigerator compartment

Door storage

Multiple door shelves in both the refrigerator and freezer compartments offer convenient storage for condiments and bottles

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

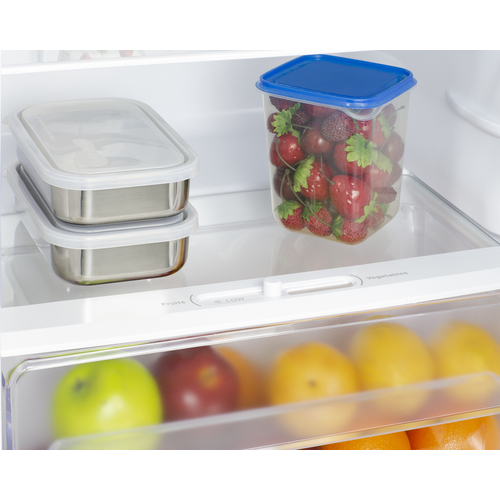

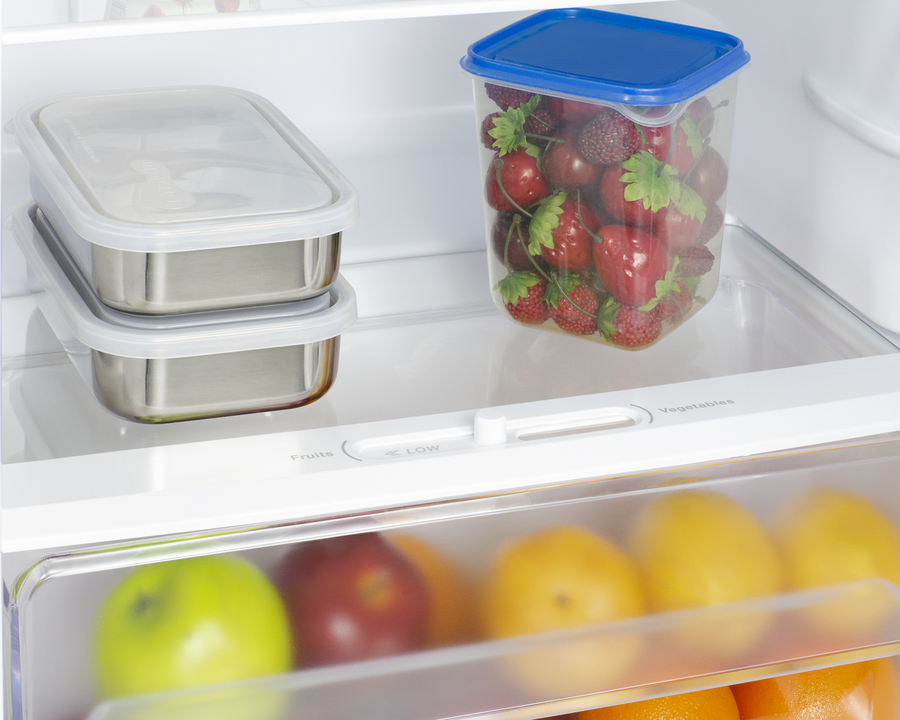

Humidity gauge

Allows you to manage the humidity in the crisper drawer for optimum produce storage

Full freezer shelf

Removable wire shelf included to accommodate a variety of sizes inside the top freezer compartment

Interior light

Automatically illuminates when you open the door of the fresh food section

Adjustable thermostats

Both the refrigerator and freezer sections have a dial thermostat for individual, user convenient, temperature management

Reversible doors

User-reversible door swing allows you to switch the configuration for a better fit in your kitchen

All-white finish

Glossy white doors with a textured white cabinet finish provide a classic look perfect for any kitchen space

Sealed back

Space-saving convenience with easier cleanability

Quiet operation

Runs at under 33 dB for a quiet performance in any setting

ADA compliant design

Low height and accessible controls meet ADA guidelines for user accessibility

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's frost-free refrigerator-freezers feature slim dimensions for smaller kitchens and superior construction for years of reliable service.

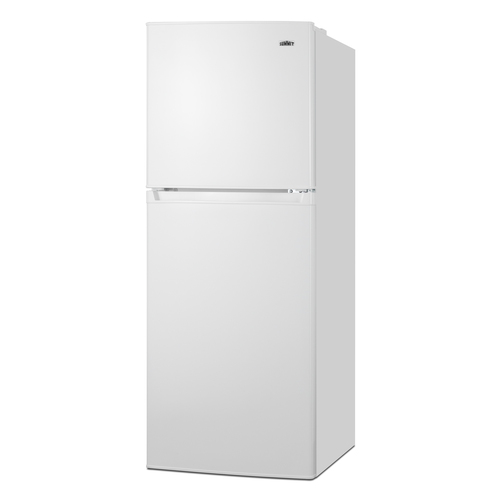

The FF82W is a two-door refrigerator-freezer sized just under 22" wide, with a 55" height that meets ADA guidelines to provide accessibility to wheelchair users. It features a textured white cabinet finish with user-reversible doors and a sealed back for a better fit and easier cleanability.

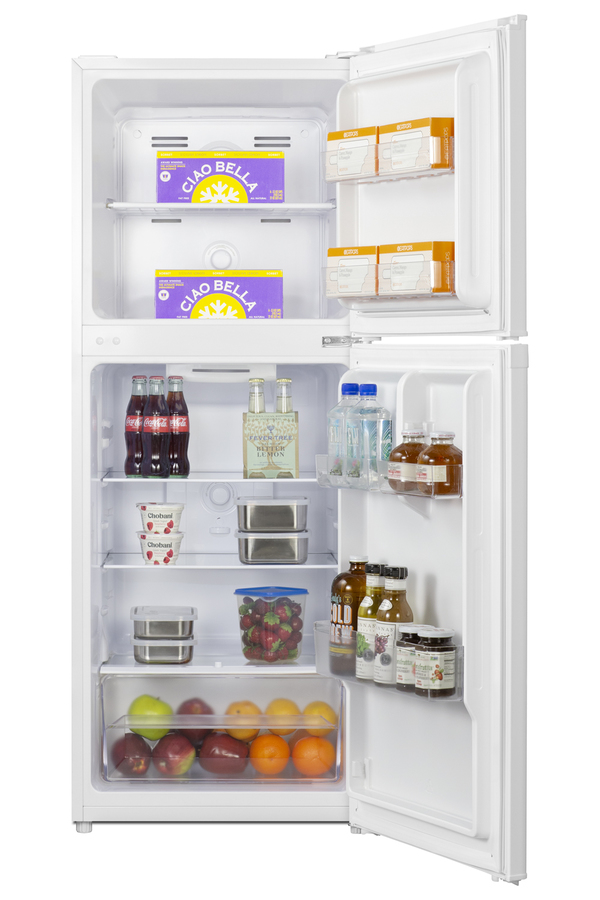

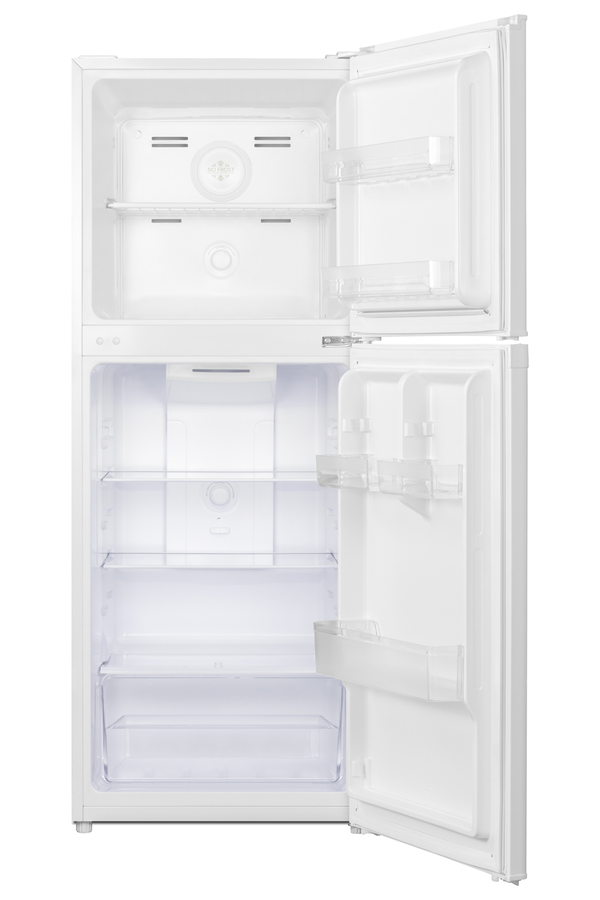

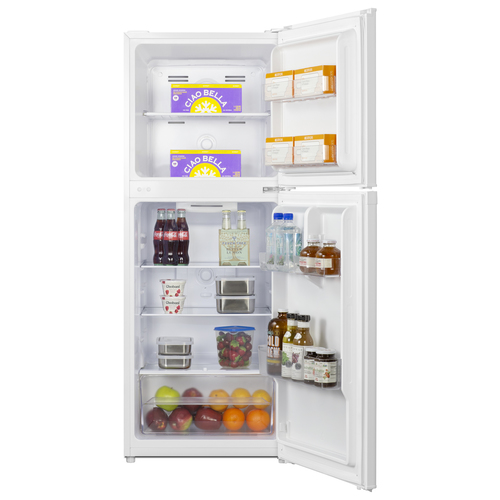

Inside, the FF82W utilizes frost-free operation for easy user maintenance and boasts 7 cu.ft. of storage capacity. Both the refrigerator and freezer sections have a dial thermostat allowing users to individually set and manage the temperature of each compartment. The refrigerator has two adjustable spill-proof glass shelves for easy storage, while the freezer section comes with a removable wire shelf for storage convenience. Both the refrigerator and freezer feature door racks for added storage as needed. The large crisper drawer has a humidity control gauge allowing users to control the level of humidity in the crisper. The refrigerator section includes an automatic interior light for an easy view of the interior.

With its unique size and fully-featured interior, the FF82W is ideal for small-spaced kitchen spaces.

Download
BROCHURE w/ DRAWINGS
FF82W.pdf
Download
TECHNICAL DRAWING (.dwg)
FF82W_REF._FREEZER__A-C_2018_.dwg
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
