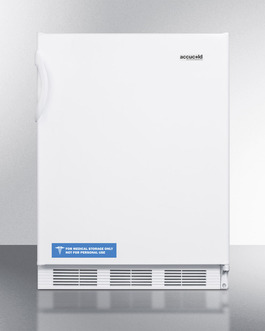

FF6BIADA

Hidden evaporator for a clean seamless interior

32.25" H x 23.63" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

32" height for use under lower ADA compliant counters
Flexible design allows built-in or freestanding use
Includes door storage and adjustable shelves
Full 5.5 cu.ft. capacity inside a convenient 24" footprint
Automatic defrost ensures minimum user maintenance
Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	46.13" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Shipping Weight	104.0 lbs. (47 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Wire
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Exterior

ODA Open Door Alarm Add an open door alarm to audibly buzz when the door is left ajar.	TT Thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DT Digital Thermostat Install a digital thermostat with external readout for precise temperature management
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	SS Hinges Stainless steel top and bottom hinges
SCD Self-Closing Door Protect interior contents and reduce energy waste with the Self Closing Door Option	LHD Door reversal to left hand swing
Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	SSK Stainless steel kickplate factory installed
HUM Humidity Sensor Humidity sensor with min/max readout	HG Cord Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac

Lock

L-Installed Lock Add a single key lock to the door with the L option	KEYPAD Battery-powered keypad lock installed for keyless security
AC Keypad Keypad lock powered by appliance power cord for keyless security

Interior

FCGP - Fan w/Gel Packs

Internal fan with gel packs included for a stabilized interior

FC - Internal Fan

Internal fan for even temperature distribution throughout the unit interior

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

DESCRIPTION

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The FF6BIADA Series features 24" wide all-refrigerators designed for built-in undercounter use in ADA compliant settings.

The FF6BIADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a white exterior and user-reversible door swing.

Inside, the FF6BIADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior. Adjustable wire shelves allow users to reconfigure the interior for optimum storage. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.

With its unique size and quality design, the FF6BIADA is ideal for a variety of general purpose applications. For more finish options, browse the entire FF6BIADA Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ADA compliant
32 inch height fits under standard ADA counters

Slim undercounter dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity

Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished white cabinet
Allows the refrigerator to be used freestanding

Reversible door
User-reversible door swing for added flexibility

Automatic defrost
Reduced maintenance with auto defrost system

Hidden evaporators
Cold wall design with hidden evaporator and seamless interior

One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Door shelves
Store large bottles right on the door for easy access

Adjustable thermostat
Manage the interior temperature with ease and accuracy

Interior light
Automatically illuminates when you open the door

100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	46.13" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Shipping Weight	104.0 lbs. (47 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Wire
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Exterior

ODA Open Door Alarm Add an open door alarm to audibly buzz when the door is left ajar.	TT Thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DT Digital Thermostat Install a digital thermostat with external readout for precise temperature management
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	SS Hinges Stainless steel top and bottom hinges
SCD Self-Closing Door Protect interior contents and reduce energy waste with the Self Closing Door Option	LHD Door reversal to left hand swing
Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	SSK Stainless steel kickplate factory installed
HUM Humidity Sensor Humidity sensor with min/max readout	HG Cord Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac

Lock

L-Installed Lock Add a single key lock to the door with the L option	KEYPAD Battery-powered keypad lock installed for keyless security
AC Keypad Keypad lock powered by appliance power cord for keyless security

Interior

FCGP - Fan w/Gel Packs

Internal fan with gel packs included for a stabilized interior

FC - Internal Fan

Internal fan for even temperature distribution throughout the unit interior

DOWNLOADS

BROCHURE w/ DRAWINGS
FF6BIADA.pdf

TECHNICAL DRAWING (.dwg)
FF6ADA_FF6BIADAREFRIGERATORA-C2000.dwg

MSDS INFORMATION
R134a_safety_list.pdf

USE & CARE
Manual_FF6BI_FF7BI__SCR600LBI_SCR600BLBI_Engl_French.pdf
