COVID-19 VACCINE COLD STORAGE SOLUTIONS

24" Wide Built-In Pub Cellar ADA Compliant

SKU: FF63BKBIDTPUBSSHHADA

Specially designed to store and age craft beer at the right temperature

Estimated Time to Ship: 1 to 2 weeks; For options that ship faster, contact our sales team at 718-893-3900 ext. 507

32.25" H x 23.63" W x 23.0" D

(82cm H x 60cm W x 58cm D)

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 307.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101070148
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass and Scalloped
Shelf Qty 3
Thermostat Type Digital
Interior Light Yes
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64 oz.
High Side PSI 180.0
Low Side PSI 80.0
Interior Height 1 26.25" (67 cm)
Interior Width 1 21.0" (53 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 4
Temperature Range 41º to 65ºF

AVAILABLE UPGRADES

Lock
L-Installed Lock
Add a single key lock to the door with the L option
Exterior
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SS Hinges
Stainless steel top and bottom hinges
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Designed for craft beer storage
Wide range temperature control lets you manage the interior between 41º and 65ºF for optimum storage of all types of beer
ADA compliant
32" height to fit under lower ADA compliant counters
Slim undercounter dimensions
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Stainless steel wrapped door
Attractive style with long-lasting durability
Professional horizontal handle
Thin (14mm diameter) stainless steel handle mounted horizontally for a sleek look that matches many popular styles of cabinetry
Automatic defrost
Reduced maintenance with auto defrost system
Digital thermostat
Exterior thermostat located in kickplate lets you manage the temperature without opening the door
Adjustable glass shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Door shelves
Store tall bottles and condiments right on the door for convenient access
Scalloped bottle shelf
Removable scalloped shelf is included to hold larger bottles in a horizontal configuration
Removable crisper
Lower crisper offers additional storage options
Interior light
Automatically illuminates when you open the door
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Pro style handle
Stainless steel handle adds an attractive touch
Reversible door
User-reversible door swing for added flexibility
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

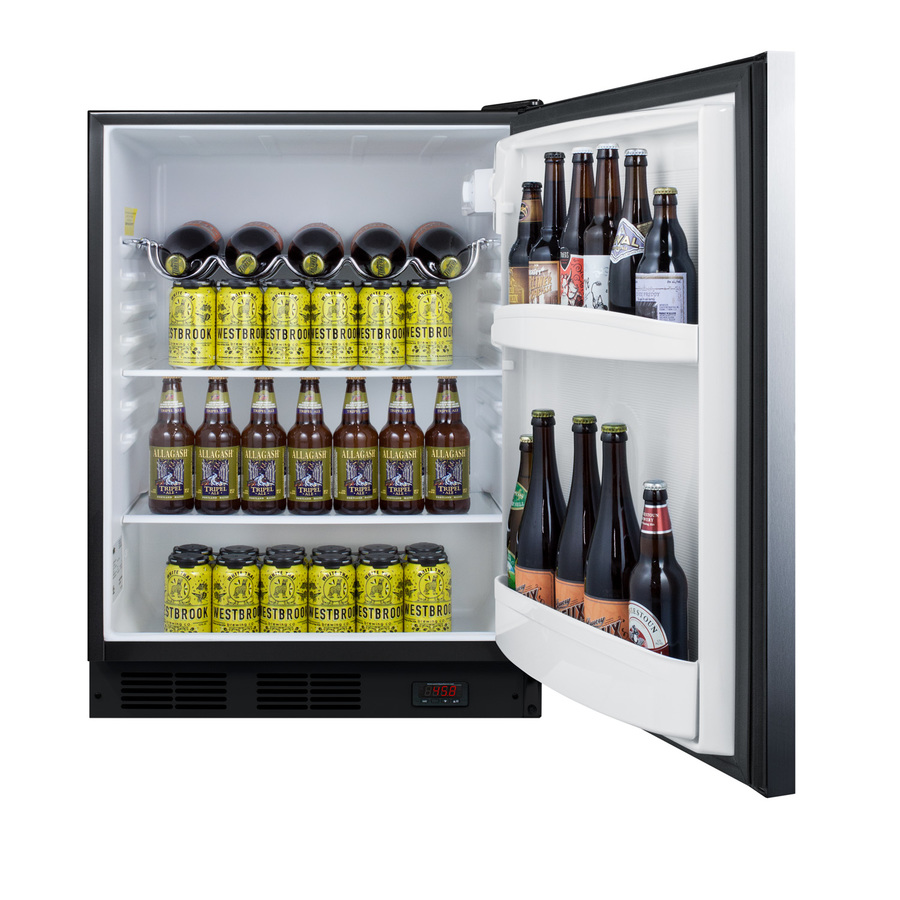

SUMMIT's unique selection of Pub Cellars offer a smart solution to storing or aging craft beer at the proper temperature.

Sized with a 24" footprint, the FF63BKBIDTPUBSSHHADA is a European all-refrigerator. The front-breathing design allows built-in installation under lower ADA compliant counters, while the fully finished cabinet also enables freestanding use. The exterior features a black cabinet finish with a reversible stainless steel door. A sleek horizontally mounted handle completes the look. The digital thermostat (preset at 45ºF, with a range from 41-65ºF) is located in the kickplate so that you can manage the interior temperature without opening the door. The solid door design is ideal for protecting your collection from the heat generated by light.

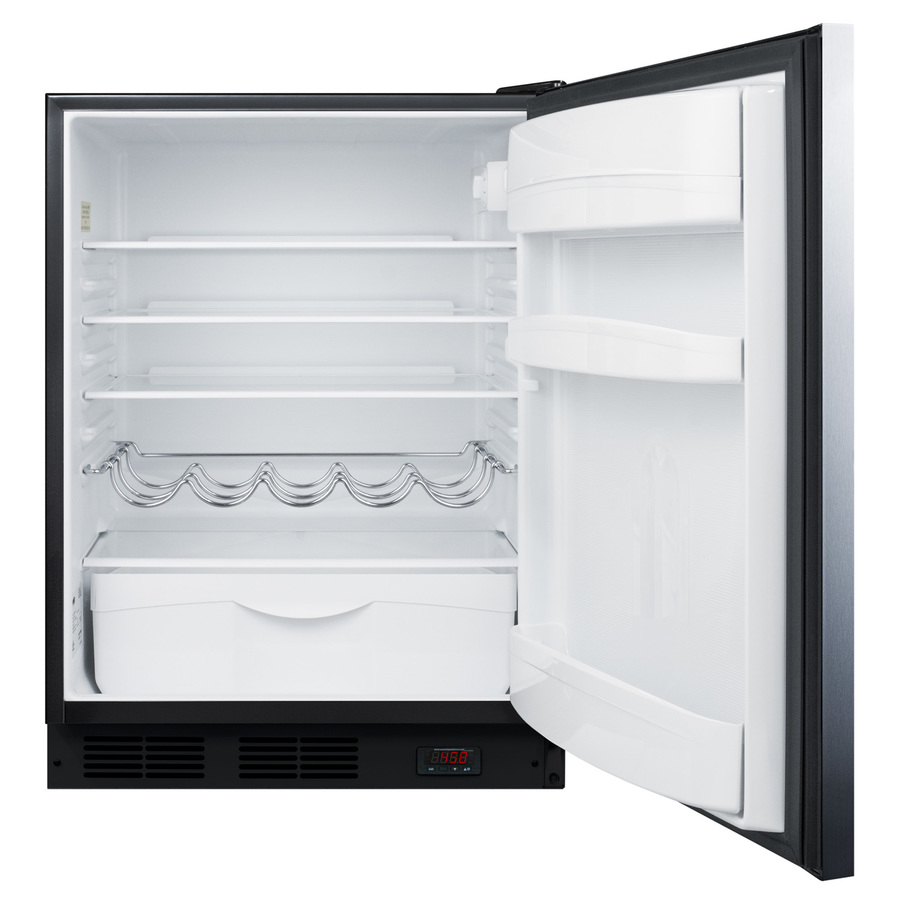

Inside, the FF63BKBIDTPUBSSHHADA utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers plenty of storage for your bottles and cans, with spill-proof adjustable glass shelves and a scalloped chrome shelf ideal for horizontal storage of larger corked bottles.  Door storage and a crisper drawer offer additional storage options. This unit has an automatic interior light that will turn on when the door is open and off when it is closed.

With its quality construction and innovative design, the FF63BKBIDTPUBSSHHADA lets you get the best out of your craft beer collection.

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 307.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101070148
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass and Scalloped
Shelf Qty 3
Thermostat Type Digital
Interior Light Yes
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64 oz.
High Side PSI 180.0
Low Side PSI 80.0
Interior Height 1 26.25" (67 cm)
Interior Width 1 21.0" (53 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 4
Temperature Range 41º to 65ºF

AVAILABLE UPGRADES

Lock
L-Installed Lock
Add a single key lock to the door with the L option
Exterior
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SS Hinges
Stainless steel top and bottom hinges
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
