SPECIFICATIONS

Overview
Height of Cabinet 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 307.0kWh/year
Amps 1.0
Shipping Weight 104.0 lbs. (47 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Glass and Scalloped
Shelf Qty 3
Thermostat Type Digital
Interior Light Yes
Fan Type Exterior
Refrigerant Amount 1.7 oz.
High Side PSI 285.0
Low Side PSI 70.0
Interior Height 1 26.25" (67 cm)
Interior Width 1 21.0" (53 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 4
Temperature Range 41º to 65ºF

AVAILABLE UPGRADES

Lock
L-Installed Lock
Add a single key lock to the door with the L option
Exterior
SSK
Stainless steel kickplate factory installed
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD
Door reversal to left hand swing
SS Hinges
Stainless steel top and bottom hinges


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF63BBIDTPUB

Specially designed to store and age craft beer at the right temperature

33.25" H x 23.63" W x 23.0" D

OVERVIEW

WHERE TO BUY

Invalid Format

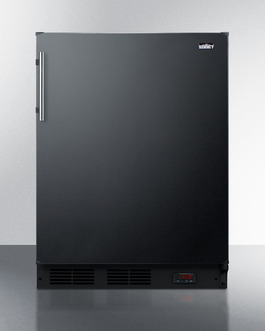

SUMMIT's unique selection of Pub Cellars offer a smart solution to storing or aging craft beer at the proper temperature.

Sized with a 24" footprint, the FF63BBIDTPUB is a European all-refrigerator. The front-breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. It comes in a classic black finish with a user-reversible door swing and attractive stainless steel handle. The digital thermostat (preset at 45ºF, with a range from 41-65ºF) is located in the kickplate so that you can manage the interior temperature without opening the door. The solid door design is ideal for protecting your collection from the heat generated by light.

Inside, the FF63BBIDTPUB utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers plenty of storage for your bottles and cans, with spill-proof adjustable glass shelves and a scalloped chrome shelf ideal for horizontal storage of larger corked bottles.  Door storage and a crisper drawer offer additional storage options. This unit has an automatic interior light that will turn on when the door is open and off when it is closed.

With its quality construction and innovative design, the FF63BBIDTPUB lets you get the best out of your craft beer collection.

FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Slim undercounter dimensions
Our unique 24" wide models offer full capacity in a slim fit
Designed for craft beer storage
Wide range temperature control lets you manage the interior between 41º and 65ºF for optimum storage of all types of beer
Digital thermostat
Exterior thermostat located in kickplate lets you manage the temperature without opening the door
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Door storage
Store tall bottles and condiments right on the door for convenient access
Scalloped bottle shelf
Removable scalloped shelf is included to hold larger bottles in a horizontal configuration
Removable crisper
Lower crisper offers additional storage options
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Interior light
Automatically illuminates when you open the door
Pro style handle
Stainless steel handle adds an attractive touch
Reversible door
User-reversible door swing for added flexibility
Fully finished black cabinet
Allows the refrigerator to be used freestanding
Height Adjustable
Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
FF63BBIDTPUB.pdf
Download TECHNICAL DRAWING (.dwg)
FF61BI_FF63BBIREF.A-C2000.dwg
Download MSDS INFORMATION
R134a_safety_list.pdf
