FF511LBI7PLUSADA
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with Handle 23.0" (58 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.75" (17 cm)

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF511LBI7PLUSADA Matching freezer c541dc042b05394e621422d903b7fff8e778ba7d81d6260ff2a91729ef38232e

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Includes NIST calibrated thermometer

32.5" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format
Accucold's PLUS Series refrigerators come specially featured for use doctors’ offices, medical clinics, nursing stations, and other general purpose facilities that require more temperature assurance than a standard refrigeration unit provides.

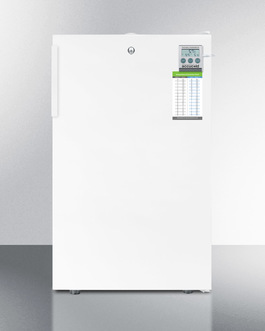

The FF511LBI7PLUSADA is a 20" wide all-refrigerator designed for built-in use under lower ADA compliant counters, with a full 4.1 cu.ft. capacity. This auto defrost refrigerator includes an internal fan and heat sink for stabilized cooling. Additional features include adjustable shelves, an interior light, and hospital grade cord with a 'green dot' plug. The door includes a factory installed top-mounted lock for convenient security.

The FF511LBI7PLUSADA is ETL-S listed to NSF-7 commercial standards. This model can be used built-in or freestanding.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Commercially listed
ETL-S listed to NSF standards for commercial use
Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Traceable thermometer
Thermometer provides external readout of current and high/low temperatures
Internal fan with heat sink
Fan-forced cooling helps the unit stay evenly cooled from top to bottom
Factory installed lock
Top-mounted for convenient security
Fully finished white cabinet
Allows the unit to be used freestanding
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Flat door liner
Easy to clean, with more depth for storage
Interior light
Turn the light on and off with a convenient rocker switch
Adjustable thermostat
Manage the temperature with ease and accuracy
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
FF511LBI7PLUSADA.pdf
Download TECHNICAL DRAWING (.dwg)
FF511LADA_FF521BLADAREF.A-C...
Download MSDS INFORMATION
R134a_MSDS_T.pdf
Download MSDS INFORMATION
Propylene_Glycol_SDS.pdf
