SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 406.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.75" (17 cm)

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FF511L7SSTBADA Matching freezer c541dc042b05394e621422d903b7fff8e778ba7d81d6260ff2a91729ef38232e

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Factory installed lock located towards the top of the door for convenient security

32.5" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format

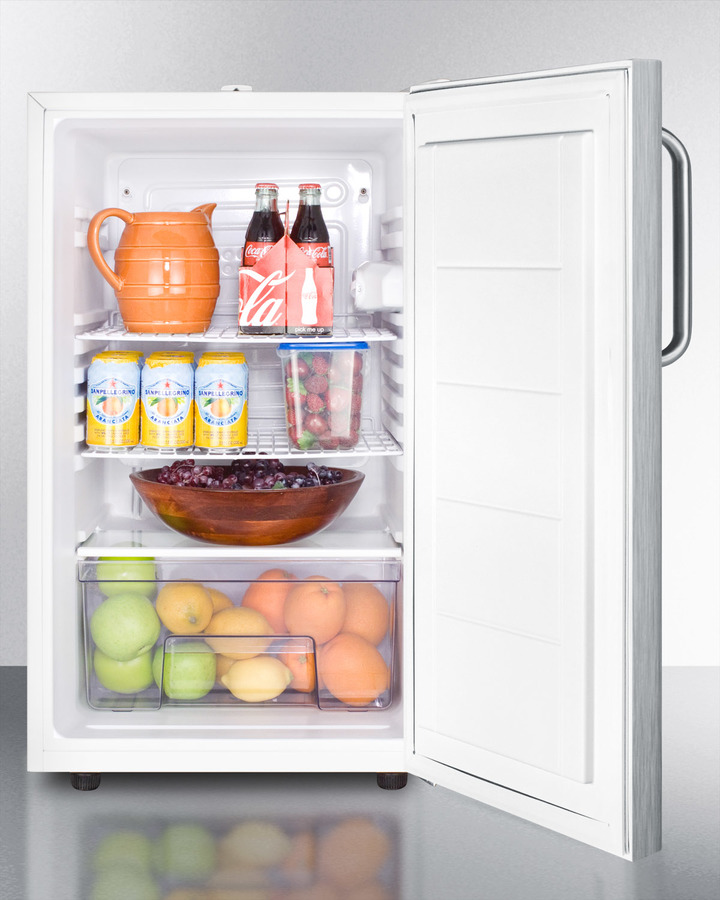

Accucold by Summit Appliance offers a wide range of counter height all-refrigerators for general purpose storage. The commercially listed FF511L7 Series features high performing 20" wide all-refrigerators designed for freestanding use in commercial applications.

The ETL-S listed FF511L7SSTBADA features a full 4.1 cu.ft. capacity. It has a white cabinet and 304 grade stainless steel wrapped door, with a curved towel bar handle in bushed stainless steel. A factory installed lock is located at the top of the door for convenient security.

Inside, this auto defrost refrigerator includes three adjustable wire shelves. A bottom crisper drawer offers added storage options. Additional features include an adjustable thermostat and a switchable interior light.

At just 20" wide, the ADA compliant FF511L7SSTBADA is ideal for any space in need of quality cooling and can be perfectly matched with our FS407L7SSTBADA all-freezer. This model is designed for freestanding commercial use. For a built-in version of this model, see the FF511LBI7SSTBADA.

FEATURES

Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Commercially listed
ETL-S listed to NSF standards for commercial use
ADA compliant
32" high meets ADA guidelines
Fully finished white cabinet
Allows the unit to be used freestanding
Factory installed lock
Top-mounted for convenient security
Stainless steel wrapped door
Durable 304 grade wrapping
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Interior light
Turn the light on and off with a convenient rocker switch
Flat door liner
Easy to clean, with more depth for storage
Adjustable thermostat
Manage the temperature with ease and accuracy
Matching freezer available
Combine with a matching FS407L7SSTBADA for a complete counter height set
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download MSDS INFORMATION
R134a_MSDS_T.pdf
Energy Guide
