SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.5" (83 cm) |
Width | 19.25" (49 cm) |
Depth | 21.38" (54 cm) |
Depth with door at 90° | 39.5" (100 cm) |
Capacity | 4.1 cu.ft. (116 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 64.0 lbs. (29 kg) |
Shipping Weight | 85.0 lbs. (39 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Shelf Type | Wire |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Dial |
Refrigerant Type | R134a |
Refrigerant Amount | 1.75oz. |
High Side PSI | 205.0 |
Low Side PSI | 103.0 |
Level Legs Qty | 2 |
Interior Light | Yes |
Dimensions | |
Interior Height | 28.5" (72 cm) |
Interior Width | 15.75" (40 cm) |
Interior Depth | 18.0" (46 cm) |
Compressor Step Height | 8.0" (20 cm) |
Compressor Step Width | 17.0" (43 cm) |
Compressor Step Depth | 6.75" (17 cm) |
AVAILABLE UPGRADES
Exterior | ||
---|---|---|
|
California residents:
click here for information on Proposition 65
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
FF511L7SSHHADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
Factory installed lock located towards the top of the door for convenient security
32.5" H x 19.25" W x 21.38" D
OVERVIEW
- ETL-S listed for commercial use
- Freestanding all-refrigerator offers full 4.1 cu.ft. capacity in slim 20" width
- 32" height for use in ADA compliant settings
- Factory installed lock provides security you can count on
- Save time and energy with low maintenance automatic defrost
- Professional look with a durable stainless steel wrapped door and sleek horizontal handle
- Includes a hospital grade cord with a 'green dot' plug
WHERE TO BUY

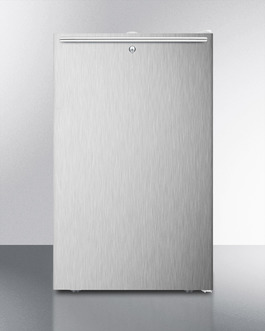

Accucold by Summit Appliance offers a wide range of ADA compliant all-refrigerators for general purpose storage. The commercially listed FF511L7ADA Series features high performing 20" wide, 32" high all-refrigerators designed for freestanding use in commercial applications. The ETL-S listed FF511L7SSHHADA features a full 4.1 cu.ft. capacity. It has a white cabinet and 304 grade stainless steel wrapped door, with a sleek horizontal handle. A factory installed lock is located at the top of the door for convenient security. Inside, this auto defrost refrigerator includes three adjustable wire shelves. A bottom crisper drawer offers added storage options. Additional features include an adjustable thermostat and a switchable interior light. At just 20" wide, the ADA compliant FF511L7SSHHADA is ideal for any space in need of quality cooling and can be perfectly matched with our FS407L7SSHHADA all-freezer. This model is designed for freestanding commercial use. For a built-in version of this model, see the FF511LBI7SSHHADA.
FEATURES
Commercially listed ETL-S listed to NSF standards for commercial use |
Slim 20" width Full 4.1 cu.ft. capacity inside conveniently slim footprint |
ADA compliant 32" high meets ADA guidelines |
Fully finished white cabinet Allows the unit to be used freestanding |
Factory installed lock Top-mounted for convenient security |
Stainless steel wrapped door Durable 304 grade wrapping |
Professional horizontal handle Thin 14mm diameter on stainless steel handle, mounted horizontally on the door |
Automatic defrost Reduced maintenance with auto defrost system |
Adjustable shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup |
Crisper drawer Get the longest life and best taste out of produce by storing greens in a bottom crisper |
Flat door liner Easy to clean, with more depth for storage |
Adjustable thermostat Manage the temperature with ease and accuracy |
Interior light Turn the light on and off with a convenient rocker switch |
Matching freezer available Combine any FF511L7SSHHADA with a matching FS407L7SSHHADA for a complete counter height set |
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals |
