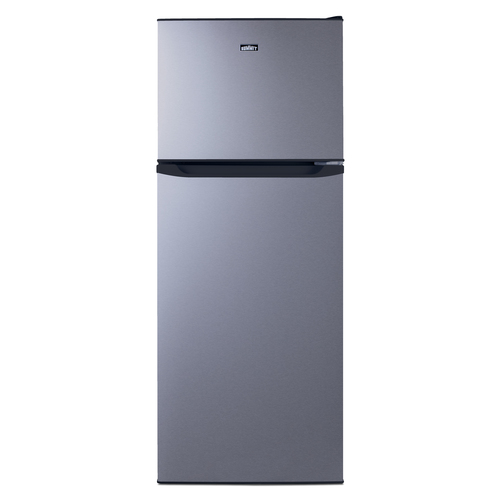

24" Wide Top Mount Refrigerator-Freezer With Icemaker

SKU: FF1093SSIM
Unique size and included icemaker make it perfect for small-spaced kitchens
DISCONTINUED- REPLACED BY FF1293SSIM
Icemaker:
With Icemaker
Color: Stainless Steel/Black

*Additional features may vary

59.75" H x 23.5" W x 25.88" D
(152cm H x 60cm W x 66cm D)

Overview
Height of Cabinet 59.25" (150 cm)
Height to Hinge Cap 59.75" (152 cm)
Width 23.5" (60 cm)
Width with Door Open 24.25" (62 cm)
Depth 25.88" (66 cm)
Depth with door at 90° 47.25" (120 cm)
Capacity 10.0 cu.ft. (283 L)
Defrost Type Frost-Free
Door Stainless Look
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 410.0kWh/year
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Shipping Weight 165.0 lbs. (75 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101078540
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Plastic
Interior Light Yes
Refrigerator - Interior Height 36.5" (93 cm)
Refrigerator - Interior Width 19.75" (50 cm)
Refrigerator - Interior Depth 20.5" (52 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 1
Refrigerator - Half Door Shelves 3
Can Storage Yes
Freezer - Interior Height 13.25" (34 cm)
Freezer - Interior Width 18.25" (46 cm)
Freezer - Interior Depth 17.0" (43 cm)
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 2
Gallon Door Storage Yes
Thermostat Type Digital + Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.41 oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs 2
Compressor Step Height 9.5" (24 cm)
Compressor Step Width 19.75" (50 cm)
Compressor Step Depth 7.0" (18 cm)

Handle
TB Set - Stainless steel towel bar handles pre-installed on unit
Professional towel bar style handles in brushed stainless steel, mounted vertically on select refrigerator-freezers (specify RHD or LHD)
CP Full-Length Copper Pipe Handles
Factory-installed full-length handles made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handles
Factory-installed towel bar handles made from pure copper for antimicrobial protection
Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

Frost-free operation

No-frost convenience for reduced user maintenance

Large capacity

10 cu.ft. interior to meet all your storage needs

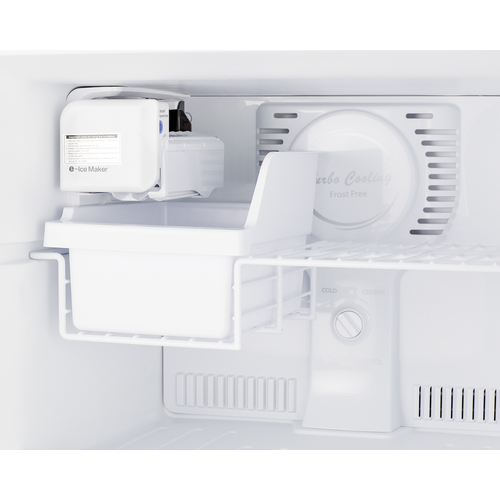

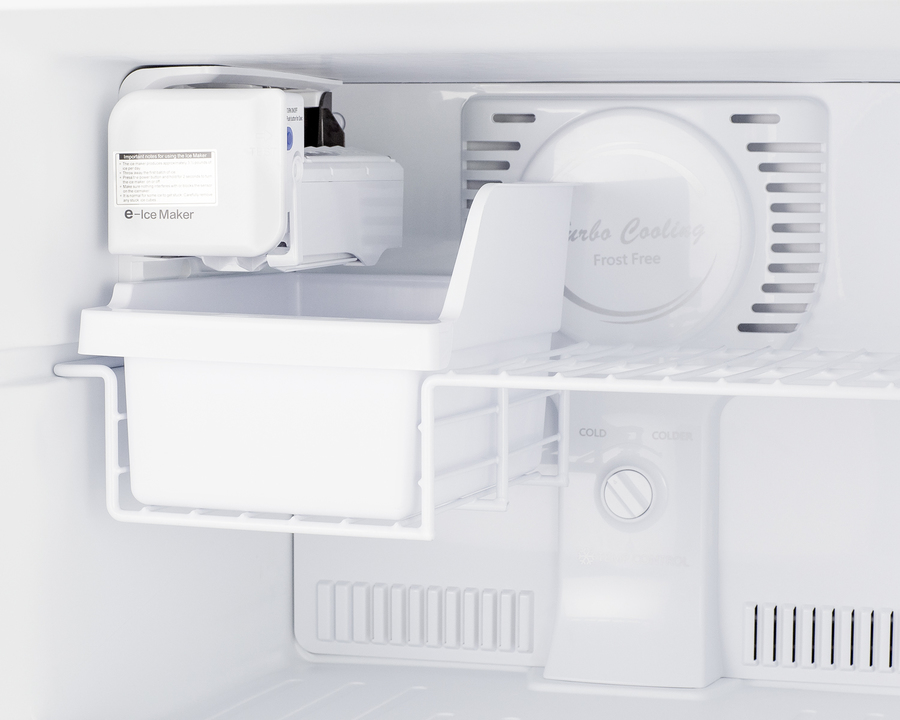

Factory installed icemaker

Forget the plastic trays and enjoy the convenience of ready-made ice in your freezer

ADA compliant design

Unit's height and control location meets guidelines for ADA compliant refrigeration

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage (both compartments)

Store tall bottles and condiments right on the door for convenient access

Gallon door storage

Door rack can hold a gallon container

Can rack

Door includes curved wire racks ideal for keeping cans in place

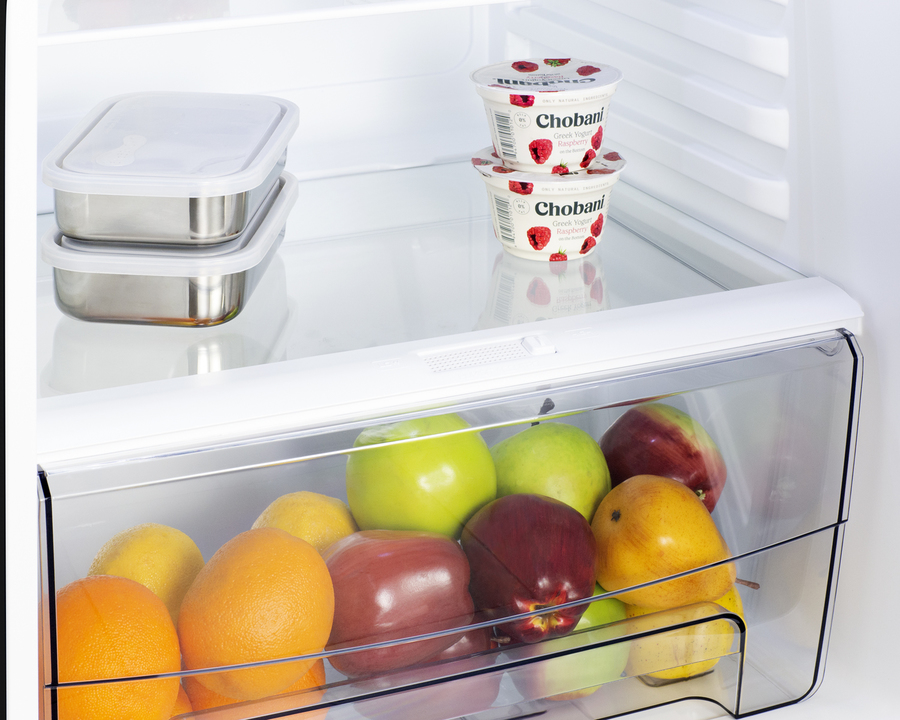

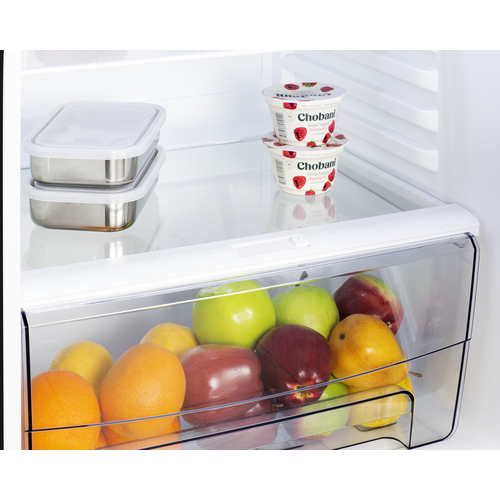

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Humidity gauge

Allows you to manage the humidity in the crisper drawer for optimum produce storage

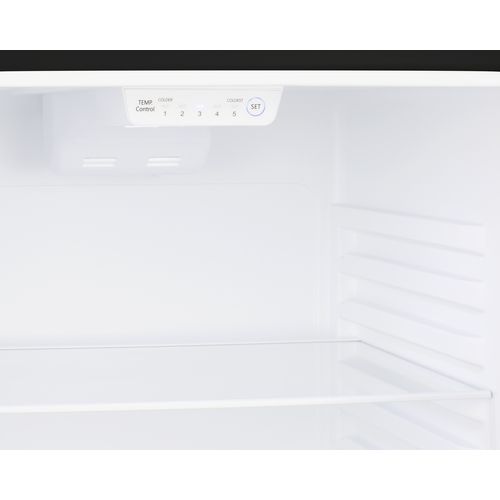

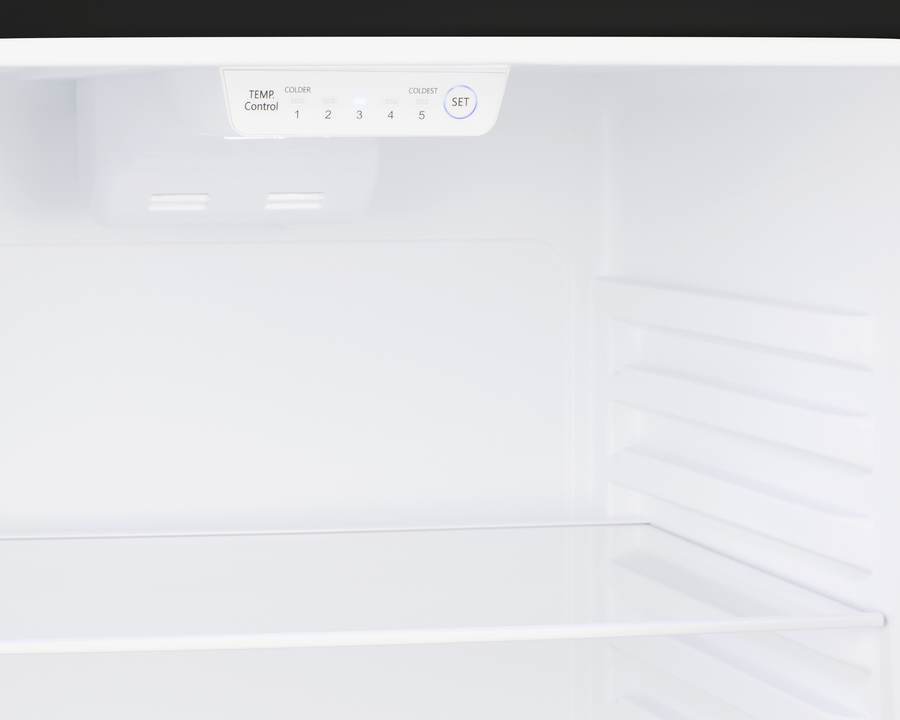

Adjustable touch control thermostat (refrigerator section)

Easy electronic controls let you manage the interior temperature at the touch of a button

Adjustable freezer thermostat

Dial thermostat located inside for easy temperature management

Interior LED lighting

Automatically illuminates when you open the door

Freezer shelf

Removable wire shelf included to accommodate a variety of sizes inside the top freezer compartment

Reversible doors

User-reversible door swing for added flexibility

White cabinet finish

Class white finish suits any setting

Sealed back

Space-saving convenience with easier cleanability

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit carries one of the industry's most extensive lines of frost-free refrigerator-freezers in unique footprints for apartments and smaller kitchens.

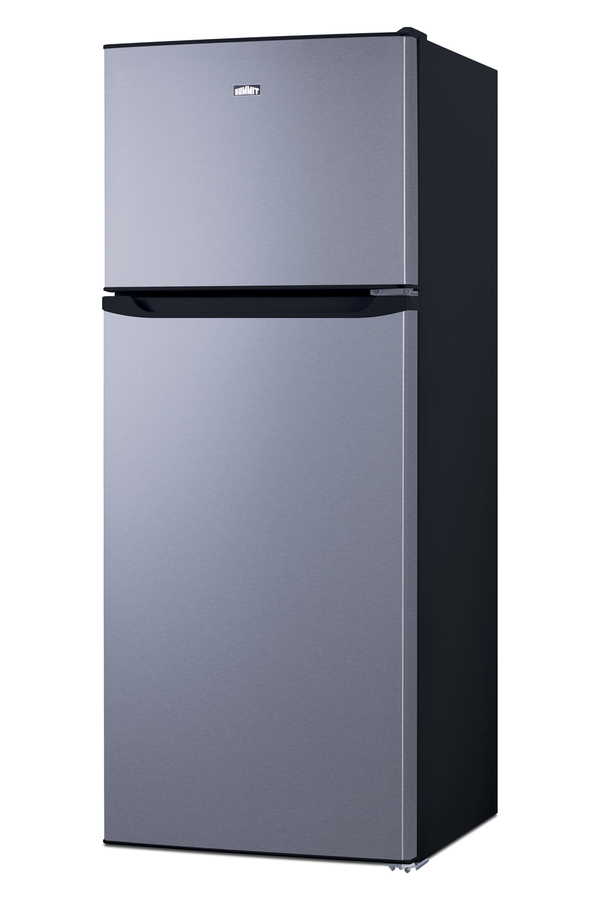

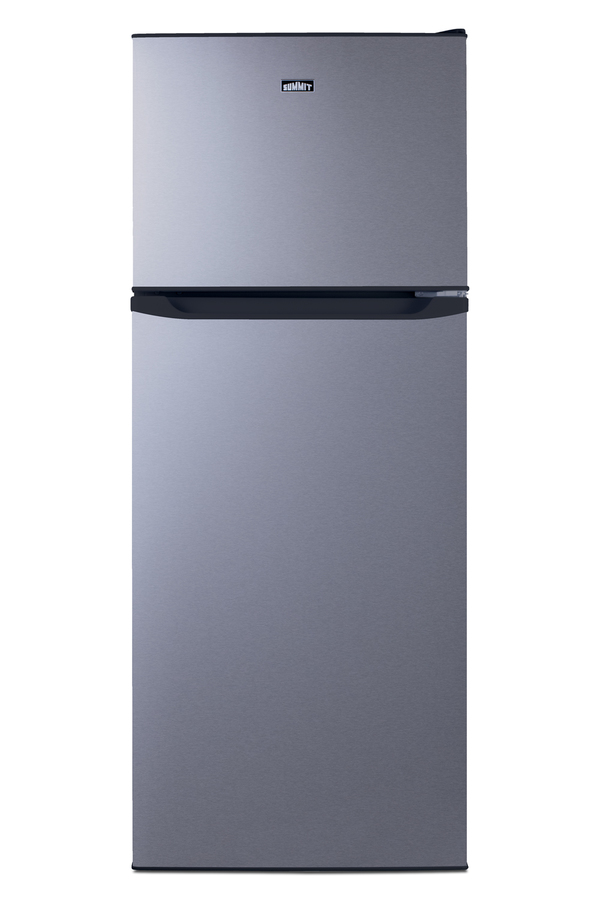

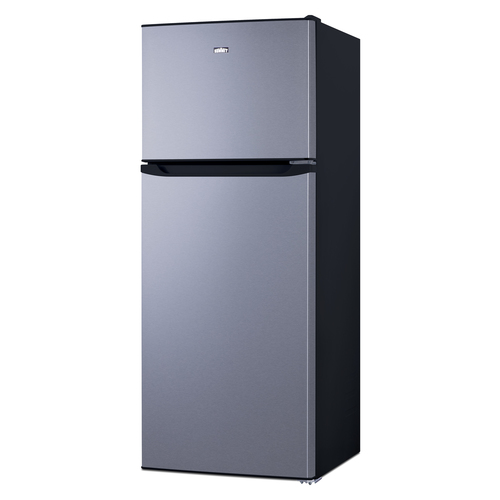

The FF1093SSIM is a two-door refrigerator-freezer sized at 24" wide, with a height just under 60" to comply with ADA guidelines for improved accessibility. It features a textured black cabinet finish with smooth user-reversible doors in a stainless steel look. The sealed back provides for a better fit and easier cleanability.

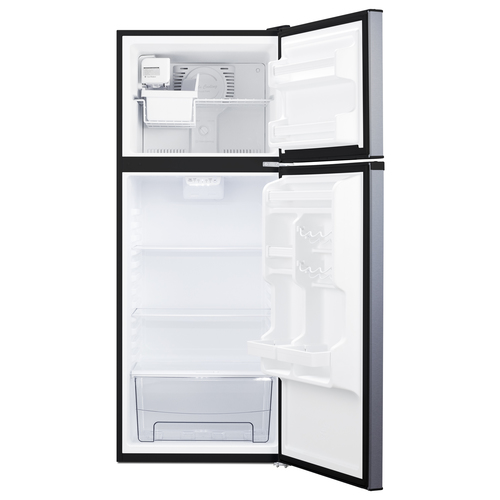

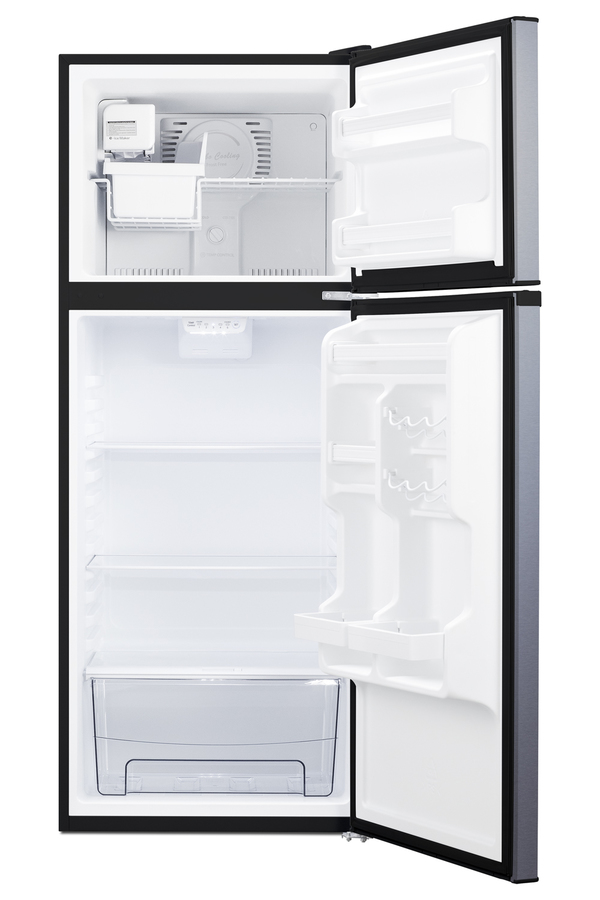

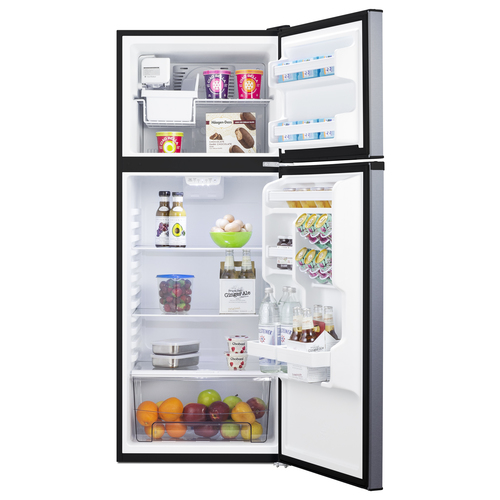

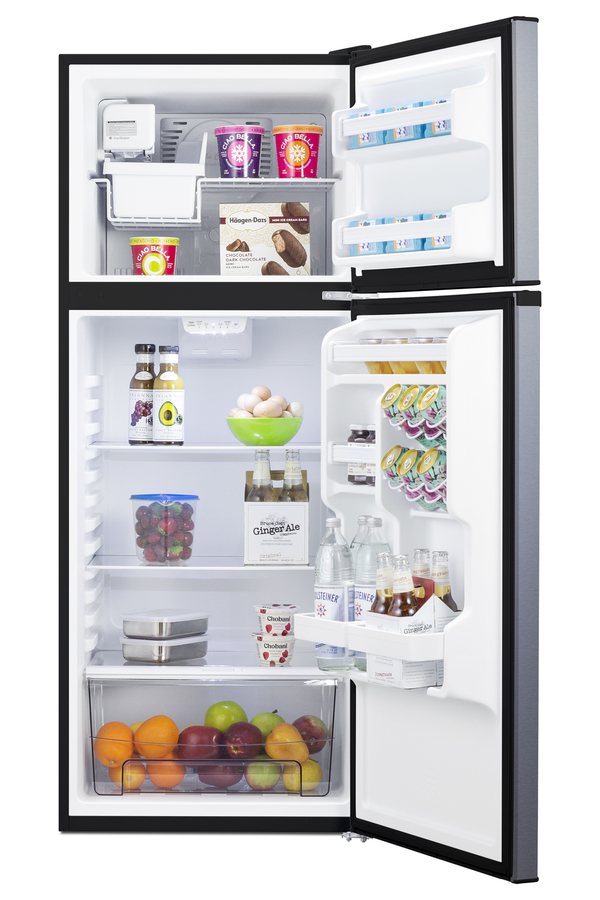

Inside, the FF1093SSIM utilizes frost-free operation for easy user maintenance and boasts 10 cu.ft. of storage capacity. Two separate thermostats (touch control in the refrigeration and dial in the freezer) allow users to individually set and manage the temperature of each section. The refrigerator has two adjustable spill-proof glass shelves for easy storage. The large crisper drawer comes with a sliding gauge allowing users to control the level of humidity inside. Door storage includes full and half-width racks for storing large and small items, including one sized for gallon containers and two for cans. LED lighting in the refrigerator section provides an attractive view of the interior. The large freezer compartment includes a removable wire shelf, two full-width door racks, and a factory-installed icemaker with a removable bin for easy storage and cleanup.

With its advanced features and unique size, the FF1093SSIM is the perfect refrigerator for smaller kitchen spaces.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
