27.5" Wide French Door Refrigerator-Freezer

SKU: FDRD152PL
Perfectly sized at less than 27" deep for an easy fit in smaller kitchens
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
70.63" H x 27.5" W x 26.88" D
(179cm H x 70cm W x 68cm D)

Overview
Height of Cabinet 69.5" (177 cm)
Height to Hinge Cap 70.63" (179 cm)
Width 27.5" (70 cm)
Width with Door Open 29.5" (75 cm)
Depth 26.88" (68 cm)
Depth with door at 90° 39.0" (99 cm)
Capacity 14.8 cu.ft. (419 L)
Defrost Type Frost-Free/Automatic
Door Stainless Look
Cabinet Gray
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Energy Usage/Year 483.0kWh/year
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 189.0 lbs. (86 kg)
Shipping Weight 238.5 lbs. (108 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079394
Refrigerator-Freezer
Door Swing French
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 32.5" (83 cm)
Refrigerator - Interior Width 24.0" (61 cm)
Refrigerator - Interior Depth 20.5" (52 cm)
Refrigerator - Capacity 9.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Half Door Shelves 6
Refrigerator - Temperature Range 34º to 46ºF
Freezer - Interior Width 19.5" (50 cm)
Freezer - Interior Depth 14.5" (37 cm)
Freezer - Capacity 5.3 cu.ft
Freezer - Shelf Type Drawers
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 2.2 oz.
High Side PSI 250.0
Low Side PSI 88.0
Level Legs 2
Freezer - Temperature Range -6º to 6ºF
Interior Height - Drawer 1 11.0" (28 cm)
Interior Width - Drawer 1 19.5" (50 cm)
Interior Depth - Drawer 1 14.5" (37 cm)
Interior Height - Drawer 2 7.5" (19 cm)
Interior Width - Drawer 2 19.5" (50 cm)
Interior Depth - Drawer 2 14.5" (37 cm)
Compressor Step Height 5.0" (13 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 3.0" (8 cm)
Sound Level 32.7 dB

Counter depth

Sized at just under 27" deep for an easy fit in space-challenged kitchens, with a 23.63" depth from the rear to doors

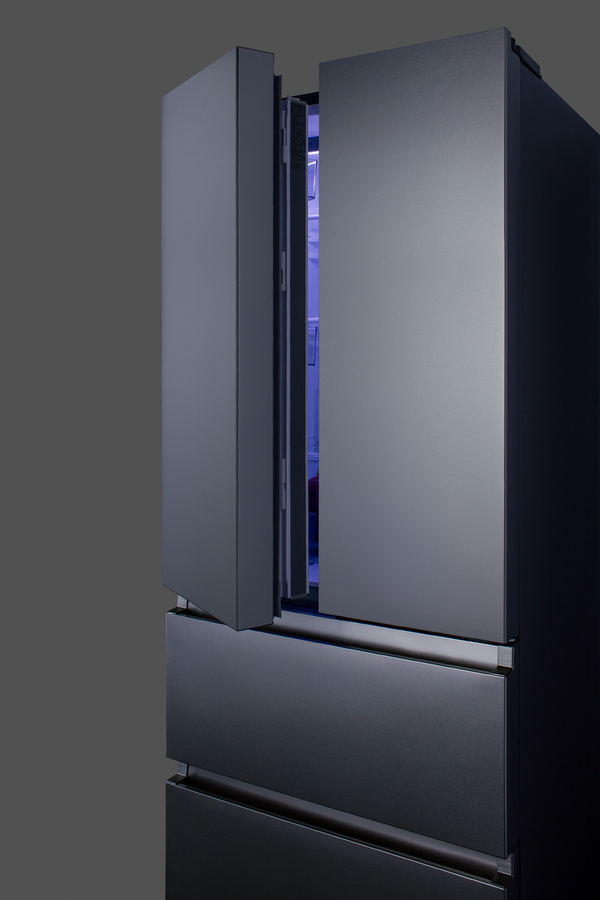

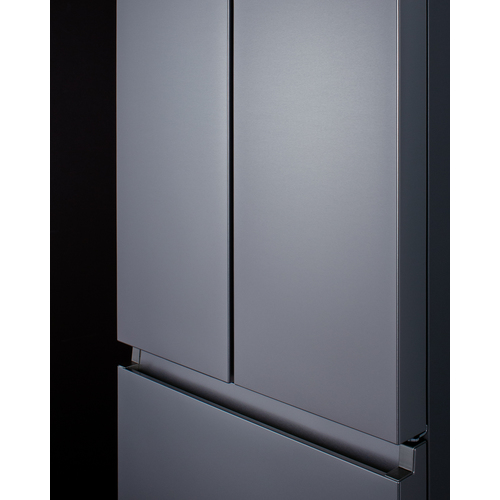

Stainless steel look

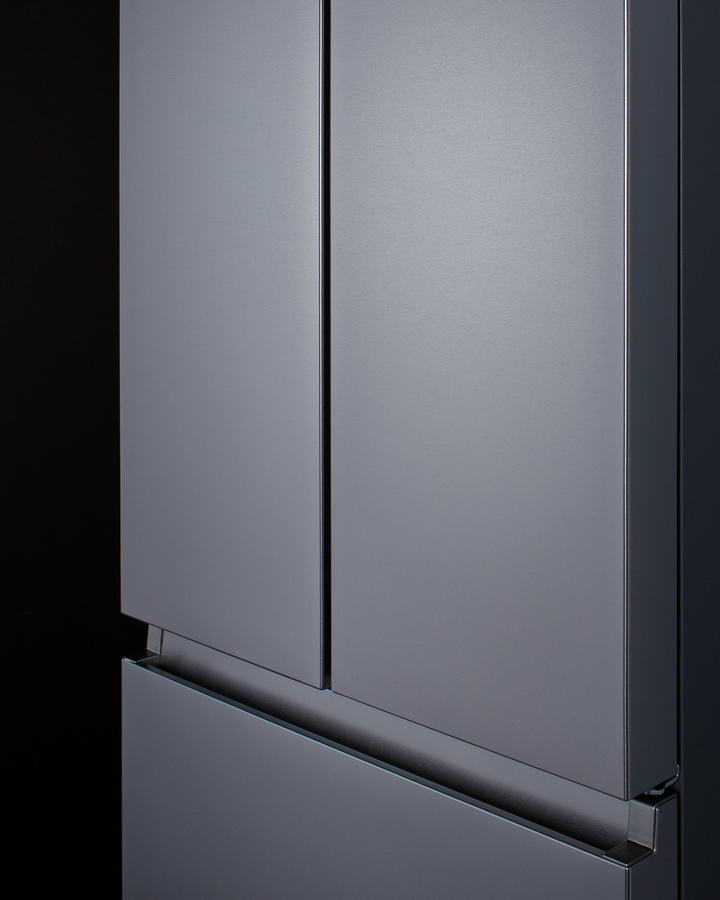

Doors offer the look of stainless steel complete with a horizontal grain, but the easier cleanability of a fingerprint-resistant steel finish

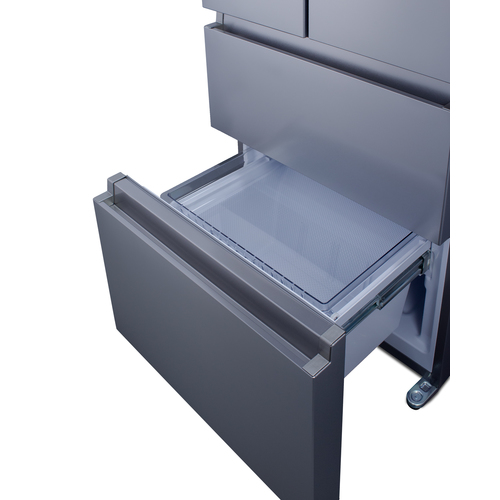

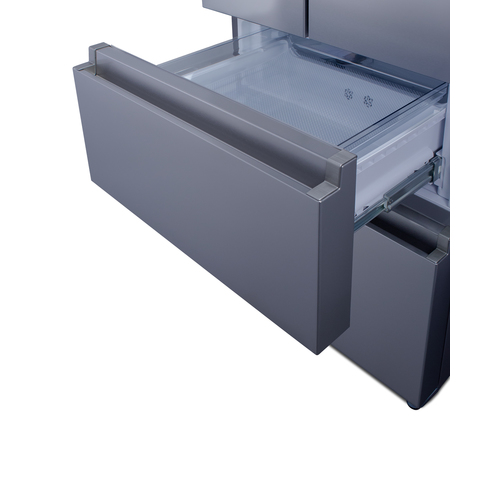

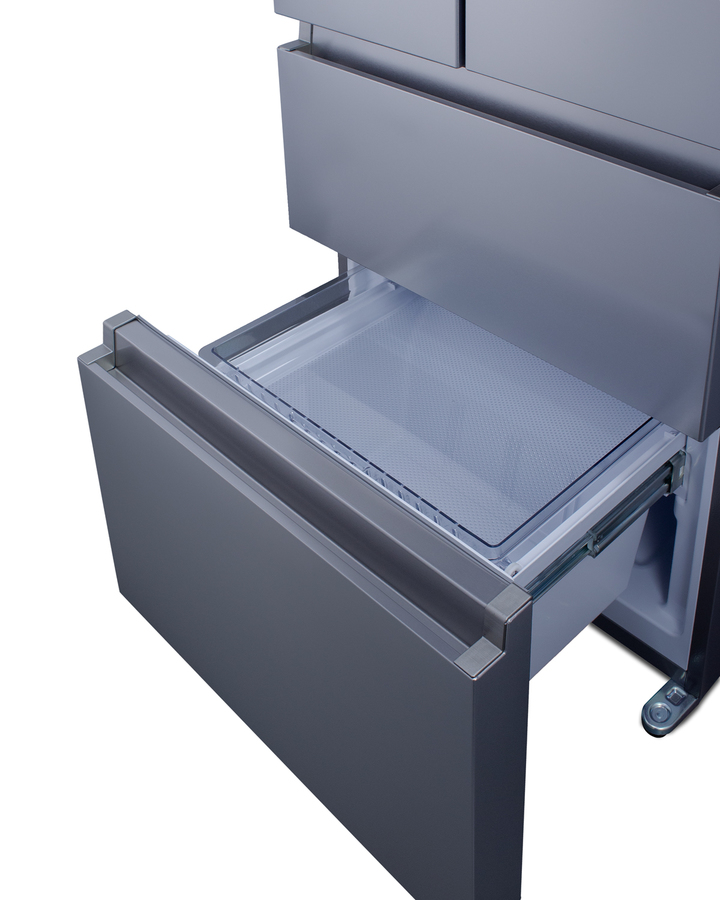

Bottom freezer drawers

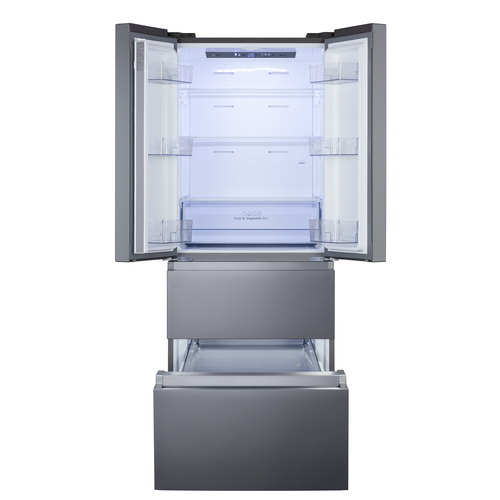

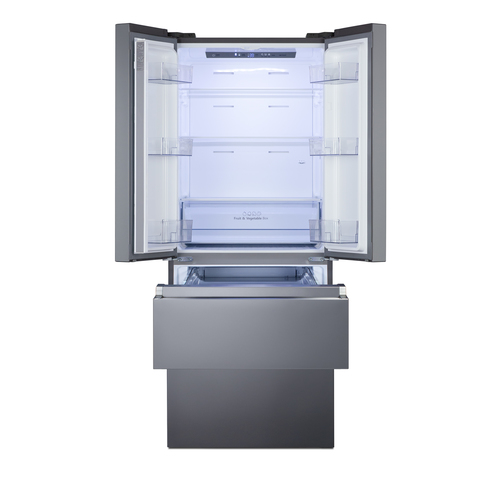

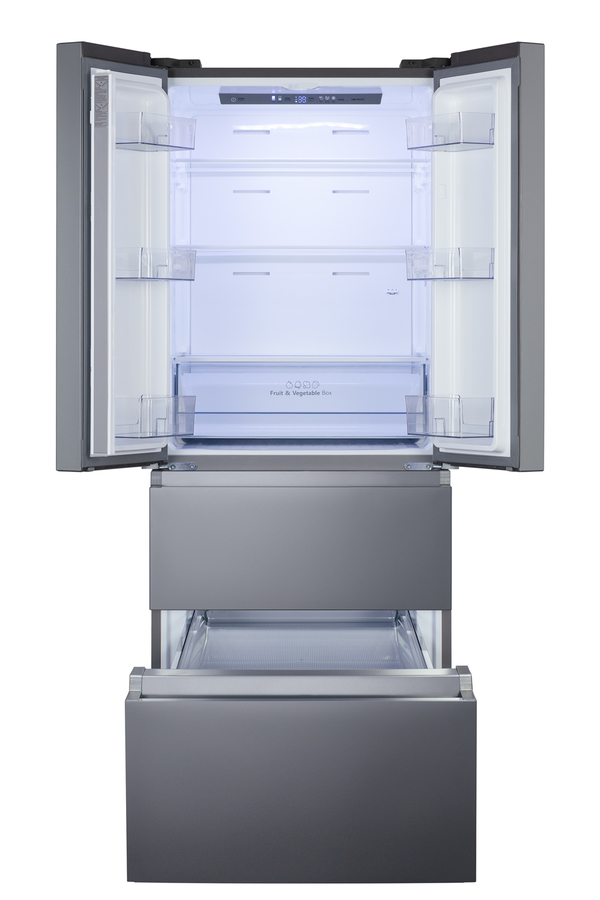

Two slide-out freezer drawers help you maximize storage for easier accessibility

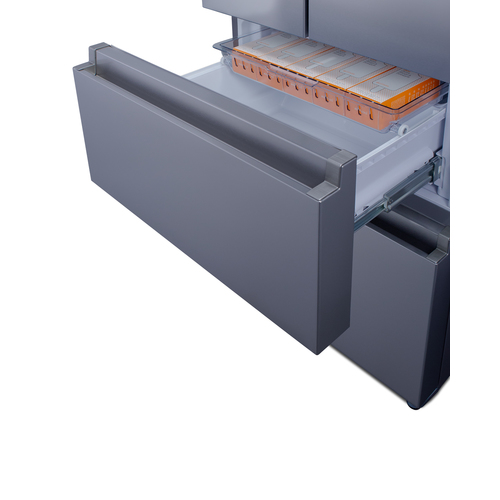

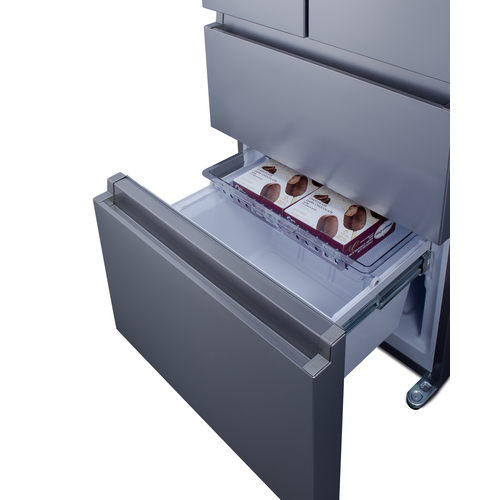

Clear slide-out freezer trays

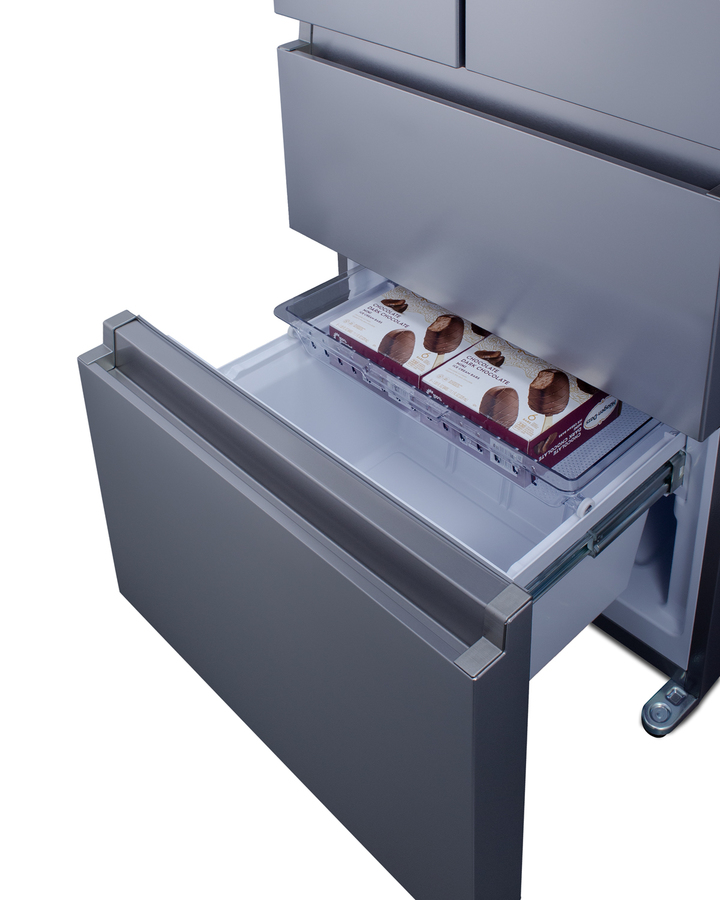

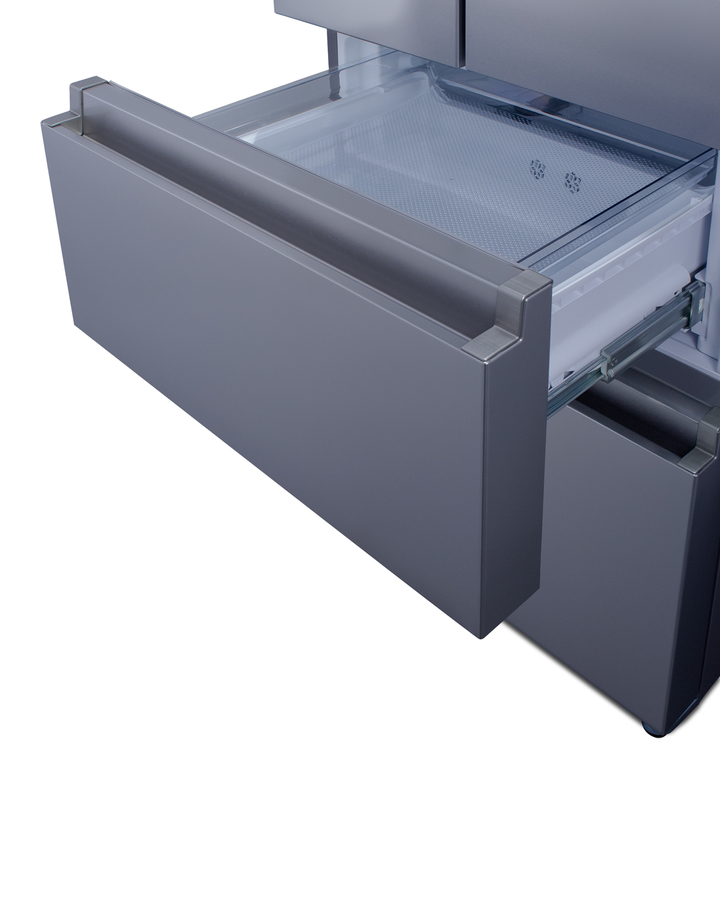

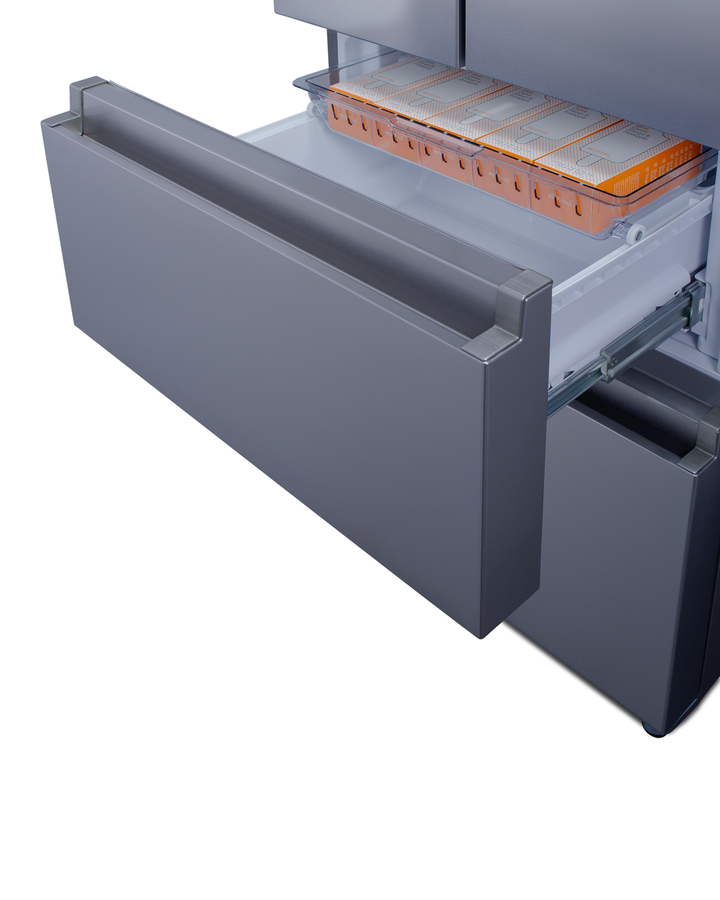

Each freezer drawer includes a sliding top tray that fully extends with the drawer for added storage convenience

Digital controls

Interior control panel with easy touch settings to adjust the refrigerator and freezer compartments as needed

Adjustable glass shelves

Spill-proof safety glass for durable and easy-to-clean storage that can be rearranged as needed

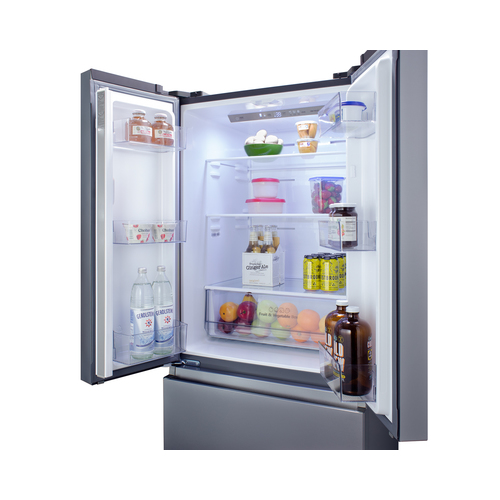

Door storage

Each door includes three removable racks

Crisper drawer

Large clear crisper offers plenty of space to store fruits and vegetables

Interior LED refrigerator light

Automatically illuminates when you open the door

Open door alarm

Audible alarm will alert if the doors have been left ajar for over 2 minutes

No-frost operation

Frost-free operation for minimum user maintenance

Super Freeze & Super Cool functions

Special settings allow you to run either compartment at colder temperatures for a set amount of time, ideal for bringing groceries to colder temperature quickly

Energy saving function

Setting allows you to reduce the energy consumption during long periods of inactivity

Sealed back

Space-saving convenience with easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished cabinet

Textured cabinet in an attractive deep gray finish allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's collection of no-frost counter depth refrigerator-freezers provides an attractive and user-friendly answer to unique kitchen spaces.

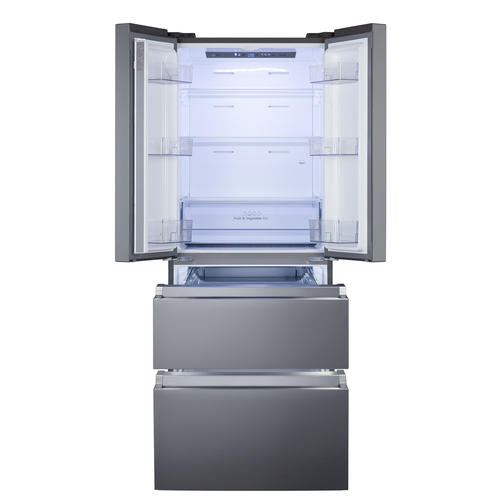

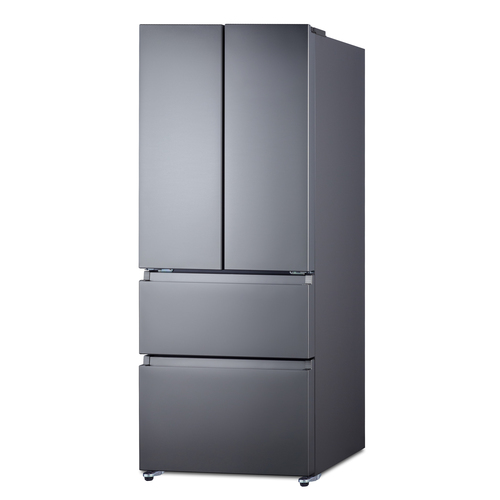

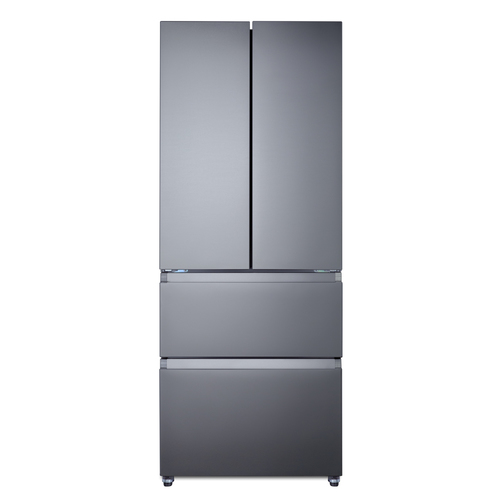

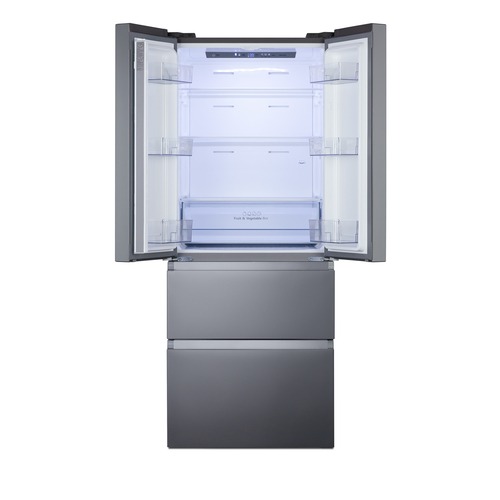

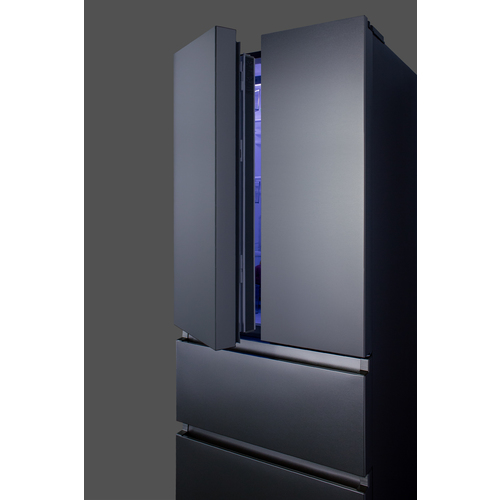

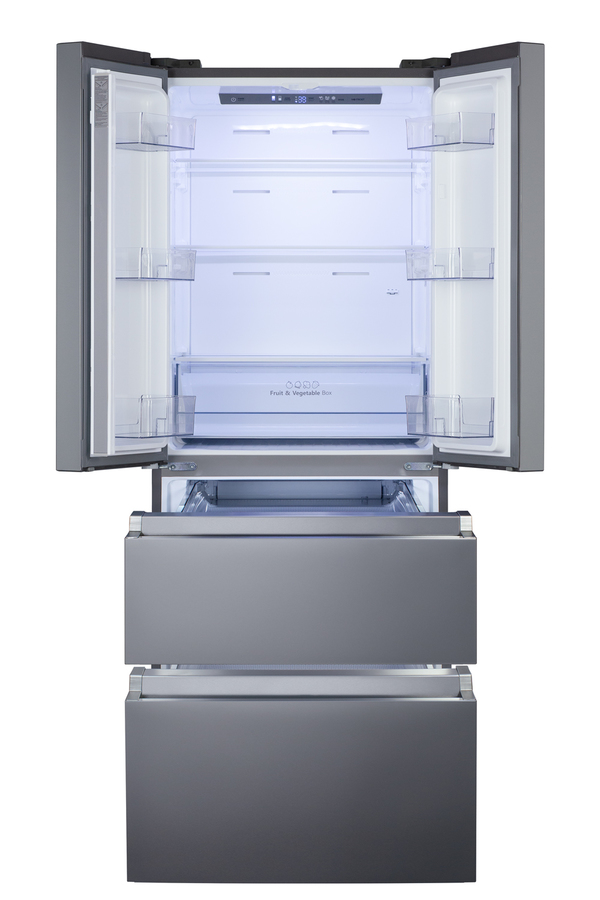

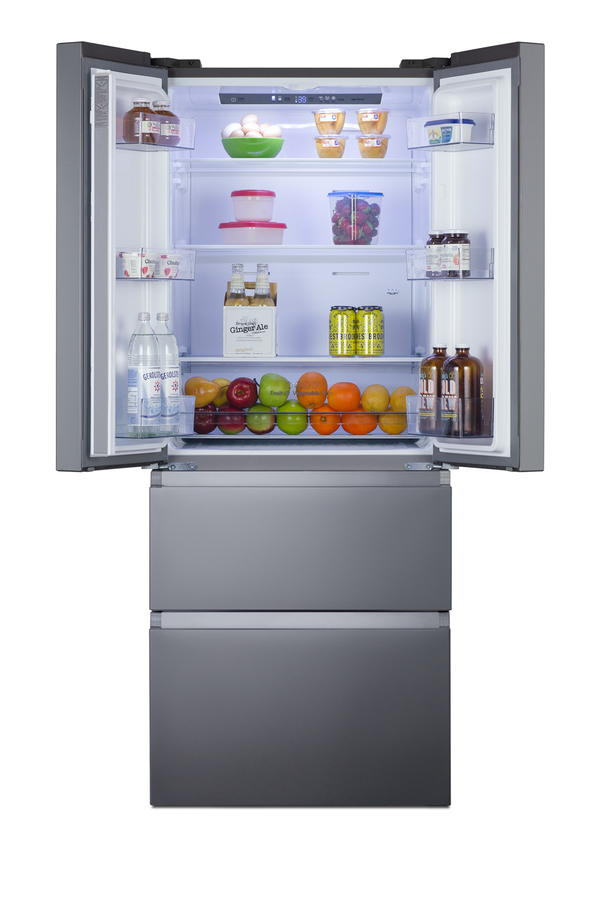

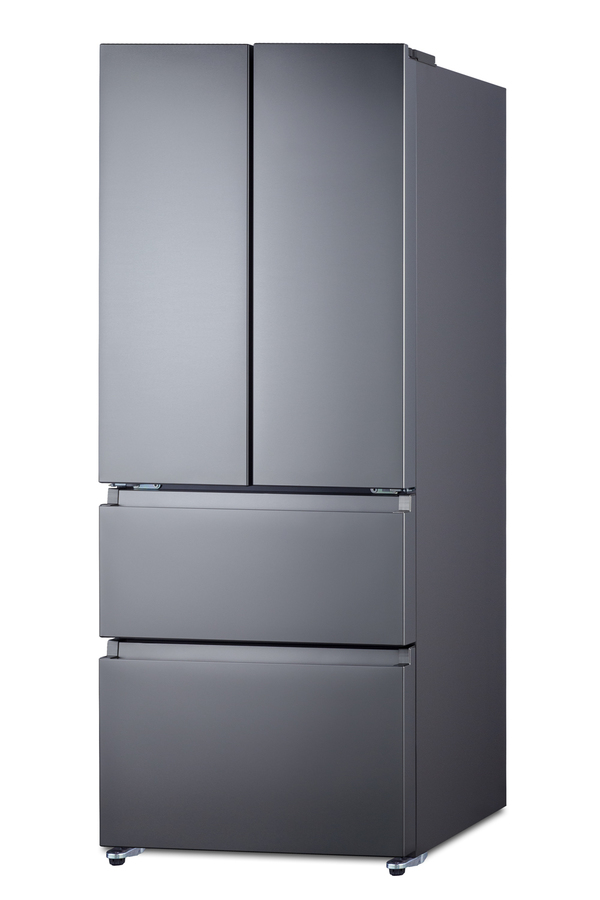

The FDRD152PL is a counter depth refrigerator with a French door swing and two bottom freezer drawers. Uniquely sized at just 27.5" wide and under 27" deep, it offers a generous 14.8 cu.ft. of storage capacity. The doors and drawers come in a stainless steel look with a horizontal grain, offering a luxurious appearance with fingerprint-resistant convenience that won't show smudges. The side cabinet features a textured gray finish, with a sealed back and right angle plug for added space savings in smaller kitchens. Concealed pocket handles ensure a clean look that will complement any kitchen style.

Inside, an intuitive digital control panel ensures easy temperature management with readouts switchable from Fahrenheit to Celsius a the touch of a button. Super Cool and Super Freezer functions allow you to quickly lower the temperature of either compartment, ideal for when loading groceries. There is also an Energy Saving setting that lets you reduce the energy use during vacations or other periods of inactivity. The open door alarm sounds if the refrigerator doors are left ajar. LED lighting offers an attractive and energy efficient presentation.

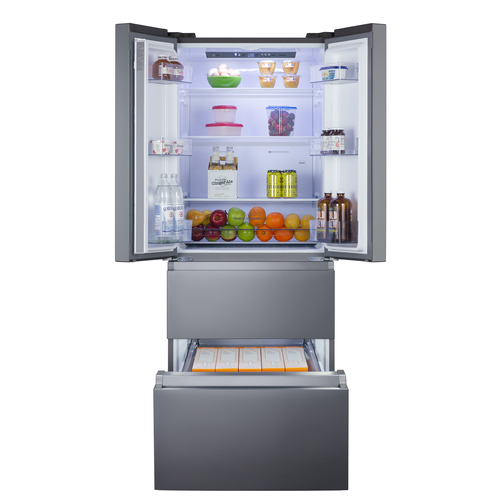

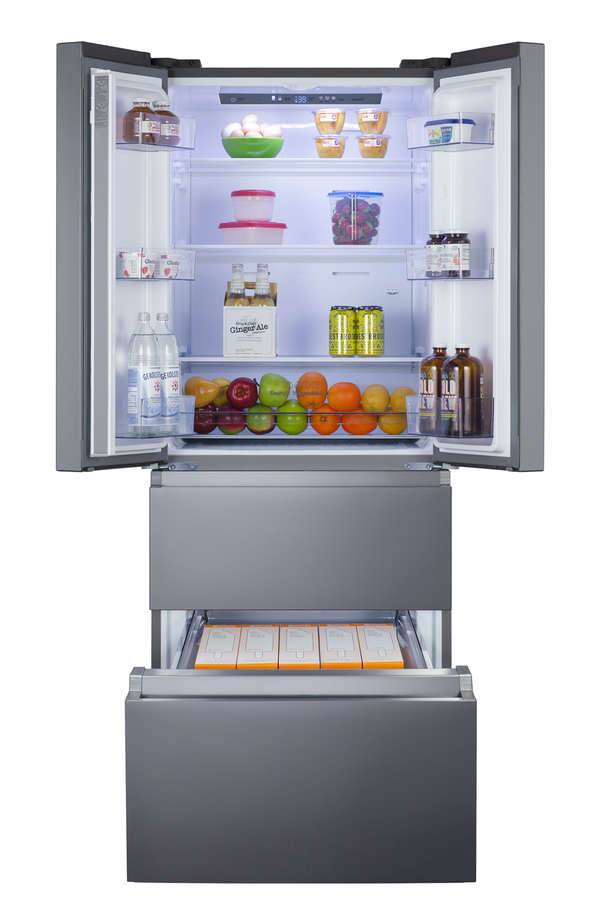

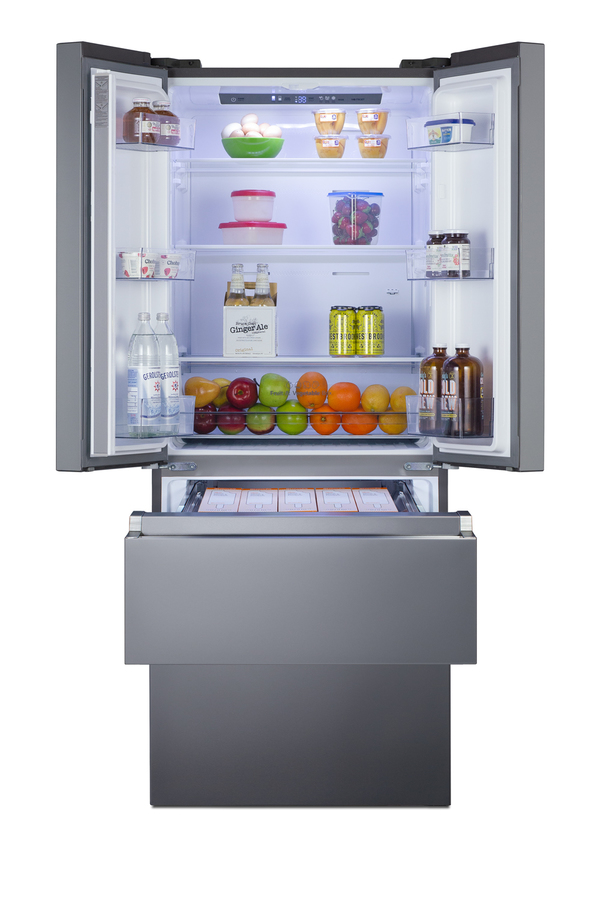

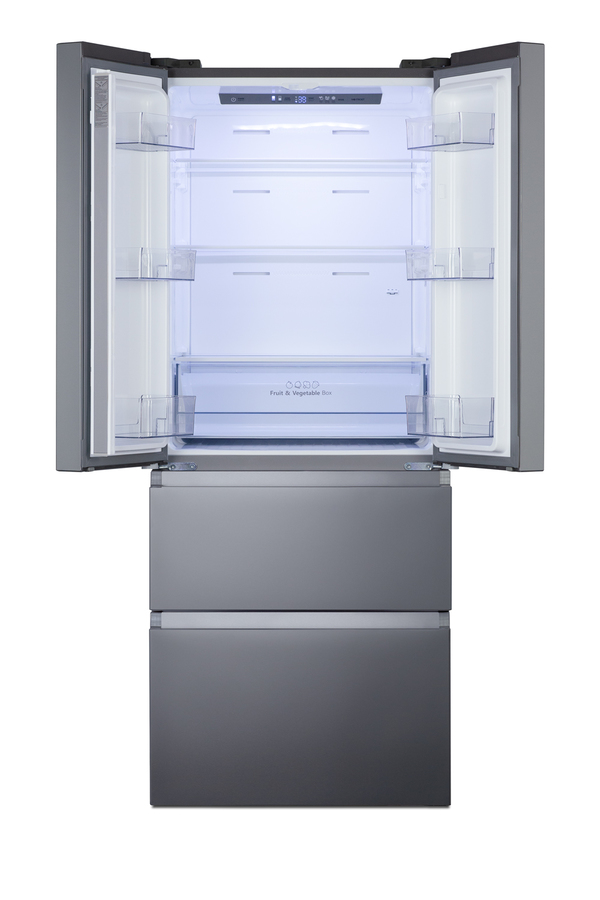

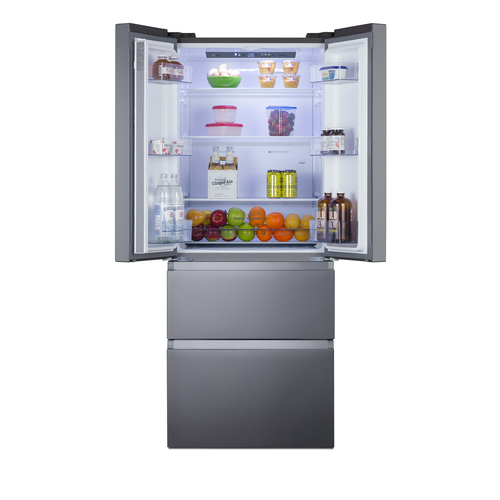

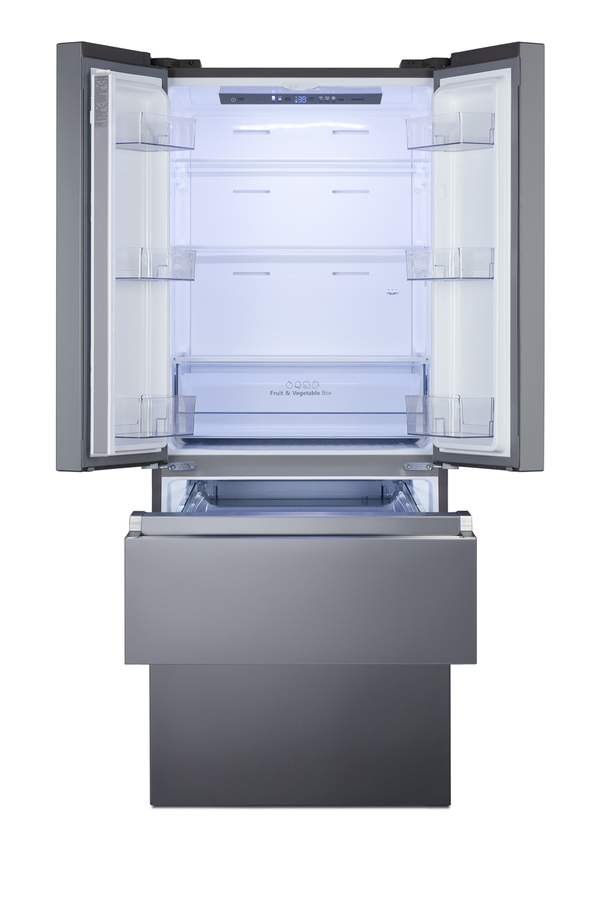

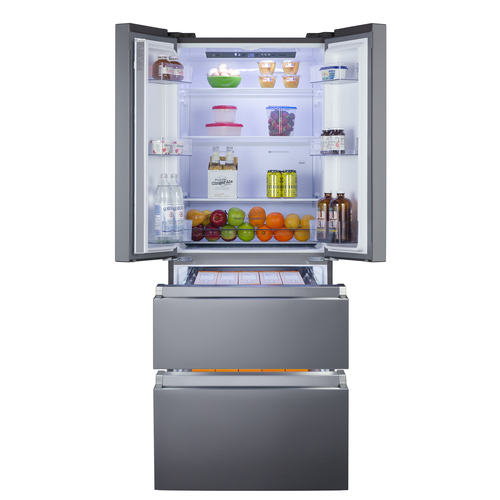

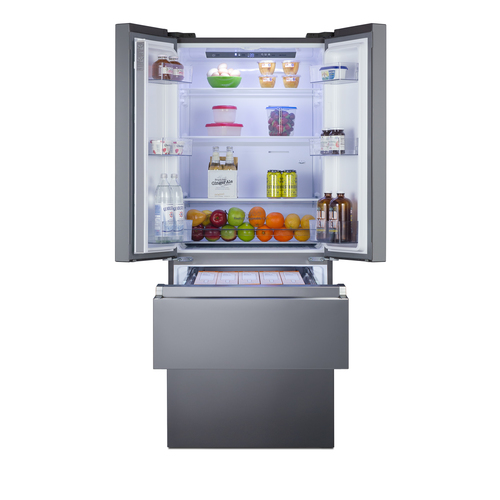

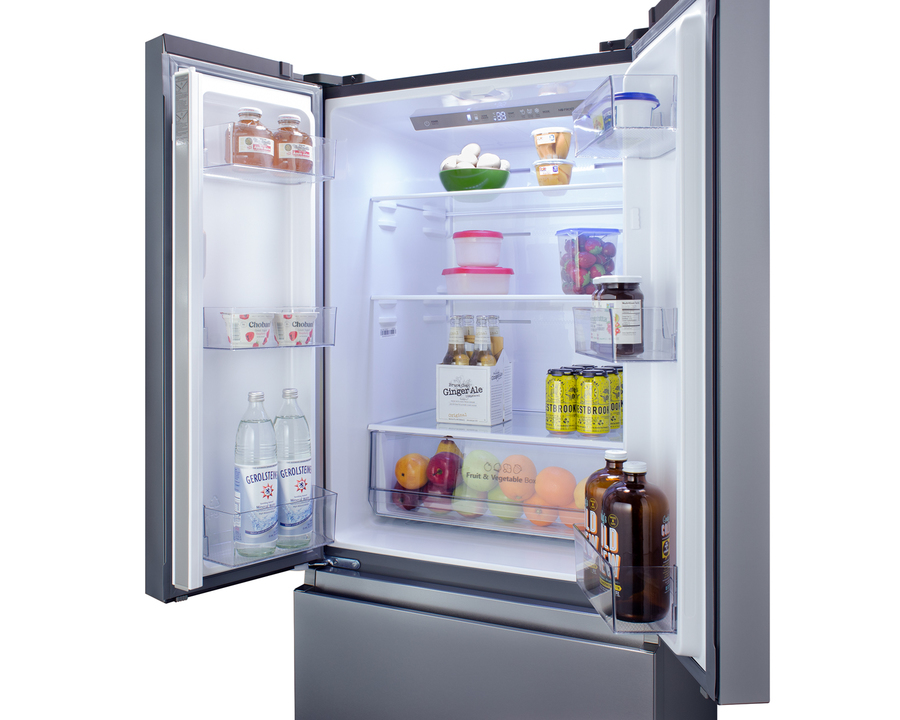

The refrigerator compartment includes three adjustable glass shelves for easy spill-proof storage, with a large crisper compartment ideal for storing produce at its best. Each door includes three removable racks great for keeping bottles and condiments in easy reach. The lower freezer includes two deep slide-out drawers, both with a clear slide-out top tray to hold smaller items.

With its space-saving footprint and modern design, the FDRD152PL offers the luxury of a modern French door refrigerator in a uniquely slim fit.

Download
BROCHURE w/ DRAWINGS
FDRD152PL.pdf
Download
TECHNICAL DRAWING (.dwg)
FDRD152PL_Ref._Freezer__A-C_2018_.dwg
Download
ASSEMBLY DRAWING
FDRD152PL_ASS_Y__2_.pdf
Download
3D DRAWING
FDRD152PLNoCord.obj
Download
3D DRAWING
FDRD152PL.dwg
Download
3D DRAWING
FDRD152PL.3ds
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
