SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 365.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.33 oz.
High Side PSI 285.0
Low Side PSI 70.0
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

CT663BBIIFADA

Unique dual evaporator system ensures better cooling in each section

32.38" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration. The CT663BBIADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters.

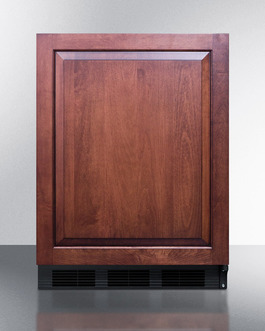

Sized with a 24” footprint, the CT663BBIIFADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32” height and front-breathing design makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished cabinet also enables freestanding use. This unit comes in a black exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to seamlessly match your own cabinetry style. Customers provide their own handle.



Inside, the CT663BBIIFADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat.

With its ideal dimensions and user-friendly features, the CT663BBIIFADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Slim undercounter dimensions
Less than 24" wide with a generous storage capacity
Built-in capable
Make the best use of space by installing your appliance under the counter
Panel-ready door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage
Store tall bottles and condiments right on the door for convenient access
Wine shelf
Removable scalloped wine shelf is included to store champagne and wine bottles
Clear crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Interior light
Automatically illuminates when you open the door
Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
