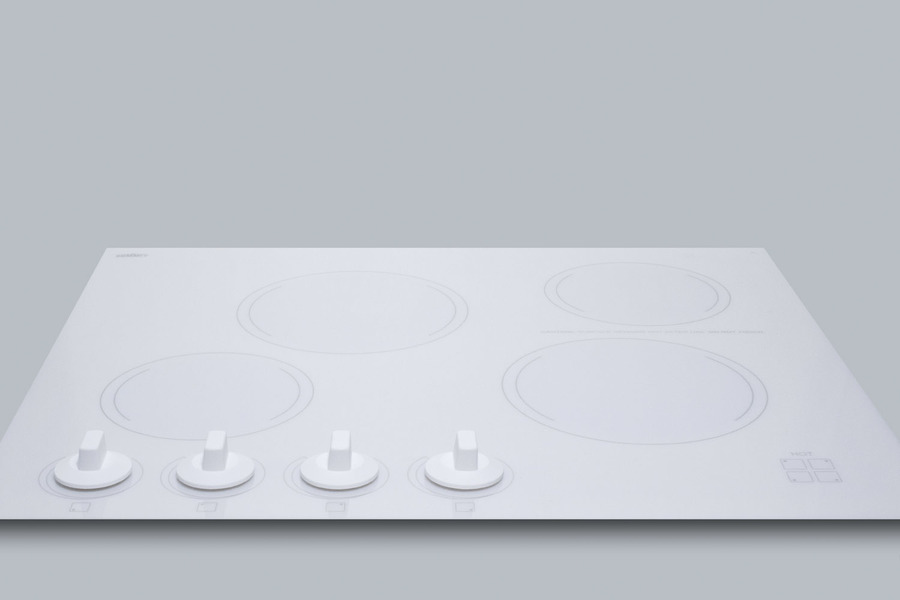

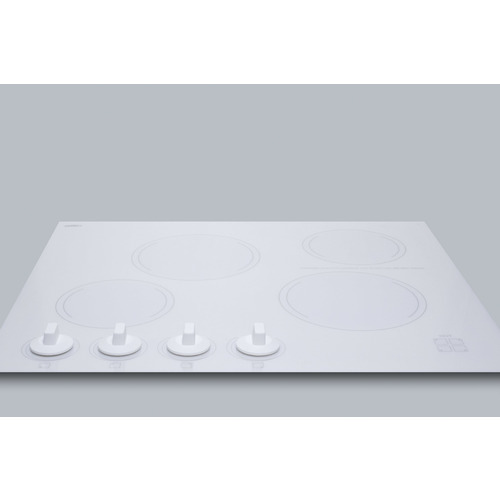

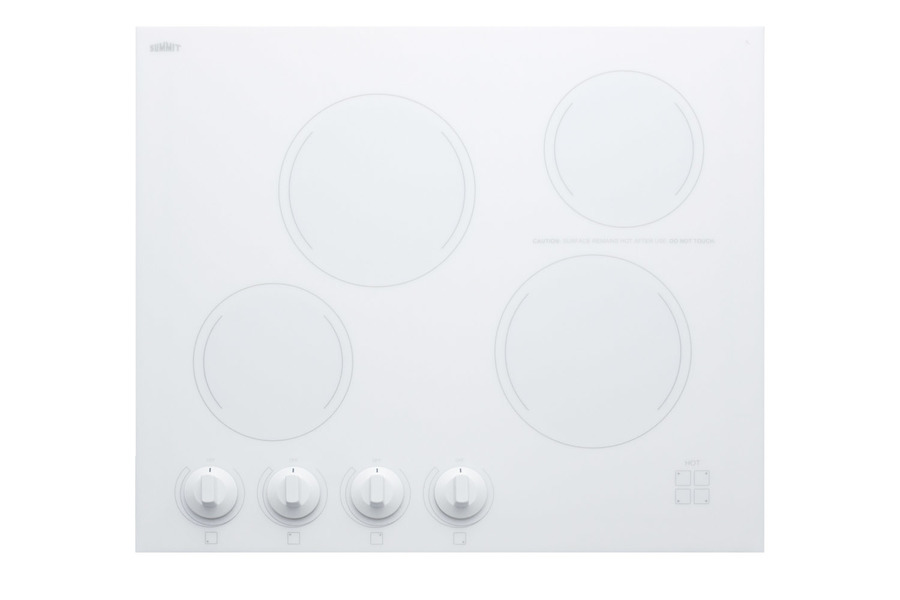

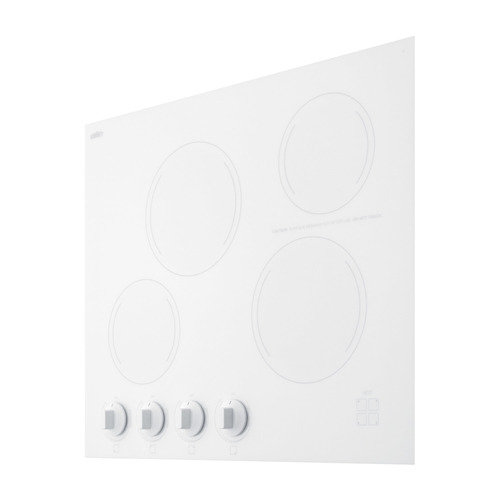

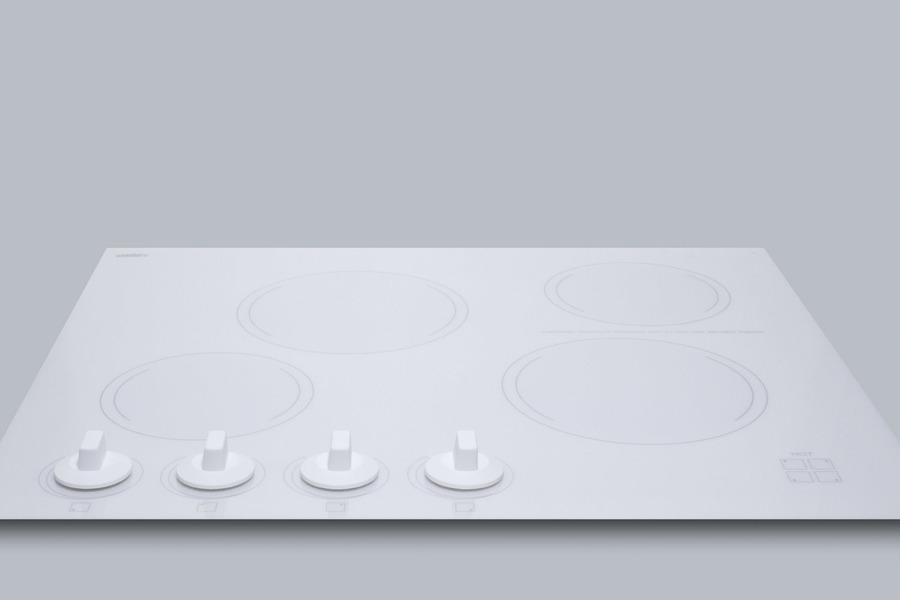

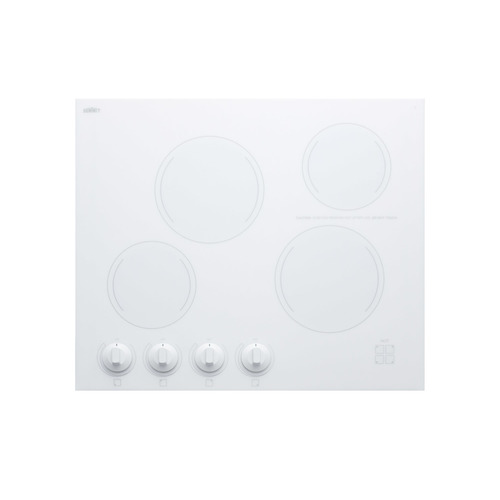

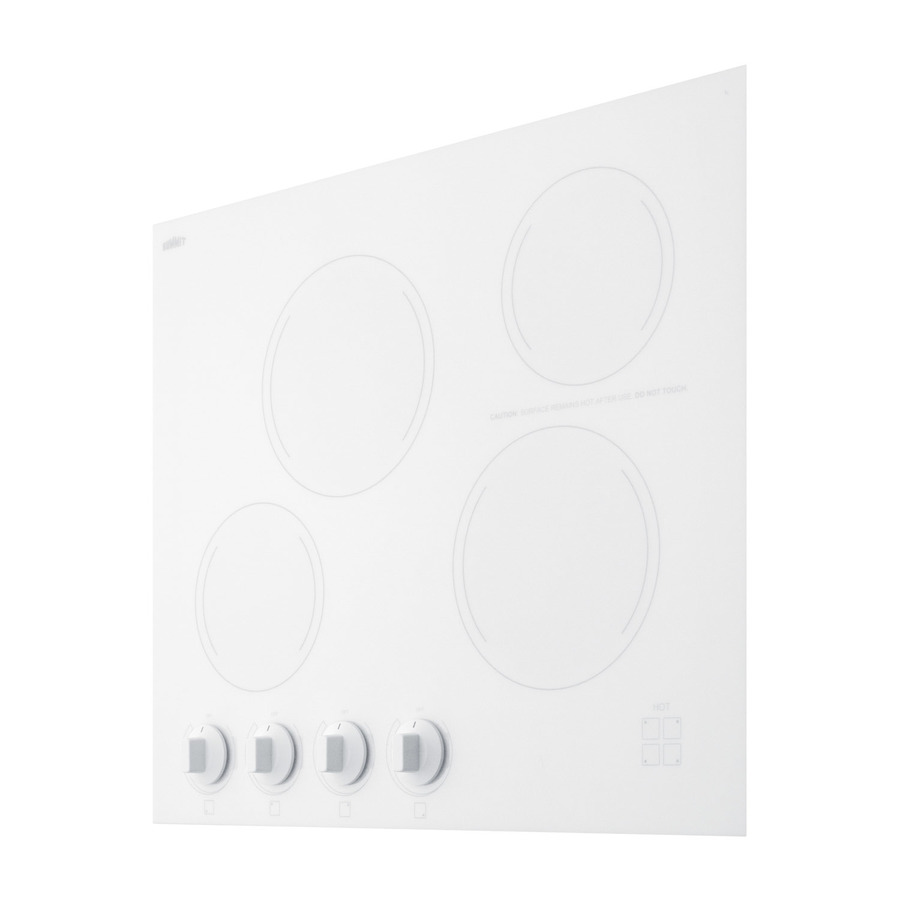

24" Wide 230V 4-Burner Radiant Cooktop

SKU: CREK4W

Made in France with EuroKera ceramic white glass and color-matched knobs for a modern look in any kitchen

DISCONTINUED- REPLACED BY CR424WH

3.0" H x 24.0" W x 20.5" D
(8cm H x 61cm W x 52cm D)

Overview
Height of Cabinet	3.0" (8 cm)
Width	24.0" (61 cm)
Depth	20.5" (52 cm)
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	25.0
Voltage/Frequency	230 V AC/60 Hz
Weight	18.0 lbs. (8 kg)
Shipping Weight	24.0 lbs. (11 kg)
Parts & Labor Warranty	1 Year
UPC	761101055527
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	4
Controls	Dial
Countertop Cutout Height	3.5" (9 cm)
Countertop Cutout Width	22.0" (56 cm)
Countertop Cutout Depth	18.63" (47 cm)
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	1200.0
Element #2 Size	7.5" (19 cm)
Element #2 Wattage	1800.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	1200.0
Element #4 Size	7.5" (19 cm)
Element #4 Wattage	1800.0
Power Cord Included	No

24" width

Designed to fit 22" W x 18.63" D cutouts

EuroKera surface

Smooth ceramic glass cooking surface in a clean white finish

2 High output burners

Front right and rear left burners are sized at 7" with 1800W of cooking power for larger pots and pans

2 Standard burners

Front left and rear right burners are sized at 6" with 1200W of cooking power to meet most heating needs

Push-to-turn knobs

Controls require a gentle push to help prevent cooking accidents

Indicator lights

Each burner includes an indicator light to show when the unit is on

ADA compliant

Front-located knobs meet ADA guidelines for accessibility

220-240V operation

Requires professional hardwired installation

Summit offers an extensive selection of radiant cooktops for all kitchen spaces, including 24" wide European choices.

Made for us in France, the CREK4W is a 230V electric cooktop sized at 24 inches wide to bring full cooking capacity to smaller kitchen spaces. Two 7.5" elements offer 1800W of power for larger cooking vessels, with two standard 6" 1200 elements to handle lighter cooking needs. The EuroKera glass surface comes in a classic white finish, with color-matched push-to-turn knobs to complete the look. The knobs are located towards the front of the cooktop, making them easier to access and preventing users from having to reach over hot burners. This unit includes individual indicator lights and residual heat indicators to ensure added safety when cooking.

This cooktop can also be ordered in black (CREK4B). Additional choices, including 2, 3, and 5-burner cooktops, can be found in Summit's extensive product line. Browse our website for our full selection.

NOTE: This unit requires professional installation and is designed for cutouts sized 22" W x 18 5/8" D.

BROCHURE w/ DRAWINGS
CREK4W.pdf

ASSEMBLY DRAWING
CREK4B_CREK4W_COOKTOP_ASS_Y.pdf

USE & CARE
CREK4B-W.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
