12" Wide 220/240V 2-Burner Radiant Cooktop

SKU: CR2B22ST

Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

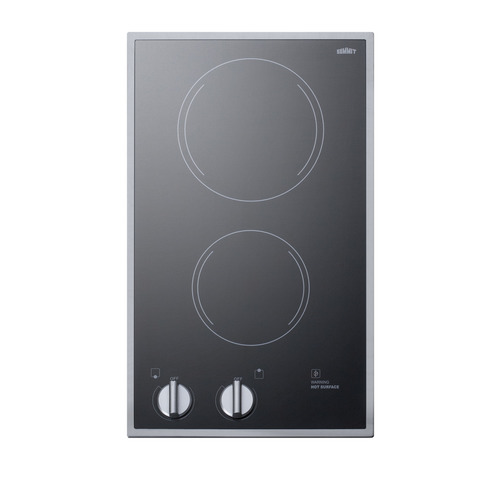

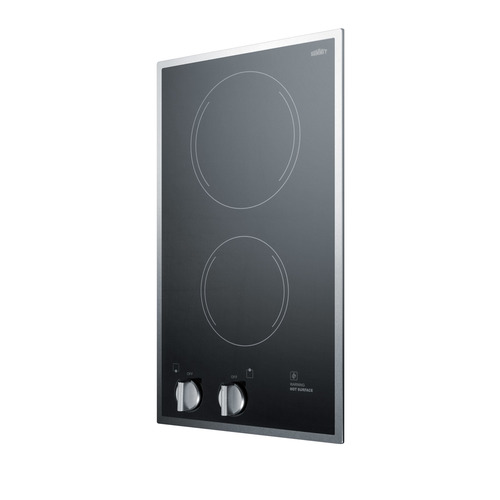

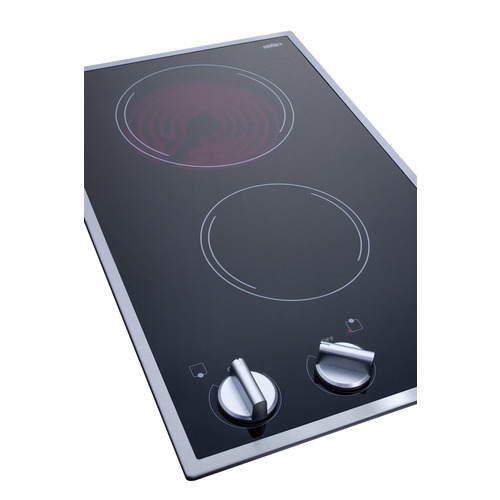

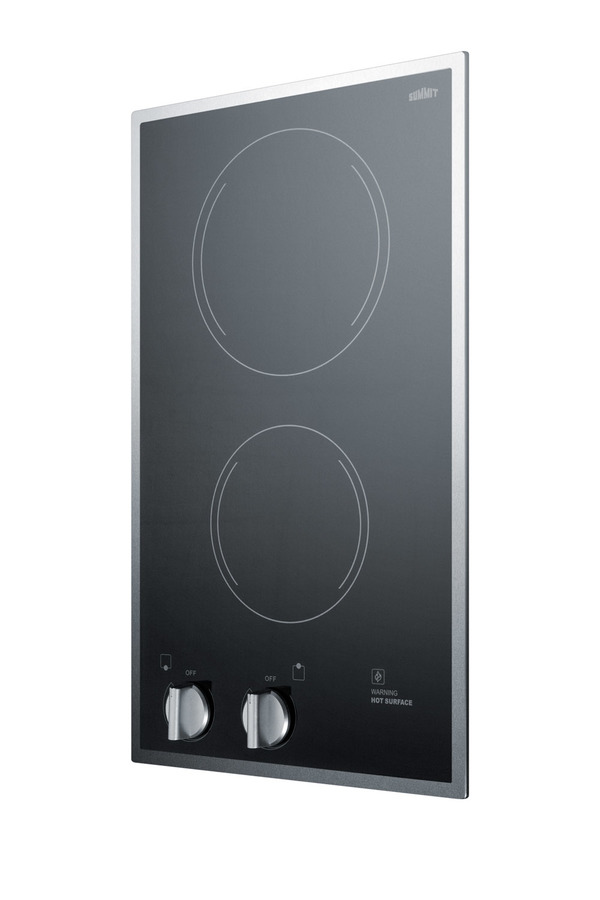

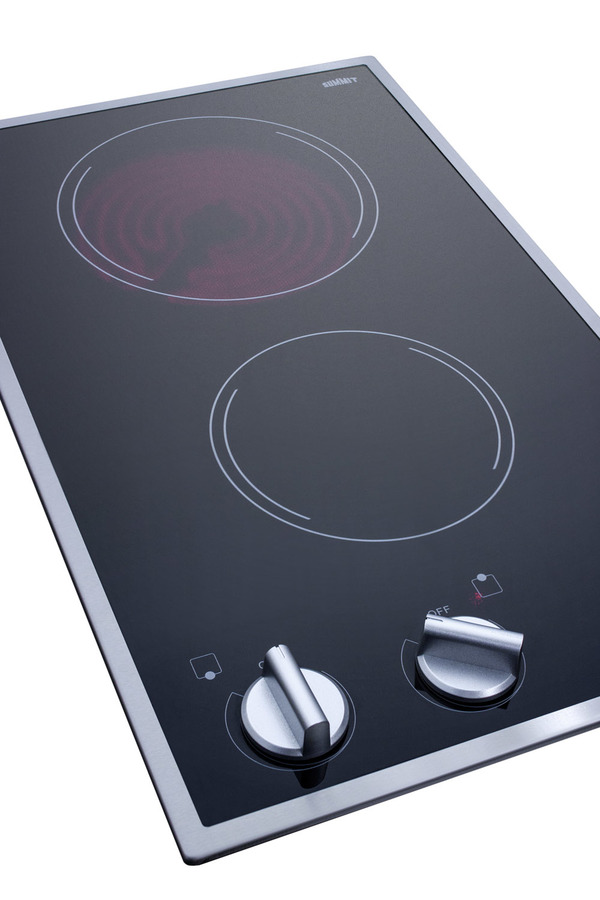

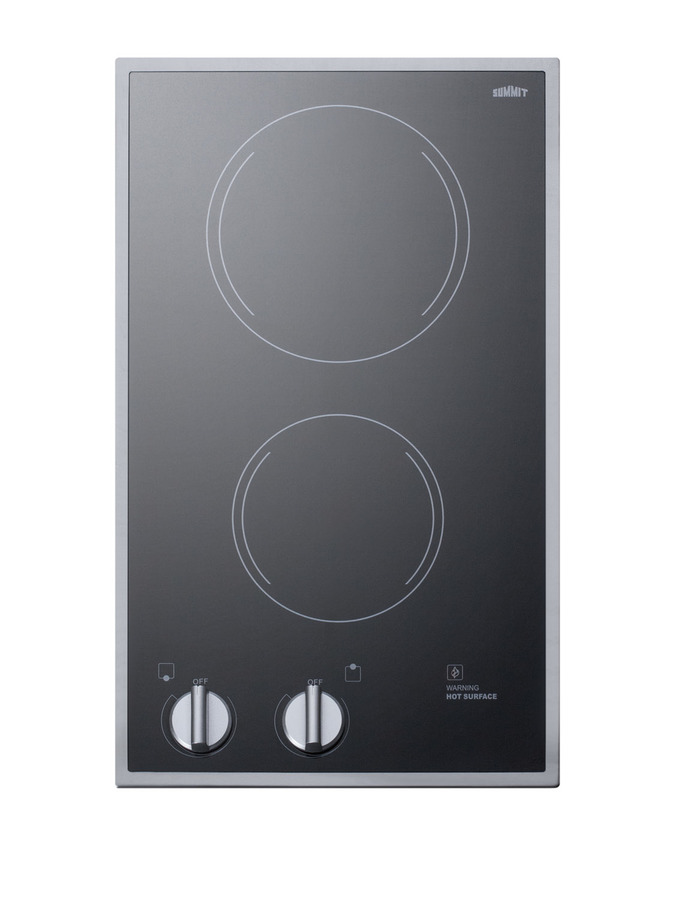

2-burner black ceramic glass cooktop adds elegance to your kitchen

3.0" H x 11.88" W x 19.75" D

(8cm H x 30cm W x 50cm D)

OVERVIEW

  • Smooth black EuroKera ceramic glass surface offers easy cleanup and modern style
  • Two-burner electric cooktop with 220-240V operation
  • Residual heat indicator for added safety
  • Push-to-turn knobs for easy operation

SPECIFICATIONS

Overview
Height of Cabinet 3.0" (8 cm)
Width 11.88" (30 cm)
Depth 19.75" (50 cm)
Cabinet Black Glass
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 230 V AC/60 Hz
Weight 12.0 lbs. (5 kg)
Shipping Weight 17.0 lbs. (8 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
controls Dial
Countertop Cutout Width 11.0" (28 cm)
Countertop Cutout Depth 19.0" (48 cm)
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 1800.0
Cutout Height 5.0" (13 cm)
Cutout Width 11.0" (28 cm)
Cutout Depth 19.0" (48 cm)
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit's selection of radiant glass cooktops offers excellent performance in a modern design, ideal for a variety of kitchens.

The CR2SB22ST is a 220/240V 2-burner cooktop for built-in installation with cutout dimensions of 11" W x 19" D. The black EuroKera ceramic glass surface adds durability and makes cleaning easy. Its smooth edges ensure safety in a seamless design, while a stainless steel trim completes the look.

The CR2SB22ST includes a rear 7" 1800W burner for larger pans and cooking needs, and a smaller front 5½" 1200W burner ideal for heating smaller cookware. Push-to-turn knobs in a silver finish are located toward the front, preventing users from having to reach over burners. Front located controls also help to comply with ADA guidelines on accessibility. Indicator lights tell when each burner is in use, while a residual heat light lets users know when the cooktop is too hot to touch for added safety.

Offering great performance in an excellent price, the CR2B22ST is the perfect addition to any kitchen. For the same cooktop with 115V operation, see the CR2B12ST.

Note: This cooktop requires professional installation.

FEATURES

Black ceramic glass surface
Smooth EuroKera surface offers modern style in an easy-to-clean design
Two heating elements
One 1800W and one 1200W burner to meet a variety of cooking needs
Stainless steel trim
Provides added elegance to your kitchen
Indicator lights
Show when and which burners are turned on
Push-to-turn controls
Prevents accidents by requiring a small amount of force to turn on cooktop heat
Residual heat indicator light
Offers added safety by alerting when burners are too hot to touch
ADA compliant design
Upfront, easy-to-turn controls help to comply with ADA guidelines for accessibility
220/240V operation
Use with 20 amp circuits and requires professional installation
Designed for built-in installation
Cutout dimensions: 11" W x 19" D

SPECIFICATIONS

Overview
Height of Cabinet 3.0" (8 cm)
Width 11.88" (30 cm)
Depth 19.75" (50 cm)
Cabinet Black Glass
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 230 V AC/60 Hz
Weight 12.0 lbs. (5 kg)
Shipping Weight 17.0 lbs. (8 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
controls Dial
Countertop Cutout Width 11.0" (28 cm)
Countertop Cutout Depth 19.0" (48 cm)
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 1800.0
Cutout Height 5.0" (13 cm)
Cutout Width 11.0" (28 cm)
Cutout Depth 19.0" (48 cm)

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
CR2B22ST.pdf
Download
TECHNICAL DRAWING (.dwg)
CR2B22ST_COOKTOP__A-C_2018_.dwg.dwg
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
