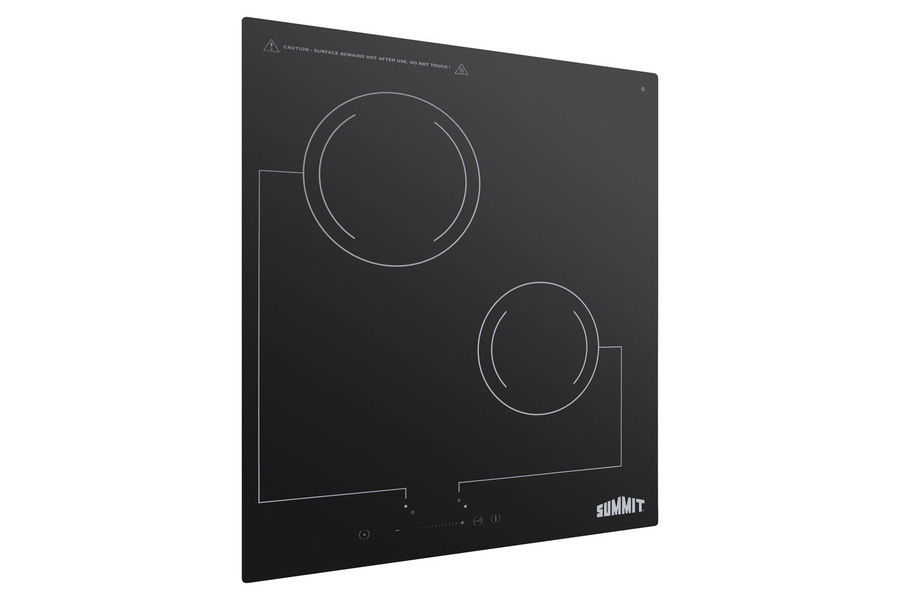

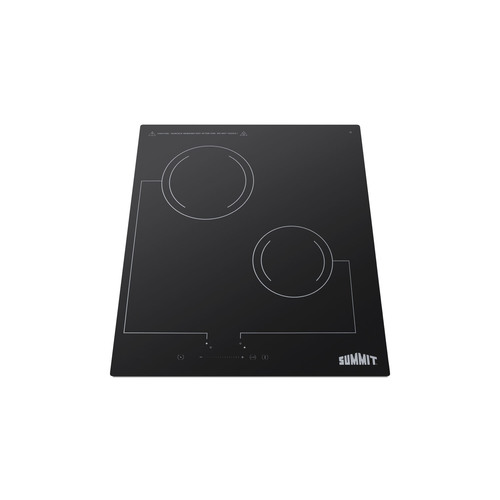

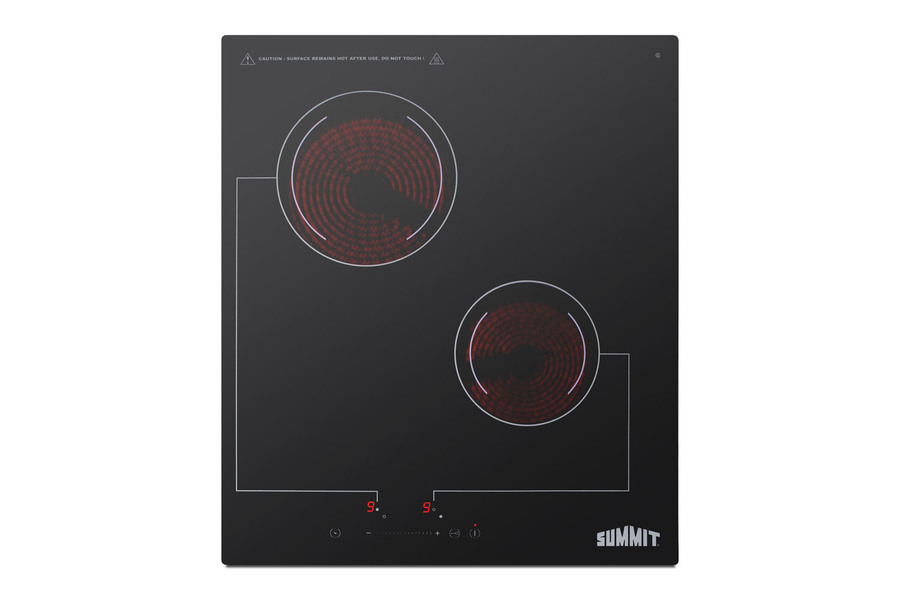

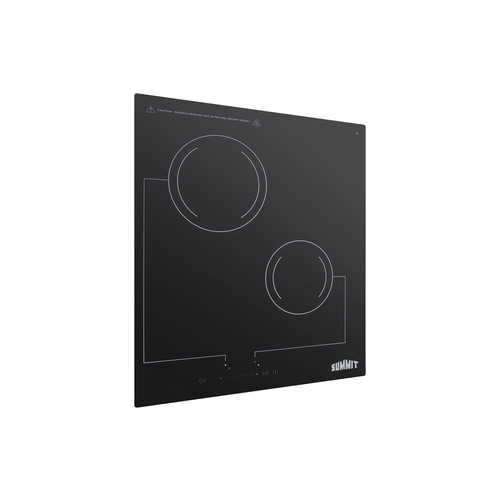

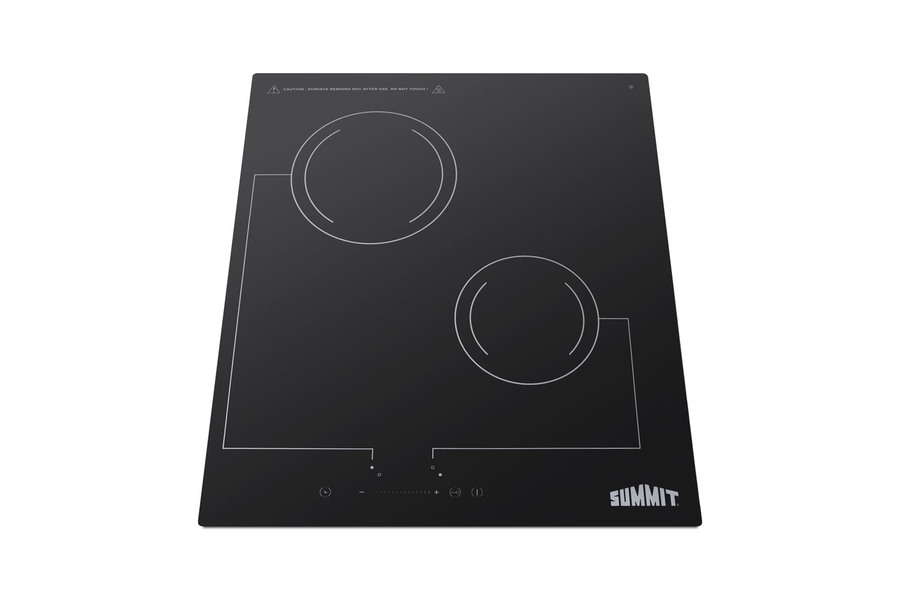

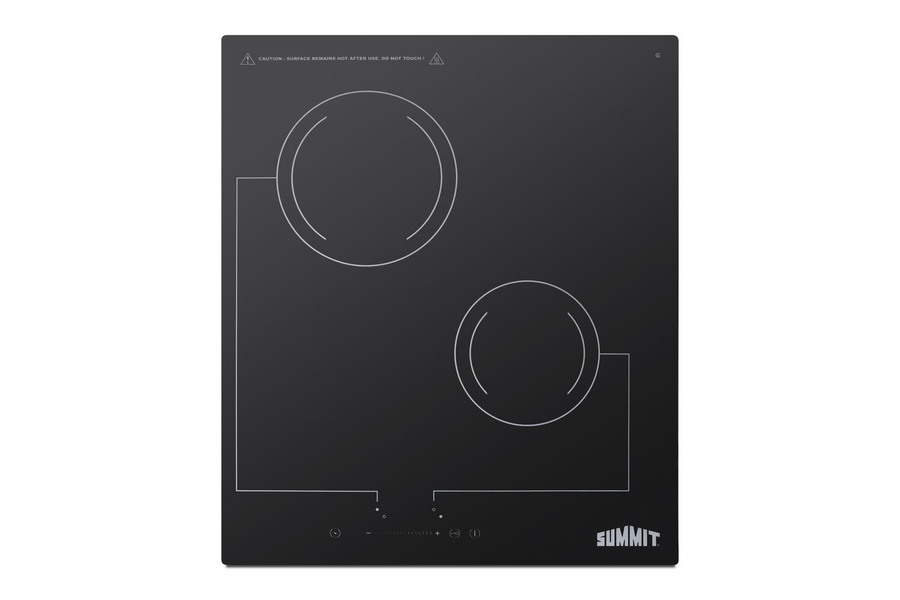

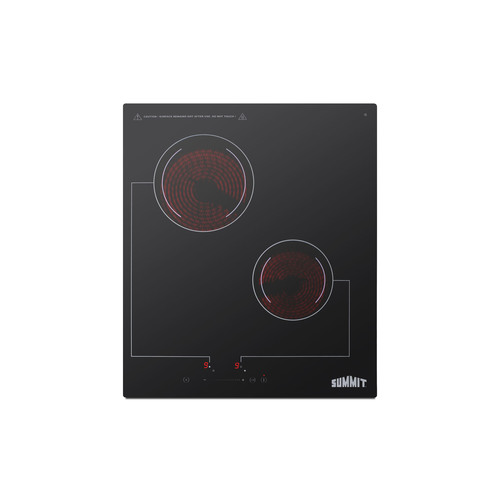

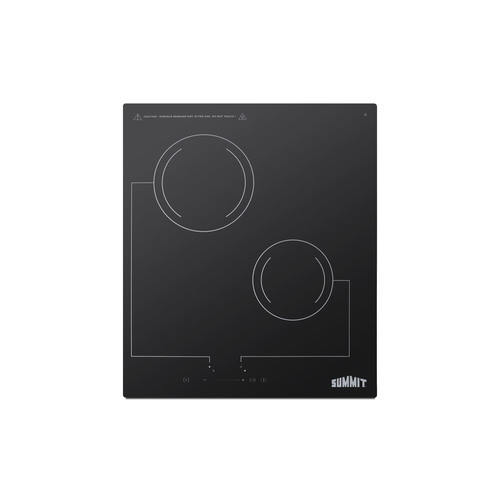

18" Wide 220V 2-Burner Radiant Cooktop

SKU: CR2B228T
Intuitive touch controls and advanced safety features create the perfect choice for hotel kitchens
Estimated Time to Ship:

Next day shipping

Voltage:
220/240V
Color: Black

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
3.25" H x 18.0" W x 21.25" D
(8cm H x 46cm W x 54cm D)

Overview
Height of Cabinet 3.25" (8 cm)
Width 18.0" (46 cm)
Depth 21.25" (54 cm)
Cabinet Black
US Electrical Safety ETL
Amps 20.0
Voltage/Frequency 220 V AC/60 Hz
Weight 20.0 lbs. (9 kg)
Shipping Weight 28.5 lbs. (13 kg)
Parts & Labor Warranty 1 Year
UPC 761101085012
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
Controls Digital
Cooking Timer Yes
Countertop Cutout Height 5.0" (13 cm)
Countertop Cutout Width 16.5" (42 cm)
Countertop Cutout Depth 20.25" (51 cm)
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 1800.0
Power Cord Included No

2-burner radiant cooktop

3000W operation in a conveniently sized fit

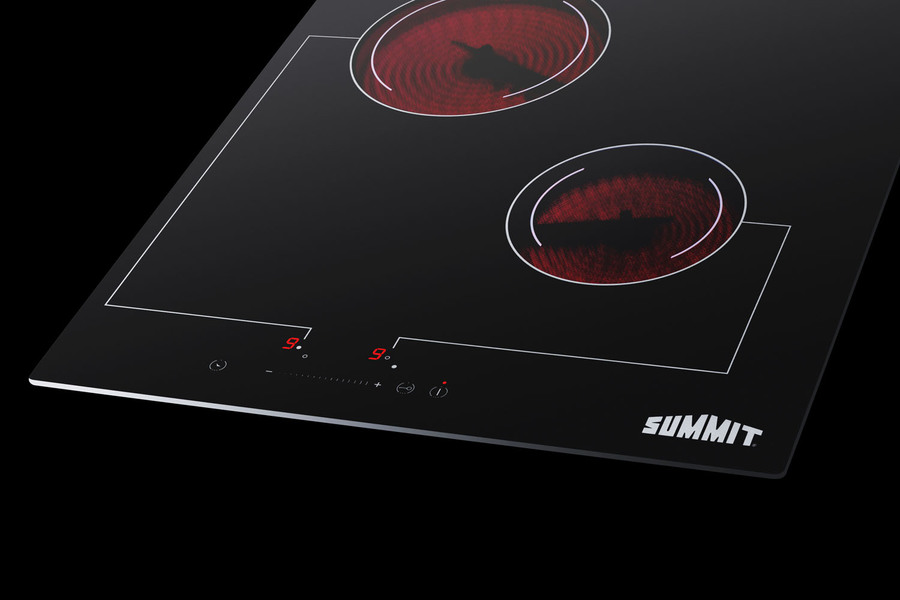

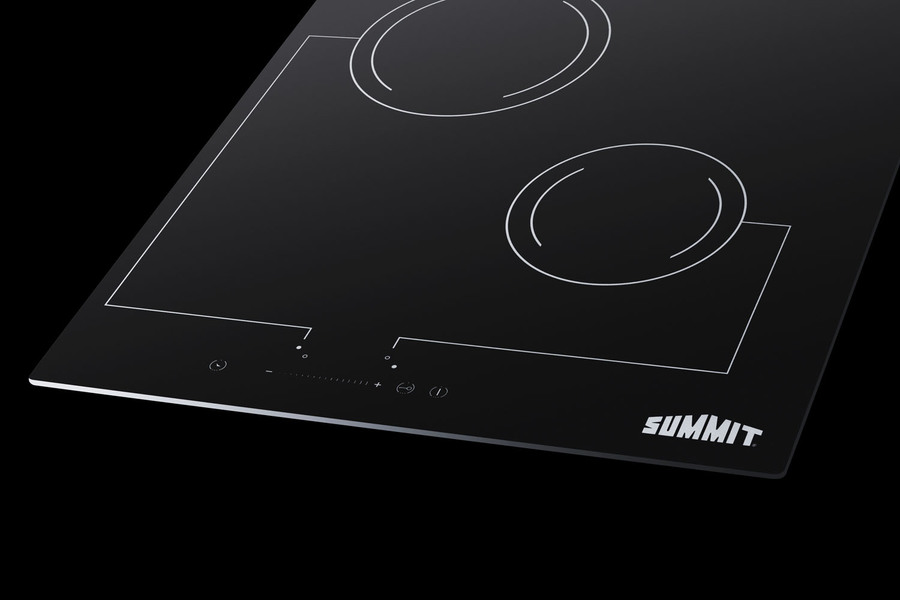

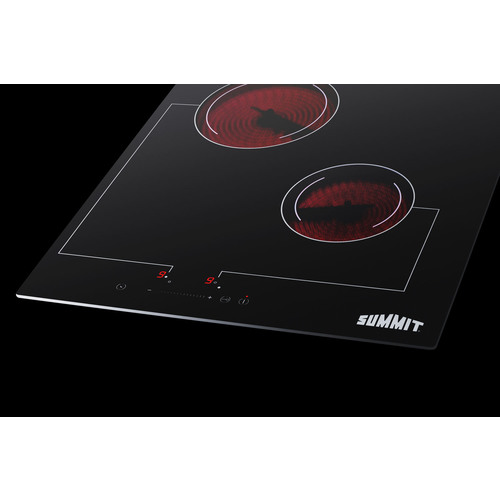

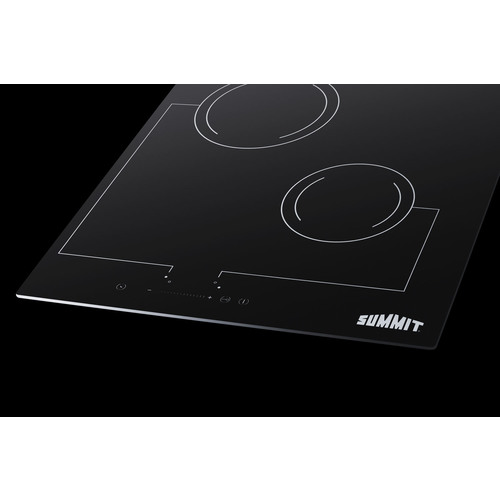

Digital touch controls

Easy operation with intuitive slide controls activated by a gentle touch

Seamless design

Smooth surface and touch controls means no external knobs that can be easily lost in busy hotel settings

EuroKera black ceramic glass surface

Easy cleanup and elegant style on a smooth ceramic glass surface

7" element

1800W rear element offers powerful cooking for larger pots and pans

Standard front element

1200W front cooking zone in a 5.5" diameter accommodates smaller cookware

Residual heat indicator

Indicator will illuminate to warn if some part of the glass surface is too hot to touch

Timer function

Allows you to program either burner to heat at a specified level for up to 99 minutes

Indicator lights

Operating indicators light up to show which burner is in use

Overheat protection

Interior sensor monitors the cooktop temperature and will power off if needed

Child lock

Safety feature lets you lock the cooktop to prevent unsupervised heating

Automatic shutoff

Cooktop will turn off if power is left on without any control changes (timing varies by power level)

Unintended operation protection

Burners will automatically switch of if a control is accidentally held down for more than 10 seconds

ADA compliant design

Upfront controls, easy-to-operate controls offer easier accessibility

Fits popular cutout size

Designed for built-in installation in 16.5" x 20.25" cutouts

220V operation

Professional installation required (cord not included)

Summit offers a quality lineup of electric cooktops designed to suit any residential or hotel kitchen setup.

Made in Europe, the CR2B228T is a 220-240V 2-burner radiant cooktop designed to fit popular 16.5" W x 20.25" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

Upfront digital controls ensure safe, intuitive use, with slide controls that respond to a gentle touch. The design meets ADA guidelines for user compliance, ensuring those cooking don't have to reach over hot burners to adjust the controls. The rear 7" 1800W burner is ideal for boiling water and heating large cookware, while the front 5.5" 1200W element accommodates basic heating needs. Advanced safety features include automatic shutoff and unintended use protection to turn the burners off if accidentally activated, as well as a child lock function. This unit includes burner indicators and a residual heat indicator to warn if the surface is still hot to touch. A timer function offers added cooking convenience.

With its user-friendly design and modern style, the CR2B228T is the perfect addition to smaller kitchen spaces that prioritize convenience and safety, especially in hospitality settings.

Download
BROCHURE w/ DRAWINGS
CR2B228T.pdf
Download
TECHNICAL DRAWING (.dwg)
CR2B228T.dwg
Download
ASSEMBLY DRAWING
CR2B228T_Assembly.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
