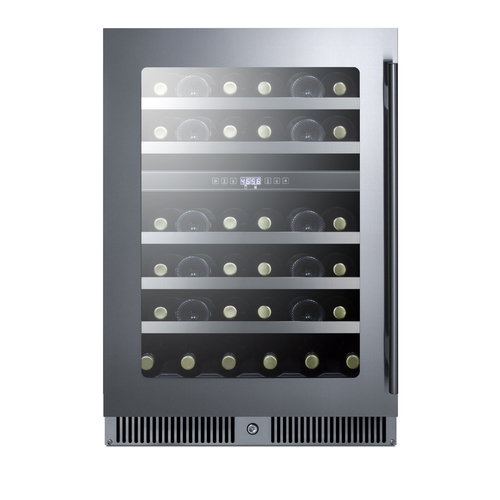

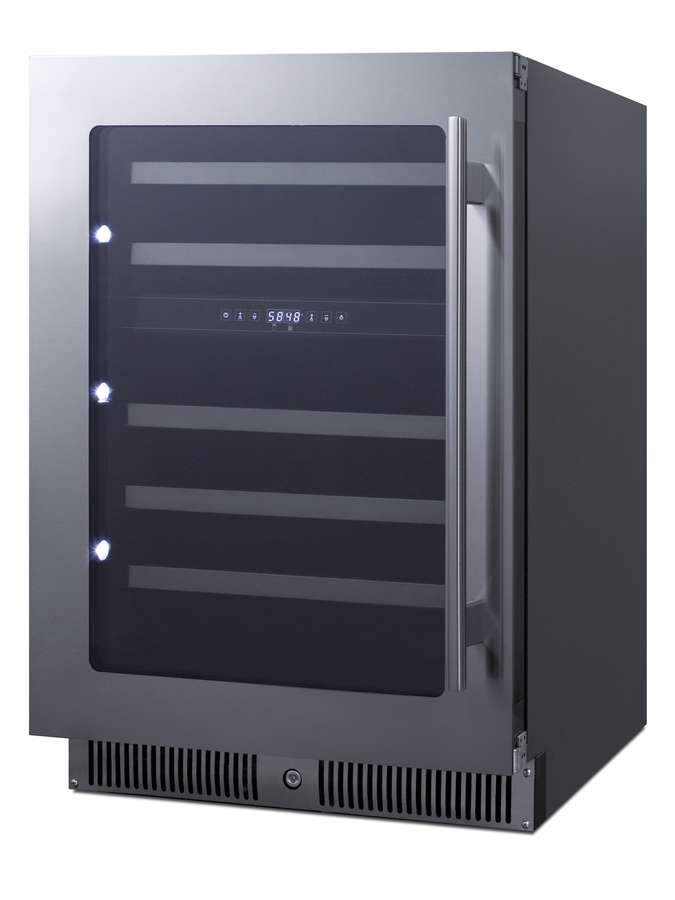

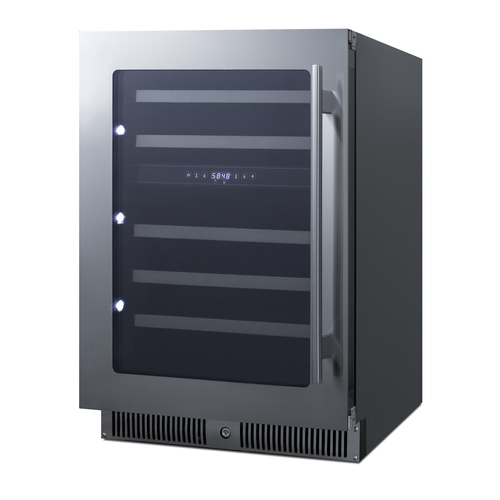

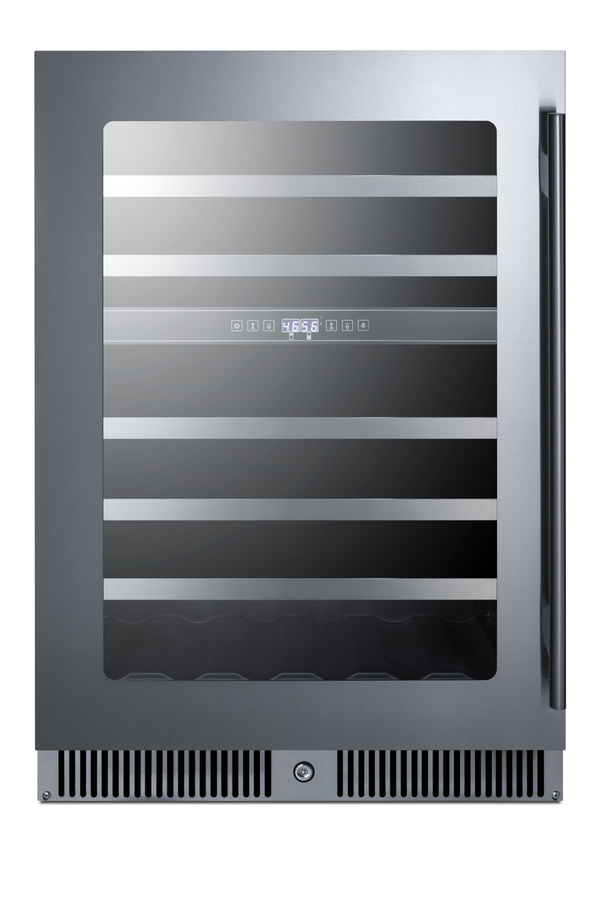

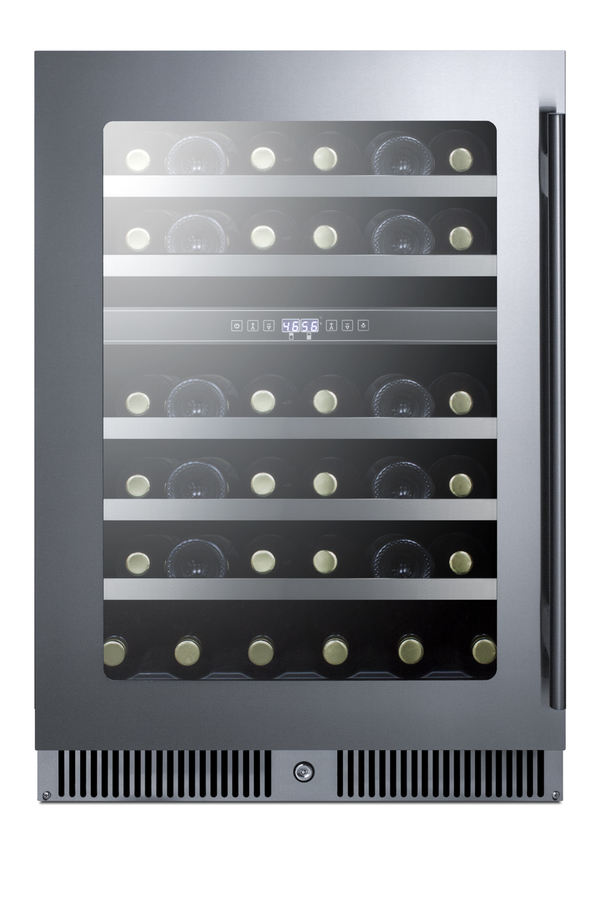

24" Wide Built-In Dual-Zone Wine Cellar

SKU: CL244WCLHD
24" wide for an easy fit in home kitchens and wet bars
DISCONTINUED- REPLACED BY SWC532BLBIST
34.0" H x 23.38" W x 23.38" D
(86cm H x 59cm W x 59cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.38" (59 cm)
Depth 23.38" (59 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 5.4 cu.ft. (153 L)
Bottles 36 bottles
Defrost Type Automatic
Door Glass/SS
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 119.0 lbs. (54 kg)
Shipping Weight 165.0 lbs. (75 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101075754
Wine Cellar
Number of Zones 2
Door Swing LHD
Reversible No
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.38 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 9.75" (25 cm)
Interior Width 1 20.75" (53 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 4.38" (11 cm)
Compressor Step Width 20.75" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 2
Temperature Range 41-68°F (both zones)
Interior Height 2 16.38" (42 cm)
Interior Width 2 20.75" (53 cm)
Interior Depth 2 18.0" (46 cm)
Sabbath Mode Yes

Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

Built-in capable

Make the best use of space by installing your appliance under the counter

Glass door

Provides a fully display of stored contents

Seamless stainless steel door frame

Single-piece door trim offers a more deluxe look

Factory-installed lock

Keyed lock for a secure interior (2 keys included)

Digital display

Electronic controls for precise temperature management

Digital thermostat

Temperature readout can be shown in Celsius or Fahrenheit

Dual zone design

Both zones have a temperature range of 41-68°F for unparalleled user storage flexibility

Full-extension wooden shelving

5 shelves in a black finish on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Stainless steel trimmed shelving

Fronts feature a stainless steel accent to elevate your presentation

Versatile storage

Interior can hold up to 44 standard 650ml Bordeaux style bottles (8 bottles on the top shelf, 6 on the second shelf, 8 on third, fourth, and fifth shelves, and 6 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 28 bottles (6 bottles on the top shelf and slotted floor and 8 bottles on third and fourth shelves)

LED lighting

Unique white light offers elegant illumination for the jet black interior

Professional handle

Vertically mounted handle in brushed stainless steel

Stainless steel kickplate

Completes the professional look down to the toe kick

Temperature alarm

Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range

Open door alarm

Audible alarm will sound if the door is left ajar

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Automatic defrost

Reduced maintenance and steady temperature performance

Sealed back

Space saving design with easier cleanability

Sabbath mode

Optional setting lets you disable the lighting and alarms during periods of religious observance

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Fully finish black cabinet

Allows the unit to be used freestanding

Left-hand door swing

This unit comes with a left-hand door swing. (Note: the door is not user reversible; for a right hand version, see the CL244WC)

Anti-tip bracket

Bracket (included) helps prevent tipping for added safety

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

The CL244WCLHD is a dual zone wine cellar designed to store red and white wine under the ideal conditions. Sized at 24" wide, it is perfectly sized for kitchen and wet bar cutouts. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also affords freestanding use. A seamless stainless steel trim blends smoothly into the glass door for an elegant look, while a stainless steel handle and designer kickplate complete the stunning look. A factory-installed lock offers added security. This unit has a left-hand door swing. For a right-hand version, see the CL244WC. This unit can be paired with the matching CL24BV/LHD beverage center to create a side-by-side set.

Inside, the CL244WCLHD features two independent zones that can be set between 41 and 68°F for red or white wine storage. Optimal storage capacity accommodates up to 44 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the CL244WC can hold up to 28 bottles. This unit includes five full-extension wooden shelves in a black finish on ball-bearing glides for easy loading and unloading, while a stainless steel front trim adds a touch of elegance. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. While LED lighting offers an elegant and energy-efficient illumination inside the jet black interior. An internal fan ensures the interior is evenly cooled from top to bottom, while the auto defrost operation ensures minimal user maintenance. Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range. Two level legs helps to balance the unit on uneven surfaces.

With its elegant design and user-friendly features, the CL244WCLHD lets you preserve and display your collection in true luxury.

Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
