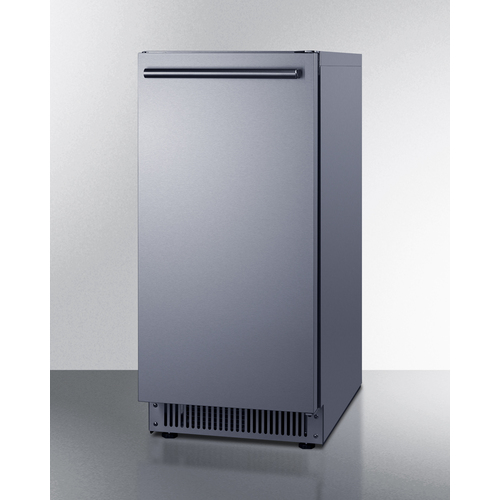

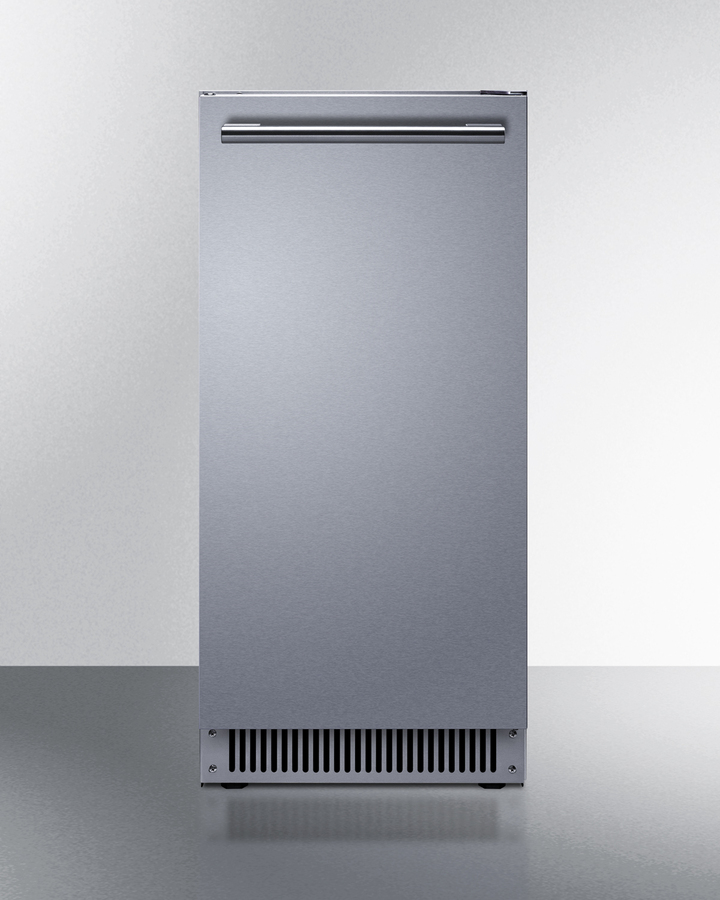

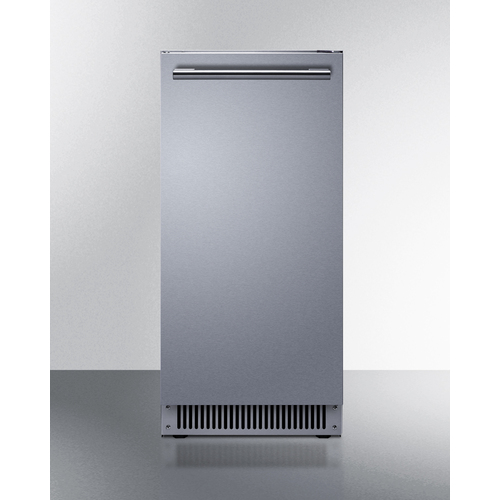

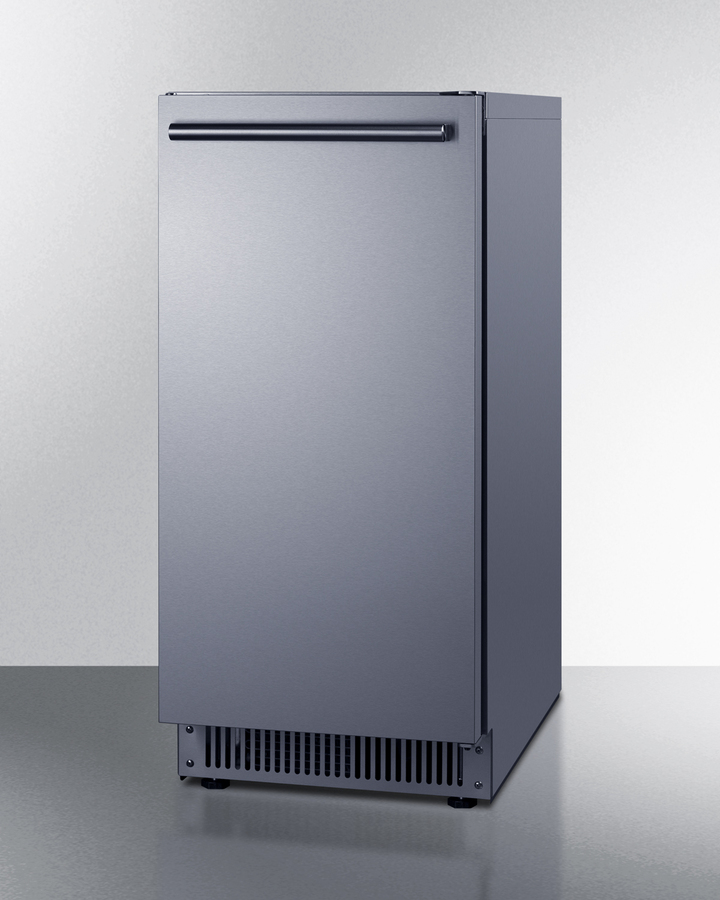

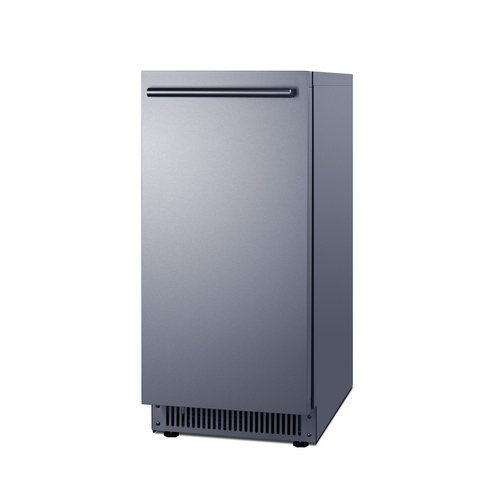

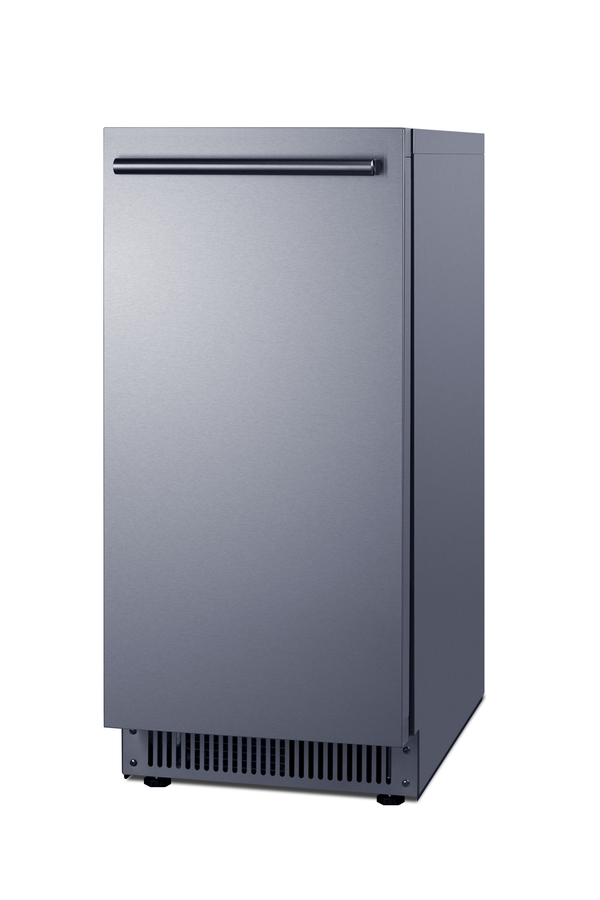

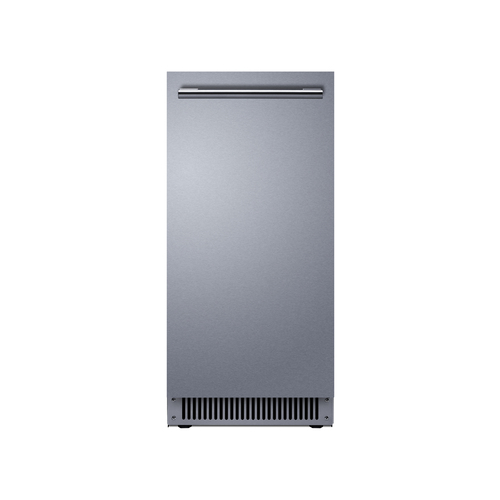

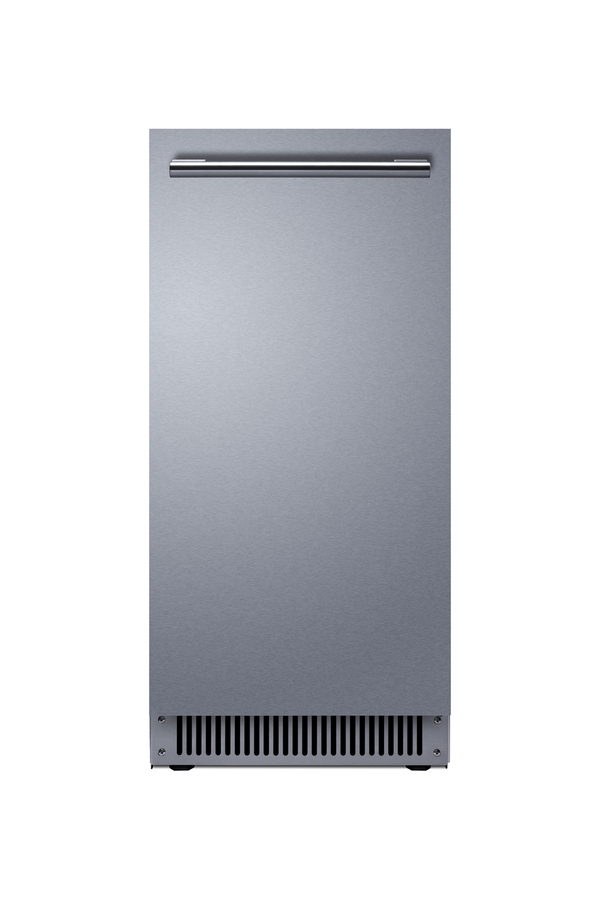

68 lb. Outdoor Clear Icemaker, ADA Compliant
2 to 3 days
Adjustable
*Additional features may vary

(81cm H x 37cm W x 58cm D)
SPECIFICATIONS
Overview
|
|
---|---|

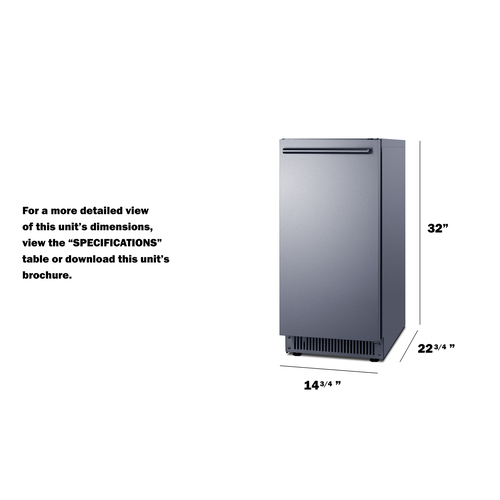

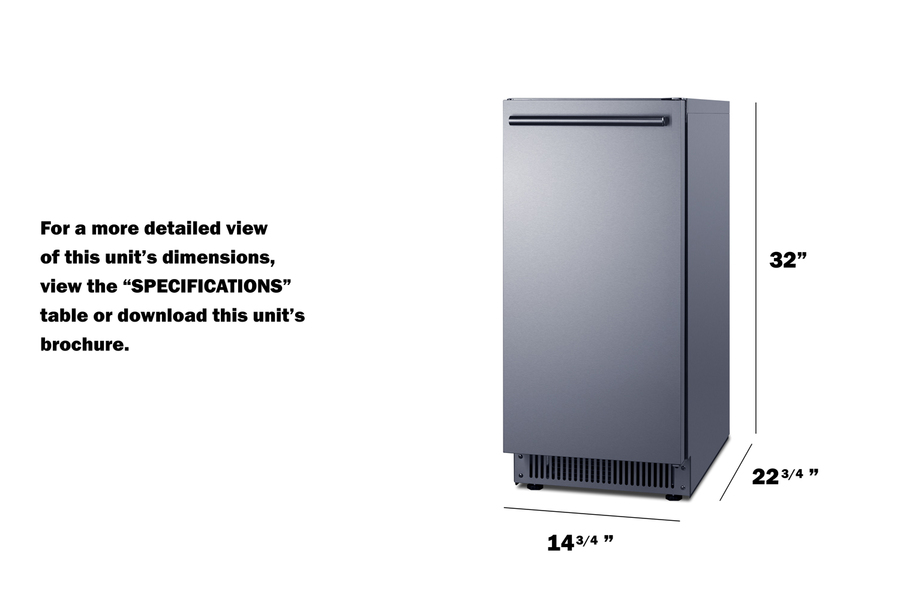

Height of Cabinet | 32.0" (81 cm) |
Width | 14.75" (37 cm) |
Depth | 22.75" (58 cm) |
Depth with Handle | 24.75" (63 cm) |
Depth with door at 90° | 38.13" (97 cm) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 6.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101156231 |
Icemaker
|
|
Door Swing | LHD |
Reversible | No |
Height Adjustable | Yes |
Drain Required | Yes |
Daily Ice Production | 68.0 lbs. (31 kg) |
Ice Storage Capacity | 68.0 lbs. (31 kg) |
Ice Shape | Top hat |
Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
Number of Ice Cube Sizes | 3 |
Refrigerant Type | R600a |
Refrigerant Amount | 1.58 oz. |
Interior Height | 19.75" (50 cm) |
Interior Width | 12.25" (31 cm) |
Interior Depth | 15.5" (39 cm) |
Level Legs | 4 |
AVAILABLE UPGRADES
Exterior | |
---|---|
|
FEATURES
Built-in undercounter outdoor icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
Durable stainless steel construction for safe installation in outdoor spaces
Front-breathing design lets you make the best use of space by installing your appliance under the counter
32" height allows installation under lower ADA-compliant counters

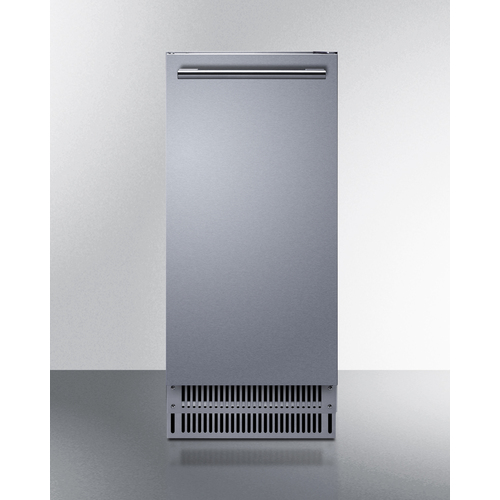

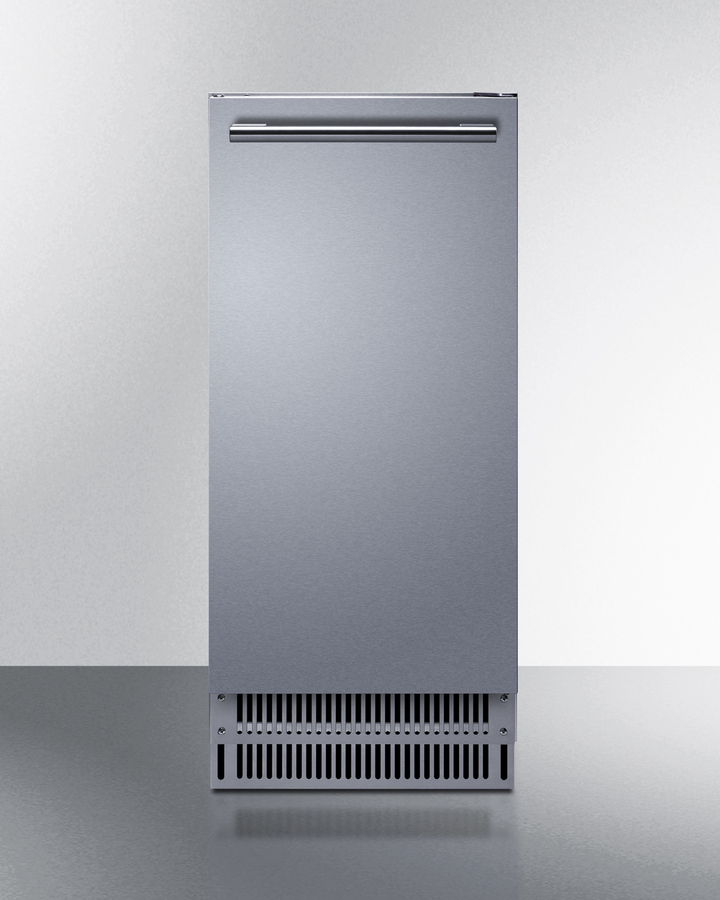

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under higher cabinets
Internal pump allows more flexibility in placing the unit
ETL-S listed to NSF-7 Standards for use in commercial establishments
High capacity production to keep clear gourmet ice on hand

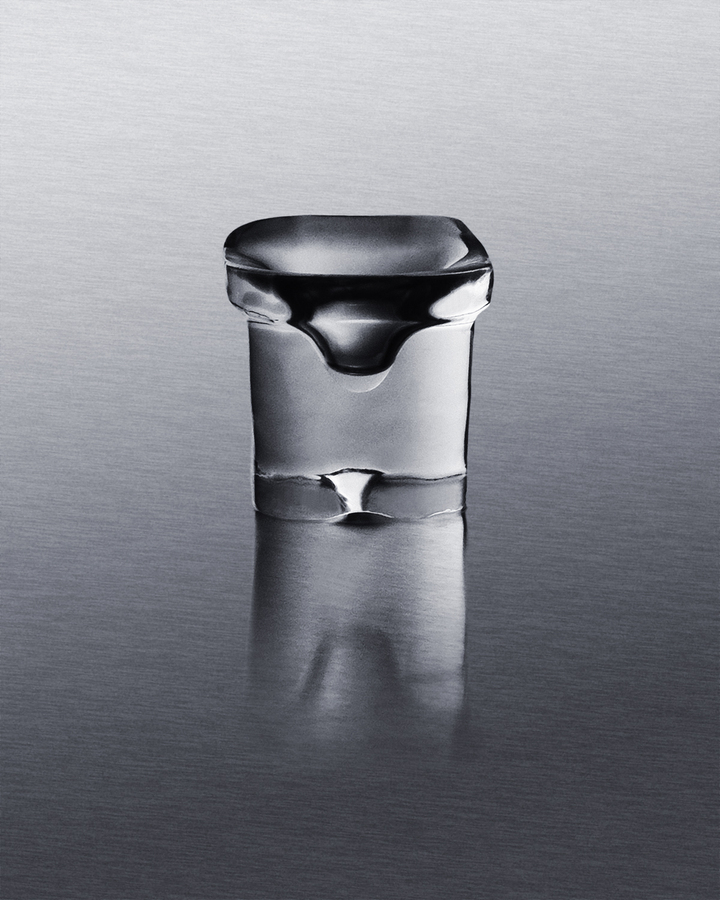

Unique clear ice shape for an upscale presentation, while its dense structure means it melts slower, making it ideal for cocktails where dilution needs to be controlled
Allows for seamless integration with other appliances
Horizontally mounted handle in stainless steel

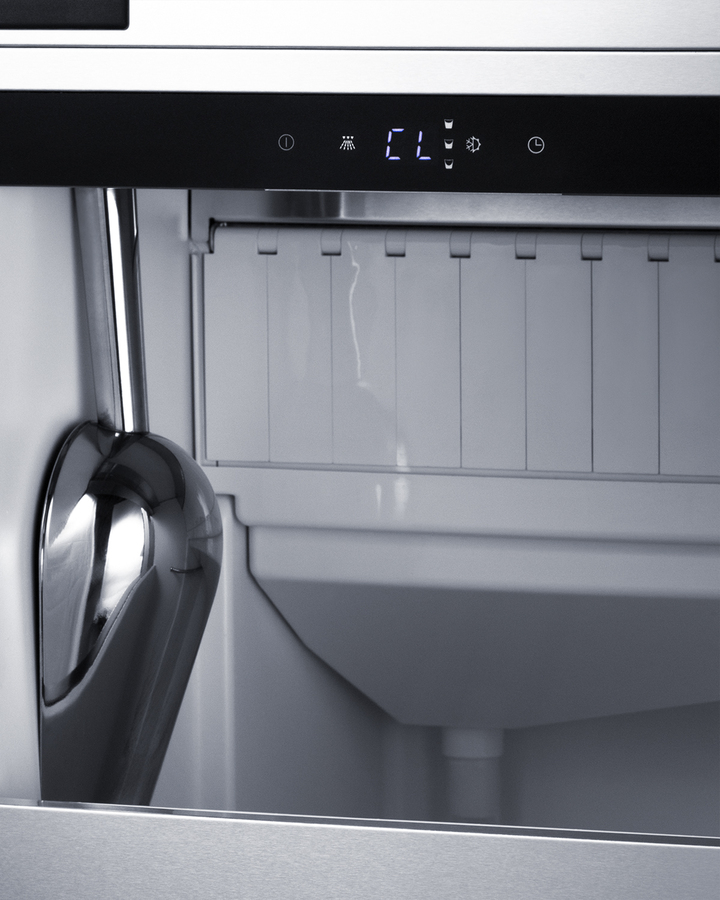

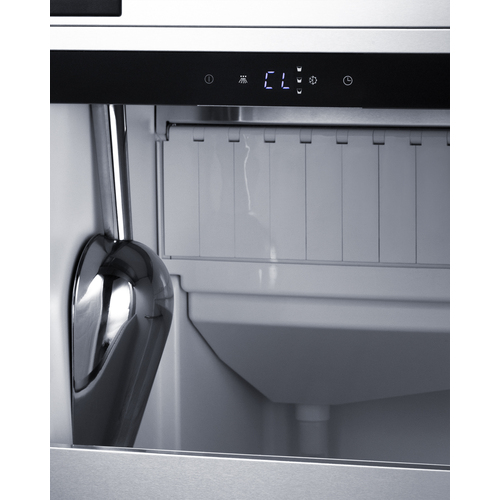

Provides easy operation of the unit with indicator lights for each stage of the production process
Function allows users to choose from small, medium, or large clear ice cubes
Clean mode allows you to periodically clean the system as needed with a neutral detergent
Control panel light will flash 180 days after each cleaning cycle as a reminder to run that process
Mode memory function allows the icemaker to its last setting in the event of a power interruption
Optional setting lets you disable the lighting and alarms during periods of religious observance

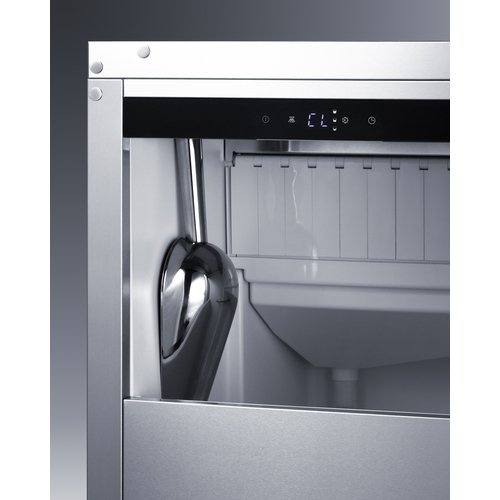

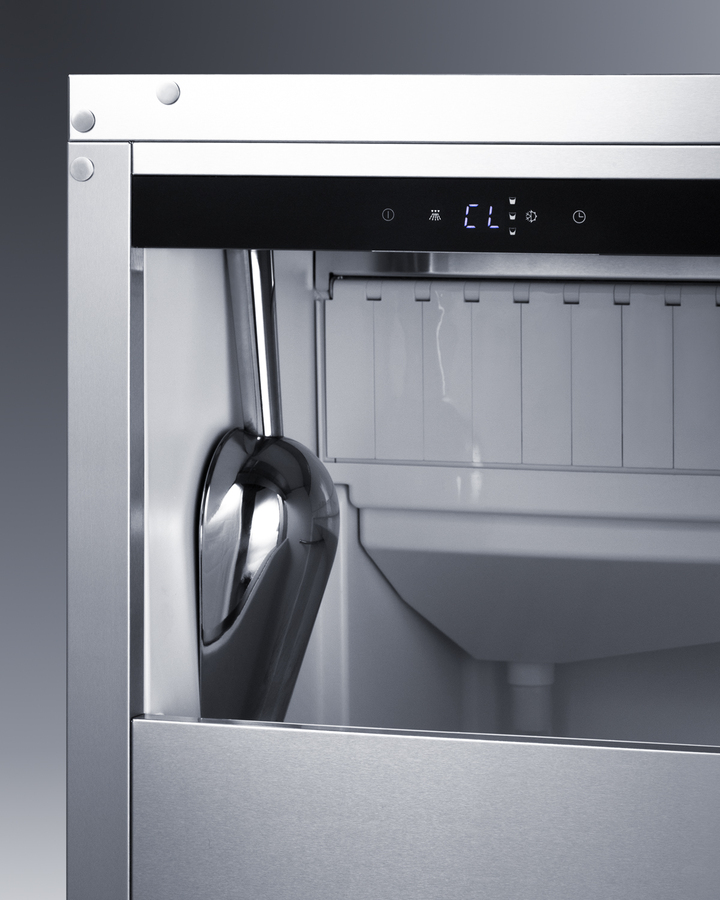

Ice scoop included for added convenience, with an interior hook to keep it in place inside
Space-saving design with no exposed coils that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
For this unit with the door opening from the other side, see model BIM63OSADA
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DESCRIPTION

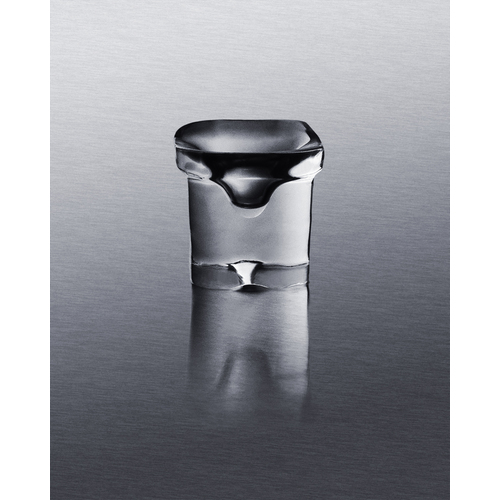

Summit brings proper convenience and streamlined luxury outdoors with their built-in undercounter weatherproof icemakers sized for residential and commercial spaces. Model BIM63OSADALHD is a 15" wide outdoor icemaker featuring an attractive and durable stainless steel exterior designed to hold up to the outdoor elements. This icemaker is sized at just 32" high to fit under lower ADA compliant counters. The legs can be raised to 34 1/4" for taller spaces. We include a sliding kickplate that helps fill the extra space if the unit is raised. The front-breathing design allows built-in installation under counters, the fully finished stainless steel cabinet allows freestanding use, and the sealed back and right-angle cord help ensure an easy fit. This icemaker is unbranded, allowing you to easily integrate it into any kitchen or bar. Included with this model is a stylish handle for a complete and premium look. The BIM63OSADALHD produces up to 68 lbs. of clear, gourmet top hat-shaped ice cubes daily. Top hat ice, often called gourmet ice, is a cylindrical cube with a slightly wider top resembling a miniature top hat or thimble. The distinct dense structure helps minimize dilution, keeping drinks colder for longer without watering them down. The uniform shape offers an elegant presentation, while its non-clumping design ensures easy dispensing. The size can be adjusted between three settings to best suit your taste. We include a steel ice scoop that can be hung inside for easy serving. This icemaker features easy-to-use digital controls. An indicator light alerts users to each step in the production process and when the bin is full. Frost-free operation eliminates the need to defrost the interior. Additional features include a temperature memory function, cleaning setting and alarm, and sabbath mode for periods of observances. With clear gourmet ice that's gentle on glassware paired with efficient performance, the BIM63OSADALHD is ideal for both residential and commercial outdoor kitchen settings. For an indoor version of this unit, see model BIM62ADA. For a panel-ready version of this unit, see model BIM63OSADA. In addition to this series, Summit also manufactures drain-free icemakers, as well as 18" wide options, outdoor models, and more. Explore all of Summit's residential and commercial icemakers at summitappliance.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
