25 lb. Drain-Free Outdoor Icemaker, ADA Compliant
11/30/2024
(81cm H x 38cm W x 49cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 32.0" (81 cm) |
Height of Cabinet | 31.75" (81 cm) |
Nominal Width | 15.0" (38 cm) |
Width | 14.88" (38 cm) |
Nominal Depth | 20.0" (51 cm) |
Depth | 19.38" (49 cm) |
Depth with Handle | 21.38" (54 cm) |
Depth with door at 90° | 33.63" (85 cm) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.9 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 61.0 lbs. (28 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101103549 |
Icemaker
|
|
Door Swing | RHD |
Reversible | Yes |
Height Adjustable | Yes |
Daily Ice Production | 25.0 lbs. (11 kg) |
Ice Storage Capacity | 22.0 lbs. (10 kg) |
Ice Shape | Crescent |
Size of Cube | 1/2" x 3/4" x 2 3/8" |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R600a |
Refrigerant Amount | 1.58 oz. |
High Side PSI | 120.0 |
Low Side PSI | 55.0 |
Interior Height | 15.88" (40 cm) |
Interior Width | 11.88" (30 cm) |
Interior Depth | 12.38" (31 cm) |
Level Legs | 4 |
AVAILABLE UPGRADES
Exterior | |
---|---|
|
FEATURES
No drain is required for more flexibility in placing the icemaker indoors or outside
31.75" height allows installation under lower ADA-compliant counters
Durable construction for safe installation in outdoor kitchens
This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic
Convenient design allows more flexibility in positioning the unit
304-grade stainless steel allows the icemaker to be used freestanding
Produces and stores more than 20 lbs of ice per day cycle
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
User-reversible door swing for flexible placement
Space-saving design with easier cleanability
Operates with a standard 1/4” OD water supply line
Make the best use of space by installing your ice maker under the counter
Horizontally mounted towel bar style handle in stainless steel

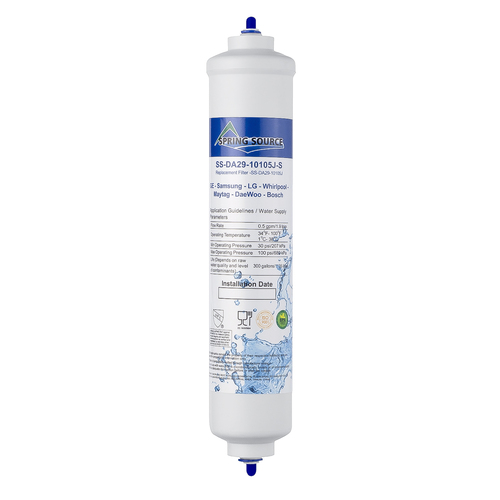

Water filter is included for optional use
Large ice scoop and holder included for your convenience
Crescent-shaped ice provides a harder and longer-lasting ice
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DESCRIPTION
Summit combines convenience and luxury to craft the BIM27OSADA - an undercounter icemaker finished in complete 304-grade stainless steel. Sized at just under 15" wide, the BIM27OSADA features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height just under 32", Summit designed this icemaker to be compatible with ADA-compliant counters in outdoor spaces. This unit can be raised to 34". A taller kickplate is included for a streamlined and cohesive look. The cabinet and user-reversible door also feature a stainless steel finish for a professional style built to last, paired with a sleek handle mounted horizontally to finish the look. There’s a sealed back to allow more flush installation. An optional water filter is included and designed to be mounted in the rear. A look inside the BIM27OSADA shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its complete stainless steel construction and low maintenance design, the BIM27OSADA is a great way to finish any undercounter outdoor space and allows you to maintain an entire supply of ice with less waste. The weatherproof construction allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. This outside icemaker is an ADA-compliant model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
