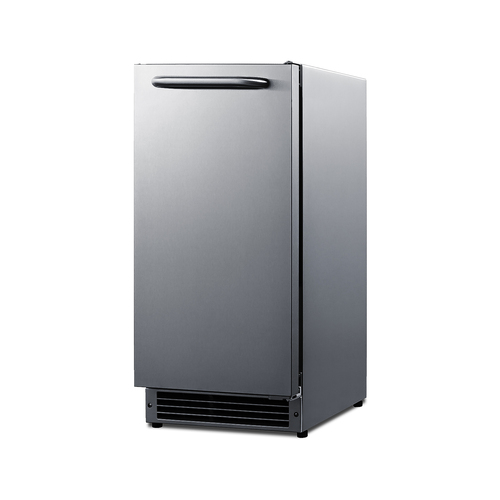

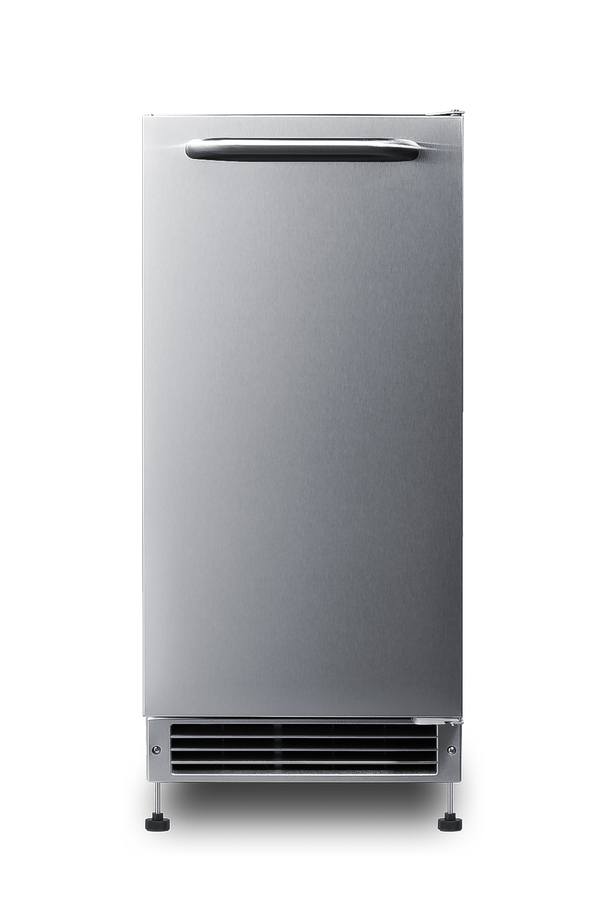

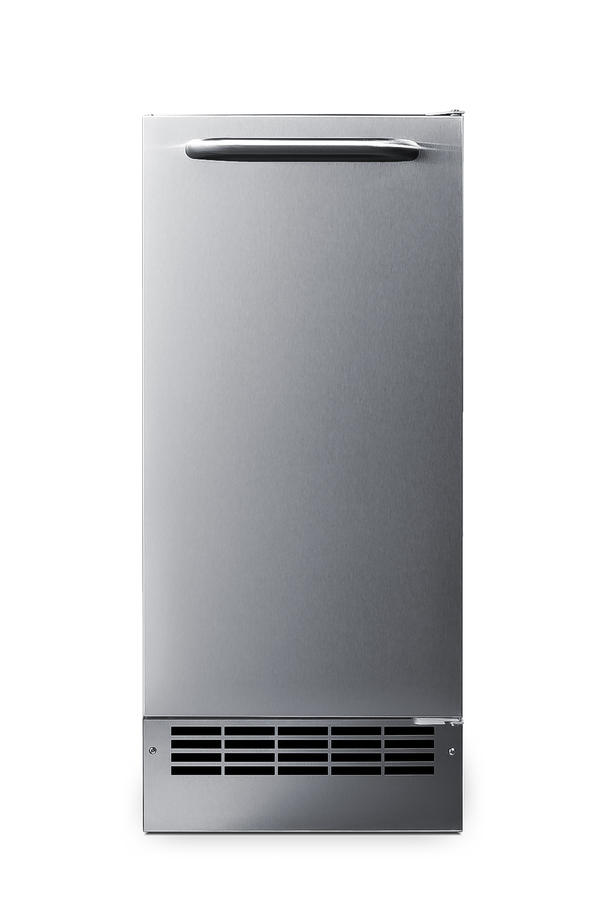

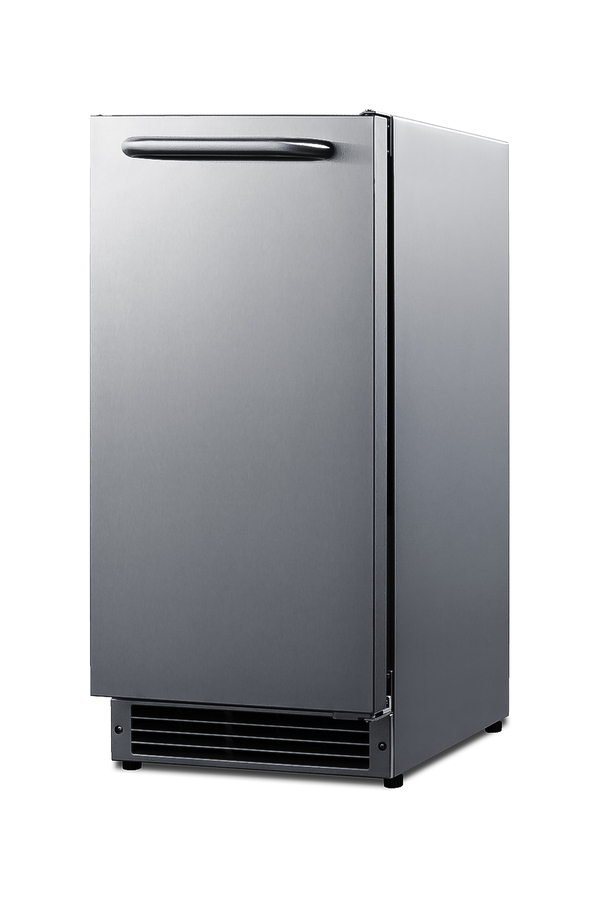

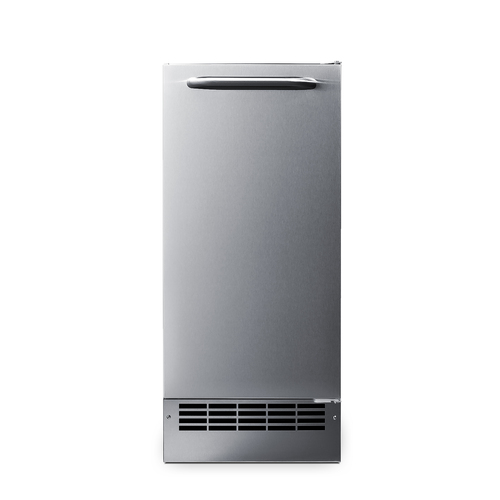

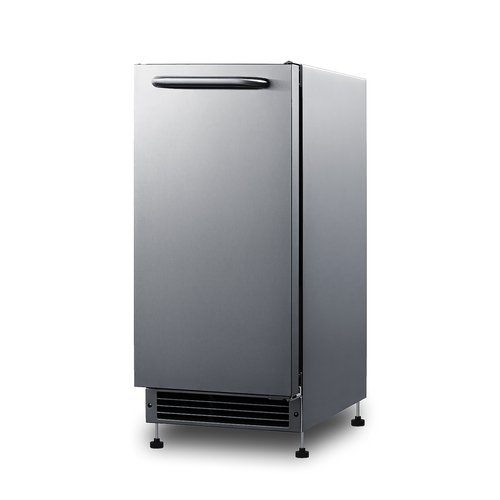

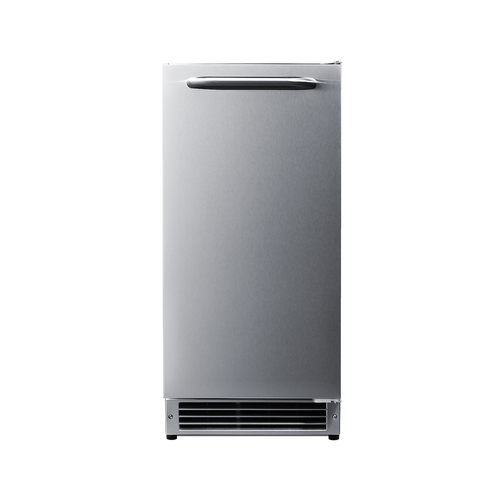

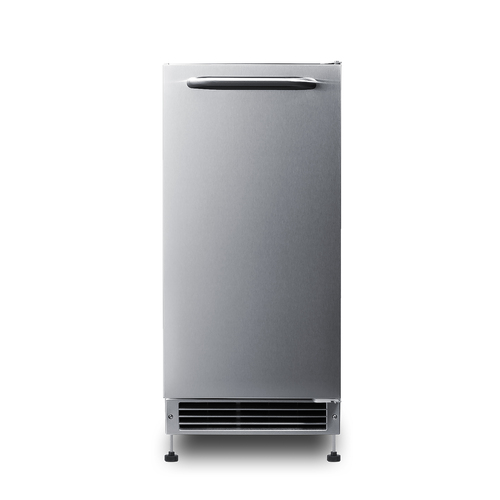

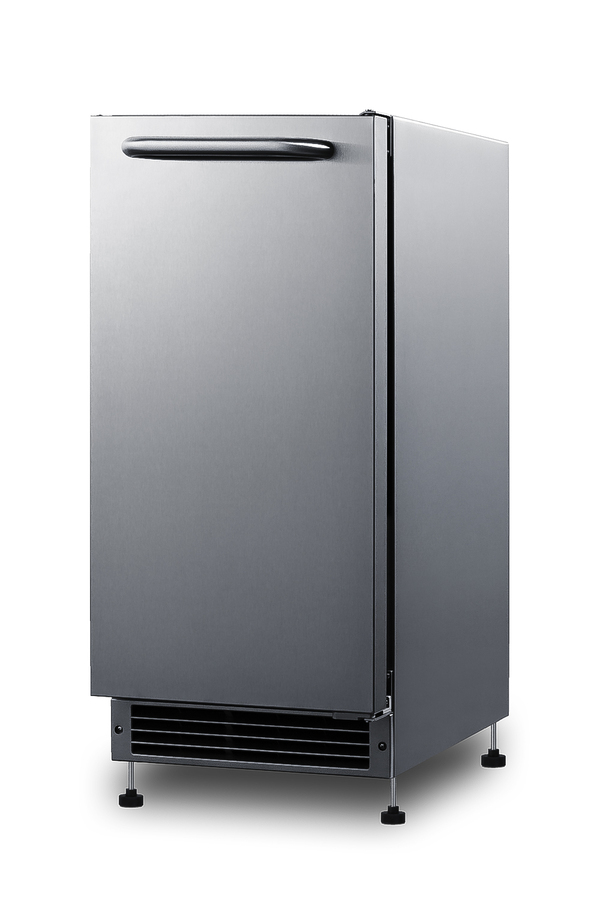

25 lb. Drain-Free outdoor Icemaker

SKU: BIM271OS
Get long-lasting ice where and when it's needed + No drain required!
Out of Stock; ETA:

03/15/2024

Application:
Indoor Outdoor
Color: Stainless Steel

*Additional features may vary

34.0" H x 14.88" W x 19.38" D
(86cm H x 38cm W x 49cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Width 14.88" (38 cm)
Depth 19.38" (49 cm)
Depth with Handle 21.38" (54 cm)
Depth with door at 90° 33.63" (85 cm)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.9
Voltage/Frequency 115 V AC/60 Hz
Weight 61.0 lbs. (28 kg)
Shipping Weight 90.0 lbs. (41 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101103556
Icemaker
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Daily Ice Production 25.0 lbs. (11 kg)
Ice Storage Capacity 22.0 lbs. (10 kg)
Ice Shape Crescent
Size of Cube 1
Number of Ice Cube Sizes 1
Refrigerant Type R600a
Refrigerant Amount 1.58 oz.
High Side PSI 120.0
Low Side PSI 55.0
Interior Height 15.88" (40 cm)
Interior Width 11.88" (30 cm)
Interior Depth 12.38" (31 cm)
Level Legs 4

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

15" Wide No-Drain Icemaker

No drain is required for more flexibility in placing the icemaker indoors or outside

Weatherproof design

Durable construction for safe installation in outdoor kitchens

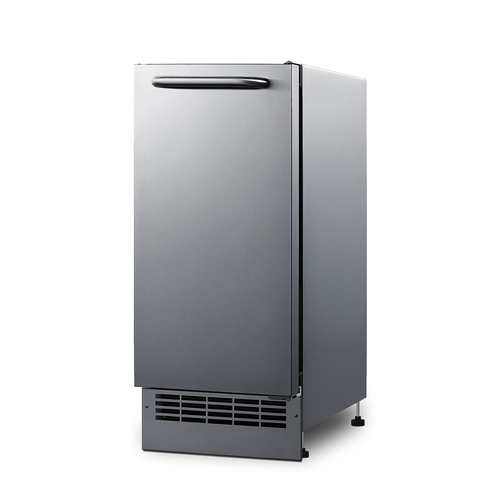

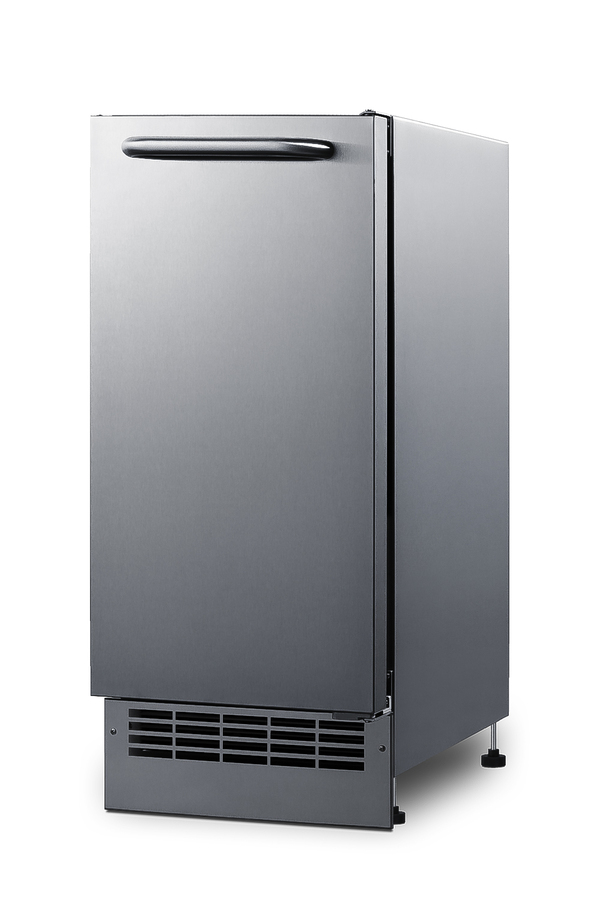

Adjustable Height

This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic

Drain-free design

Convenient design allows more flexibility in positioning the unit

ADA compliant

Customizable height allows installation under lower ADA-compliant counters

Large capacity

Produces and stores more than 20 lbs of ice per day cycle

Manual defrost

Static cooling system helps to keep ice frozen for longer periods of time compared to other systems

Stainless steel exterior

304-grade stainless steel allows the icemaker to be used freestanding

Indoor/outdoor capable

Versatile design allows users the ability to place the unit inside or out

Reversible door

User-reversible door swing for flexible placement

Sealed back

Space-saving design with easier cleanability

Standard water hookup

Operates with a standard 1/4” OD water supply line

Built-In capable

Make the best use of space by installing your ice maker under the counter

Modern handle

Horizontally mounted towel bar style handle in stainless steel

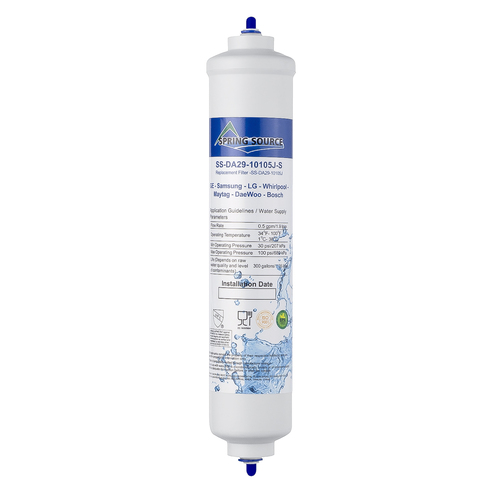

Filter included

Water filter is included for optional use

Ice scoop included

Large ice scoop and holder included for your convenience

Lasting ice cube production

Crescent-shaped ice provides a harder and longer-lasting ice

Removable bin

Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin

Ice stays solid longer in this cold-protected bin

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit combines convenience and luxury to craft the BIM271OS - an undercounter icemaker finished in complete 304-grade stainless steel.

Sized at just under 15" wide, the BIM271OS features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height of 34", Summit designed this icemaker to be compatible with standard counters in outdoor spaces. This unit can be lowered just under 32" to fit ADA-compliant spaces. A smaller kickplate is included for a streamlined and cohesive look.

The cabinet and user-reversible door also feature a stainless steel finish for a professional style built to last, paired with a sleek handle mounted horizontally to finish the look. There’s a sealed back to allow more flush installation. An optional water filter is included and designed to be mounted in the rear.

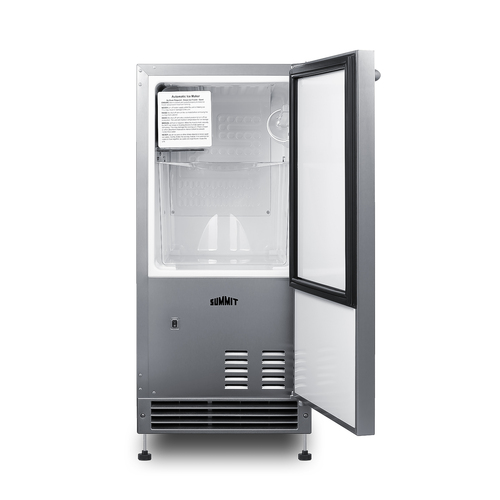

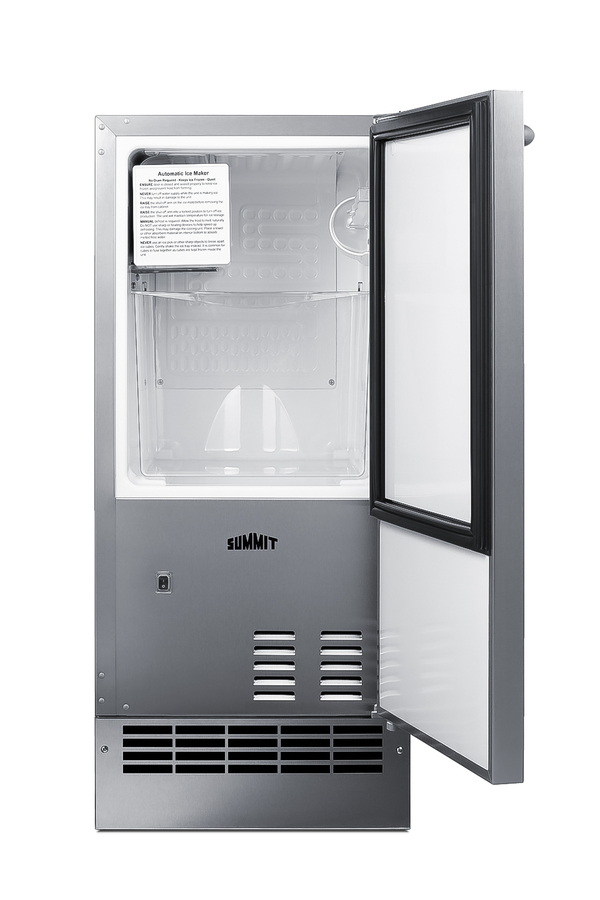

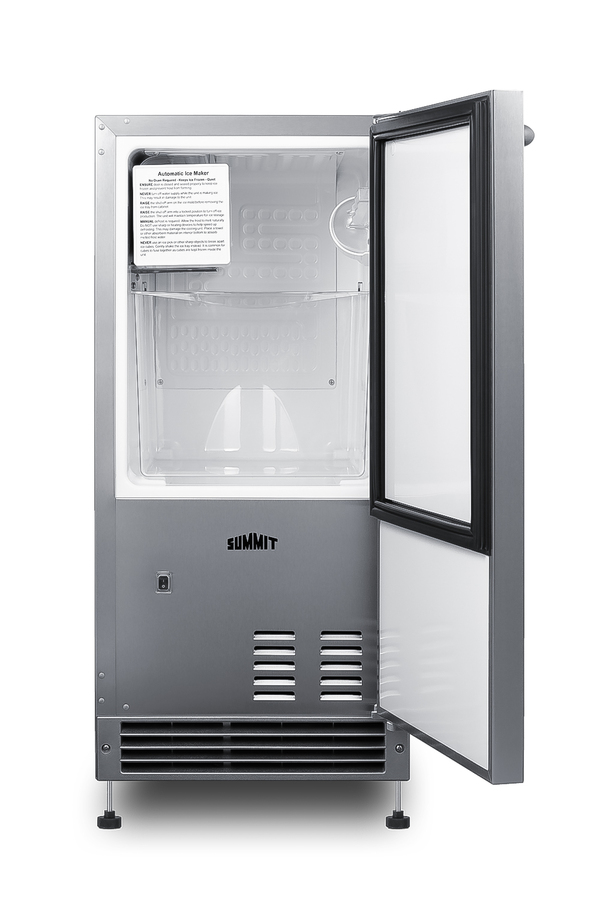

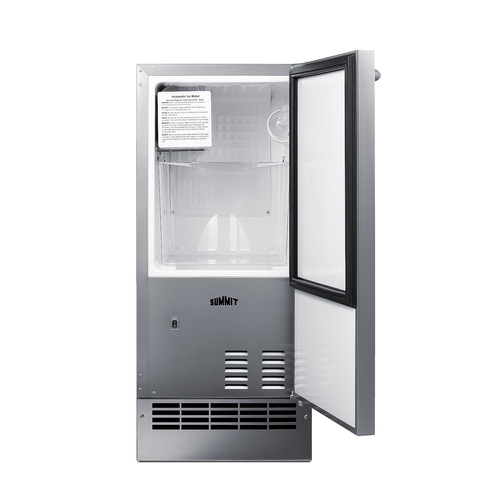

A look inside the BIM271OS shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop.

With its complete stainless steel construction and low maintenance design, the BIM271OS is a great way to finish any outdoor space and allows you to maintain an entire supply of ice with less waste. The weatherproof construction allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar.

Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
