BIM24OSBase34

33.63" H x 15.13" W x 20.63" D

(85cm H x 38cm W x 52cm D)

OVERVIEW

  • U.L. approved for outdoor use, with three levels of weatherproofing in design
  • Complete construction in durable 304 grade stainless steel
  • Produces up to 10 lbs. of crescent-shaped ice in a day cycle
  • Functional elegance with a sturdy towel bar handle in brushed stainless steel
  • Base cabinet provides convenient storage options

SPECIFICATIONS

Overview
Height of Cabinet 33.25" (84 cm)
Height to Hinge Cap 33.63" (85 cm)
Width 15.13" (38 cm)
Depth 20.63" (52 cm)
Depth with Handle 23.13" (59 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing RHD
Reversible No
Daily Ice Production 12.0 lbs. (5 kg)
Ice Storage Capacity 12.0 lbs. (5 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Refrigerant Type R134a
Refrigerant Amount 2.4 oz.
Interior Height 11.75" (30 cm)
Interior Width 10.0" (25 cm)
Interior Depth 13.0" (33 cm)
Level Legs 4


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

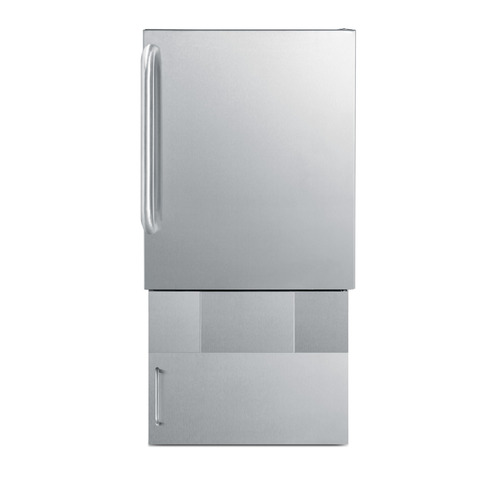

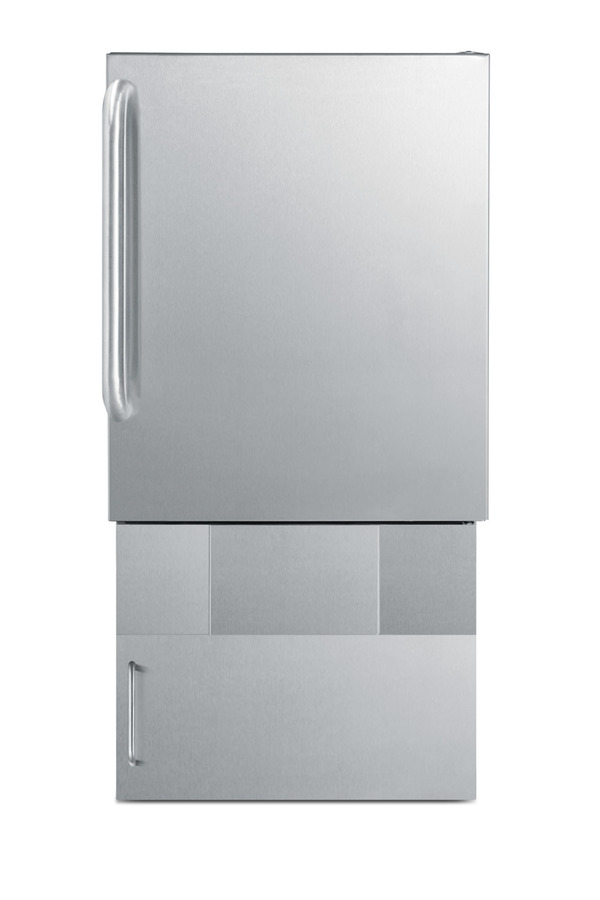

SUMMIT brings a convenient freeze to the outdoors with the BIM24OSBase34, a compact icemaker with U.L. approval for outdoor use.

Fully wrapped in 304 grade stainless steel, the BIM24OSBase34 is designed to stand up to nature with elegant style. The weatherproof design includes a completely sealed back that protects all electrical components and SUMMIT's integrated Ground Fault Circuit Interrupter (GFCI) adds an extra level of protection and automatically resets the unit in the event of power failure.

The BIM24OSBase34 is designed for built-in installation under counters but can also function freestanding. It is mounted on a lower base that raises the unit height to be adjustable between 33" and 34 ¾" high. This stainless steel cabinet offers convenient options for storing icemaker accessories and other outdoor utensils inside the drawer.

The BIM24OSBase34 can produce and store up to 12 pounds of crescent shaped cubes in a day cycle, with a carefully insulated storage bin. Operation does not require a drain. Our signature 12" towel bar handle completes the package.

FEATURES

U.L. approved for outdoor use
Weatherproof design rated safe for outdoor operation
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished cabinet
Allows the unit to be used freestanding
Complete 304 grade stainless steel construction
Durable exterior with lasting elegance
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip

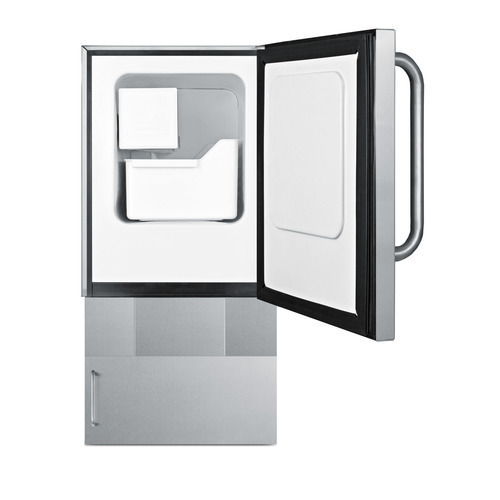

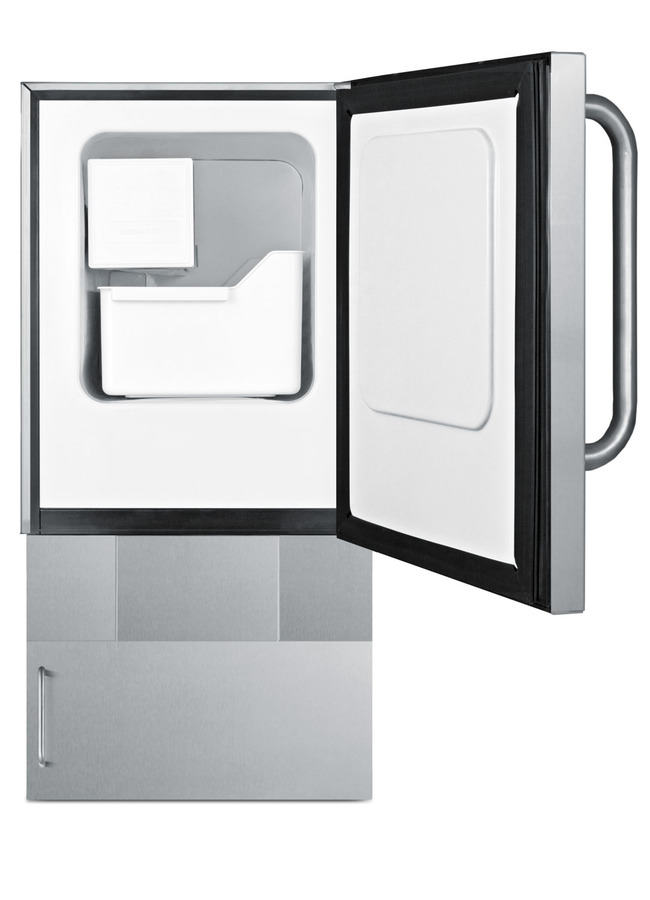

Insulated storage bin
Ice maintains solid crescent shape longer in cold storage bin
Sealed back
No exposed electrical components
Storage base
Stainless steel base includes drawer
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.25" (84 cm)
Height to Hinge Cap 33.63" (85 cm)
Width 15.13" (38 cm)
Depth 20.63" (52 cm)
Depth with Handle 23.13" (59 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing RHD
Reversible No
Daily Ice Production 12.0 lbs. (5 kg)
Ice Storage Capacity 12.0 lbs. (5 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Refrigerant Type R134a
Refrigerant Amount 2.4 oz.
Interior Height 11.75" (30 cm)
Interior Width 10.0" (25 cm)
Interior Depth 13.0" (33 cm)
Level Legs 4

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
BIM24OSBase34.pdf
Download
TECHNICAL DRAWING (.dwg)
BIM24OSBASEICEMAKER.dwg


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
