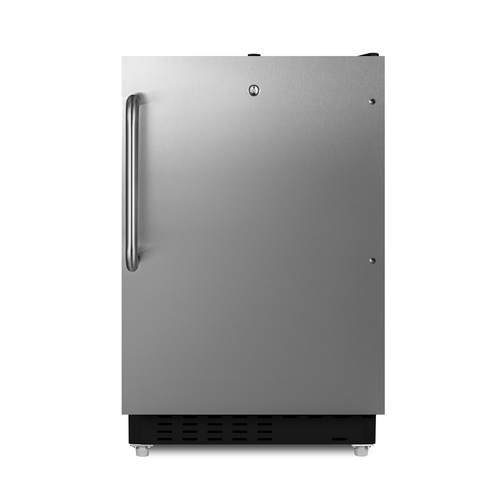

20" Wide Built-in Refrigerator-Freezer, ADA Compliant

SKU: ALRF49BCSS

32" height and front-breathing system for built-in installation under ADA compliant counters

Estimated Time to Ship: 3 days to 2 weeks; For options that ship faster, contact our sales team at 718-893-3900 ext. 507

32.0" H x 19.88" W x 22.5" D

(81cm H x 50cm W x 57cm D)

SPECIFICATIONS

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.88" (50 cm)
Width with Door Open 20.88" (53 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 259.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076553
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 17.5" (44 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Refrigerator - Temperature Range 35-46º F
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 0.92 oz.
Freezer - Interior Height 5.75" (15 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 11.25" (29 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Lock
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

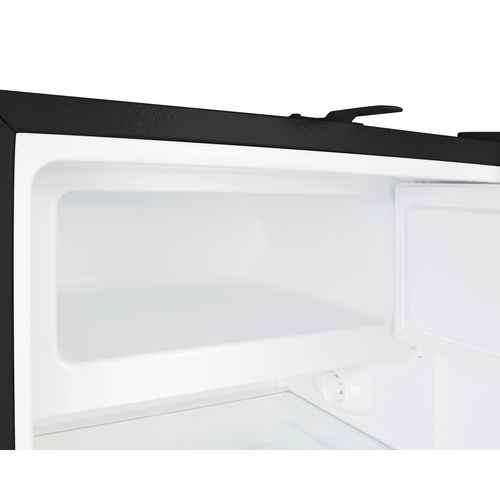

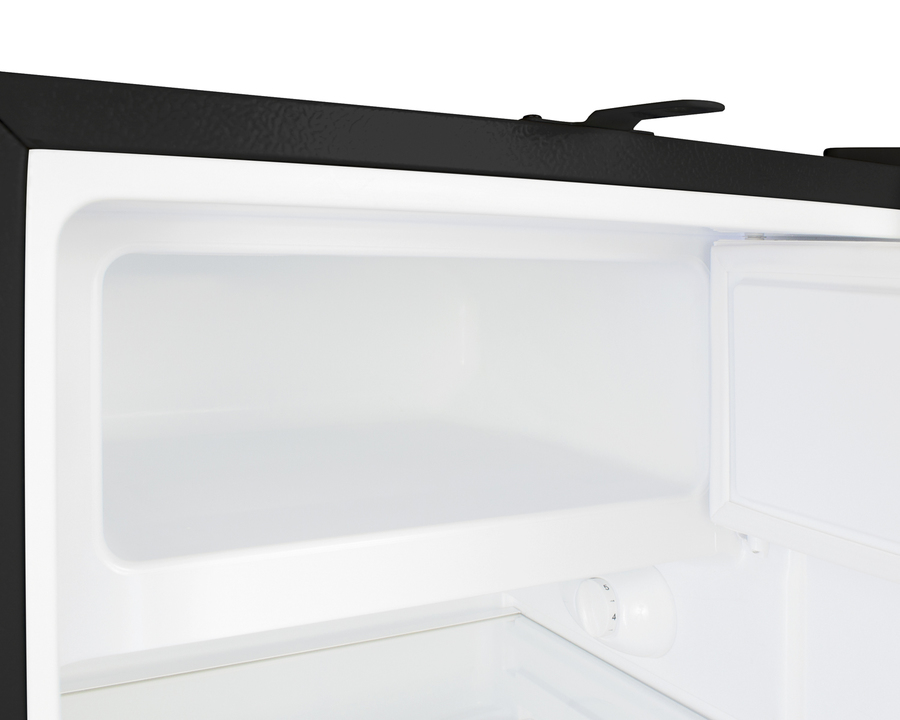

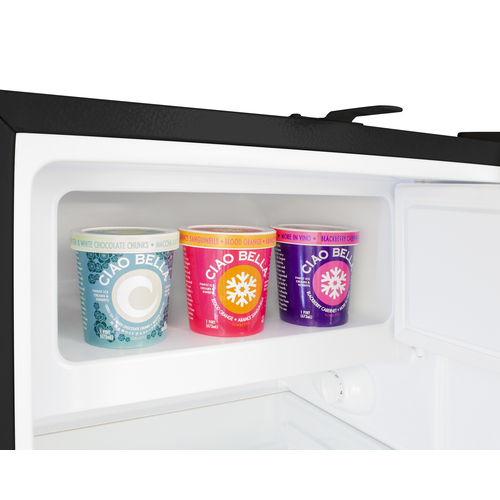

Freezer compartment
Interior freezer compartment offers convenient storage for frozen items

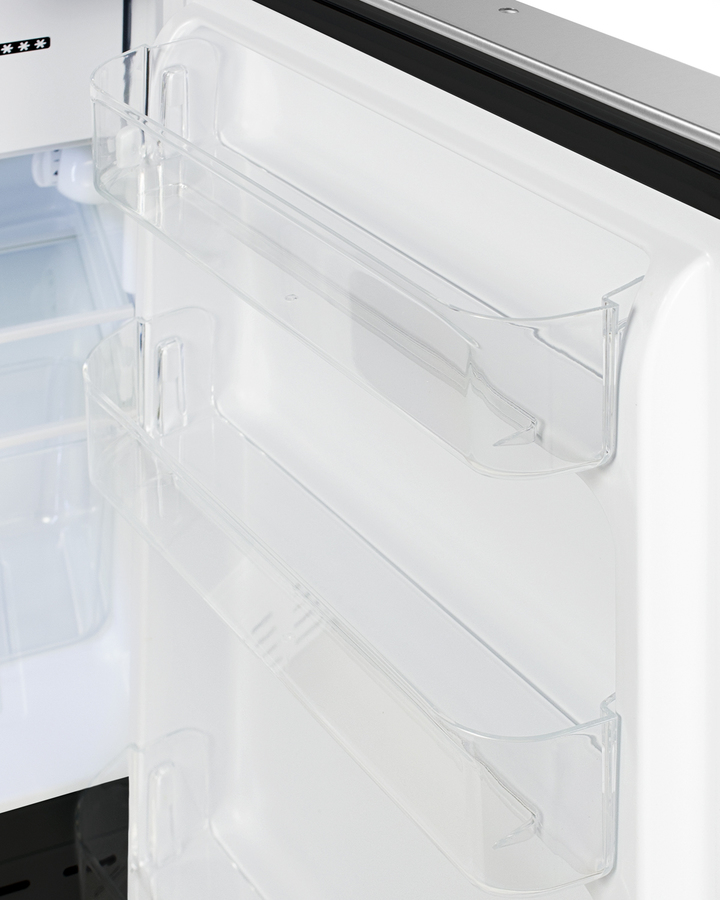

Door shelves

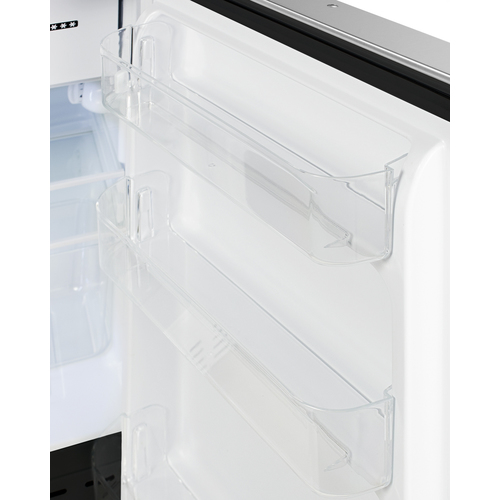

Three removable door racks for additional storage of larger items
Adjustable shelves
Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Reversible stainless steel door
Stainless steel, user-reversible door for added flexibility to best accommodate your setting
3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
Professional towel bar handle
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
Factory installed lock
Lock provides added security of unit (2 keys included)
Sealed back
Space-saving design that offers easier cleanability
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Manual defrost
Efficient performance with reliable temperature stability
Interior light
Front-located LED light ensures entire interior is lit when door opens
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

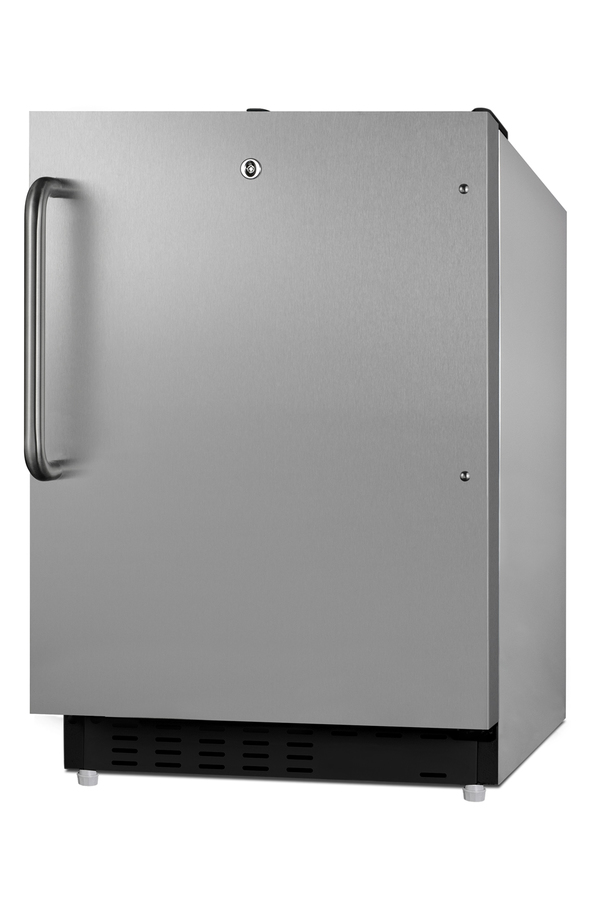

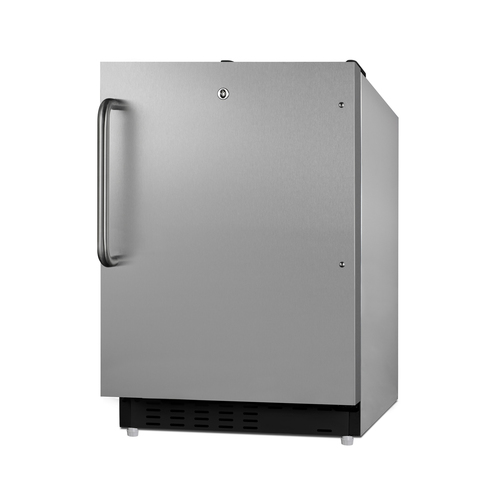

The ALRF49BCSS is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

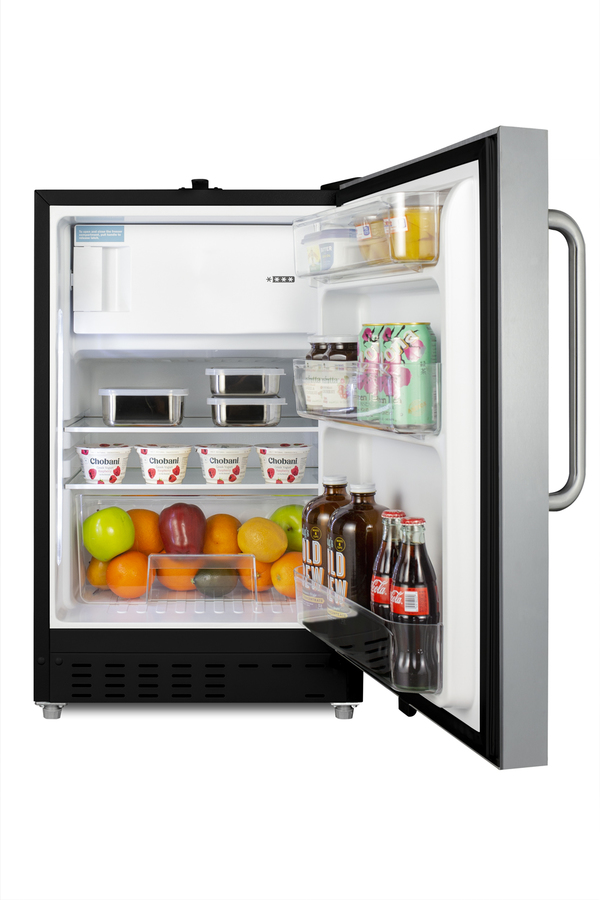

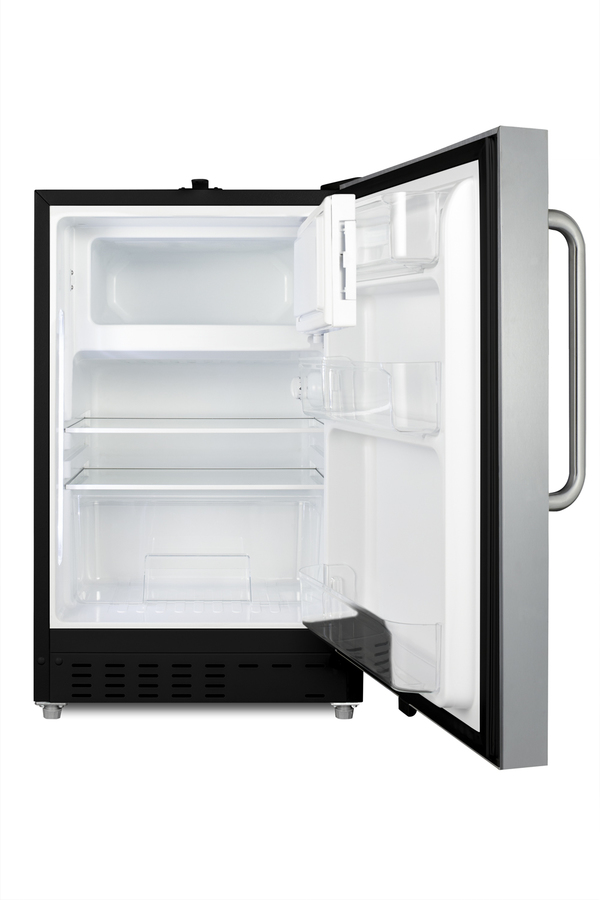

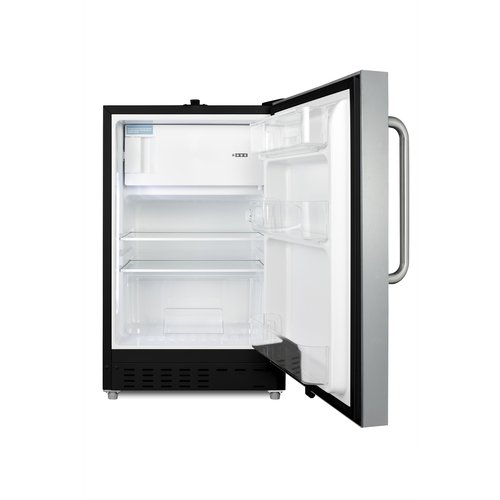

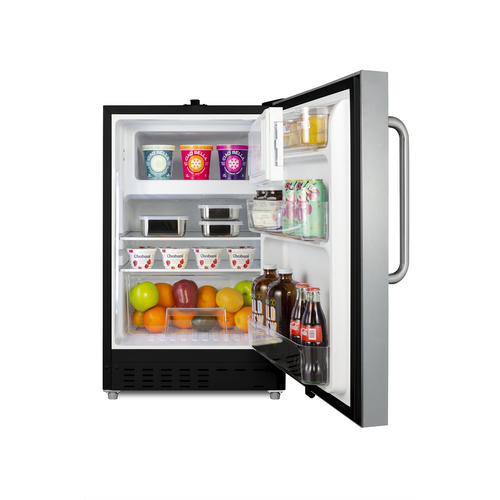

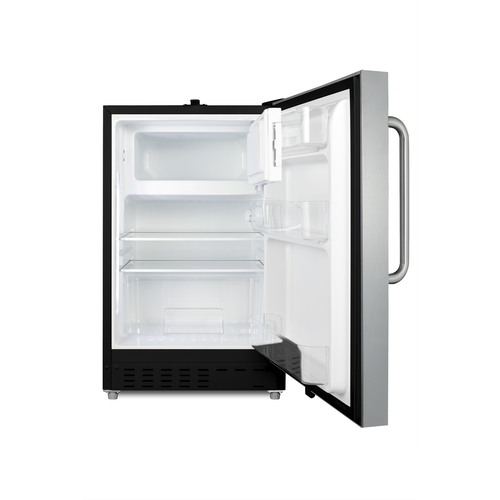

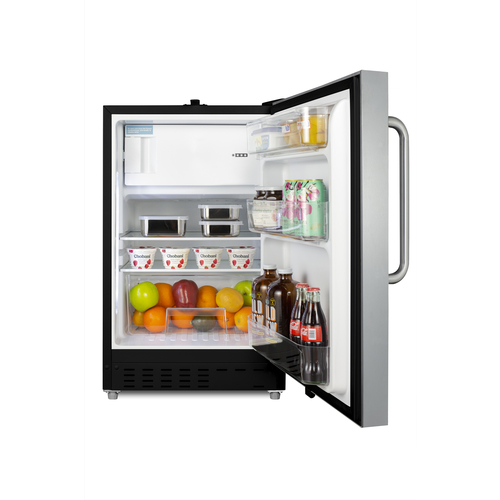

Inside, the ALRF49BCSS features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.

With its compact size and convenient features, the ALRF49BCSS is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.

SPECIFICATIONS

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.88" (50 cm)
Width with Door Open 20.88" (53 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 259.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076553
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 17.5" (44 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Refrigerator - Temperature Range 35-46º F
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 0.92 oz.
Freezer - Interior Height 5.75" (15 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 11.25" (29 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Lock
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
