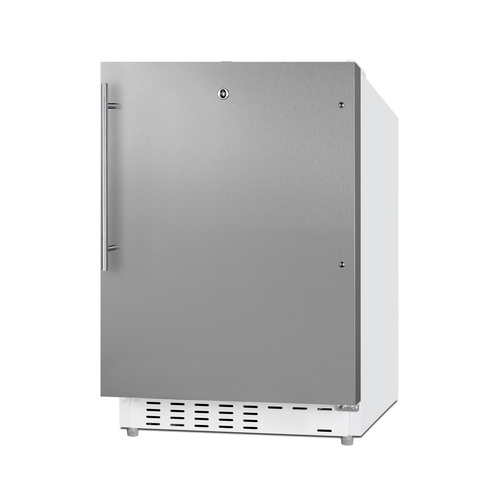

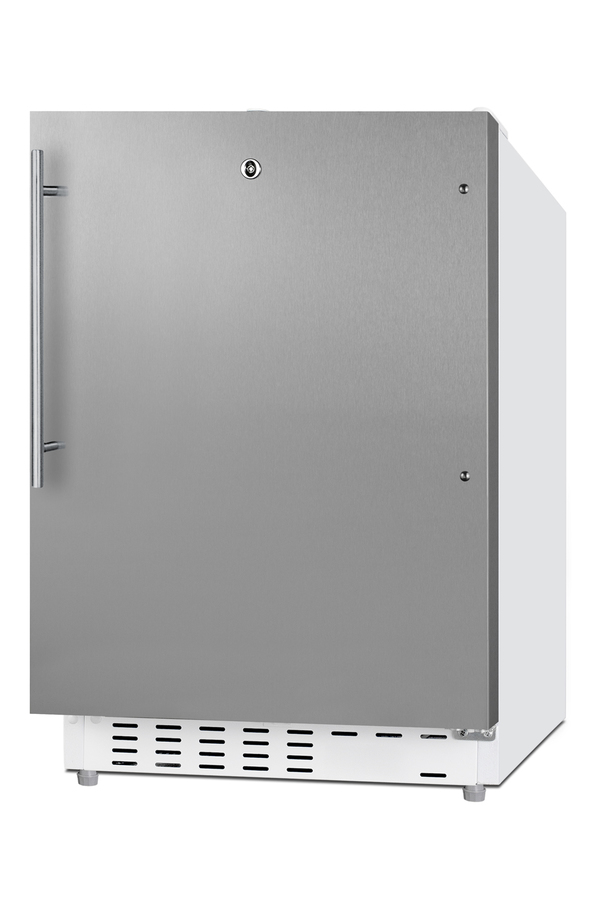

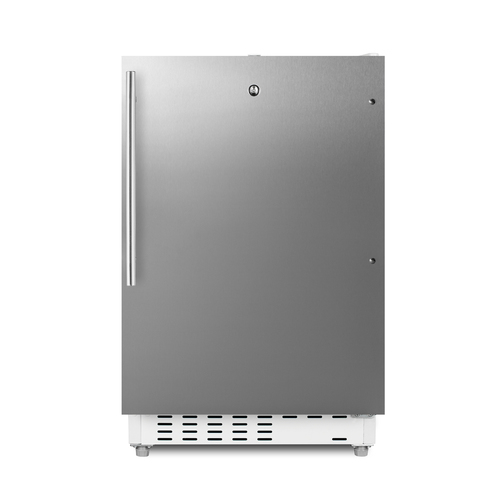

21" Wide Built-in Refrigerator-Freezer, ADA Compliant

SKU: ALRF48SSHV
32" height and front-breathing system for built-in installation under ADA compliant counters
Out of Stock; ETA:

04/30/2024

Cabinet:
Color: White

*Additional features may vary

32.0" H x 20.88" W x 22.5" D
(81cm H x 53cm W x 57cm D)

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 20.88" (53 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 259.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 85.0 lbs. (39 kg)
Shipping Weight 101.0 lbs. (46 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076669
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 17.5" (44 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Refrigerator - Temperature Range 35-46º F
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 0.92 oz.
Freezer - Interior Height 5.75" (15 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 11.25" (29 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)
Sound Level 32.9 dB

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Lock
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

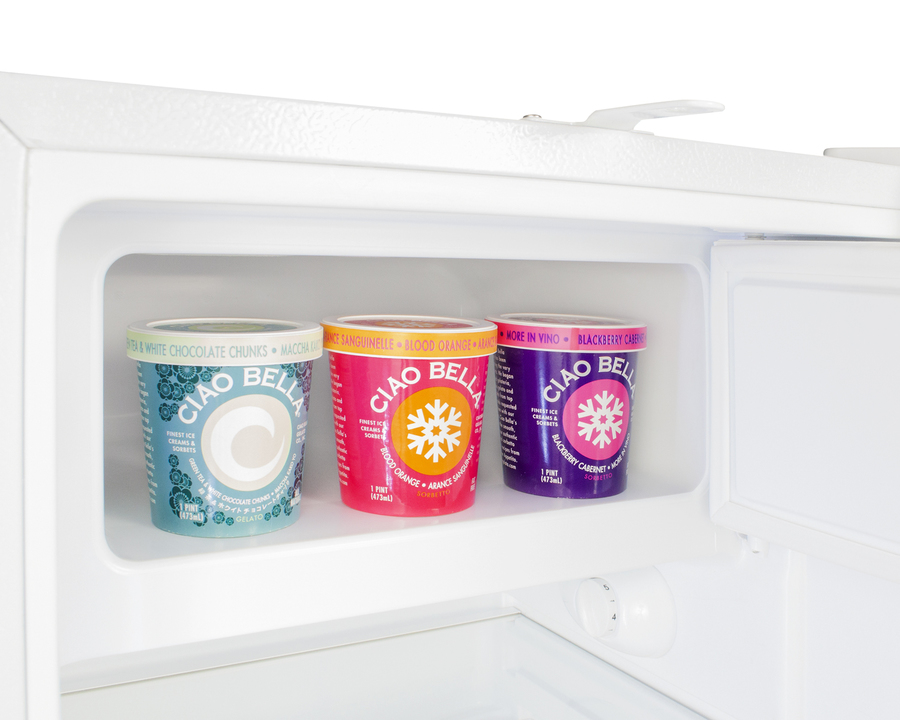

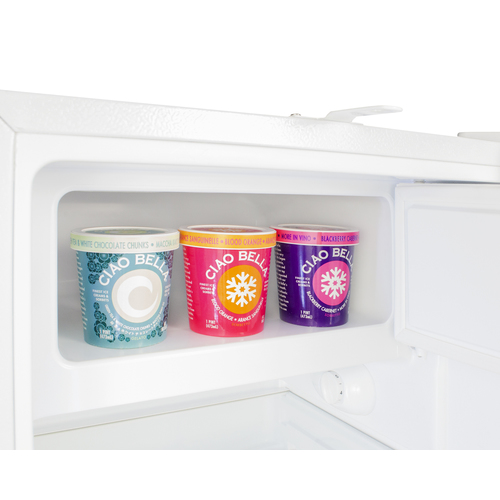

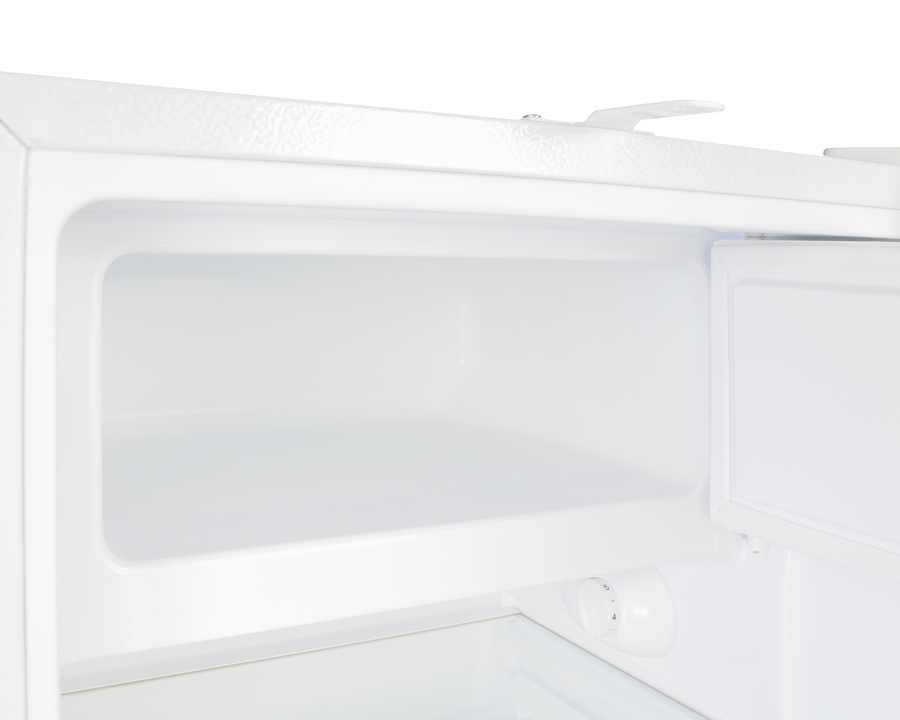

Freezer compartment

Interior freezer compartment offers convenient storage for frozen items

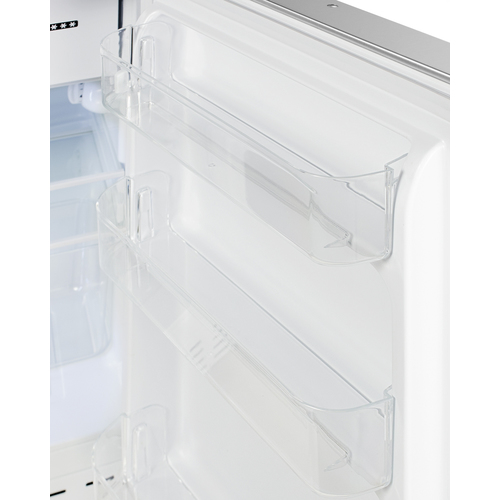

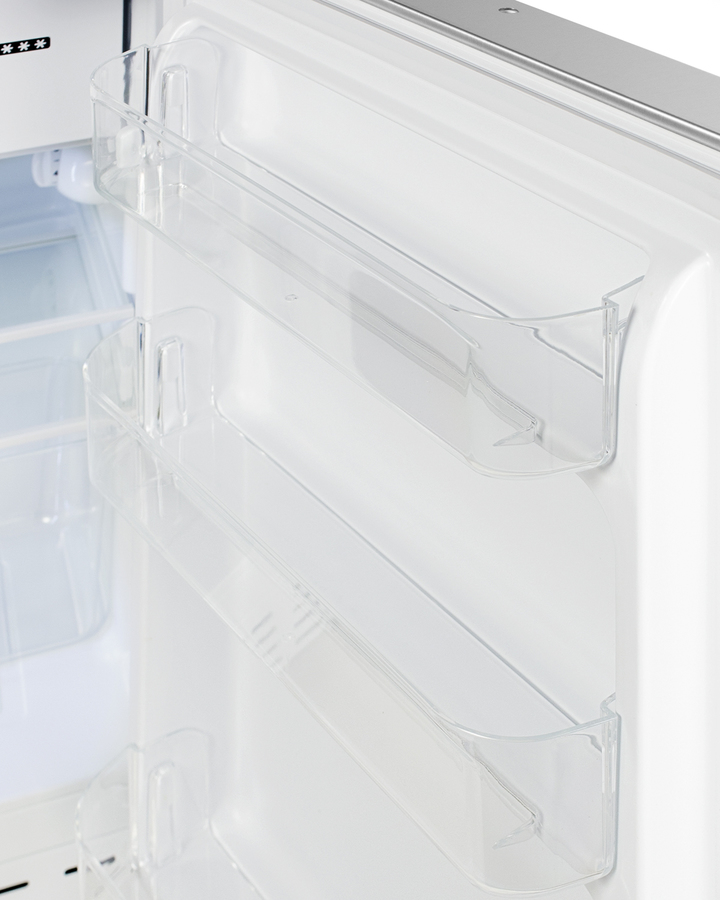

Door shelves

Three removable door racks for additional storage of larger items

Adjustable shelves

Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Reversible stainless steel door

Stainless steel user-reversible door swing for added flexibility to best accommodate your setting

3" thick door

Improved insulation for an efficient performance

Factory installed lock

Lock provides added security of unit (2 keys included)

Sealed back

Space-saving design that offers easier cleanability

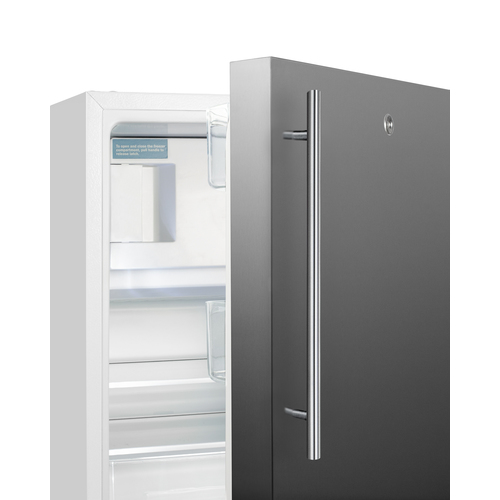

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost

Efficient performance with reliable temperature stability

Interior light

Front-located LED light ensures entire interior is lit when door opens

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ALRF48SSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

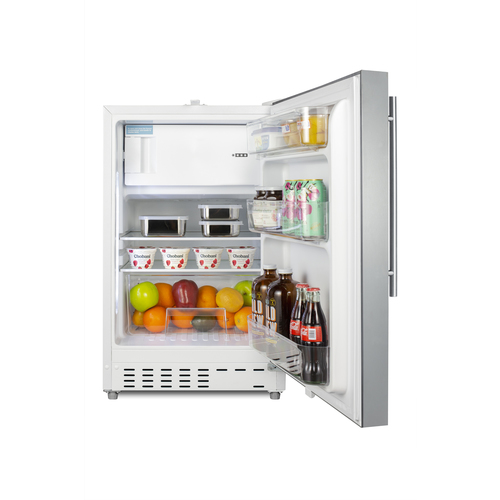

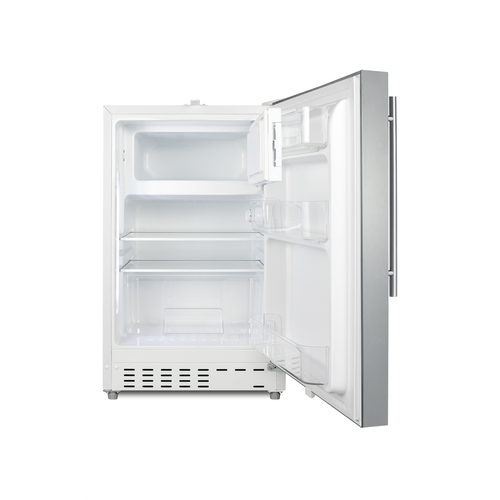

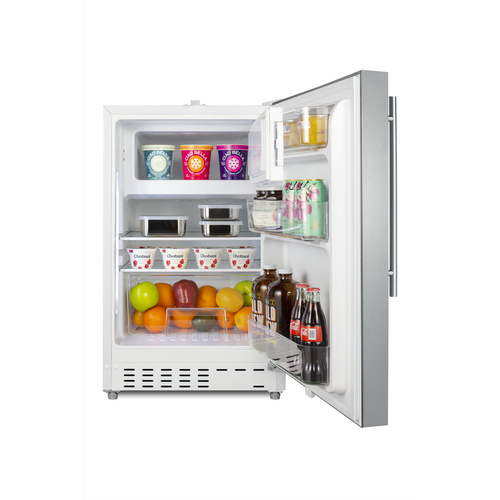

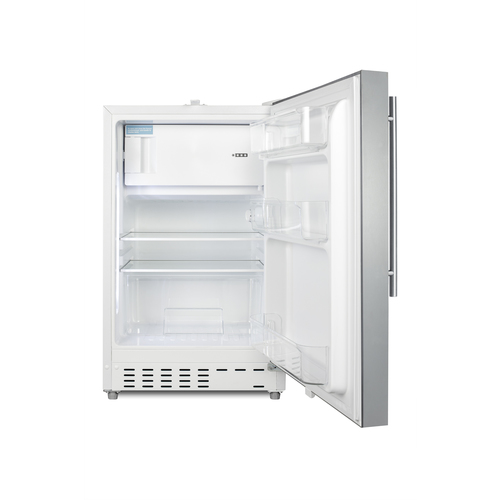

Inside, the ALRF48SSHV features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.

With its compact size and convenient features, the ALRF48SSHV is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
