20" Wide Built-in Refrigerator-Freezer, ADA Compliant

SKU: ALRF48

Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

32" height and front-breathing system for built-in installation under ADA compliant counters

32.0" H x 19.75" W x 22.5" D

(81cm H x 50cm W x 57cm D)

OVERVIEW

  • Just 32" high for an easy fit under lower ADA compliant counters
  • Factory-installed lock offers added security
  • Less than 20" wide for use in space-challenged rooms
  • All-in-one refrigerator-freezer design for maximum convenience in a slim-fit
  • Easy storage convenience with door racks and glass shelves
  • Added flexibility with a user-reversible door swing

SPECIFICATIONS

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 259.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 70.0 lbs. (32 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 17.5" (44 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Refrigerator - Temperature Range 35-46º F
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 0.92 oz.
Freezer - Interior Height 5.75" (15 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 11.25" (29 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

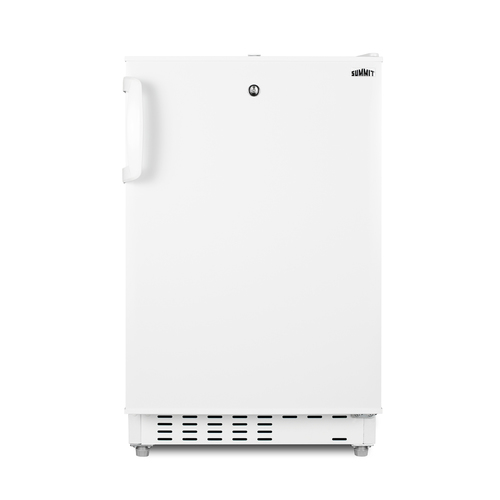

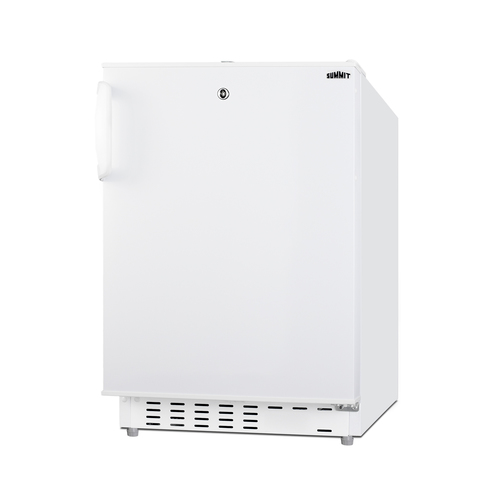

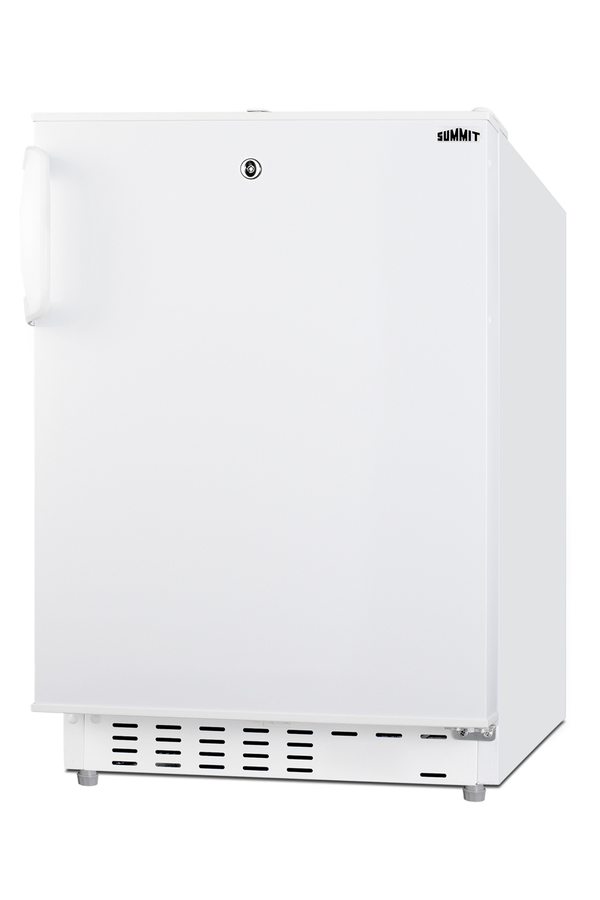

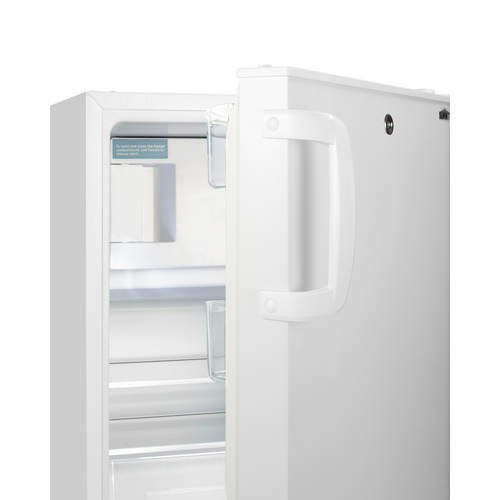

The ALRF48 is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

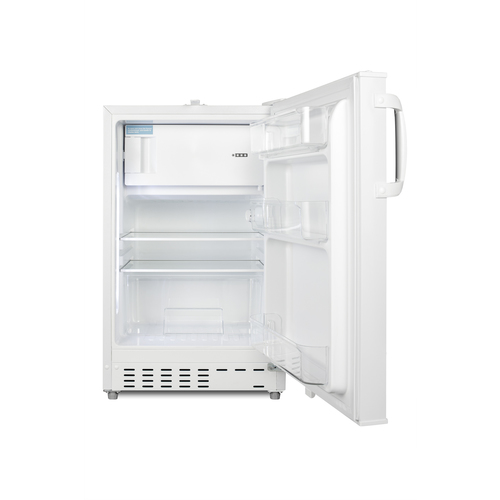

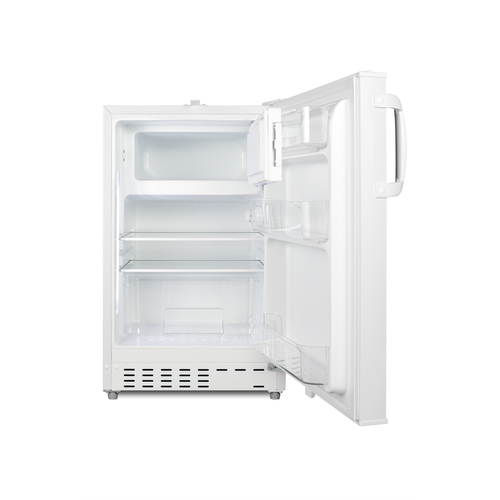

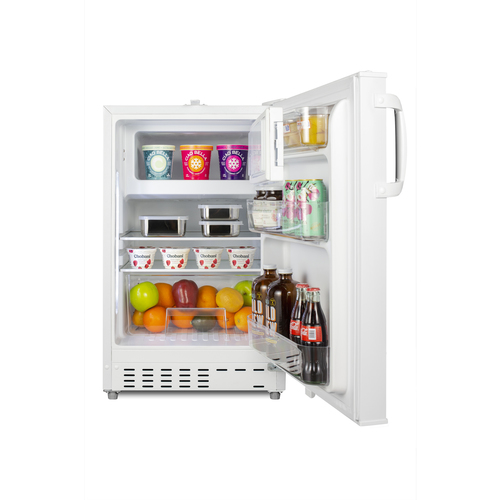

Inside, the ALRF48 features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.

With its compact size and convenient features, the ALRF48 is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.

FEATURES

ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Freezer compartment
Interior freezer compartment offers convenient storage for frozen items
Door shelves
Three removable door racks for additional storage of larger items
Adjustable shelves
Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Reversible door
User-reversible door swing for added flexibility to best accommodate your setting
3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
Factory installed lock
Lock provides added security of unit (2 keys included)
Sealed back
Space-saving design that offers easier cleanability
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Manual defrost
Efficient performance with reliable temperature stability
Interior light
Front-located LED light ensures entire interior is lit when door opens
Fully finished white cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 259.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 70.0 lbs. (32 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 17.5" (44 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Refrigerator - Temperature Range 35-46º F
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 0.92 oz.
Freezer - Interior Height 5.75" (15 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 11.25" (29 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
ALRF48.pdf
Download
TECHNICAL DRAWING (.dwg)
ALRF48_REF__FREEZER__A-C_2018_.dwg
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
