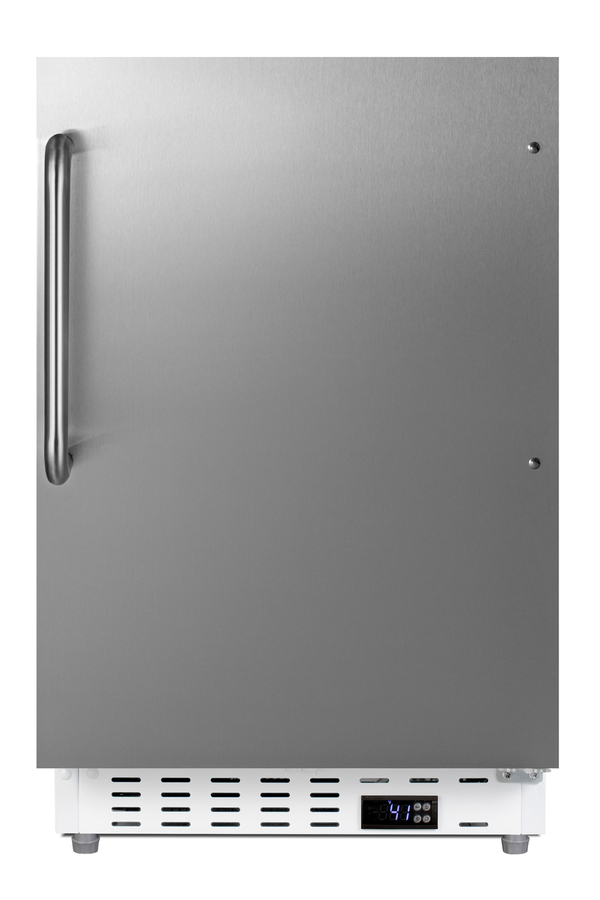

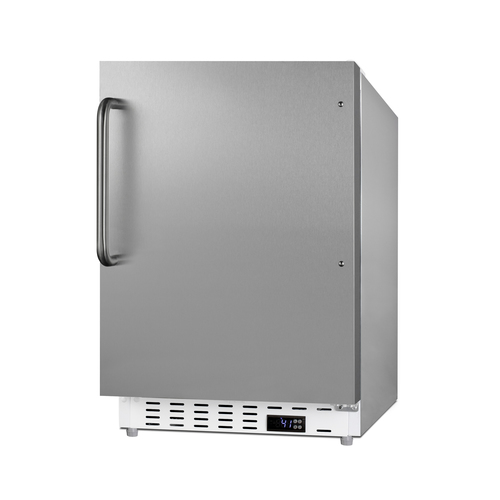

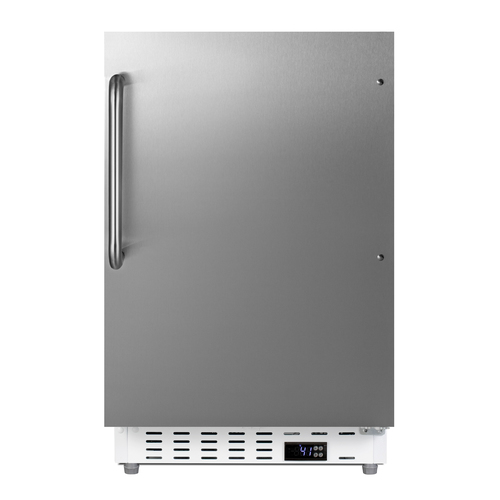

21" Wide Built-In All-Refrigerator, ADA Compliant

SKU: ALR46WCSS
32" height and front-breathing system for built-in installation under ADA compliant counters
Estimated Time to Ship:

3 to 5 days

32.0" H x 20.88" W x 22.5" D
(81cm H x 53cm W x 57cm D)

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 20.88" (53 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 3.53 cu.ft. (100 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 251.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076638
Refrigerator Features
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 2
Wheel Qty 2
Interior Light Yes
Temperature Range 35 to 46°F
Sound Level 33.2 dB
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 16.25" (41 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
LHD - Left hand door swing
Door reversal to left hand swing
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
L-SideLock
Add a single keyed lock located on the door's side
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Adjustable thermostat

Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

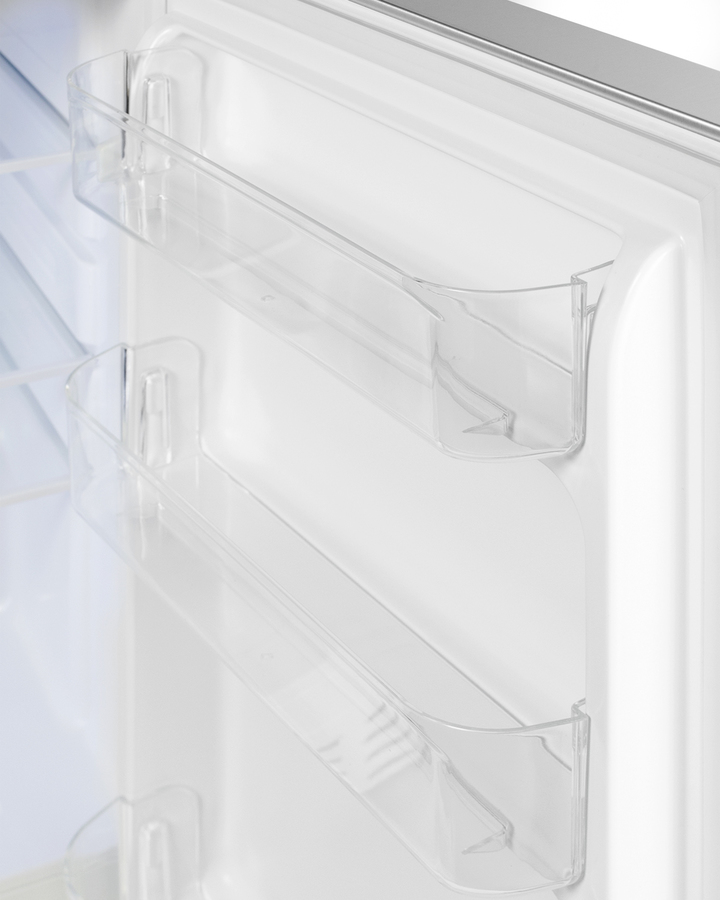

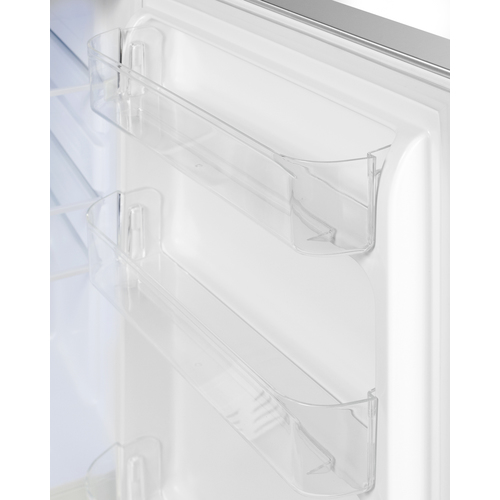

Door shelves

Three removable door racks for additional storage of larger items

Adjustable glass shelves

Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

3" thick door

Improved insulation for an efficient performance

Reversible stainless steel door

User-reversible stainless steel door for added flexibility to best accommodate your setting

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Automatic defrost

Reduced user maintenance with an auto defrost system

Professional towel bar handle

Curved handle in brushed stainless steel offers a sturdy grip with professional elegance

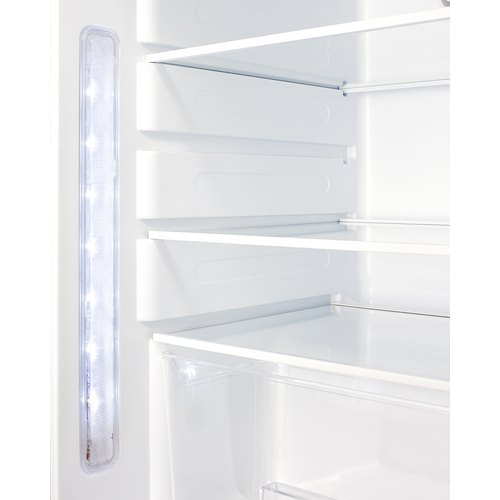

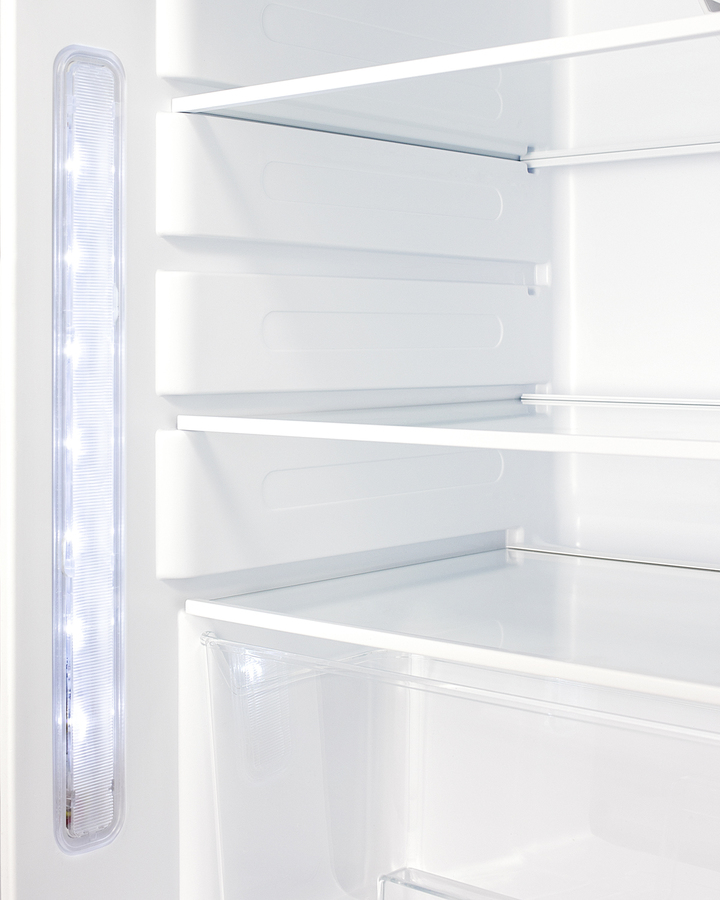

Interior light

Front-located LED light ensures entire interior is lit when door opens

Matching all-freezer

This unit can be paired with the ALFZ36CSS all-freezer for a complete set

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ALR46WCSS is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible stainless steel door is 3" thick for efficient insulation, with a curved towel bar handle handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

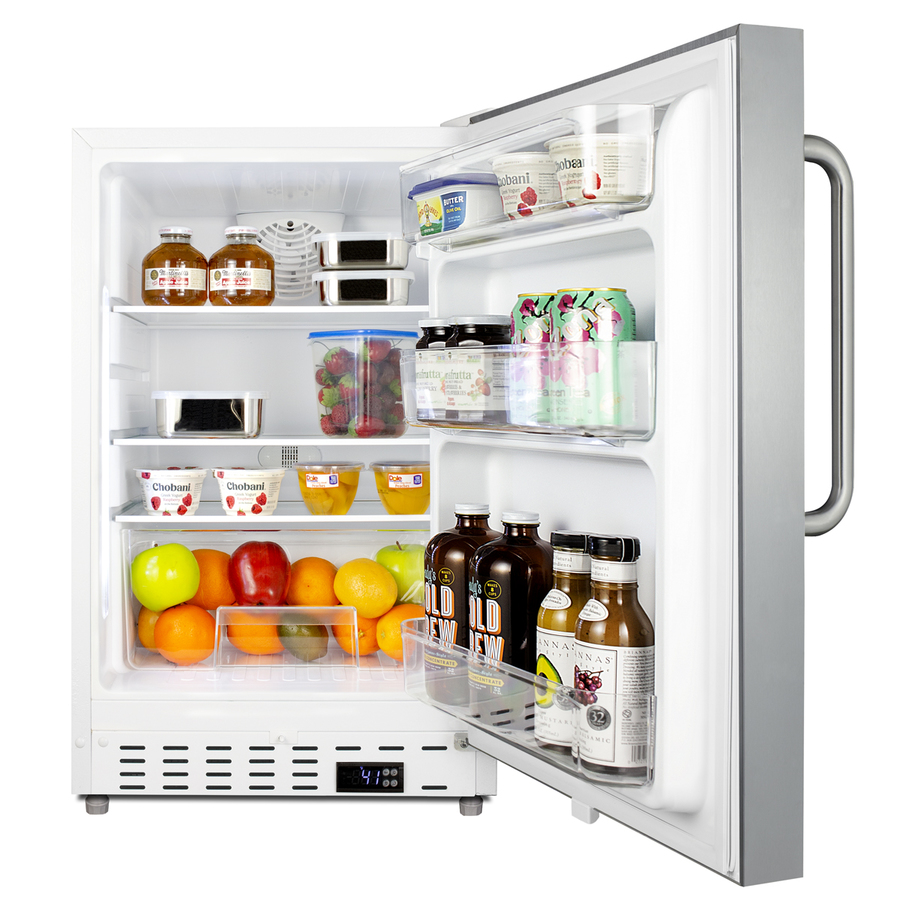

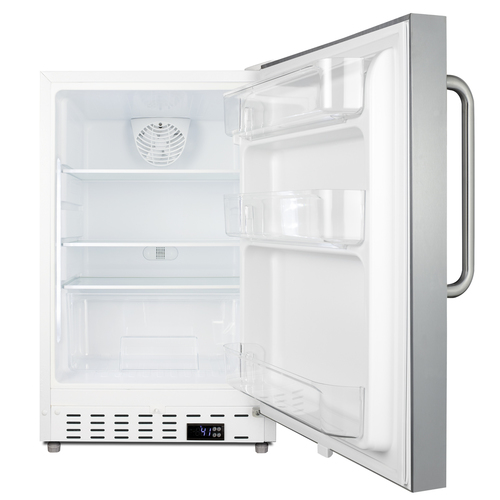

Inside, the ALR46WCSS features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

Sized at just 21" wide, the ALR46WCSS is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36CSS all-freezer. Additional choices with a white cabinet and panel-ready styles are available.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
